High Precision Labeling Machine Semi Automatic For Flat Cambered Bottles

Model: VK-T803
Labeling accuracy: ±0.5mm
Labeling speed: 10～25Pieces / min
Applicable Dimensions (Length): 20mm～250mm
Applicable Product Size (width): 20mm～150mm
Applicable Dimensions (height): 0.2mm～120mm
Applicable Label Size Length: 15mm～250mm Width：15mm～150mm
Inner diameter of label roll: Φ76 mm
Label largest diameter: Φ280mm
Dimensions (L × W × H): 850mm×410mm×720mm
Power supply: 220V 50HZ Total Power 145W
Pressure (Mpa): 0.4～0.6Mpa

As a customied rolling labeling machines model VK-T803 it has the advantage over the traditional labeling machine model VK-T802 in the aspect like labeling accuracy and wide application; while if your labeling product is the one without the unnormal curve or cambered surface the model VK-T802 labeling machine semi automatic is a better choice with the economicality and operation.

Below Is The Explanation For This Labeling Preference In CAD

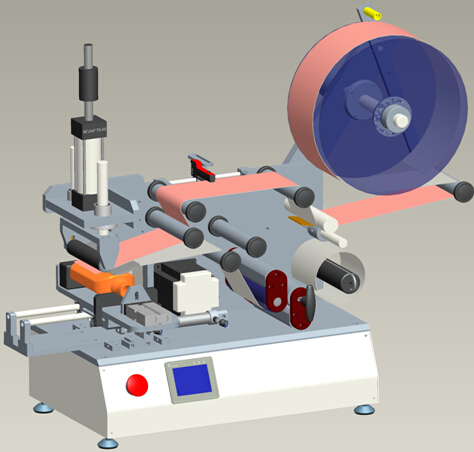

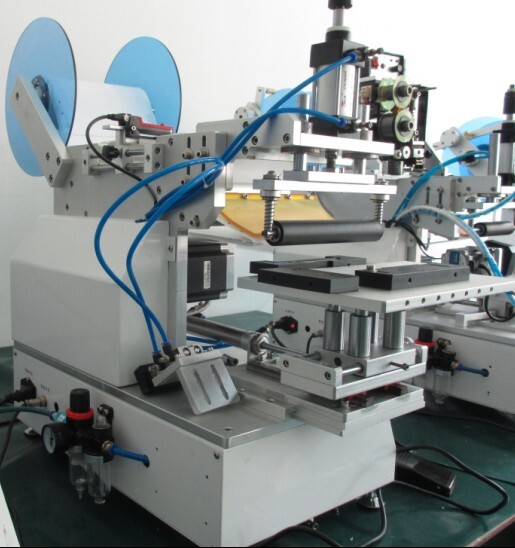

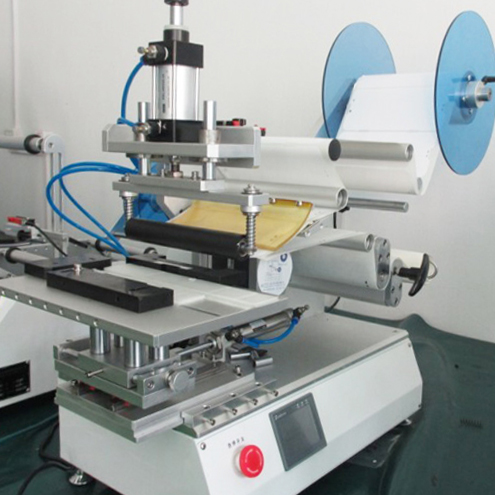

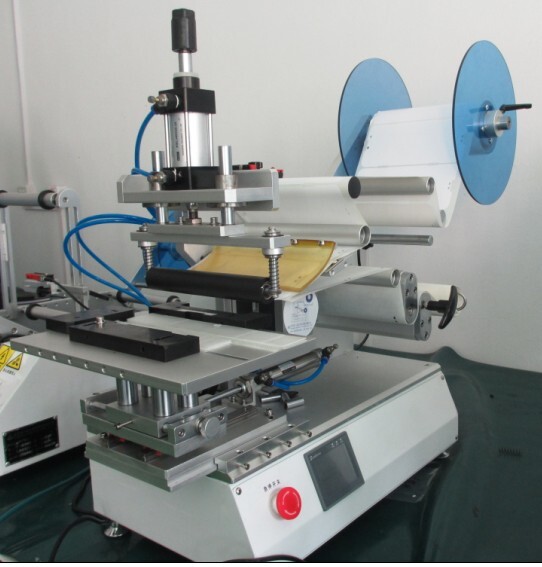

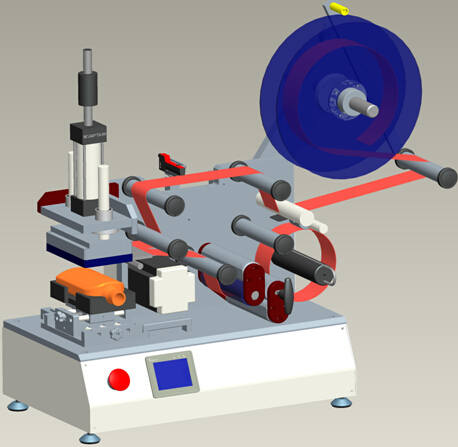

Model VK-T803 In CAD & Real Picture

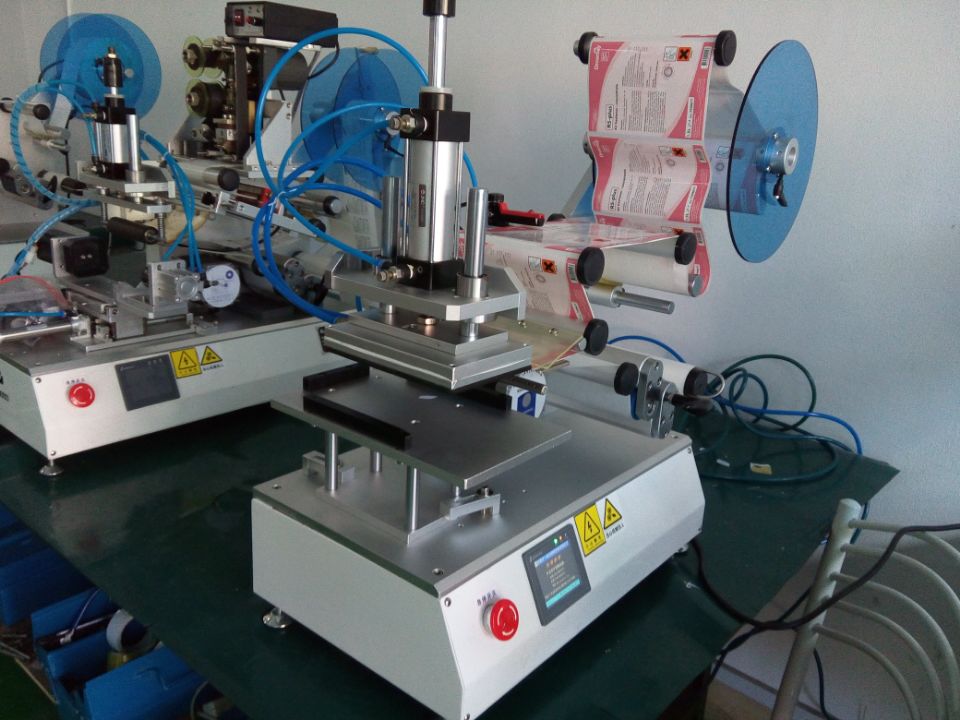

Traditional plane surface labeling machines semi automatic model VK-T802

The reason Why Model VK-T803 labeling machine is better than VK-T802 flat surface labeling machine when applied for labeling curved or irregular containers is displayed as below:

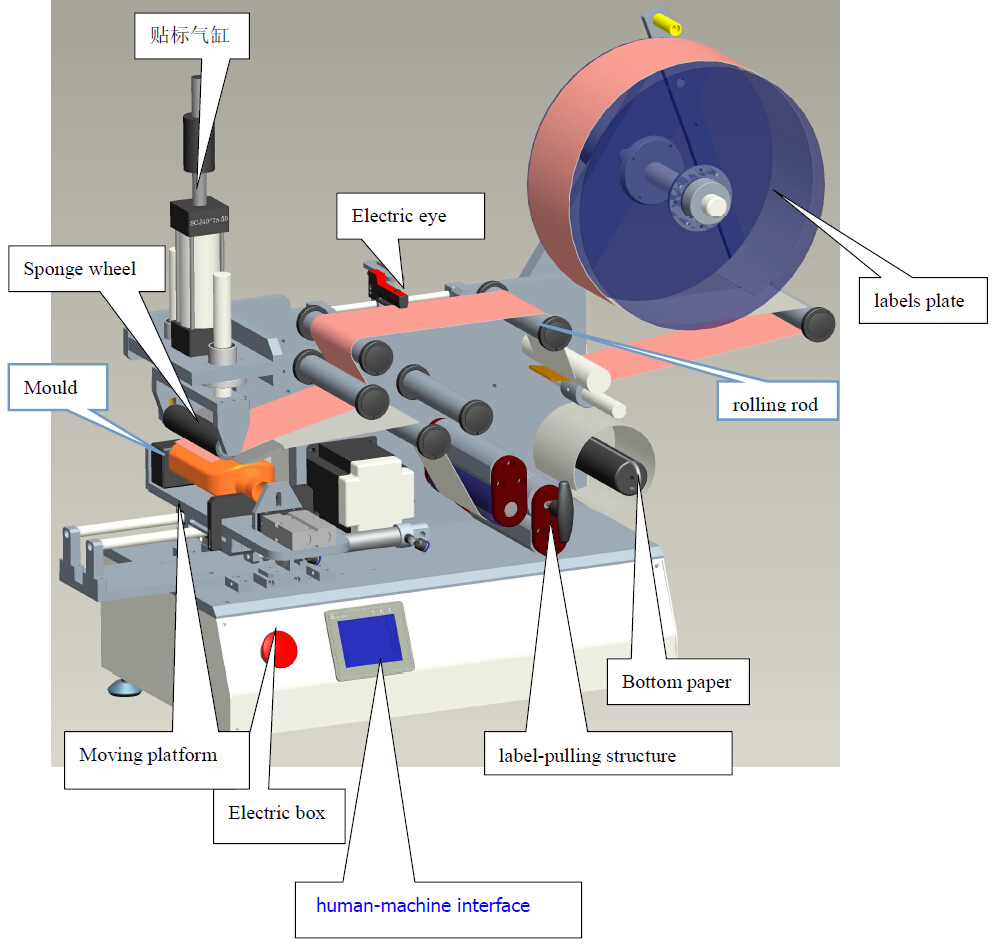

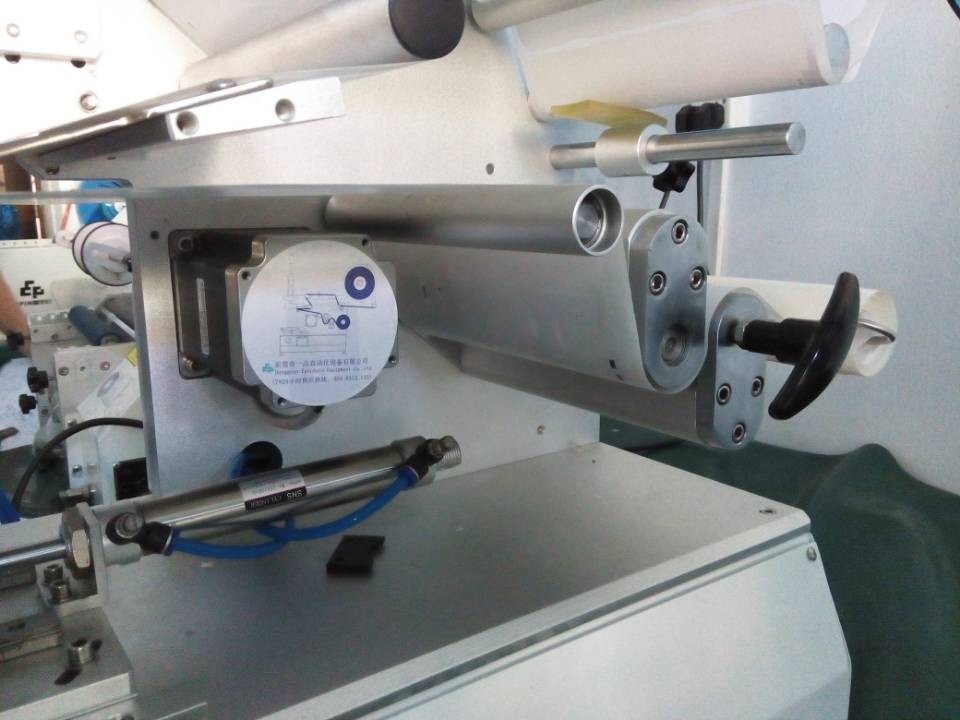

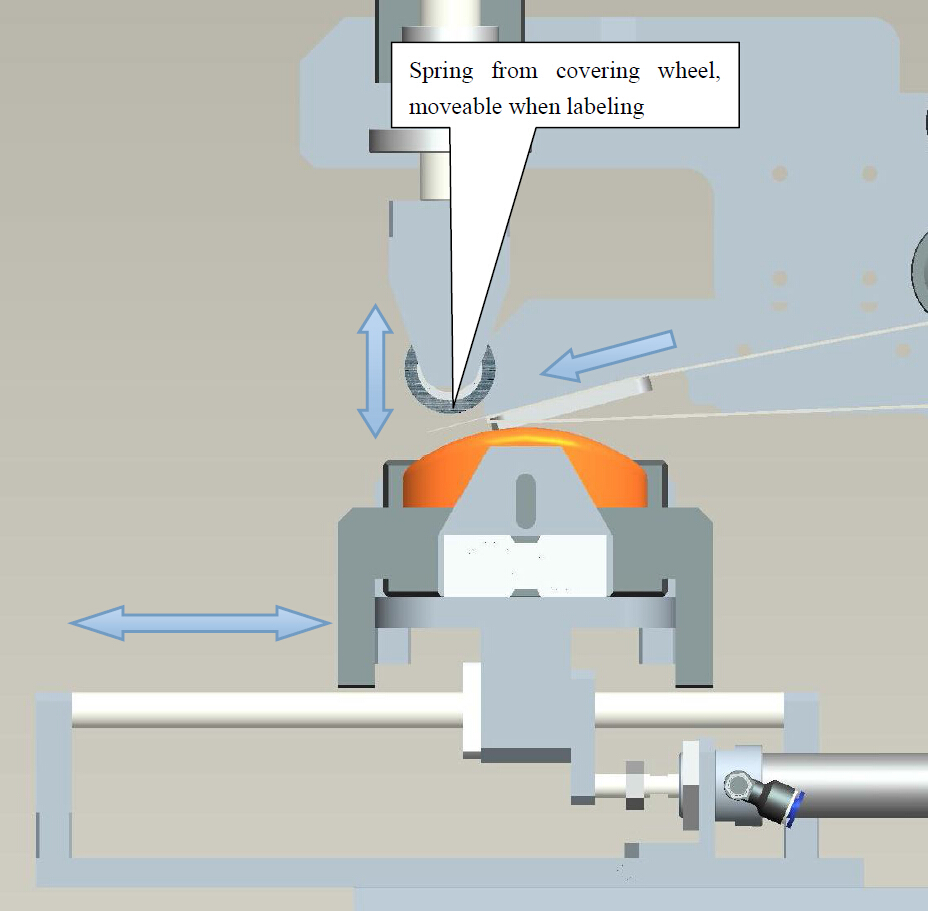

Labeling head from VK-T803 labeling machines semi automatic

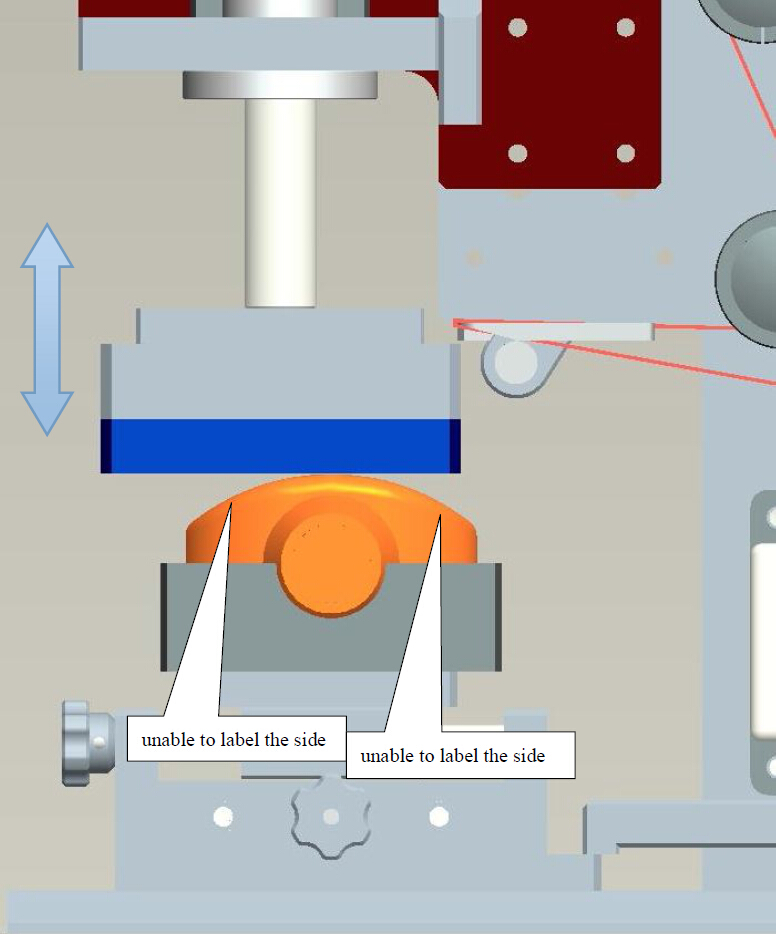

Labeling parts for model VK-T802 Semi automatic flat surface labeling machine:

Basic Purpose

Applies to products on flat or curved, concave labeling, labeling accuracy up to ± 0.5mm, mainly used in electronic components, precision labeling of digital products, such as SD cards, cell phone batteries, FPC, mobile phone charger labeling and so on. Precision labeling, highlighting the excellent quality of products, improve competitiveness.

Optional Features

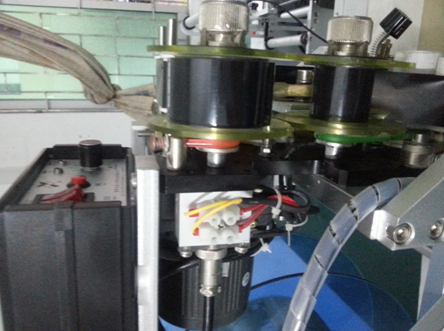

Coder: thermal coder word tablets print production date, expiration date, batch number and other information.

Applicable Label: Label, electronic monitoring code, bar code, etc.
Application: require flat or curved, circular surface, concave, convex, or other surface attached label.
Industry: Widely used in food, toys, cosmetics, electronics, pharmaceutical, metal, plastic, printing and other industries.
Applications: SD card labeling, labeling and other batteries. (Canon Charger: no bubbles)

Working Process

Core principle: This principle is part of our R & D alone, if interested, please inquire.

Procedure: put the product -> Labeling and covered standard (device automatically) -> Remove any labeling products.

Technical Parameters

Model: VK-T803
Labeling accuracy: ±0.5mm
Labeling speed: 10～25Pieces / min
Applicable Dimensions (Length): 20mm～250mm
Applicable Product Size (width): 20mm～150mm
Applicable Dimensions (height): 0.2mm～120mm
Applicable Label Size Length: 15mm～250mm Width：15mm～150mm
Inner diameter of label roll: Φ76 mm
Label largest diameter: Φ280mm
Dimensions (L × W × H): 850mm×410mm×720mm
Power supply: 220V 50HZ Total Power 145W
Pressure (Mpa): 0.4～0.6Mpa

Features

Precision, domestic original labeling technology, labeling accuracy of ± 0.5mm, meet the needs of high-precision labeling;
Easy to operate, stripping standard, standard delivery, suction mark, labeling and other actions automatically cover standard, manual loading to complete the labeling process;
Safety, transmission components wrapped with pneumatic circuit arranged separately, to avoid an exception occurs, the use of safer;
High stability, using stepper motors PLC electronic control system consisting of fiber optic sensors, equipment stability, long time working;
Optional automatic scale turntable device, can significantly improve the efficiency of loading and unloading, improve labeling efficiency;
Optional features and components: ① automatic feeding function; ② automatic rewinding function (combination of product considered); ③ other features (according to customer requirements).

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
