High Speed Linear Servo Ampoule Bottles Vials Horizontal Labeling Machine

• Model: VK-HRL-H
• Label width: 10-135mm;
• Labeling speed: 30-350bottles/Min;
• production diameter: 15-150mm;
• Label height: 15-180mm;
• Labeling accuracy: ±0.5mm(Except product and label themselves accuracy)
• Power supply: 4200W, 110V/220V, 50/60HZ;

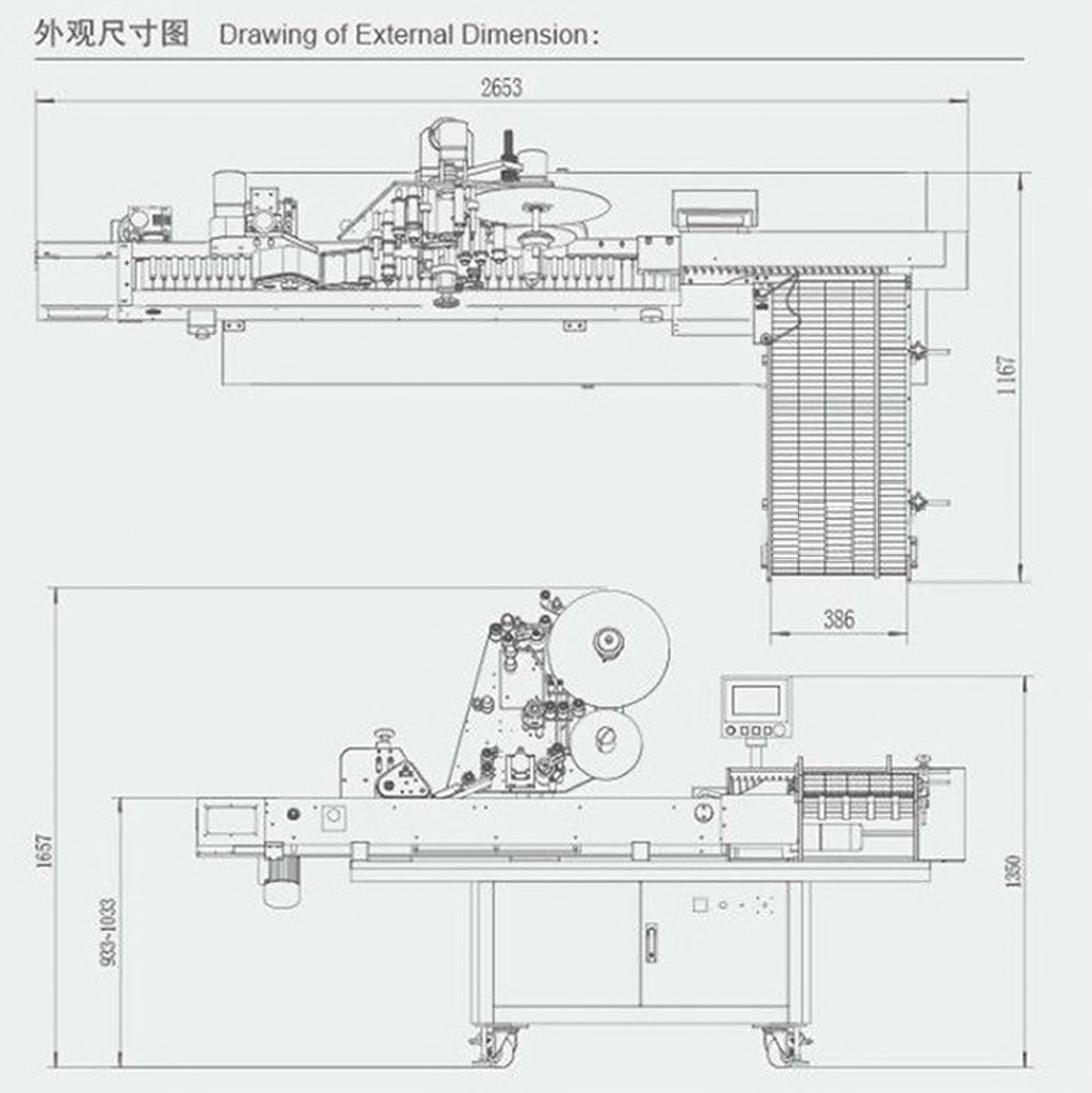

• Machine size: L2880 * W1700 *H1580 mm;
• Reel Inner diameter: 75mm;
• Reel outer diameter: Max 360mm

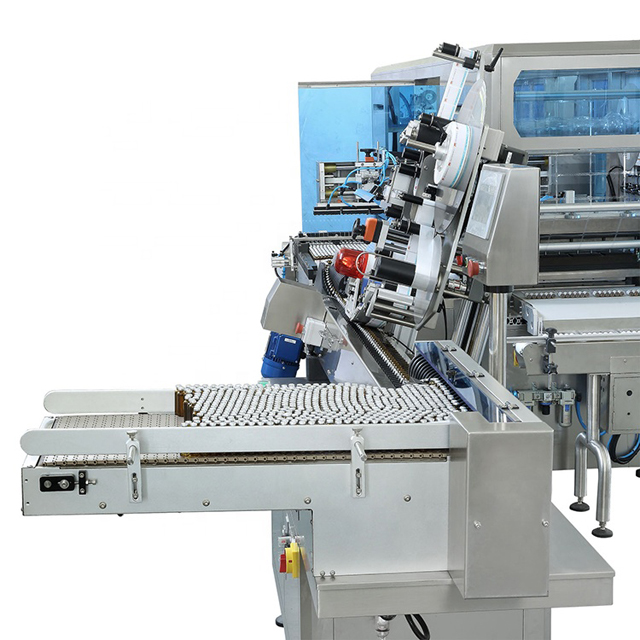

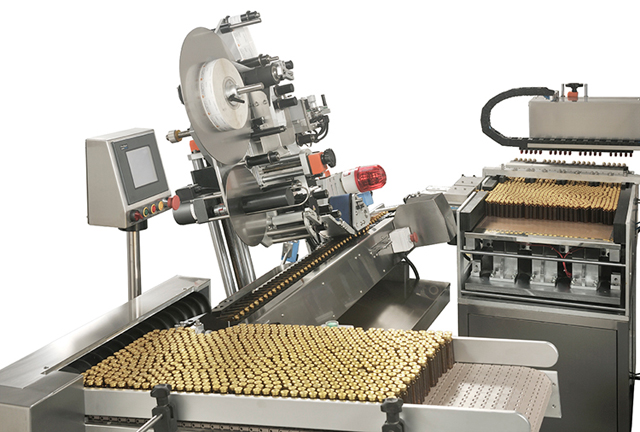

Horizontal self-adhesive labeling machine high speed labelle is the perfect integration of high speed vial labeling system and high speed tray inserting system for a seamless one step operation of the two processes.

The system offers extra high speed operation, proven stability, and flexible material change. Applicable to vials, ampoules and other thin and narrow bottles.

Horizontal non-dry sticker glue labeling machine is widely used for such industries as food, medicine, fine chemical, cultural supplies, and electronics and so on.

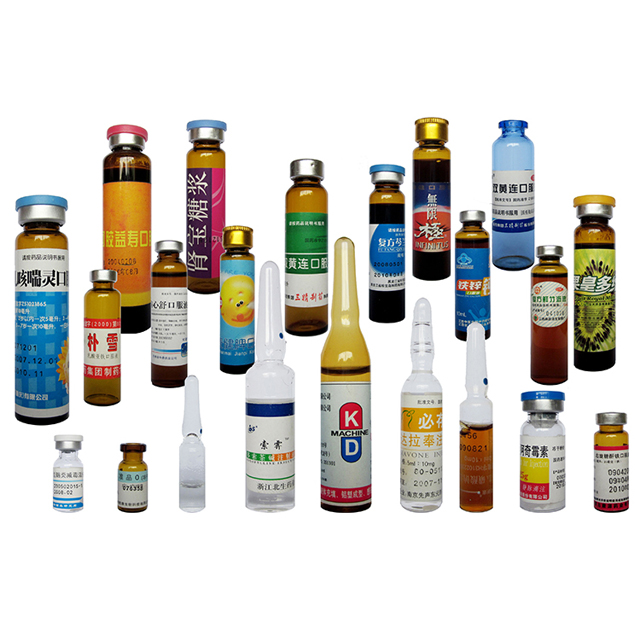

It is applicable for the labeling of the objects with small diameters and unable to stand up easily, such as oral liquid bottles, ampoule bottles, needle tube bottles, batteries, hams, sausages, test tubes, pens and so on.

Warning Unit (if no bottle, no label, the warning unit will work.)

Features:

1. PLC combined with human/machine interface digital LCD touch screen controller;

2. Suitable for slender round bottle;

3. Stainless steel frame construction and components are standard;

4. Use screw to send bottle which makes smoothly and safely;

5. Send bottles in the direction of vertical horizontal to feed stability,use easy and lowlabor strengh;

6. Use sero motor to make high speed and good quality;

Specification

1. Model: VK-HRL-H

2. Label width: 10-135mm;

3. Labeling speed: 30-350bottles/Min;

4. production diameter: 15-150mm;

5. label height: 15-180mm;

6. Labeling accuracy: ±0.5mm;

7. Power supply: 4200W , 110V/220V , 50/60HZ;

8. Machine size: L2880 * W1700 *H1580 mm;

9. Reel Inner diameter: 75mm;

10. Reel outer diameter: Max 360mm

Remarks:

1. Construction Material for high speed labeling machine:

2. Warranty terms: The seller warranty the machine for one year, and supply one year free spare parts with the machine.

3. Spare parts list

4. Operation Guide on how to operate high speed vials labeling machine:

The operation manual will be shipped with the goods and in English Version. Before shipping we will camera the video about how-to of the labeling machine as well.

System Parameter

Working Environment:

Temperature: 5℃ – 50℃

Humidity: 20% – 90% (No dew)

Working Power Supply:

Input: AC 220V ± 10% (50HZ)

Output: DC 24V ± 2V

Programmable Logic Controller:

Input: DC 24V 8-point transistor

Output: DC no junction 6-point transistor

Man-machine Interface:

Display: 5.7” FSTN LCD

Push Button: Touch screen

Core working principle:

After the vertical bottle enters the labeling machine, it automatically turns to be horizontal transported to the conveyor belt.

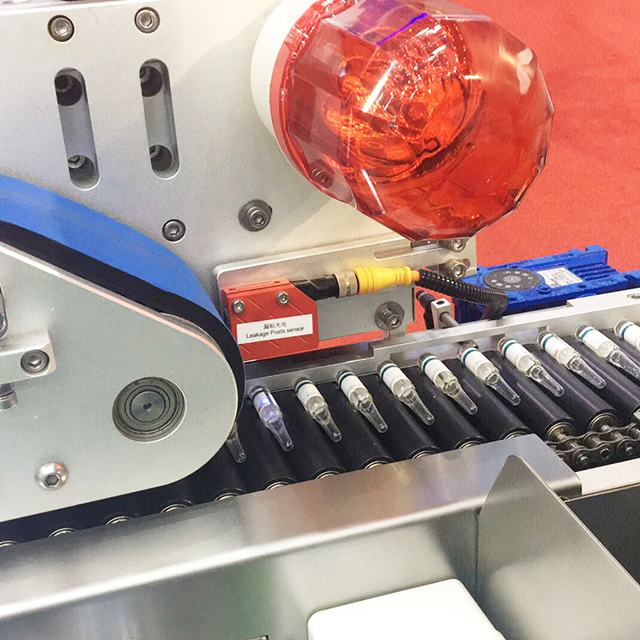

During the transportation process, the sensor detects the delivering products and sends a signal back to the labeling control system.

The control system controls the corresponding motor at the appropriate position to send out the label to the position where the product is to be labeled, the product goes through the label covering device, the label covering belt drives the product to rotate, the label rolling over, and the bottle automatically turns from horizontal to vertical;

Finally the whole labeling process is completed

We are the expert of making labeling machines, how to choose labeling machine is determined by the labeling size and bottle shapes and bottle size.

According to you bottle dimension and shape, we would like to introduce and recommend you the suitable machine which we sold many to local china pharmacy factories and exported many other countries.
