High Speed Ointment Cream Lotion Paste Tube Filling Sealing Equipment

• Model: VK-TFS-100
• Voltage: 220V/380v/50Hz/60Hz
• Productivity: 80-100pcs/min
• Filling volum: 3-250 ml(customized)
• Tube diamete: 11-38mm(customized)
• Tube length: 50-200mm(customized)
• Max power: 7.5KW
• Water consumption: 3-6L/min
• Machine weight: About 1300kg

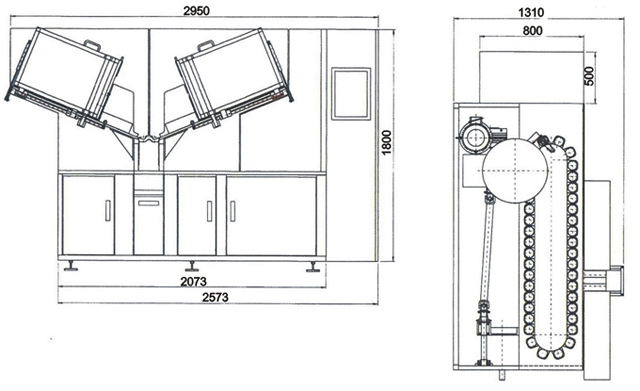

• Dimension(L*W*H): 2950×1300×1800mm

Main Description On Filling Sealing Equipment

Use rotary piston way, filling precision, using light point control, heated sealing all work with high precision cylinder full stroke control, easy to adjust filling volume, the filling speed can be adjusted.

It applies to all kindsof composite tubes, plastic pipe and metal pipe filling and sealing, date printing, cut the tail.

Sealing neat appearance, sealing strong, high accuracy, good stability.

According to the different material properties, Optional ingredients bucket heating system, anti-leak filling head, Machine adopts imported PLC control, import the original frequency control, pneumatic components using (AIRTAC), import original (SICK) photoelectric sensors, high stability, imported hot air flow meter and the formation of hot air heating system.

Packaging Materials And Filling Materials Scope:

1) soft tube, plastic pipe, composite pipe.

2) ointment, cream, gel viscosity fluids agents.

Applicable Industries:

Cosmetics, light industry (household chemicals), pharmaceutical, food and other industries for enterprise product selection to the hose for the packaging container, the device suitable for ointments, creams, gels or viscosity fluid filling, and then sealing the hose tail and print code, the system produces the finished product.

Soft tube filling and sealing machine is mainly used for the packaging containers of plastic hose material quantitative filling, sealing, this machine is widely used in pharmaceutical, cosmetic, food, chemical and other industries packaging. Such as ointments, gels, adhesives, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid or paste filling and sealing materials.

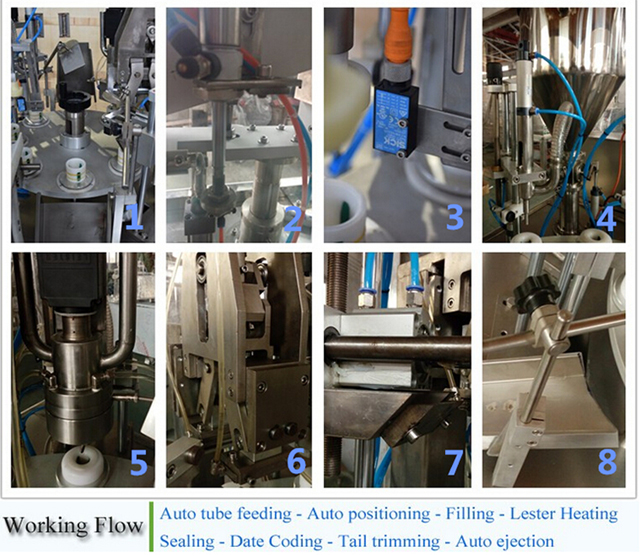

Work Procedure:

Automatic tube feeding→ tube position (hose container) → automatic identification label located on pipe → filling quantity control test [hose internal cleansing (option)] → filling → heating the tube (inner heating for plastic tube, outer heating for compound tube) → tail shaping and sealing → tail cutting → print → finished discharge code

Optional Accessories:

Optional: external chiller system, water cooler

Optional: Laminated barrel insulation device

Optional: barrel internal mixing device

Optional: Alien sealing device (wave-shaped sealing device; arc-shaped sealing device; T-type punching and sealing devices, etc.)

Optional: multicolor filling system

Optional: less than 3ml / branch dedicated filling device

Optional: automatic feeding pump

Optional: finished tube output conveyor

Specification Of Plastic Tubes Filling Sealing Machine Double Heads:

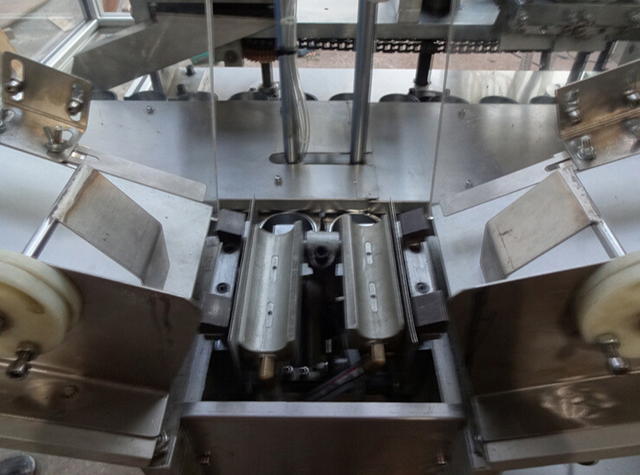

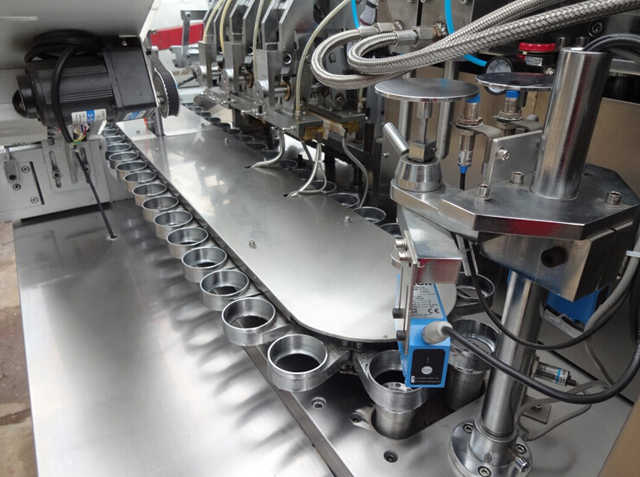

Working Plate Without Related Tubes Holders

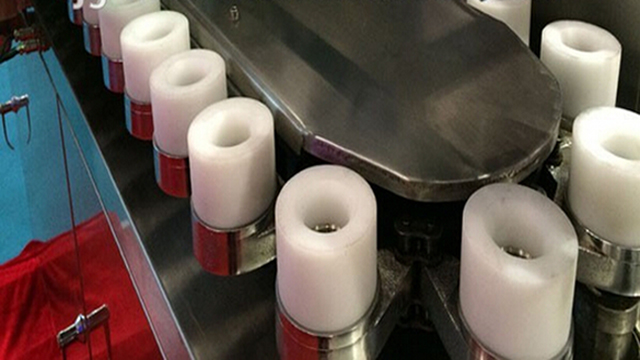

Tube holders for filling sealing machine

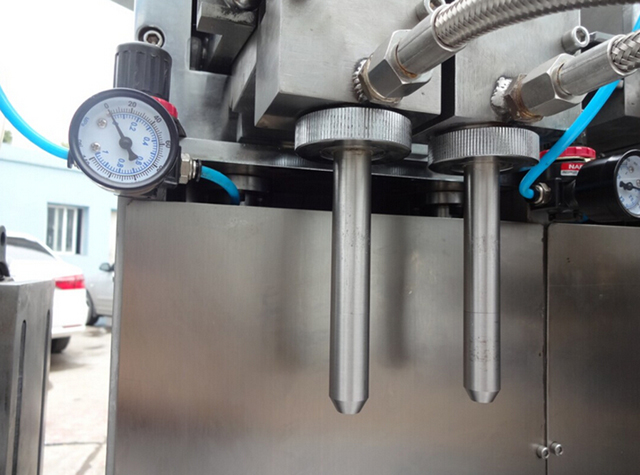

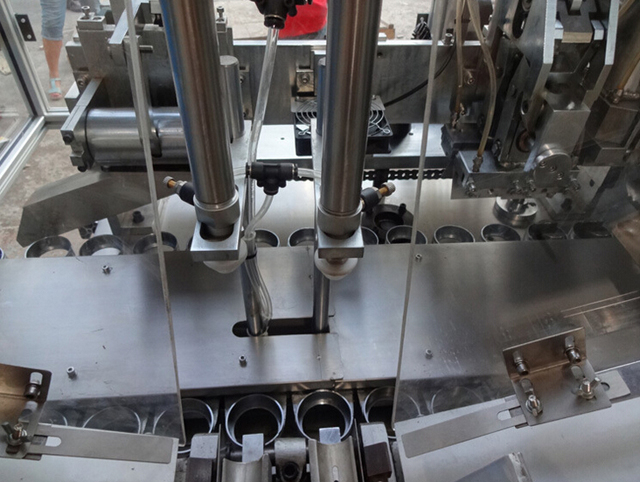

Double filling nozzles for filling sealing machine

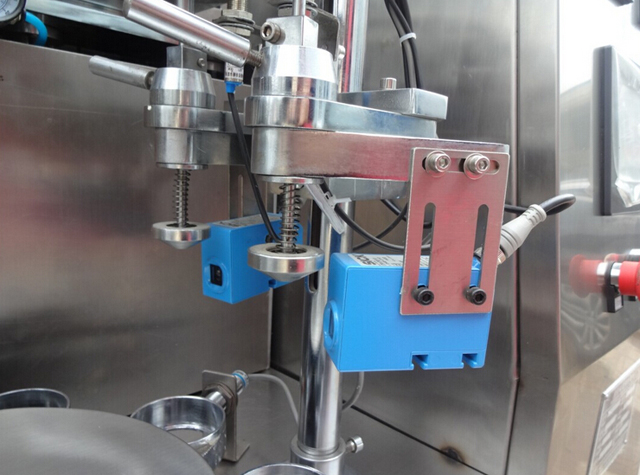

Photoelectric sensor for aligning tubes before filling sealing:

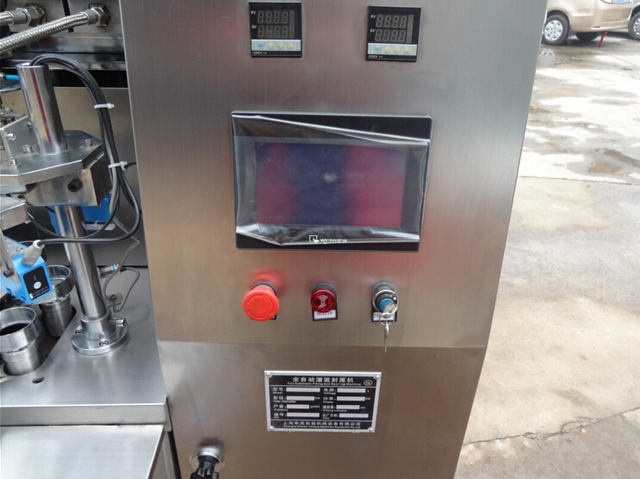

PLC controlling panel center for filling sealing machine dual heads

Tubes samples for different customers from various countries
