Linear 3 Heads Cosmetic Make-Up Powder Screw Auger Jar Filling Line

• Filling machine part model: VK-PAF-3
• Direction of Movement: Left to Right
• Number of Filling Head: 3 Head
• Capacity: 50-60jars per min(filling volume 1.8g)
• Electric Specification:
• Main Motor (Stirrer): 0.5 HP / 415 Volts / 50 Hz. – 3 Nos.
• Conveyor Motor: 0.5 HP / 415 Volts / 50 Hz.
• Vacuum Blower: 1 HP / 415 Volts / 50 Hz.
• Servo Motor: 750 Watt
• Air Consumption: 4 – 6 Kg.
• Pressure Height of Conveyor: 860 mm ( 50 mm adjustable height)
• Machine Dimensions: 2335mm (L) X 800mm (W) X 2000mm (H) approx
• Case Dimensions: 2700mm (L) X 1000mm (W) X 2400mm (H) approx
• Net Weight: 600 Kg. Approx Gross Weight 850 Kg. Approx
• ± 2 % Filling accuracy on single dose.
• All Contact Parts in SS 316
• Dust collection facility
• Adjustable height of Conveyor Belt.
• Low Noise Level, Low Power Consumptions
• Electrical supply: Single Phase Neutral Earthing
• Electrical load: 1.8 KW
• Air Pressure: Minimum 4 to 6 bar pressure

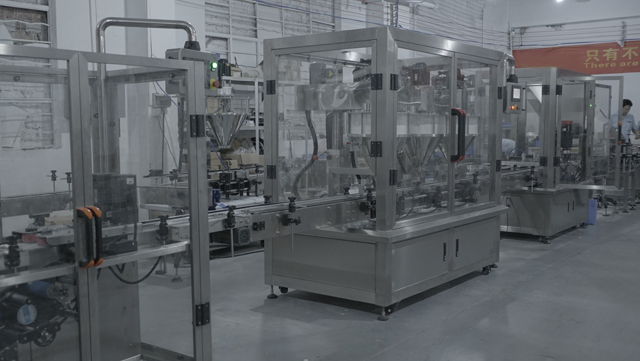

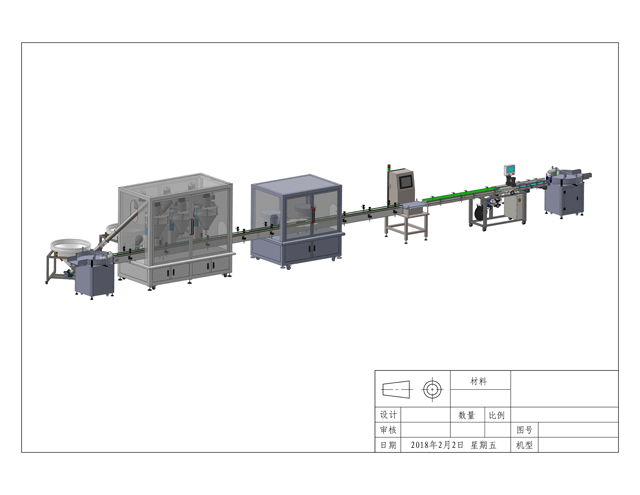

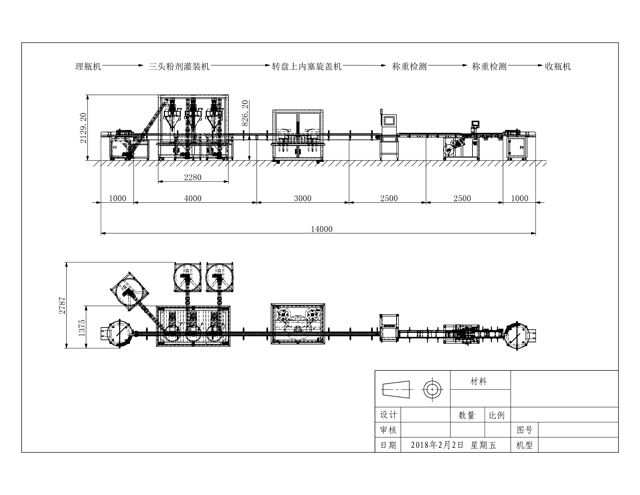

The whole line (Automatic bottom labeling 3 head filling plugging capping machine with speed 40-45 pcs/min, and clear label sensor) includes mainly four machines which are given as below:

• Rotary Turntable;
• Bottom Side Labeling Machine
• Three Heads Filling Machine Powder Auger Filler;
• Jars Capping Machine;
• Weight Check

Bottles Rotary Turntable:

• Applicable specifications: 20-1000 ml
• Bottle diameter: φ 10-φ80 mm
• The bottle height: 85-300 mm
• Production capacity: 0-100 BPM (speed adjustable)
• Voltage: 220 v50hz
• Power: 0.5 kw
• Weight: 100kg
• Machine size: 1300*1000*1300mm
• Stainless steel: SUS304 material

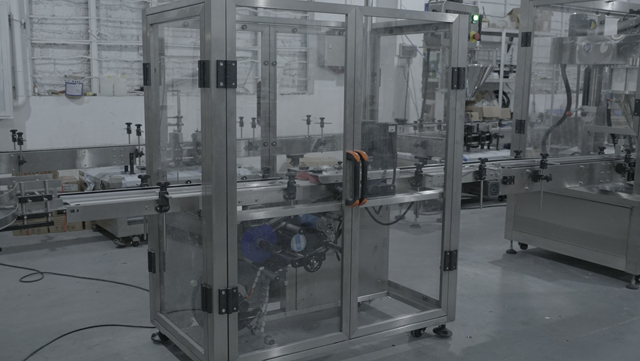

Bottom Side Labeling Machine:

• Voltage: AC220V50/60HZ
• Power: 500W
• Size appearance: 1800(L) 700(W) 1800(H) mm
• Labeling Speed: 200pcs/ min
• Labeling accuracy: ±1 mm (subject to the roughness of the plant)
• Printer to use air: 5 kg / cm2
• Suitable height of objects: 1-100 mm (which can be adjusted by your requirements)
• Suitable wide of objects: 10-80 mm (which can be adjusted by your requirements)

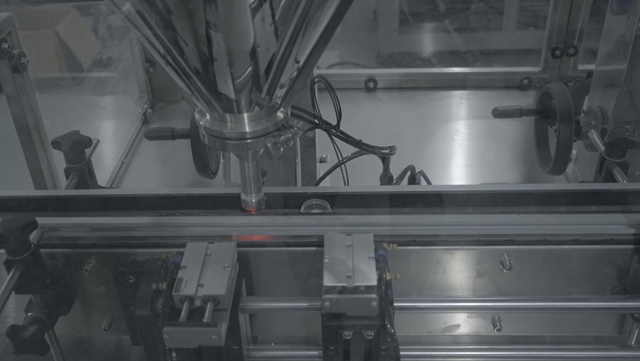

Auger Filler Equipments:

• Filling machine part model: VK-PAF-3
• Direction of Movement: Left to Right
• Number of Filling Head: 3 Head
• Capacity: 50-60jars per min(filling volume 1.8g)
• Electric Specification:
• Main Motor (Stirrer): 0.5 HP / 415 Volts / 50 Hz. – 3 Nos.
• Conveyor Motor: 0.5 HP / 415 Volts / 50 Hz.
• Vacuum Blower: 1 HP / 415 Volts / 50 Hz.
• Servo Motor: 750 Watt
• Air Consumption: 4 – 6 Kg.
• Pressure Height of Conveyor: 860 mm ( 50 mm adjustable height)
• Machine Dimensions: 2335mm (L) X 800mm (W) X 2000mm (H) approx
• Case Dimensions: 2700mm (L) X 1000mm (W) X 2400mm (H) approx
• Net Weight: 600 Kg. Approx Gross Weight 850 Kg. Approx
• ± 2 % Filling accuracy on single dose.
• All Contact Parts in SS 316
• Dust collection facility
• Adjustable height of Conveyor Belt.
• Low Noise Level, Low Power Consumptions
• Electrical supply: Single Phase Neutral Earthing
• Electrical load: 1.8 KW
• Air Pressure: Minimum 4 to 6 bar pressure

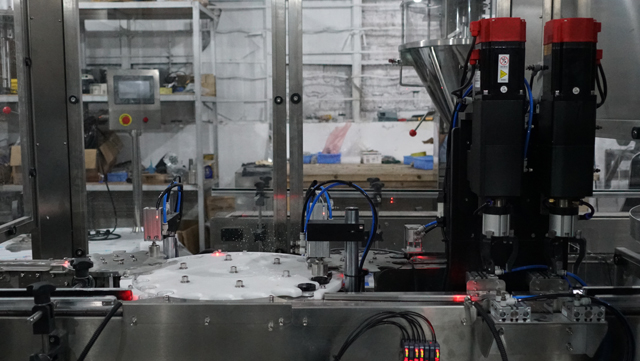

Screw Capping Machine

• Power supply: 220V;50Hz
• Power: 1.5Kw
• Pneumatic (air-operated) source: 0.6 Mpa clean and stable compressed air
• Suitable bottles diameter: Φ40mm~Φ100mm; height : 60mm~230mm
• Suitable caps diameter of caps: Φ20mm~Φ70mm; height of caps: Φ15mm~Φ30mm can be customized
• Production capacity: ≤2500bottles/hour
• Machine weight: about 580Kg
• Dimension (L*W*H): 2000mm*1000mm*1780mm

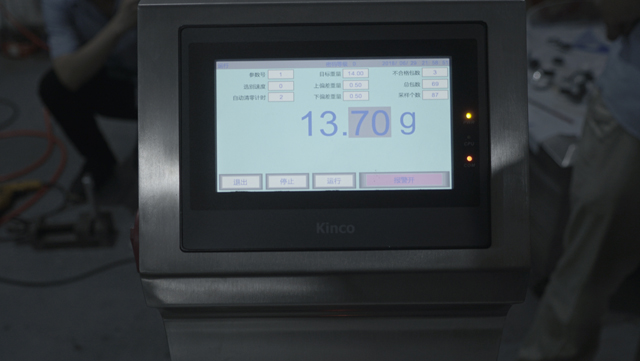

Weight Check Inline:

•
  Weighing Capacity (g): less than 200g
• Weighing Accuracy (g): ±0.2g~±0.5g
• Minimum graduation(g): 0.1g
• Weighing speed(pcs/m): 40-70m/min max:200 pec/min
• Power Supply: AC220V±7％; 50Hz; 250VA(customized)
• Material: SUS304
• Working Condition Temperature: 0~40℃ Humidity: 30%~95%
• Conveyor belt length: 1600mm
• Conveyor belt height: 750±50mm
• Warning: Buzzer alarm & conveyor belt running in stop
• Machine Weight: 110kg
• Size: 200*900*1500mm

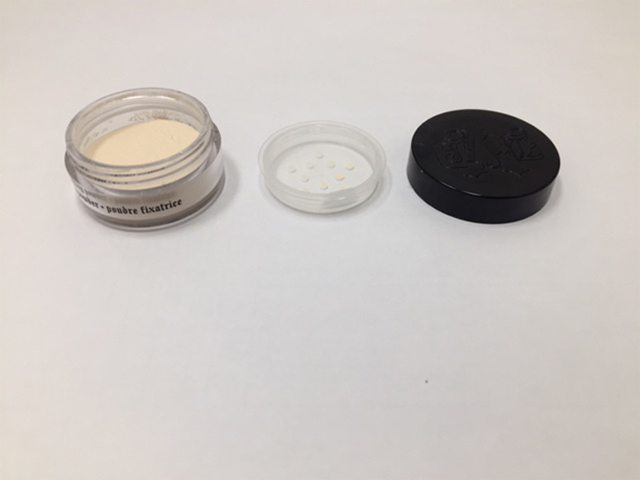

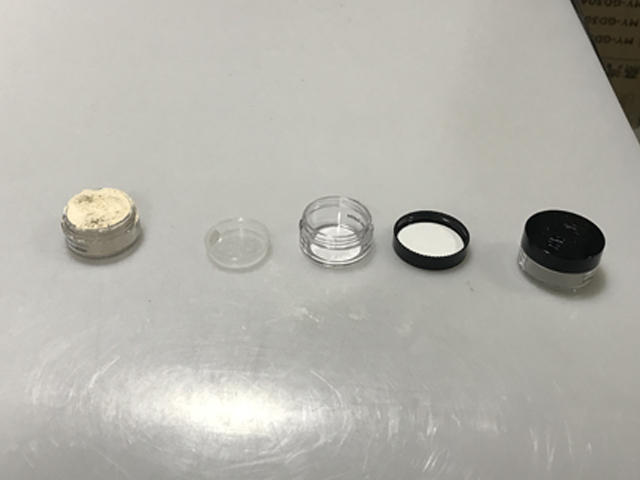

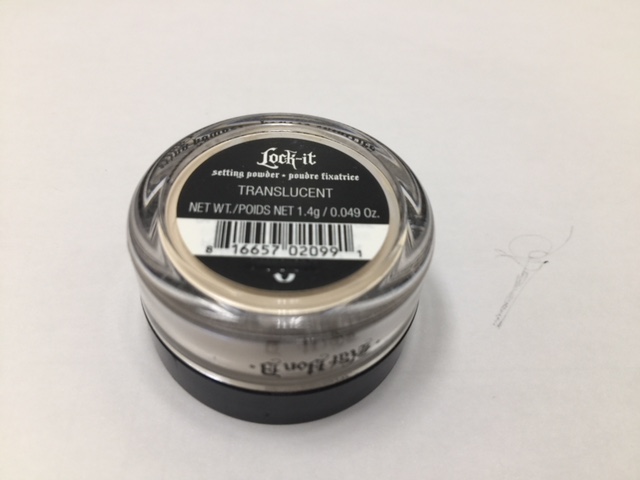

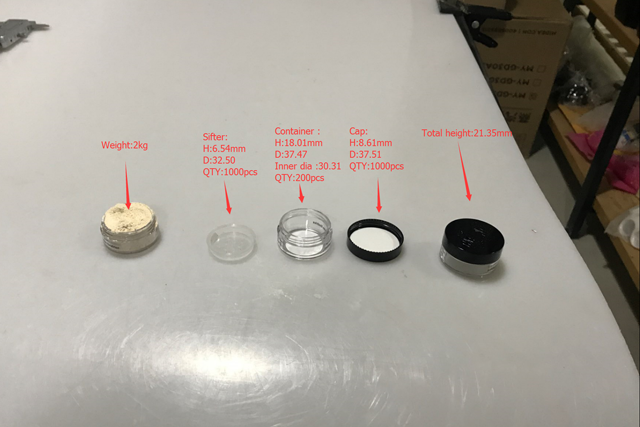

Final Product Samples:

Annotation On What The Loose Powder Is:

Loose Powder: used to set liquid foundation/concealer so that makeup lasts longer and does not move around, or rub off of your skin. Typically used in the “baking” method of setting your foundation.

Loose powder is also used to help define contour lines – or create a “chiseled” makeup look. Loose powders can also be used to set heavy makeup looks, for these types of looks loose powder is applies with a powder puff.

Loose powders are more finely milled so they contain less oils, and are typically used on oily skin types to control the oil your face develops throughout the day.

Loose powder needs to be swept away after it has set on your skin – sweeping away extra product will help your foundation not look “powdery” or “cakey”.
