Linear Glass Bottles Washing Filling Capping Labeling Machine For Oil

The vegetable oil filling line including four parts :

• VK-BR glass bottles washing machine
• VK-PF oil filling machine 4heads
• VK-VC vacuum capping machine
• VK-RPL round bottles labeling machine

The fully automatic filling line can be customized according to customer’s requirements and the samples offered by the buyer. As below there listed the basic information for this fully automatic filling line for food industry:

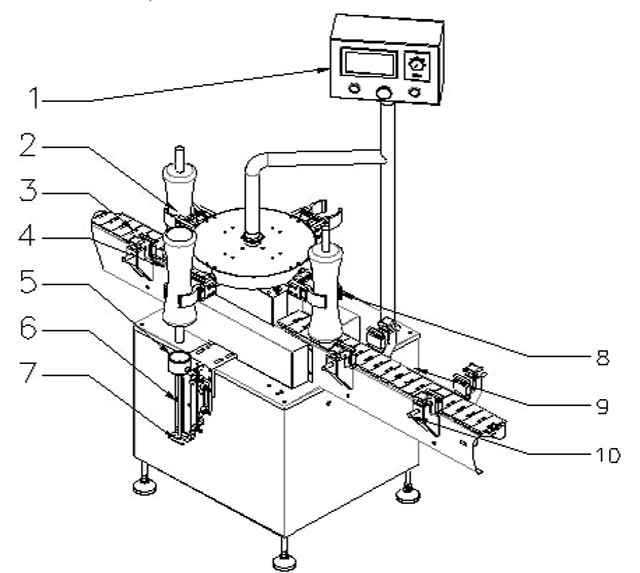

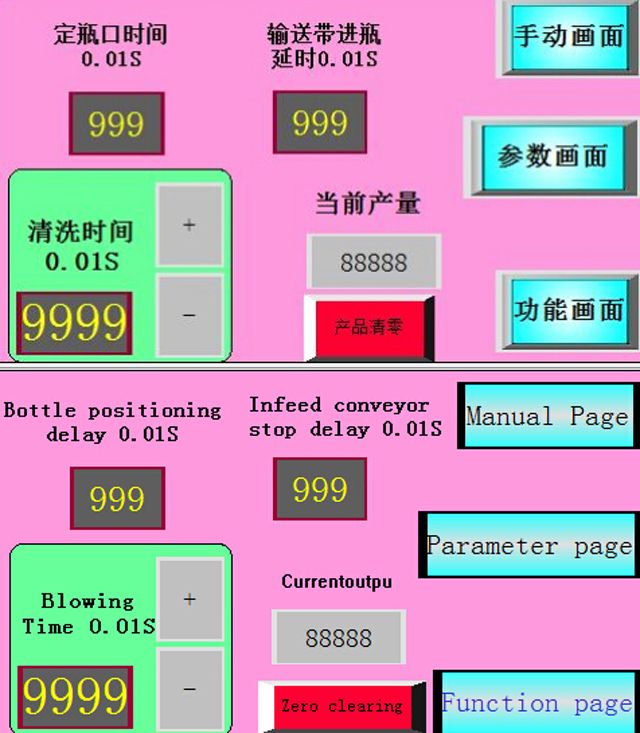

Glass Bottles Air Washing Machien Vacuum Washer Equipment

It is an automatic bottle washing machine by air. the capacity depends on air washing nozzles.

Air compressor transport the air inside the vacuum container, gas through the solenoid valve and the ion generator was been purified, the tracheal gas shampoo blow gas into bottles through the gas wash mouth, blow foreign out from gas wash mouth by the pressure of gas, back tracheal exhausted waste gas to the outside through emission control.

Basic Parameter Of Rotary Air Washing Machine Automatic For Glass Bottles:

Model: VK-BR

Suit to bottle: 20-1000ml

Production Capacity: 8 cleaning nozzles: 3600~4800bph

Air pressure range: 6~8kg/cm2

Air consumption: 25m3/h

Power supply: 220V 50/60Hz

Power consumption: 0.75Kw

Single machine noise: ≤70dB

Purified air: 0.2μm

Cleaning time: 3~5s

Net weight: 350kgs

Overall dimension: 1200 x 800 x 1600mm

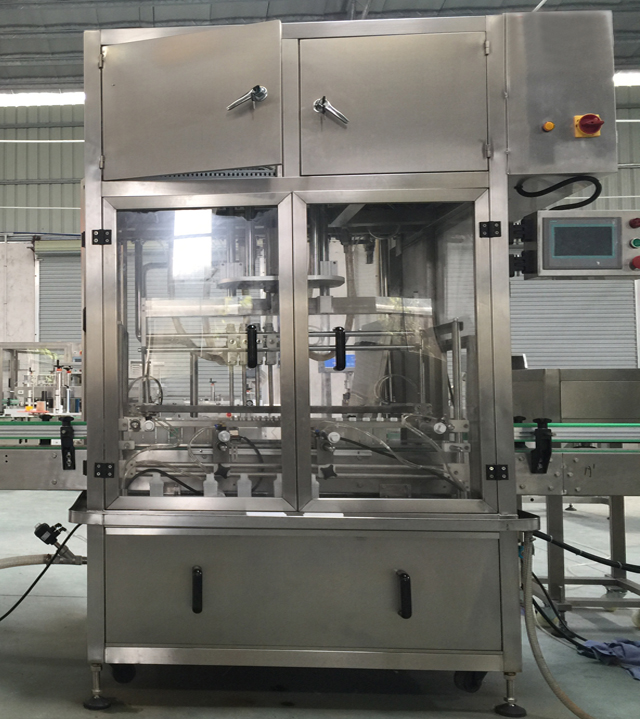

Oil Filling Machine 4 Heads Linear Filler

The 4 heads olive filling machine,controlled by the microcomputer, combines the photoelectricity with pneumatic operation, thus widely is applied for the liquid filling of the agriculture chemical, solution, liquid detergent, cosmetic as well as olive.

The filling volume is precise, foamless and stable. The machine can fill the liquid with the range from 25-1000ml, meanwhile there is no special requirement on the shapes of bottles. That is to say, it can fill the liquid for the normal bottles as well as the irrugula-shaped bottles.

Model: VK-PF

Filling range: 50～3000ml

Filling speed: ＜20-30b/m（for 500-1000ml liquid）

Accuracy: ±1%

Power/suppy power: 0.8kw、220v

Working pressure: 5～6kg/cm3

Air consumption: 0.5-0.7mpa

N.W: 500kg

Outer dimention: 2000×800×1900mm

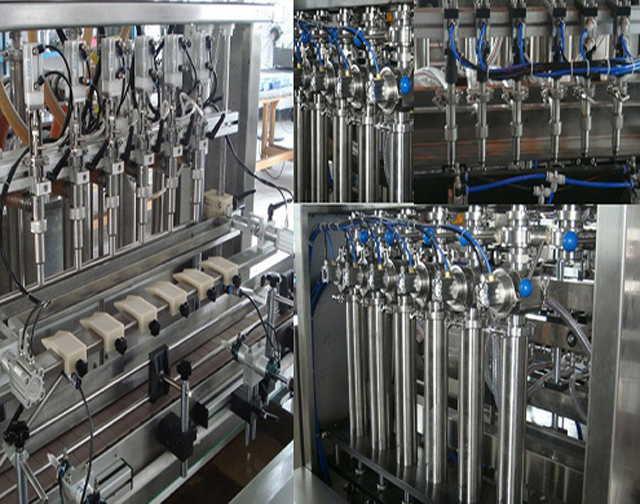

Mark: The filling nozzels can be designed and manufactured according to requirements from customers on the filling range and filling speed

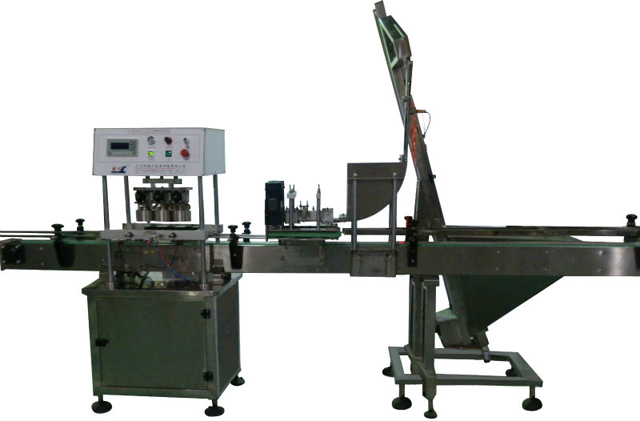

Linear Vacuum Capping Machine Vk-Vc Jars Capper Equipment:

This linear capping machine is researched and developed by our company with years of experience, it is unique in domestic. Integrated automatically cap arranging with covering, vacuum capping.

Adopted manual vacuum pump to achieve high vacuum. With the functions of no bottle no covering, alarming when no caps are available. Enjoyed high automation. The main pneumatic and electric parts are from world famous brands.

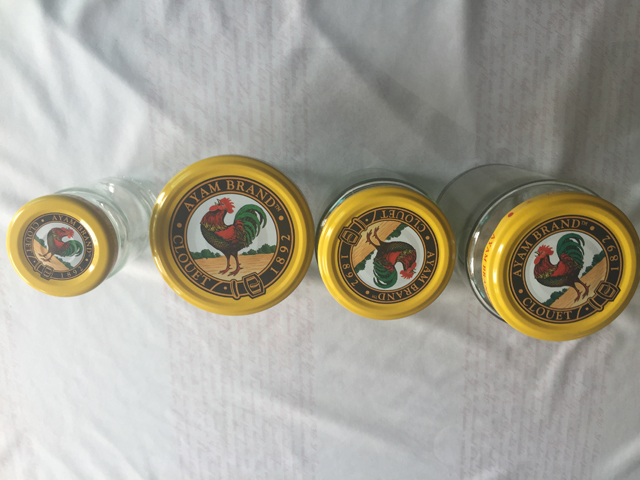

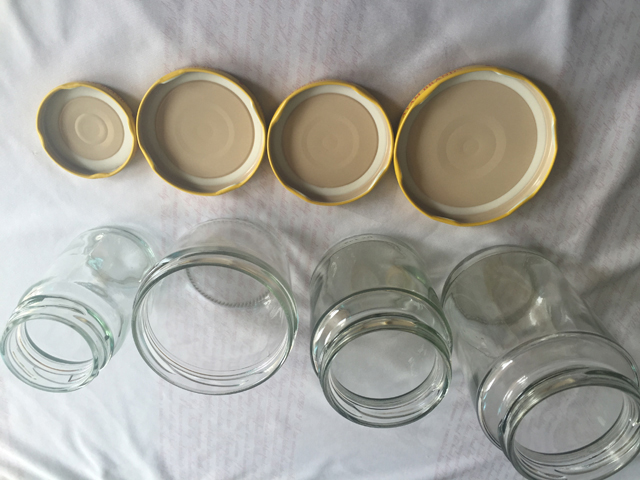

With stable and reliable performance. It is widely used for vacuum capping of the glass jars with iron caps in the industries of canned food, beverage, seasoning, health care products etc.

Power: ≤2.3KW（including the vacuum pump）

Production capacity: 50-60BPM

Cap diameter: ￠30-￠55mm ￠50-￠85mm

Bottle height: 80-250mm

Bottle diameter: ￠30-￠85mm

Max vacuum: -0.08mpa

Capping torsion: 5-20N.M

Air consumption: 0.6M3/0.7Mpa

Machine dimensions: About3000×1000×1900mm

Weight: About 850kg

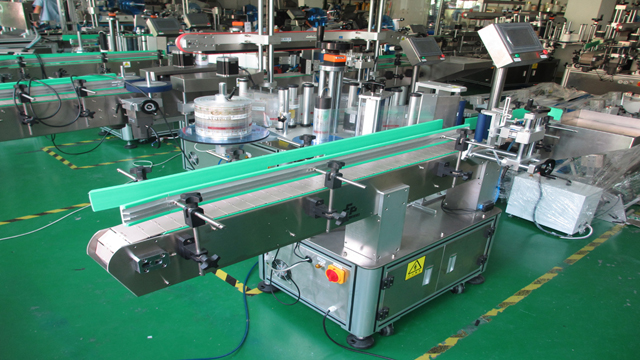

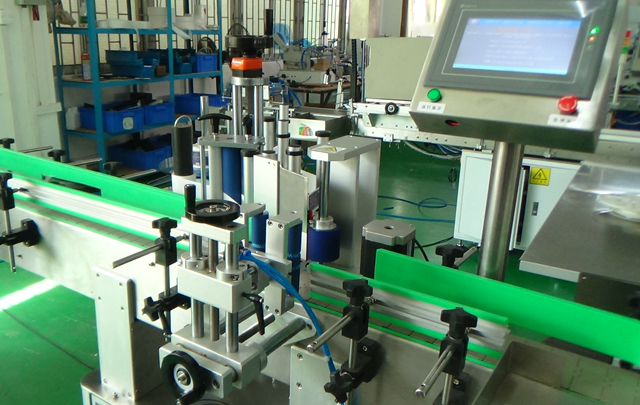

Vk-Rpl Round Bottles Jars Labeling Machine

Application: Require circumferential surface of the membrane attached label or product.

Industry: Widely used in food, medicine, cosmetics, cosmetic, electronic, metal, plastics and other industries.

Application: PET round bottle labeling, labeling plastic bottles, canned food and so on.

Suitable label length (mm): 20mm ~ 314mm

Applicable Label width (backing paper width / mm): 15mm ~ 150mm

Applicable Products diameter (for round bottle) and height: diameter: φ25mm ~ φ100mm

Height: 25mm ~ 230mm

Applicable standard roll diameter (mm): φ280mm

Applicable standard roll diameter (mm): φ76mm

Labeling accuracy (mm): ± 1mm

The standard speed (m / min): Servo: 5 ~ 25m/min Stepping: 5 ~ 19m/min

Labeling speed (pcs / min): Stepping: 30 ~ 80pcs/min (with the bottle and label size)

Servo: 40 ~ 120pcs/min

Conveyor speed (m / min): 5 ~ 25m/min

Weight (kg): About 185kg

Frequency (HZ): 50HZ Voltage (V): 220V

Power (W): 530W (traction stepper) 980W (traction servo)

Device dimensions (mm) (L × W × H): 1950mm × 1100mm × 1300mm

Wooden Case Packing:

After-Sales Service For Filling Line

We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.

Guarantee of quality :

The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this contract. Quality guarantee period is within 12 months from B/L date.

The manufacturer would repair the contracted machines free of charge during the quality guarantee period.

If the break- down can be due to the improper use or other reasons by the Buyer, the manufacturer will collect repair parts cost.

Installation and Debugging:

The seller would dispatch his engineers to instruct the installation and debugging. Cost would be bear on buyer’s side (round way flight tickets, accommodation fees in buyer country). The buyer should provide his site assistance for the installation and debugging.
