Linear Round Glass Plastic Bottles Cold Paste Wet Glue Labeling Machine

• Model: VK-WGL Wet glue labeling machine
• Power supply: 380V/480V±10% 3P
• Frequency: 50/60HZ
• Total power: 2KW
• Bottle Diameter: 30-100mm
• Label sizes: Length 35-300mm, height 30-98mm
• Glue coating: Full coating on the back of labels
• Capacity: 50~100bpm(Normal 500ML)
• Glue: Water soluble resin glue
• Compressed air: 5.0bar
• Air consumption: 4-6kgs×18liter
• Total weight: 550kg
• Machine sizes: L=3000 W=850 H=750 mm

View Video

This cold glue labeling machine is very suitable for small cylindrical container such as glass, plastic, PET bottle with precut paper label. The machine is economical and easy to operate. The performance is stable with a level off and good looking labeling result. The control system adopts convert motor system, the in line conveying bottle, supplying glue and label automatically. This automatic labeling system is ideal for food & beverage, medical industry etc.

Basic Parameter:

• Model: VK-WGL Wet glue labeling machine
• Power supply: 380V/480V±10% 3P
• Frequency: 50/60HZ
• Total power: 2KW
• Bottle Diameter: 30-100mm
• Label sizes: Length 35-300mm, height 30-98mm
• Glue coating: Full coating on the back of labels
• Capacity: 50~100bpm(Normal 500ML)
• Glue: Water soluble resin glue
• Compressed air: 5.0bar
• Air consumption: 4-6kgs×18liter
• Total weight: 550kg
• Machine sizes: L=3000 W=850 H=750 mm

Features

1. Adopts mechanical transmission in whole, transmission parts equipped with closed lubricating-oil-providing tank turn smoothly and deftly with little faults and noise.

2. Load of motor is low, panel and plate of turntable are made from stainless steel, which is durable, clean and rustless and easy to maintain.

3. Can be used alone, as well as designed to be connected with assembly line.

4. It covers little room and can be moved at will to adjust room distribution at workplace.

5. Appropriate to label round containers made for chemical, medicine, food, beverage and other industries.

6. It can be equipped with printing equipment according to customer’s demands.

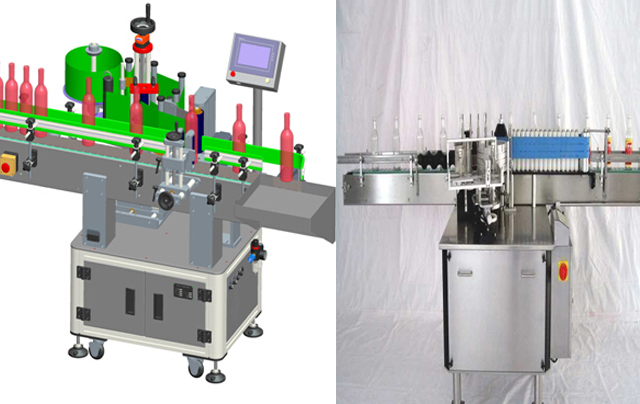

The Difference Between Non-Sticker Labeling And Wet Glue Labeling Machine

Wet glue labeling machine use ordinary bond paper(80g or 90g single copper). Surface coating can be carried out the wax, oil or UV coating treatment volts according to the requirements of customers, to keep the label fat when stored, laminating labels should not be saved due to the formation, and it will influence speed because of winter temperatures, it is recommended not to use this surface treatment.

Wet glue labeling machine is suitable for all standard cylindrical container between the diameter from 30mm-100mm, it is easy to change mould and operate.

Wet glue labeling machine have more advantafe than adhesive sticker labeling machine; same size label, sticker labeling machine used as 4cents RMB per piece, wet glue labeling machine label is less than 1cent RMB per piece, can save about 2-3 times higher than the node cost.

But adhesive sticker labeling machine also have more advantage than wet glue labeling machine; linear current domestic cold glue labeling machine just can paste for srandard round bottle, but sticker labeling machine can be affixed to a greater variety of bottle-shaped, but also can not complete all shape bottle in the same machine.

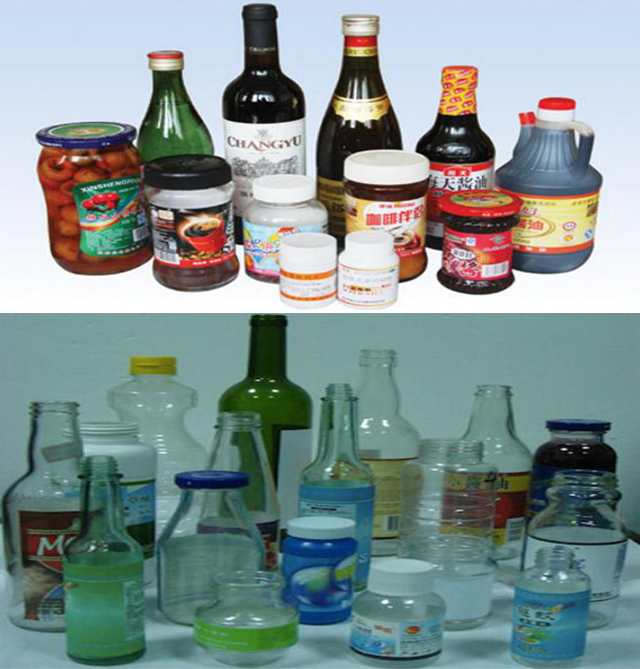

Samples

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
