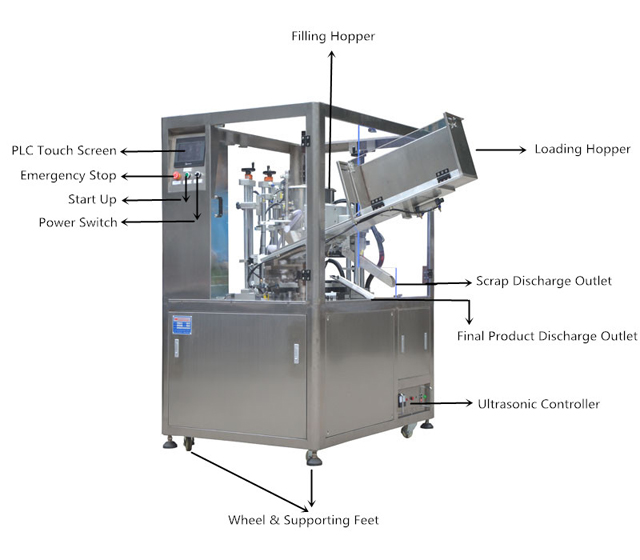

Lotion Cosmetic Cream Dual Chamber Tube Filling Sealing Machine

Model: VK-TFS-009UDC
Sealing Dia: 5-50mm
Output power: 2.8kW
Voltage: AC220V/single phase 50/60HZ
Machine weight: 390kgs
After packaging: 420kgs
Machine size: 1200*1540*1700mm
Filling Range: A:6-60ml, B:10-120ml, C:25-250ml, D:250-500ml (Customer made available)
Control Style: PLC control
Time adjust: electronic adjust
Packaging: Plywooden case packaging

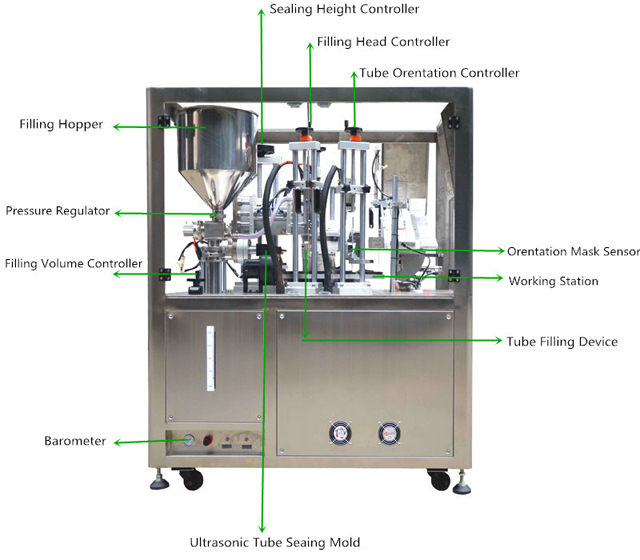

Machine Working Process:

Auto Tube Loading → Auto Tube Orientation → Auto Filling → Auto Sealing → Auto Date printing → Auto trimming → Auto Tube Ejecting ;

Features

Easy to operate and maintain.

Automatic positioning, filling, welding, cutting and trimming, printing code in one time.

Stainless steel machine body, strong and beautiful looks,

Sealing mould can be customized according to customer requirements. Can seal many size of tubes.

Ultrasonic sealing machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.

Ultrasonic frequency can meet international standard, no harmful to human being or environment

Can be work in time, not need wait the heat time .

Basic Parameter

Model	VK-TFS-009UDC
Sealing Dia	5-50mm
Output power	2.8kW
Voltage	AC220V/single phase 50/60HZ
Machine weight	390kgs
After packaging	420kgs
Machine size	120015401700mm
Filling Range	A:6-60ml, B:10-120ml,C:25-250ml,D:250-500ml (Customer made available)
Control Style	PLC control
Time adjust	electronic adjust
Packaging	Plywooden case packaging

Details

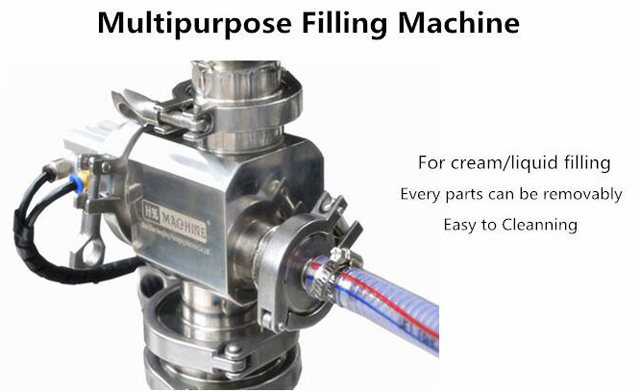

The filling system is for multipurpose in filling materials from lower viscosity like water to higher viscosity like honey

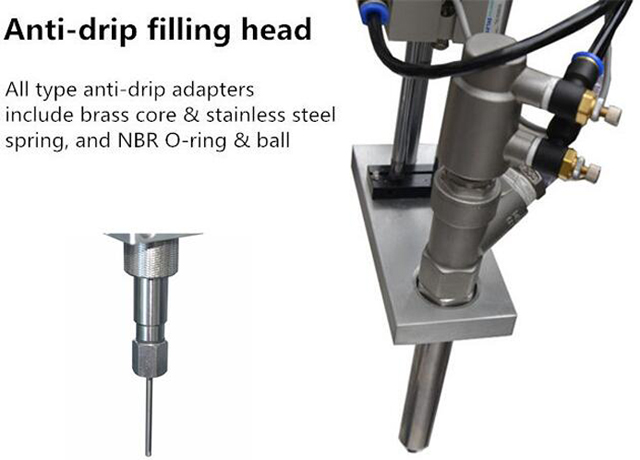

The filling nozzle functions as anti-dripping; All the filling nozzles adapters include brass core & stainless steel spring and NBR O-ring & ball

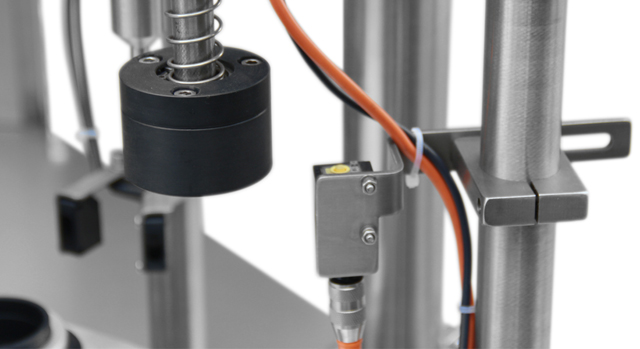

Ultrasonic activated sensor for detecting the tubes before ultrasound cutting & sealing:

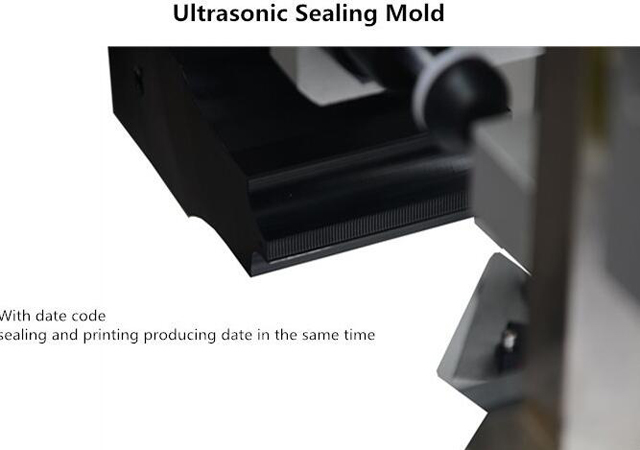

Ultrasonic sealing nold

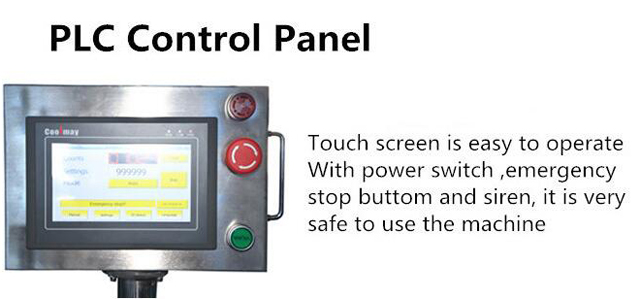

PLC controlling panel is easy to operate with power switch, emergency stop button and siren; The sudden stop for emergency use;

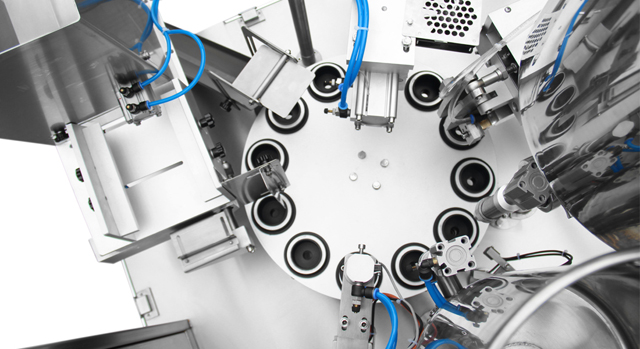

The disc consists of 10pcs of tubes holders which is specially designed with rubber ring and PP mold; Different diameter of tubes requires different set of tube holders;

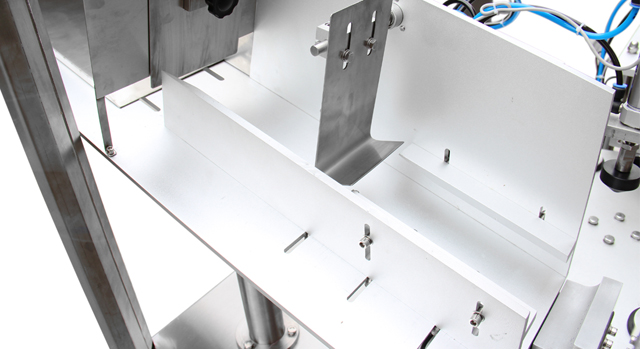

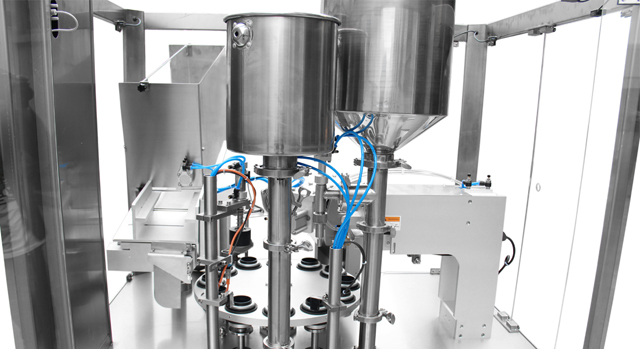

Tube feeding system delivers the tubes in automatic way;

Configuration & Spare Parts List

Components
Eye Sensor	MATSUSHITA	Japan
Ultrasonic Transducer	Amria	China
Controlling	Omron	Japan
PLC	Delta	Taiwan
Motor	Namwan	China
Main Motor	Gear Head	Taiwan
Cylinder	AirTac	Taiwan
Selenoid	Jaurling	China
Relay	Omron	Japan
Inductive Switch	AirTac	Taiwan

Model :	Spare Parts	Pic
1	Ultrasonic Power Board
2	Eletric Eyes
3	Ultrasonic Transducer

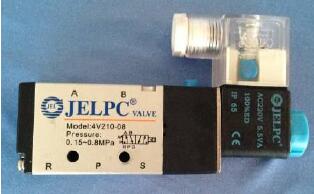

4	Electromagnetic Valve

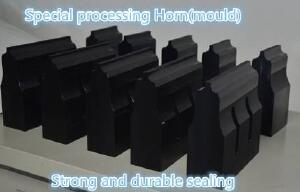

5	Upper Mould

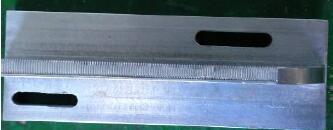

6	Down Mould
7	Tube Holder
8	Motor/Segregator
9	Relay
10	Cylinder ACQ50*20-S-B
11	Cylinder MA20*100-S-CA
12	Cylinder

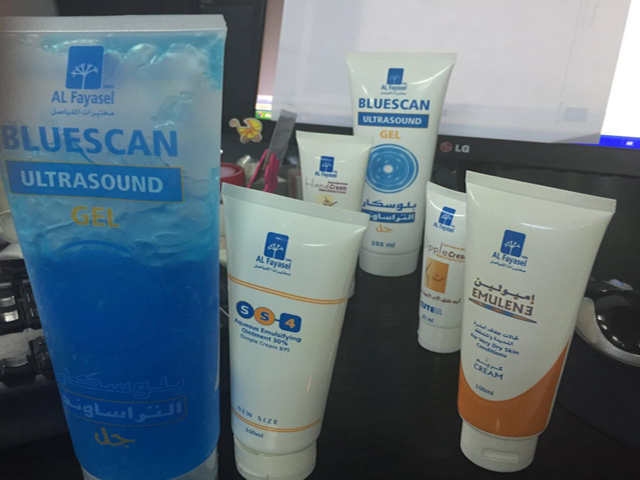

Samples

Wooden Case Packaging

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
