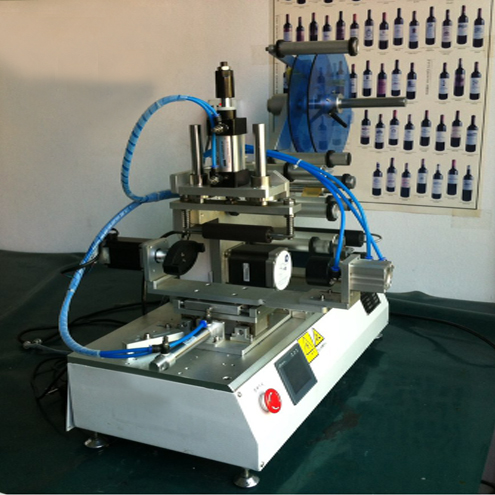

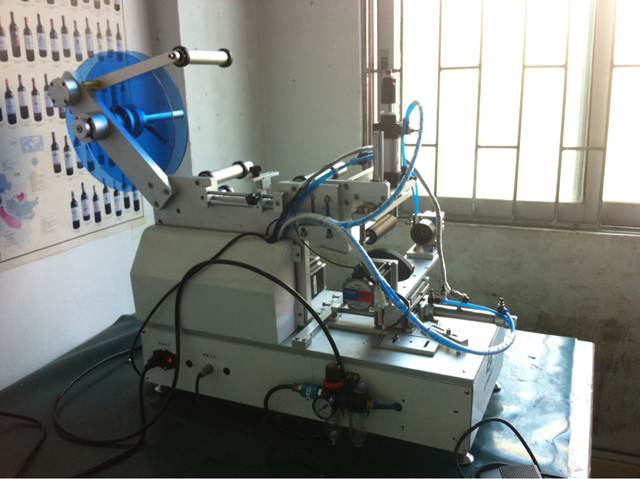

Oval Flat Plastic Bottles Rolling Labeling Machines Semi Automatic

Model: VK-T805
Labeling accuracy: ±0.2mm
Labeling speed: 10～25Pieces / min
Applicable Dimensions (Length): 20mm～250mm
Applicable Product Size (width): 20mm～150mm
Applicable Dimensions (height): 0.2mm～120mm
Applicable Label Size Length: 15mm～250mm Width：15mm～150mm
Inner diameter of label roll: Φ76 mm
Label largest diameter: Φ280mm
Dimensions (L × W × H): 850mm×410mm×720mm
Power supply: 220V 50HZ
Total Power: 300W

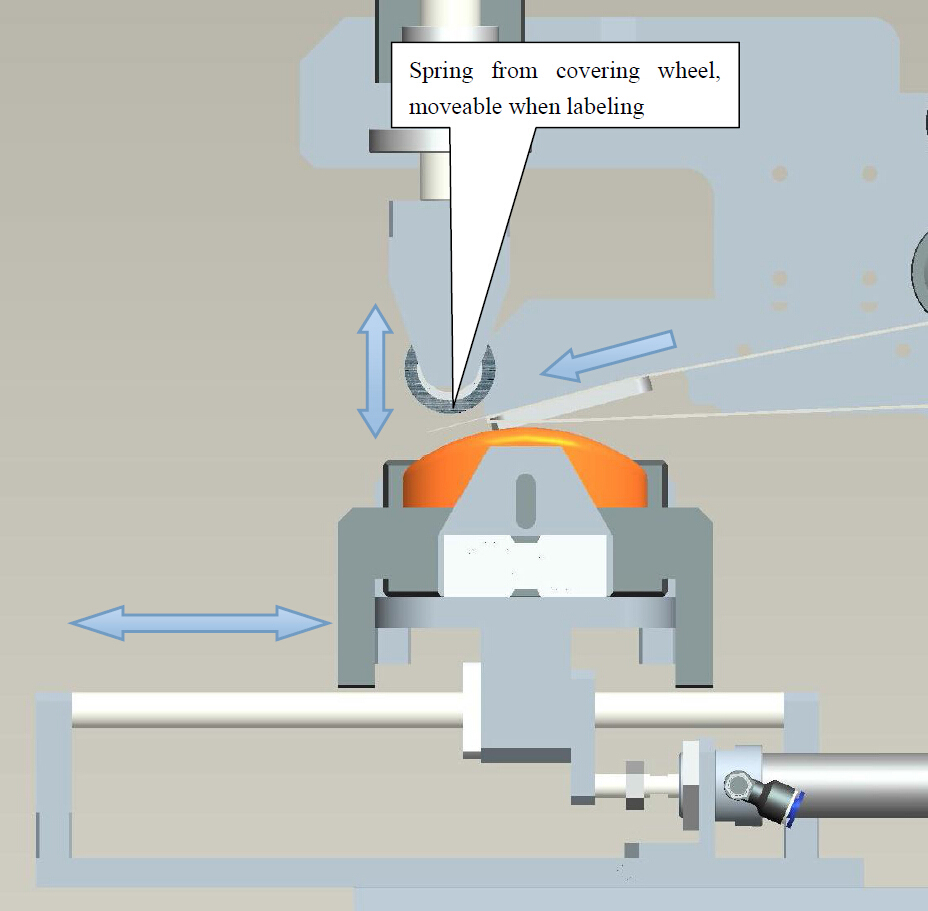

The rolling labeling machine semi automatic customized oval flat plastic bottles is the updated version based on model VK-T805 by replacing the pneumatic driving part with the stepping motor. With stepping motor the labeling machines work in a more stable way. The highly-performance machines labeling is specially designed for oval soft plastic bottles in order to avoid the insufficient labels in edge or lower accuracy labeling for irregular bottles.

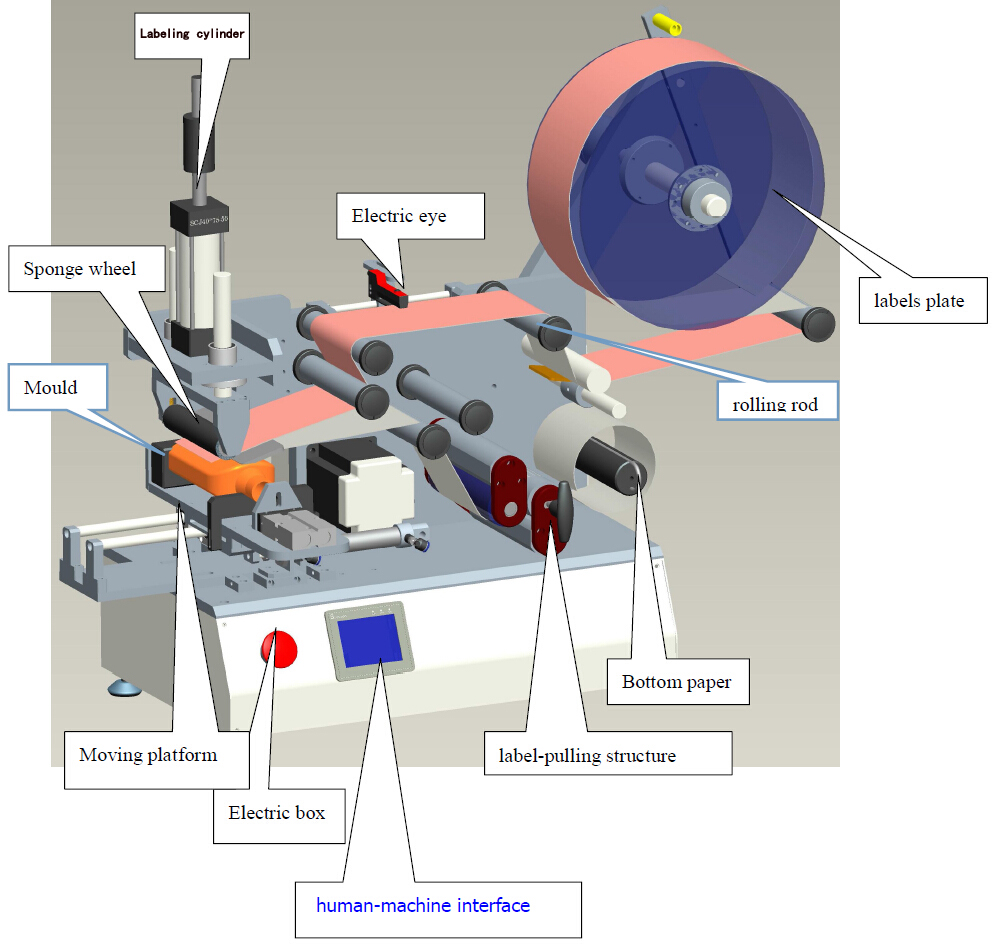

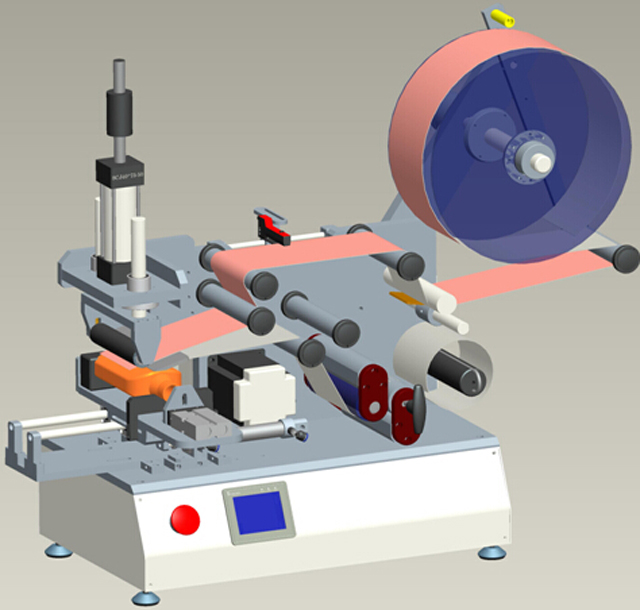

Drawing

Basic Purpose

Applies to products on flat or curved, concave labeling, labeling accuracy up to ± 0.2mm, mainly used in electronic components, precision labeling of digital products, such as SD cards, cell phone batteries, FPC, mobile phone charger labeling and so on. Precision labeling, highlighting the excellent quality of products, improve competitiveness.

Optional Features

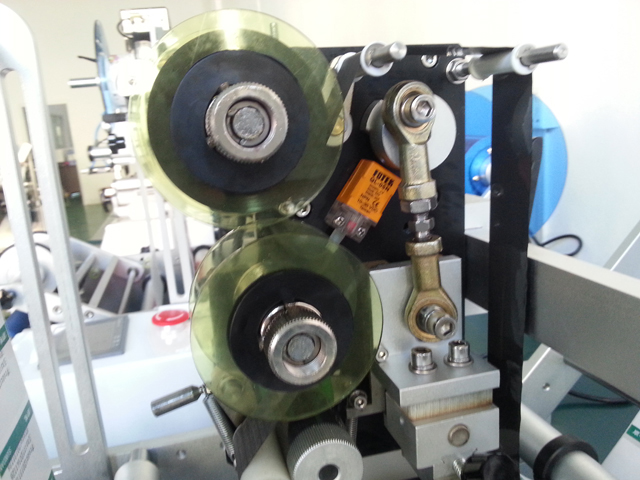

Coder: thermal coder word tablets print production date, expiration date, batch number and other information.

Applicable Label: Label, electronic monitoring code, bar code, etc.

Application: require flat or curved, circular surface, concave, convex, or other surface attached label.

Industry: Widely used in food, toys, cosmetics, electronics, pharmaceutical, metal, plastic, printing and other industries.

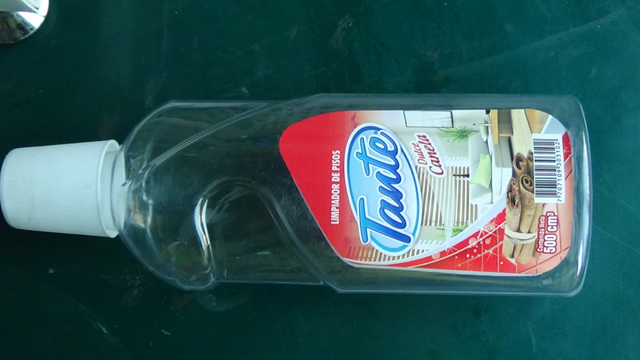

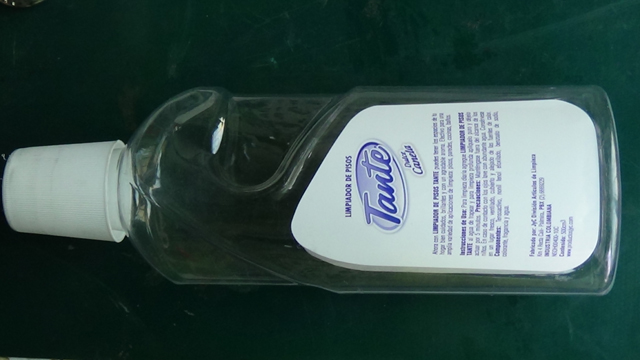

Applications: SD card labeling, labeling and other batteries. (Canon Charger: no bubbles)

Working Process

Core principle: This principle is part of our R & D alone, if interested, please inquire.

Procedure: put the product -> Labeling and covered standard (device automatically) -> Remove any labeling products.

Technical Parameters

Model: VK-T805
Labeling accuracy: ±0.2mm
Labeling speed: 10～25Pieces / min
Applicable Dimensions (Length): 20mm～250mm
Applicable Product Size (width): 20mm～150mm
Applicable Dimensions (height): 0.2mm～120mm
Applicable Label Size Length: 15mm～250mm Width：15mm～150mm

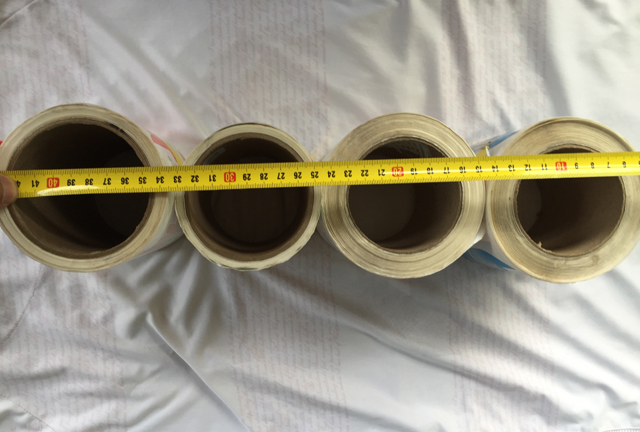

Inner diameter of label roll: Φ76 mm
Label largest diameter: Φ280mm
Dimensions (L × W × H): 850mm×410mm×720mm
Power supply: 220V 50HZ
Total Power: 300W

Features

Precision, domestic original labeling technology, labeling accuracy of ± 0.2mm, meet the needs of high-precision labeling;
Easy to operate, stripping standard, standard delivery, suction mark, labeling and other actions automatically cover standard, manual loading to complete the labeling process;
Safety, transmission components wrapped with pneumatic circuit arranged separately, to avoid an exception occurs, the use of safer;

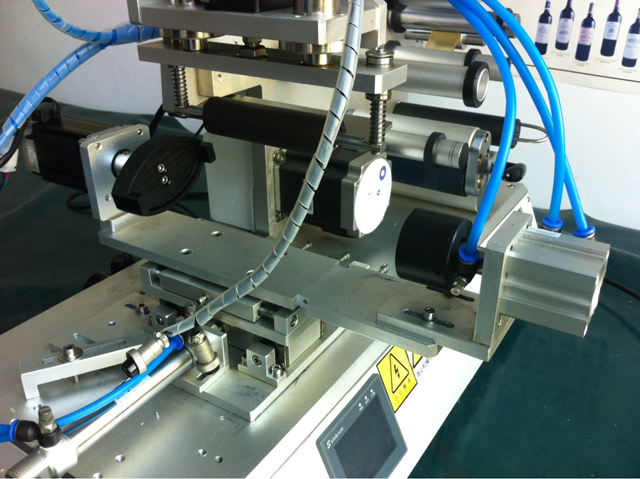

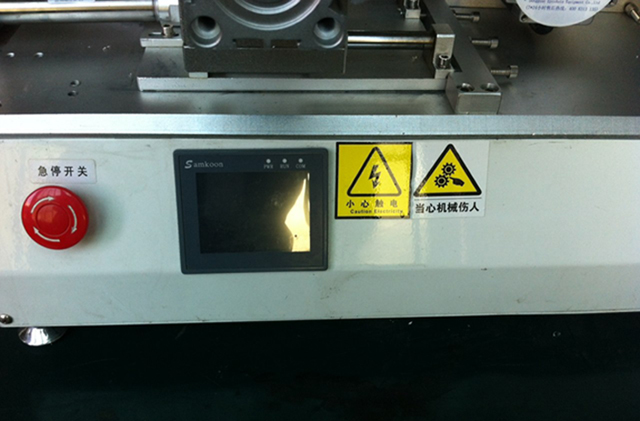

High stability, using stepper motors PLC electronic control system consisting of fiber optic sensors, equipment stability, long time working;
Optional automatic scale turntable device, can significantly improve the efficiency of loading and unloading, improve labeling efficiency;
Optional features and components: ① automatic feeding function; ② automatic rewinding function (combination of product considered); ③ other features (according to customer requirements).
