Pharmaceutical Syringes Gel Liquid Filling Plugging Sealing Machine

Filling volume: 2ml to 150ml(customized according to customer’s samples)
Filling nozzle: 2pcs
Speed: 50-70pcs per minute
Sealing method: press or screw
Air pressure: 6kg/square meters 0.3m3/min air consumption
Power supply: 3p 380/220v 50-60hz
Machine dimenion: 2250*2188*2230 L-W-H
Net weight: 850KG
Optional: transfer printing; Laminar cover

The machine syringe filling plugging GMP equipment is suitable for liquid gel filling & rubber plugging of glass or plastic syringes. other types of syringe are also up to custom made.

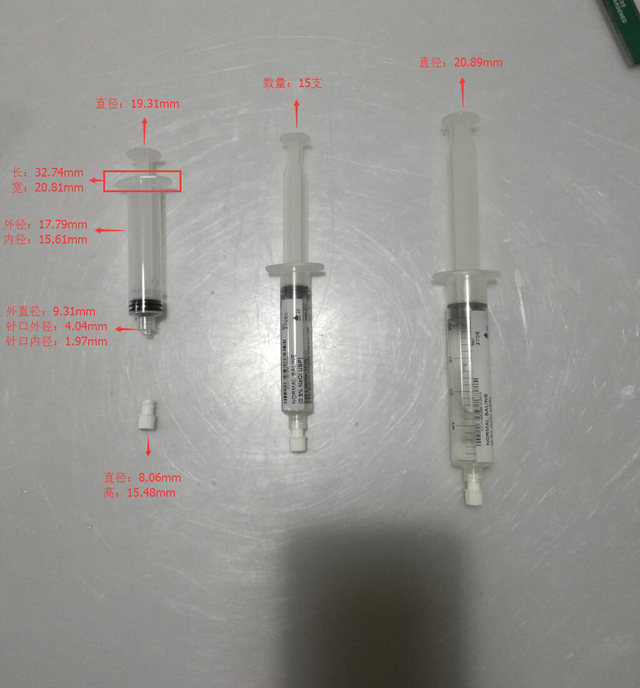

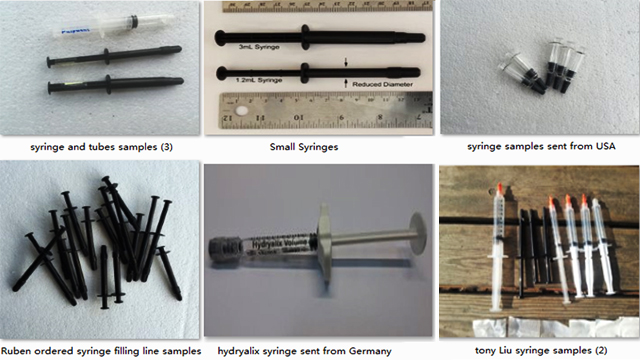

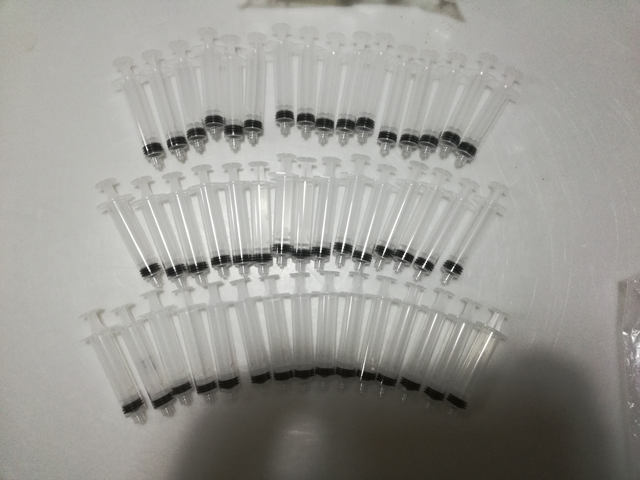

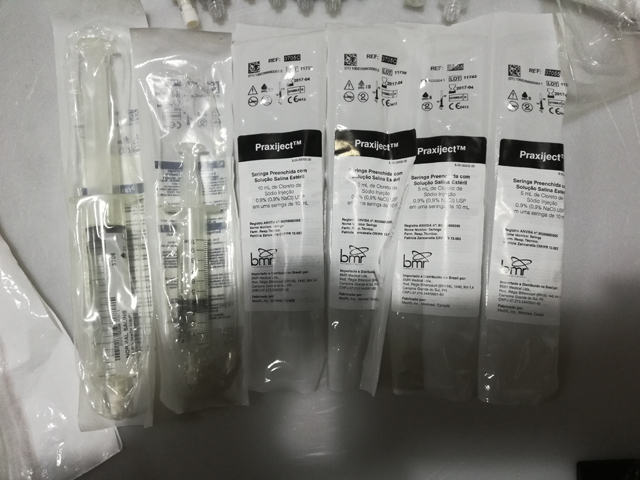

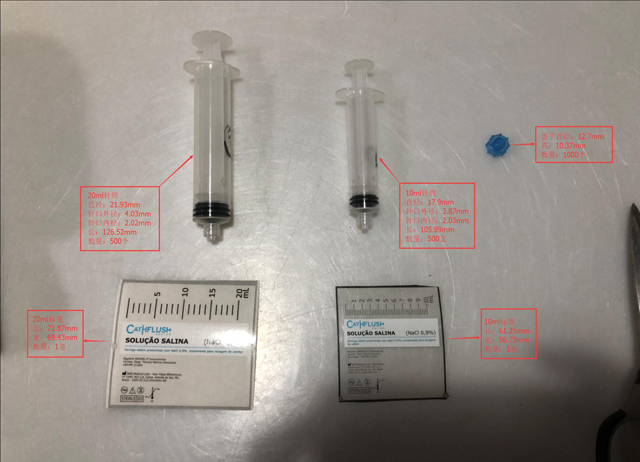

Application Of Syringe For Filling Plugging Capping Sealing Labeling Line:

Features Of Pre-Filled Syringe Filling Plugging Sealing Machine:

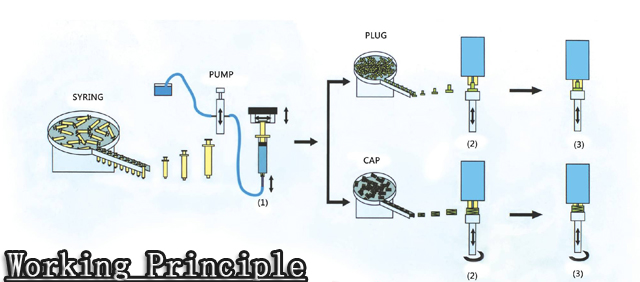

2 nozzles are for filling simultaneously. Plugging can be ether by pressing down or screwing-on;

Plugging is done parallelly with filling. Multi points inspection with optical fiber sensors. No filling &Plugging without syringe;

All products contact parts are made of AISI 316L and GMP standard silicon.

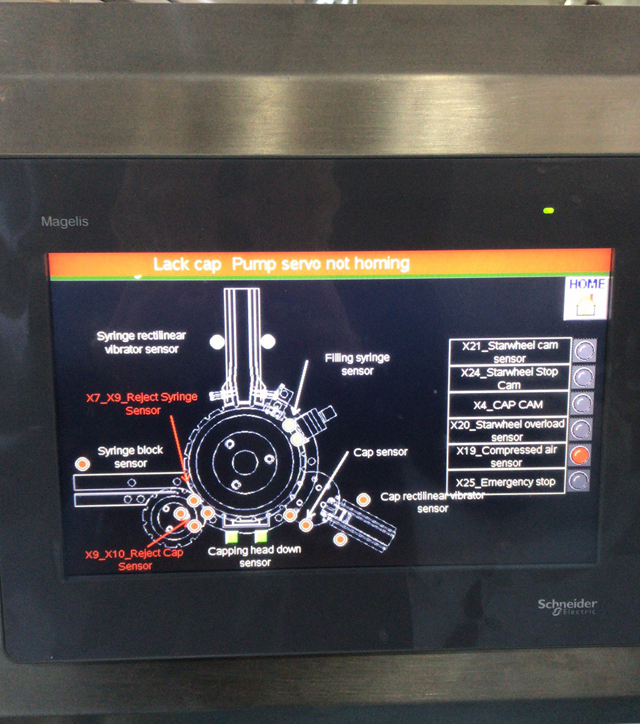

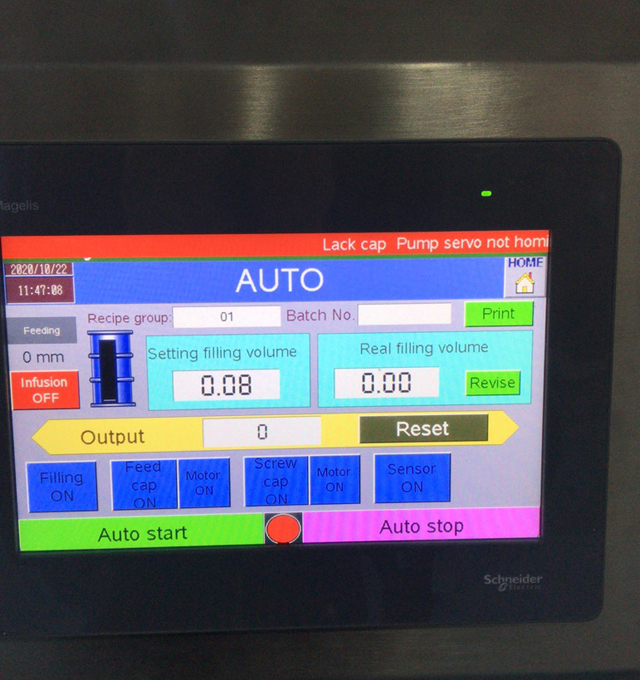

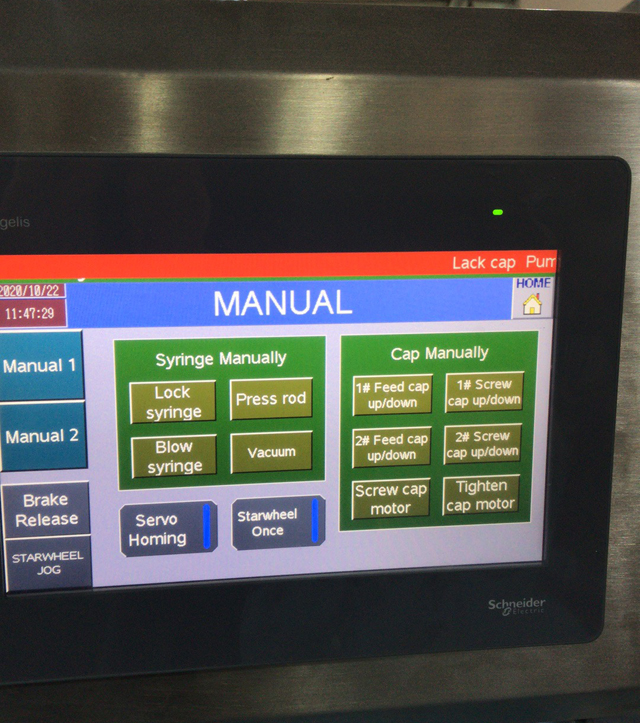

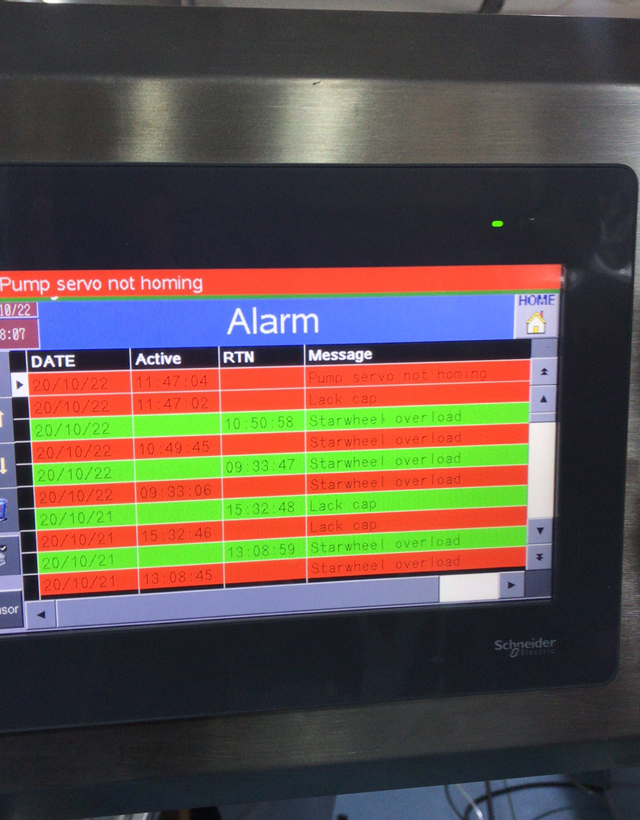

Actual working status can be displayed on touch screen with multi languages

Rotary filling pumps are driven by servo motor.High precision adjustment can be made by input the number in the touch screen;

Each pump can be adjustable slightly.

Basic Parameters Of Syringes Filler Sealer

Filling volume: 2ml to 150ml(customized according to customer's samples)
Filling nozzle: 2pcs
Speed: 50-70pcs per minute
Sealing method: press or screw
Air pressure: 6kg/square meters 0.3m3/min air consumption
Power supply: 3p 380/220v 50-60hz

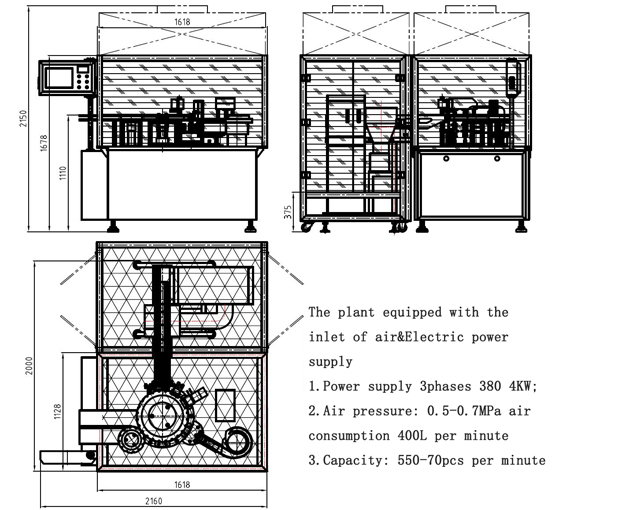

Machine dimenion: 2250*2188*2230 L-W-H
Net weight: 850KG
Optional: transfer printing; Laminar cover

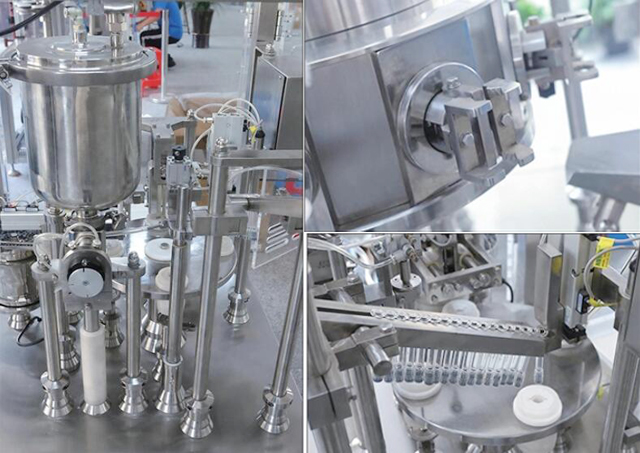

Details Of Syringes Filling Sealing Machine:

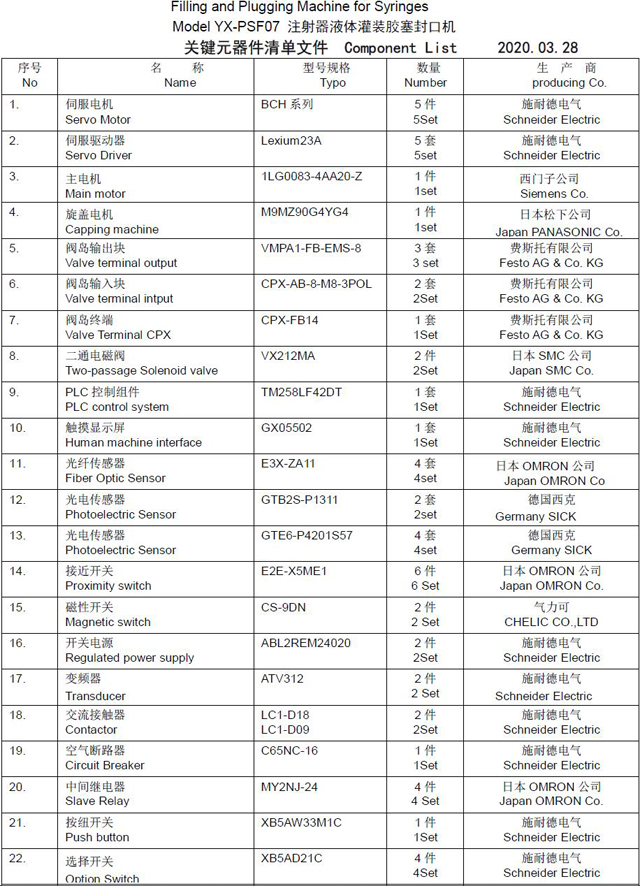

Configuration Of Syringes Filling Sealing Machine

The syringes filling sealing machine can be integrated with the syringes assembly lining equipment to provide the whole solution in the pharmaceutical packaging industry;
