Plastic Laminated Tube Filling Ultrasonic Sealing Machine Semi Automatic
  • Model: VK-TFS-006U tubes filling ultrasonic sealing machine
  • Compressed air Pressure: 0.4-0.6MPA Consumption: 0.3M3/MIN
  • Scope of work: Filling volume: A Type 5-15ML B type: 10-75ML C-type: 20-150ML D-type: 50-300ML E-type: 100-500ML F type: 200-1000ML
  • Production capacity: 20-30 times / min
  • Filling accuracy: error <2%
  • Table adjustable height: 100MM
  • Tank Capacity: 20L, 30L, 40L, 50L
  • Filling the container diameter: according to the material viscosity and filling volume set
View Video

Plastic composite tube filling and sealing machine made of stainless steel, using the buttons to control the work process: artificial tubes, automatic rotary, quantitative filling, automatically cut off, sealing, cut tail, finished exit.

All work using the full cylinder stroke control, easy to adjust filling volume, the filling speed can be adjusted.

It applies to all kinds of plastics and composite tube filling, sealing, date printing, cut tail. Sealing neat appearance, sealing strong, high accuracy, good stability.

Basic Parameters

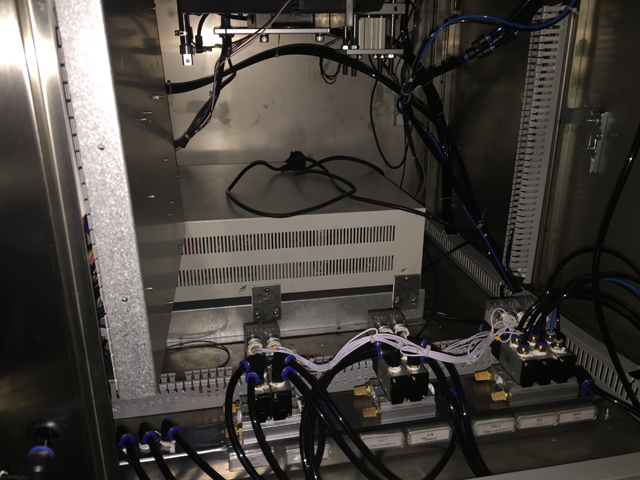

electric boxes for filling sealing equipment tubes.jpg

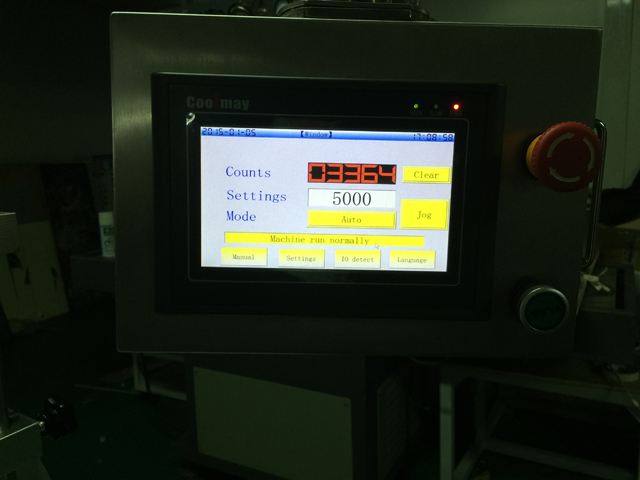

touch screen controlling system for filler sealer.jpg

back side of tubes filling sealing machine.jpg

Compressed airPressure: 0.4-0.6MPA Consumption: 0.3M3/MIN
Scope of workA type: 5-15ML B type: 10-75ML C-type: 20-150ML D-type: 50-300ML E-type: 100-500ML F type: 200-1000ML
Production capacity10-30 times / min
Filling accuracy error<2%
Table adjustable height100MM
Tank Capacity20L, 30L, 40L, 50L
Filling the container diameteraccording to the material viscosity and filling volume set

Note: The above parameters for reference only.

The machine constantly upgrades parameters may cause the actual discrepancies, please understand.

How Ultrasonic Sealing Works

how ultrasonic tubes sealing workds.jpg

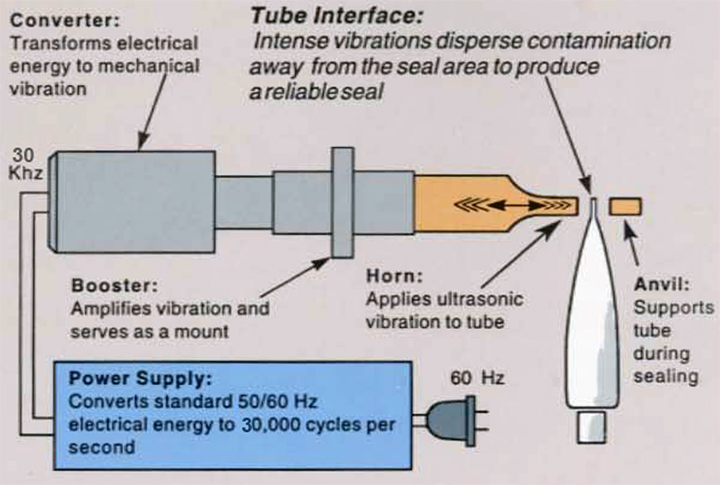

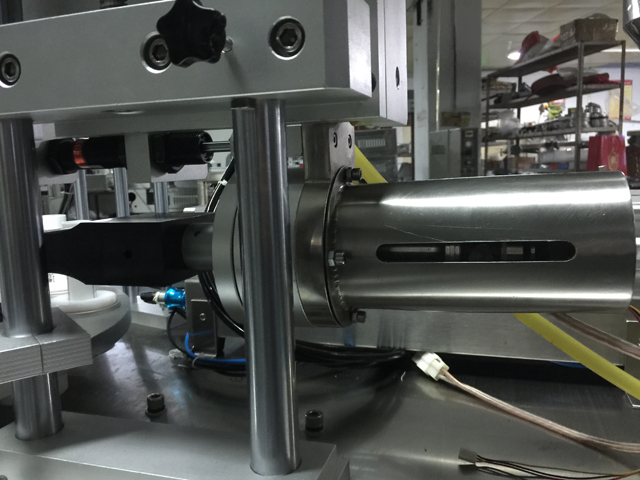

how ultrasonic tubes sealing works.jpg

The ultrasonic tube sealer is designed to be mounted onto virtually all styles of filling machines. As the tube is advanced to the ultrasonic tube sealing station, a switch closes to initiate the weld cycle. Air is directed into cylinders to advance the weld anvil and ultrasonic horn towards the center line of the tube.

The tube is closed to a preset gap and held for the applica-tion of sonic energy.

An ultrasonic power supply takes the 50/60 Hz electrical energy and converts it to 30,000 cycles per second thorough a power oscillator.

This high frequency electrical energy is applied to the convertor which transforms the electrical current to high frequency mechanical vibrations.

The sonic energy causes the horn to vibrate against the tube end at 30,000 cycles per second.

The intense vibration disperses any contamination from the seal area and generates heat to bond the material.

The energy is then stopped and the tube is held closed for a brief time (typically .05 to .150 seconds).

Then the tube goes to the next station on the filling line. Typically cycle times range from 45 to 80 units per minute, depending on tube diameter and material.

Features

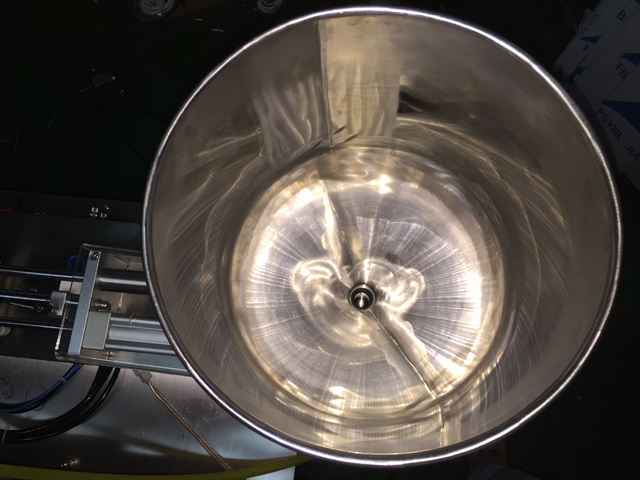

filling hopper for ultrasound sealer filler.jpg

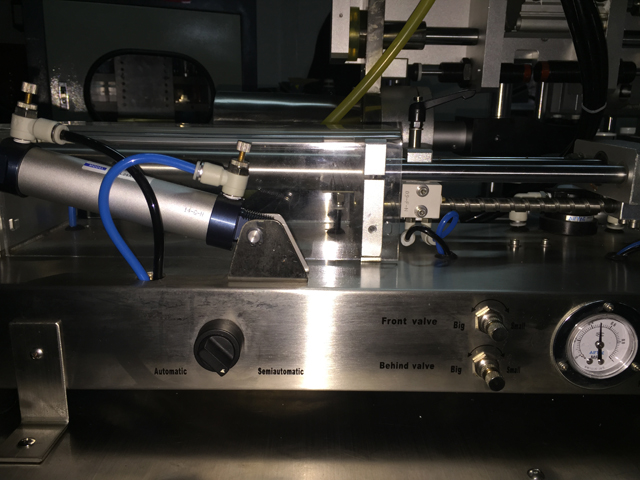

horizontal filling machine for tubes filler sealer.jpg

  • The machine can be used for explosion-proof units.
  • Mainly used for quantitative filling of water, oil, lotion, paste-like material. According filling needs, adjustable work surface lift.
  • Filling volume 5-1000ML, divided into six series: A, B, C, D, E, F.
  • Feeding mode: Normal gravity / automatic suction type choose one.
  • Control: pneumatic control.

Workplace For Tubes Filling Sealing Machine Semi Automatic


1. Laboratory

2. Industrial production operations with continuous processing line

Detailed Pictures

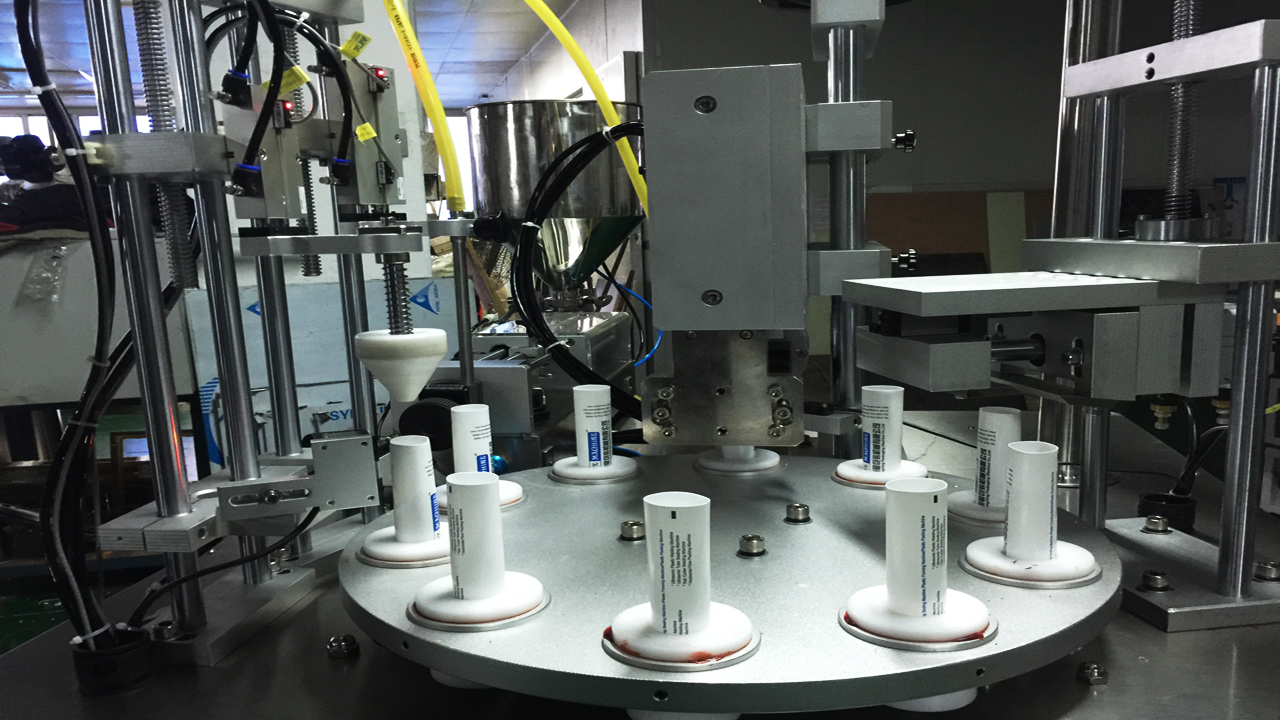

rotary filling ultrasonic tubes sealing.jpg

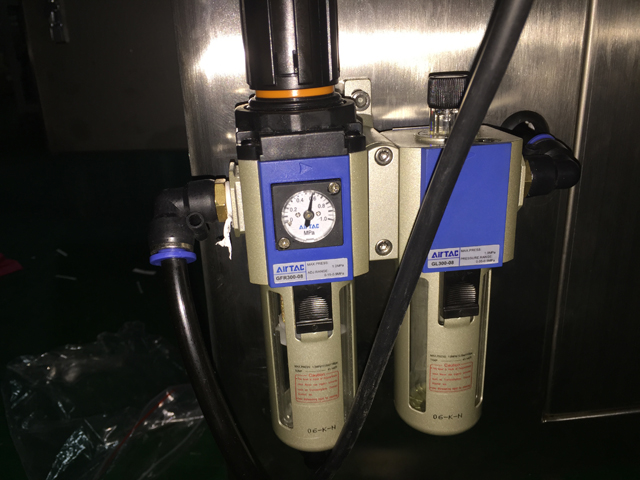

pneumatic part for filling sealing machine.jpg

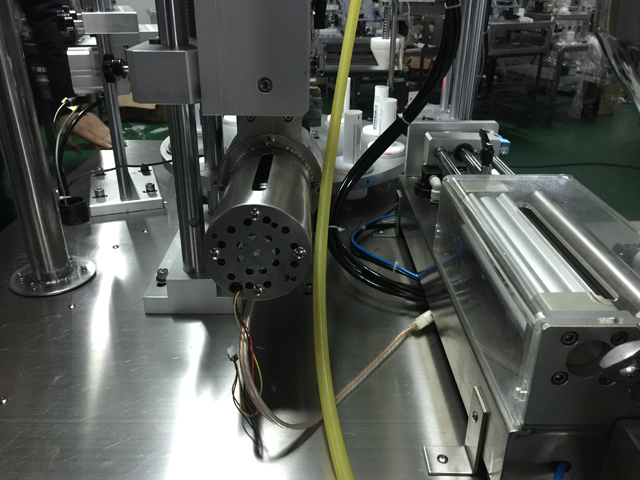

ultrasonic sealing filling for tubes paste.jpg

Tubes Samples

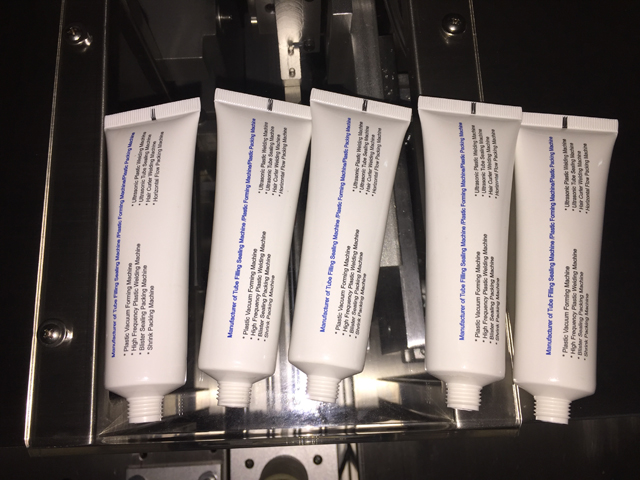

tubes samples from filler sealer.jpg

Wooden Case Packaging

wooden case packing for tubes filling sealing.jpg

After-Sales Service

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
