Rotary Glass Bottles Servo Essential Oil Liquid Filling Capping Machine
  • Model: VK-MFC
  • Filling volume: 1ml to 150ml
  • Filling way: Peristaltic pump
  • Filling nozzle: 2 set
  • Capping way: 2 pcs servo motor
  • Power supply: 115V 60hzHz
  • Power consumption: 1.5kw
  • Ampere: 4.3A
  • Air pressure: 4-7kgf/cm2
  • Capacity: Around 20~30pcs/min
  • Weight: around 450 kg
  • Overall dimensions: 3500mm*3000mm*1700mm
View Video

The 2 in 1 filling capping machine is mainly applied for automatic labeling on the product flat or curved surface in various shapes in the fields of medicine, daily chemical, toy and foodAdopted high-precision labeling position is suitable for the product labeling in various sizes.It saves labor and improves labeling precision and consistency.Imported electric eyes and programming controller are adopted to control cylinder labeling; all exposed parts are made from stainless steel, engineering plastics and high-strength alloy aluminum whose surface is treated by anodic oxidation, with corrosion resistance, complying with GMP standard.

The good filling machine is the one that maximizing output and simplify changeovers. We has been developing the machinery in dosing small bottles like filling perfume, essential oil, E-liquid, nutrition oil and other daily use fluid materials.

How To Design A Filling Line With The Related Machines Is Up To The Points 5 Given As Below:

Product is King

When picking a specific filling machine, a good place to start is to know the exact characteristics of the liquid product. Is it a free-flowing liquid? This might work better with a timed-flow fill machine where the same volume of product is delivered each cycle. What if the product is more viscous? For that, a positive displacement liquid filler might be the way to go.

Product And Container Versatility

Because of the wide variety of products being packaged at plants, more processors are looking for fillers that can handle multiple concepts. Equipment providers understand this, but might not be able to deliver a panacea yet.

Customers are demanding that new filling equipment is more versatile and can handle a full range of varying productsAdditionally, the fill nozzles are designed for specific applications and can be easily exchanged.

Accuracy And Efficiency

Having properly filled containers is one of the key elements to ensure product quality and control giveaway. Under-filled bottles, at best, can result in consumer complaints and, at worst, can land a company in court. However, overfilling can be costly and wasteful. This means a filler must be accurate and consistently maintain that accuracy over the years.

Minimizing Changeover Time Through Hygienic Design

With many processors increasing the variety of products to fill, minimizing cleaning and changeover time continues to be a major focus. Fillers with automatic clean-in-place (CIP) capabilities have long been identified as a way to speed up the cleaning process.

Operator Interaction

Even though filling machines are trending toward more automation, equipment must be easy for operators to use. More attention is being paid to designing intuitive human machine interface (HMI) with panels that are easier to use and read.

Taking into consideration the 5 points to design one machine our model VK-MFC veg oil filling capping labeling line is specially suitable to fill the nutrition oil.

Actual Filling Capping Labeling Line:

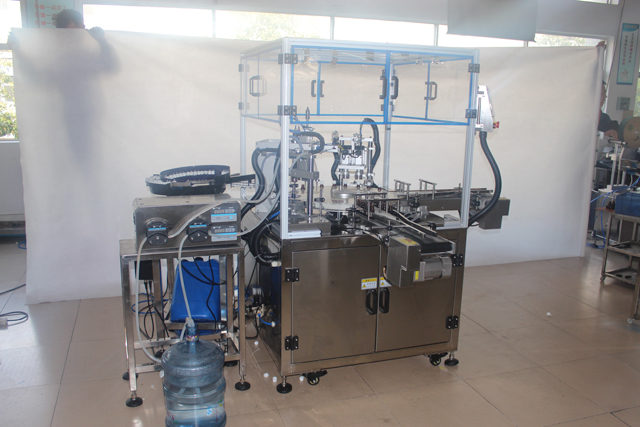

filler capper

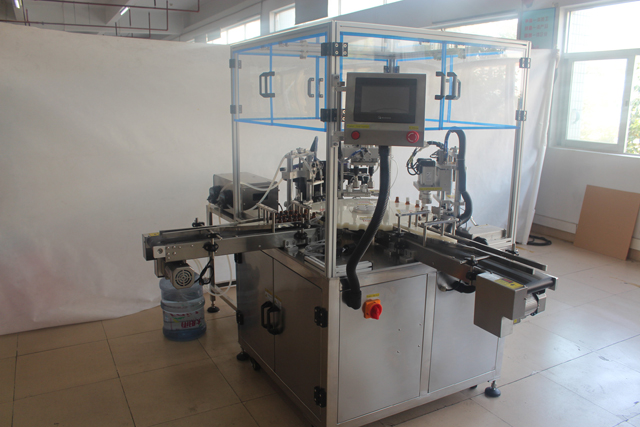

actual pictures of filling capping labeling.jpg

Drawing

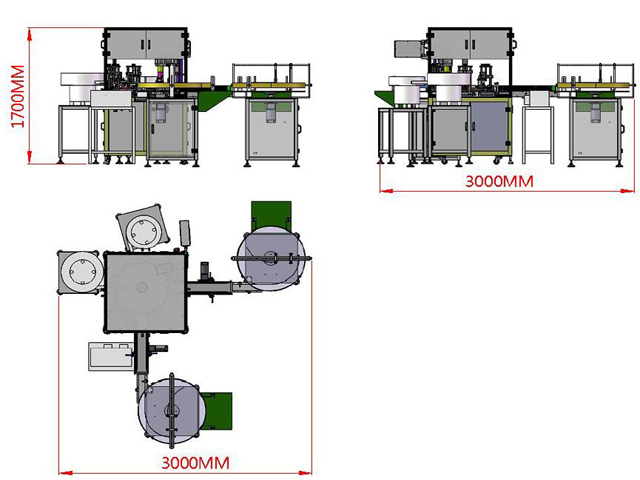

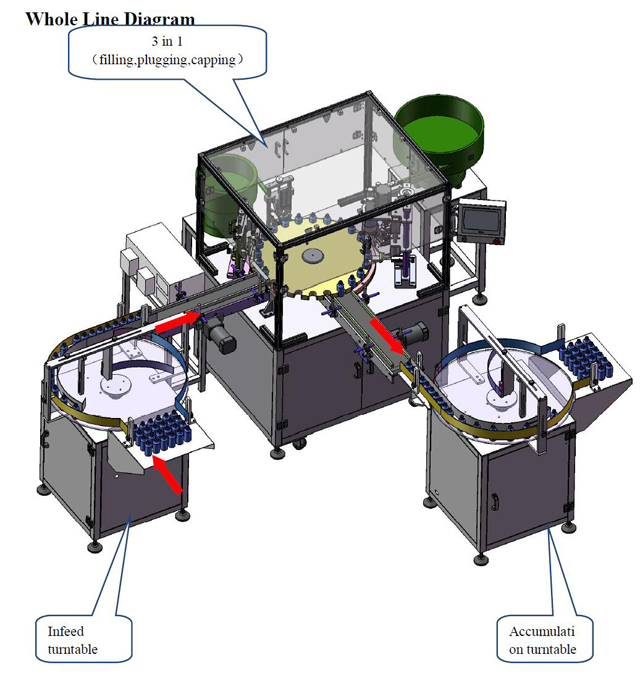

Whole diagram for essential oil filler.jpg

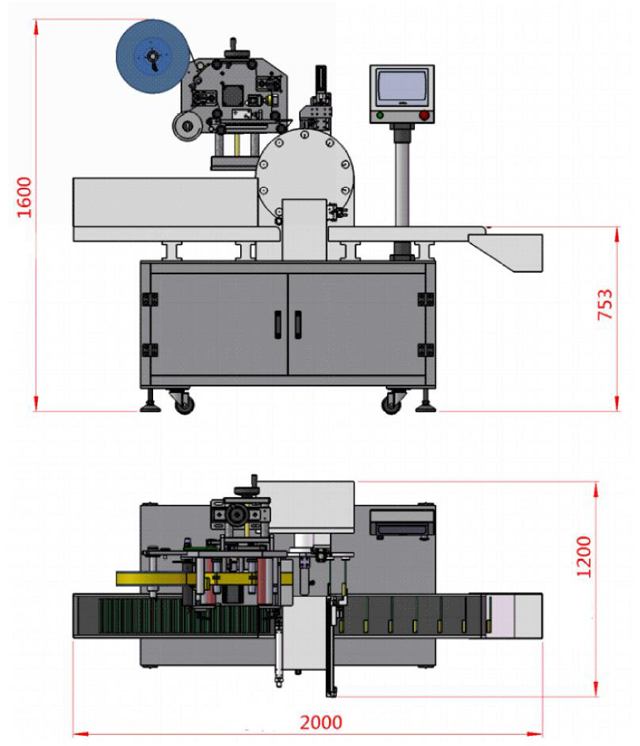

Essential oil bottles labeller.jpg

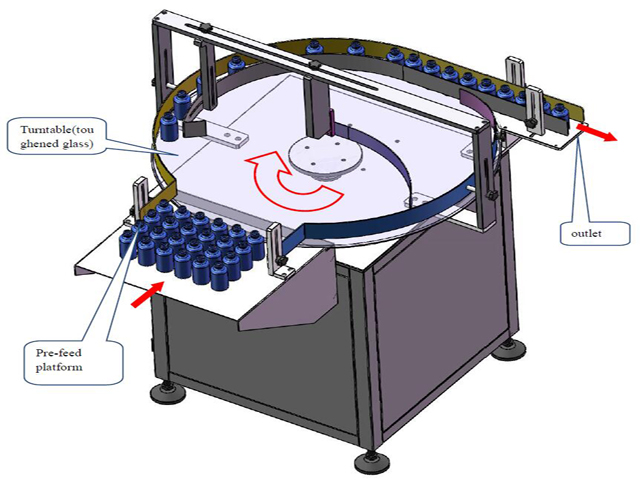

infeed bottles.jpg

Essential oils and extracts are high value, low viscosity products typically sold in small size glass vials. The peristaltic machine is Ideal for these products because of accuracy of small fill sizes, ease of cleanup, and because there can be no cross contamination of different products run on the same filling machine.

Cross contamination is avoided because the only thing that touches the liquid is the peristaltic tubing itself which is composed of silicone or other inert specialty polymer materials. This tubing is inexpensive and can be easily cleaned, dedicated to a particular liquid, or simply thrown away after use. The size of tubing chosen in this machine depends on the fill size and accuracy required. The smaller diameter of tubing used, the higher the accuracy but the slower the fill rate. This explains why this machine is best utilized on small fills where high accuracy is needed. Large fill sizes greater than 1 liter are typically not filled on this type of machine because the fill cycle time can be lengthy. But for a typical fill size of 5 to 10 ml, again this is the ideal machine. The peristaltic filling machine dominates this industry because there is little to no waste of an expensive product.

Must Read Before First Use

1: Before the machine is plugged in, make sure the power switch is in the 【close】 state, and then follow the instructions.

2: The machine should be wiped with dry cloth if it does not run for a long time; corrosive cleaning agent should not be used.

3: It is strictly prohibited to splash liquid into the electricity box of the machine, so as to avoid corrosion of internal electrical components and resulting in short circuit.

4: According to the equipment packing list, check that the equipment, material model, specification and quantity should meet the requirements of design and product standards, and have certificate of product qualification.

5: Check that the appearance of the equipment should have no deformation, damage or corrosion, the rotation of the rotating shafts should be flexible and without clighting stagnation.

6: This machine is single phase AC 110V, the power plug is flat 2 plug, which should be inserted into power socket with ground wire.

Technical Parameters

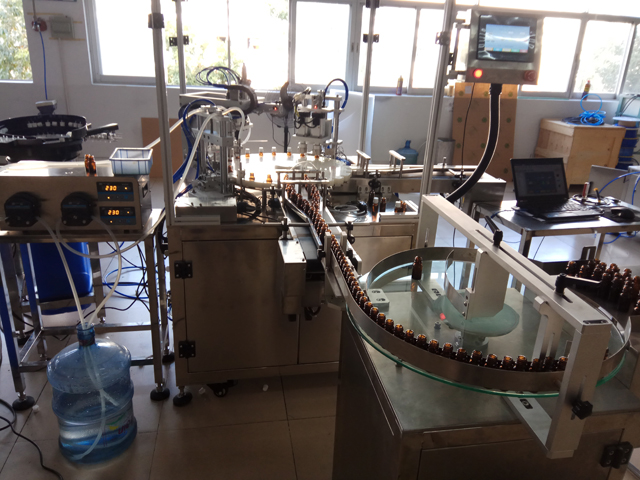

essential oil.jpg

Filling capping labelling oil bottles.jpg

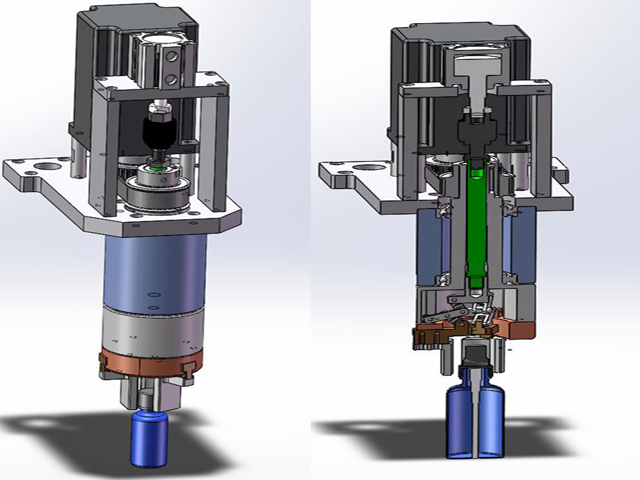

New capping heads.jpg

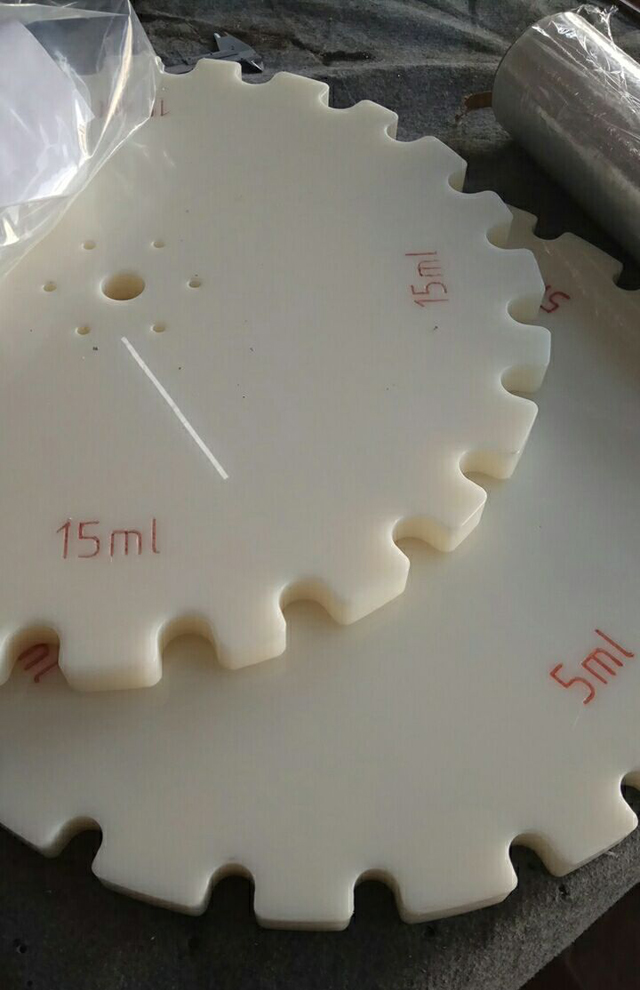

star wheel.jpg

  • Model: VK-MFC
  • Filling volume: 1ml to 150ml
  • Filling way: Peristaltic pump
  • Filling nozzle: 2 set
  • Capping way: 2 pcs servo motor
  • Power supply: 115V 60hzHz
  • Power consumption: 1.5kw
  • Ampere: 4.3A
  • Air pressure: 4-7kgf/cm2
  • Capacity: Around 20~30pcs/min
  • Weight: around 450 kg
  • Overall dimensions: 3500mm*3000mm*1700mm

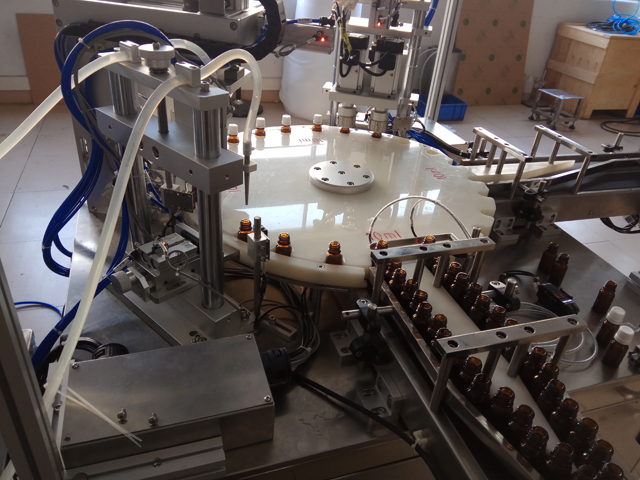

essential oil

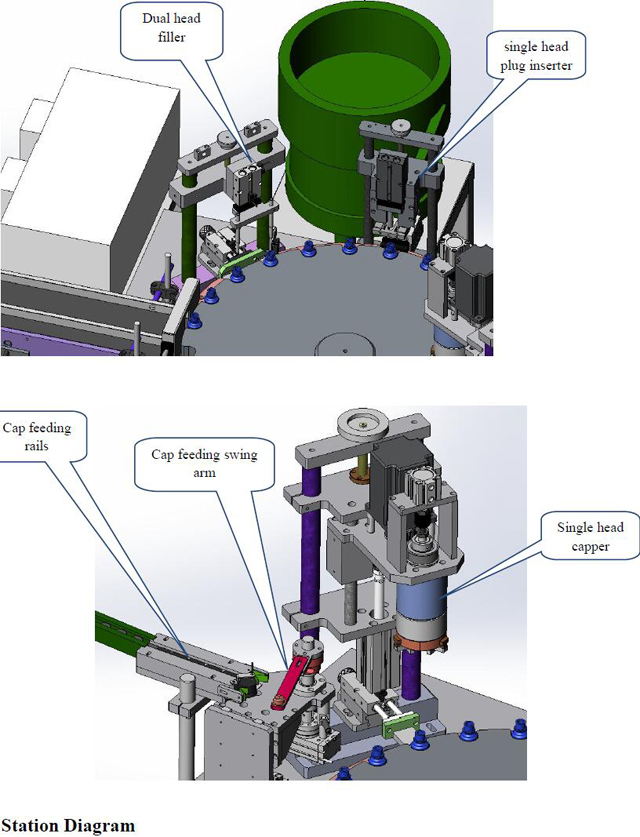

station diagram for filler

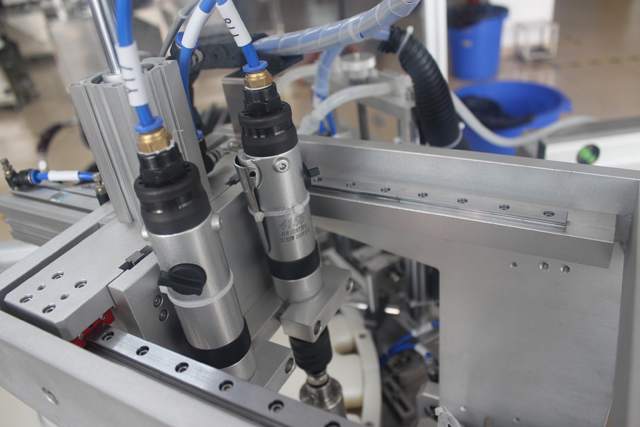

servo motor controlling capper 2 pcs

No.ComponentsBrand or SpecificationQty.
1PLCMitsubishi/Panasonic1
2Touch ScreenWeinView1
3Splitter70DF1
4Three phase motor with brake200W1
5Conveyor Speed Motor90W2
6Cylinder Airtac/SMC11
7Capping 86 step motorSEAWERY1
8Turntable motors120W2
9Dual head peristaltic pump1
10Insert vibratory bowl1
11VFDENCOM
12SensorsKEYENCEN
13Machine cabinet with SS304, Structural components adopt oxidized aluminum,chrome plated rods and SS304

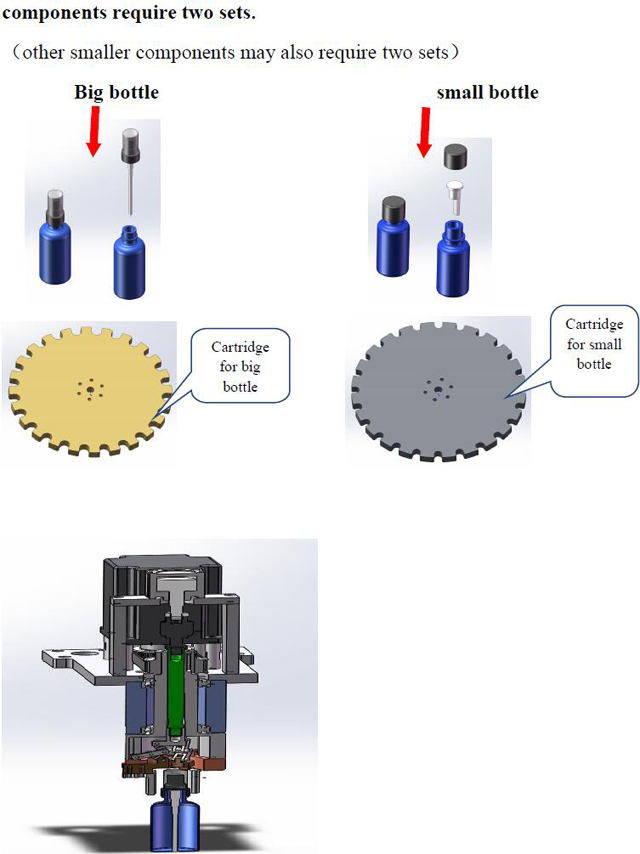

capping heads for filler capper

Essential Liquid Bottles Samples & Wooden Case Packing For Shipping

Essential oil bottles.jpg

bottles filling.jpg

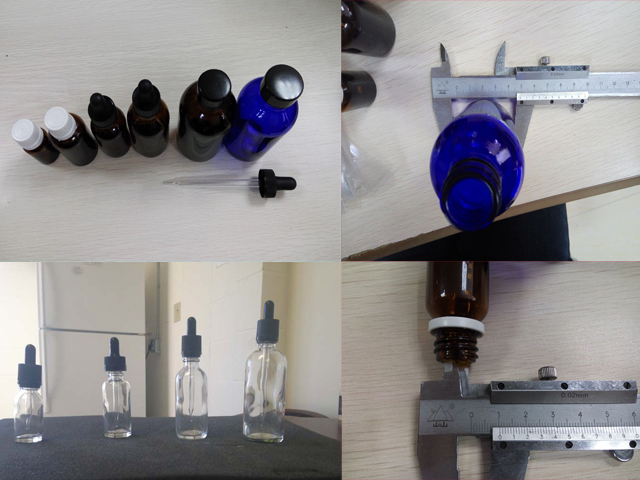

bottles E liquid

Machine Maintenance Clean And Clear & Packed In Wooden Case Before Ocean Shipping:

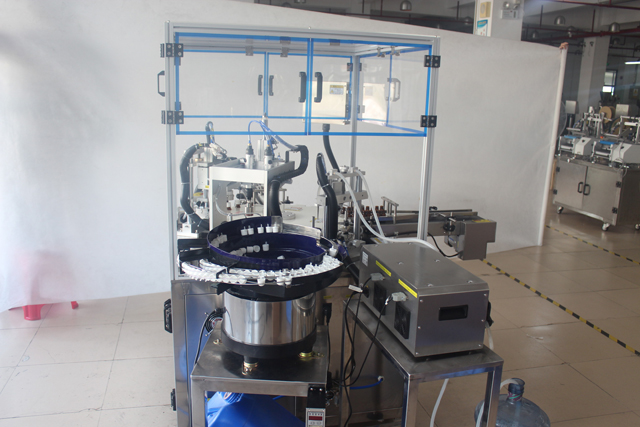

oil health care filling bottling machine.JPG

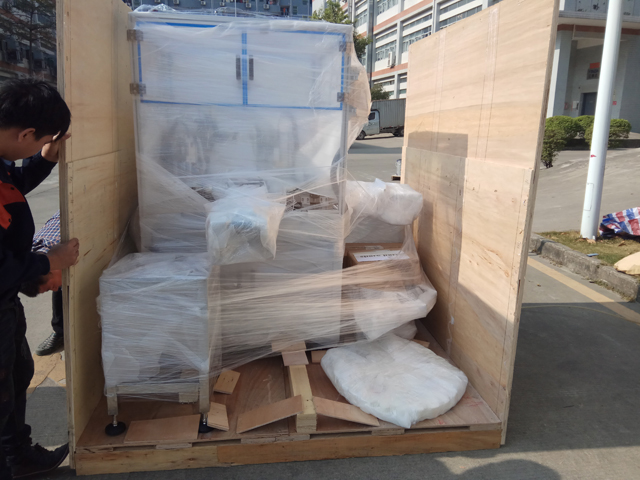

wooden case packing.jpg

Wooden case for filling line.jpg
