Semi Automatic Cable Wire Sticker Print-Apply Folding Labeling Machine

Model: VK-T807
Labeling Accuracy: ±0.2mm;
Labeling Speed: 1500-1800pcs/H
Small Wire Diameter Type: Speed 2000p Pcs/H
Applicable Product Size: Basic Type: Diameter: 6~15mm
Small Diameter Type: 1~5mm
Large Diameter Type: More Than 15mm Need To Be Customized
Applicable Label Size: Length: 25~210mm Products Outside This Range Need To Be Customized Width: 10~65mm
Overall Size: 850*650*1300 Length × Width × Height, The Long Label Will Increase The Width Dimension
Suitable Power Supply: 220v/50hz;
Overall Weight: 128 Kg.
Qr Coder With Real-Time Printer Part

The standard model technical parameters, other special requirements and functions, can be customized.

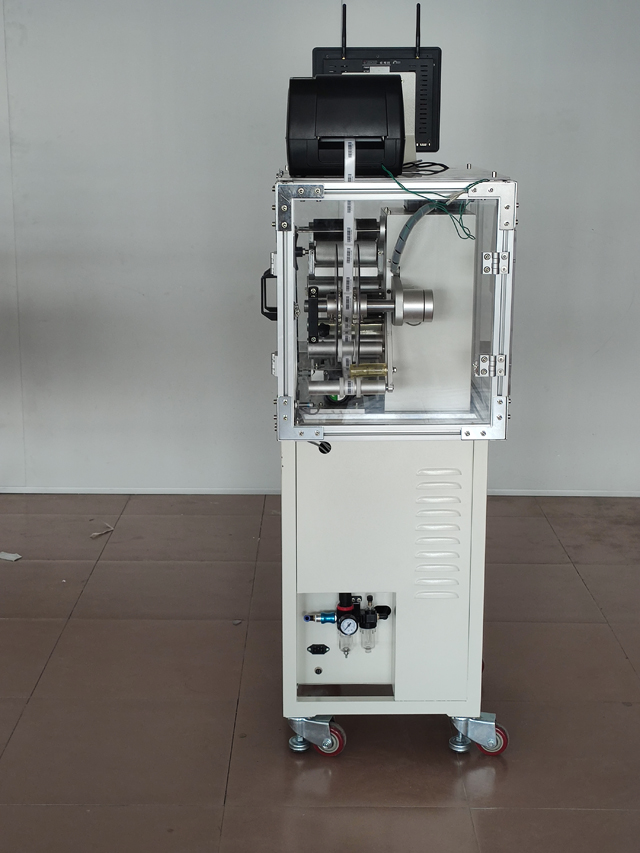

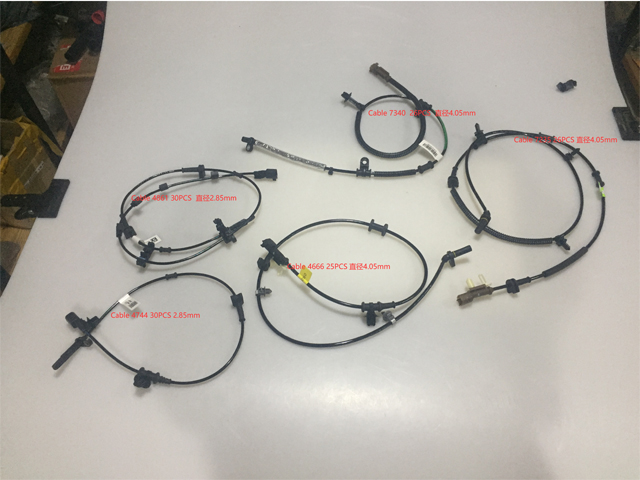

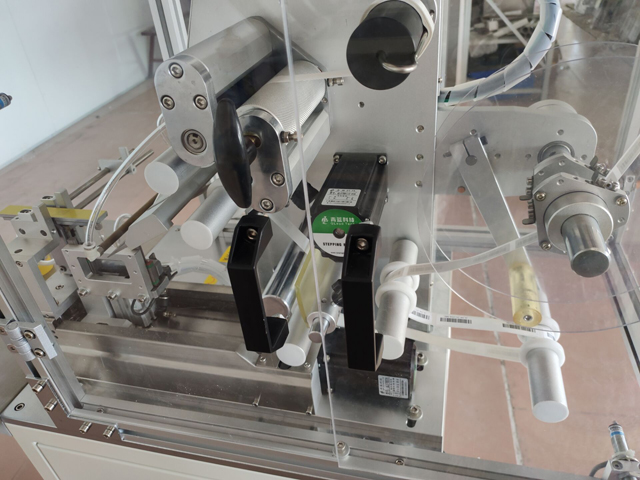

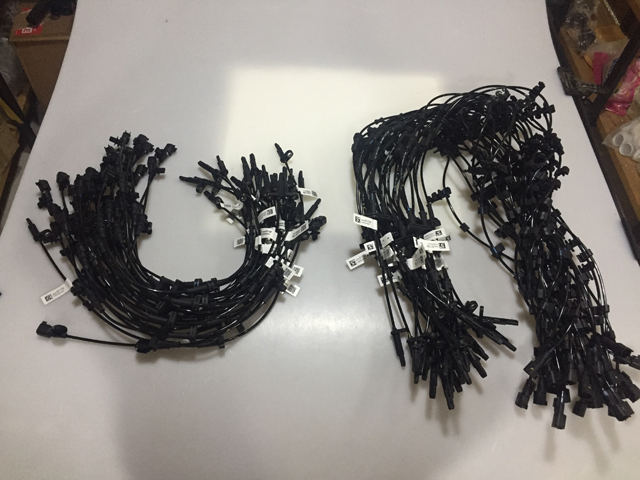

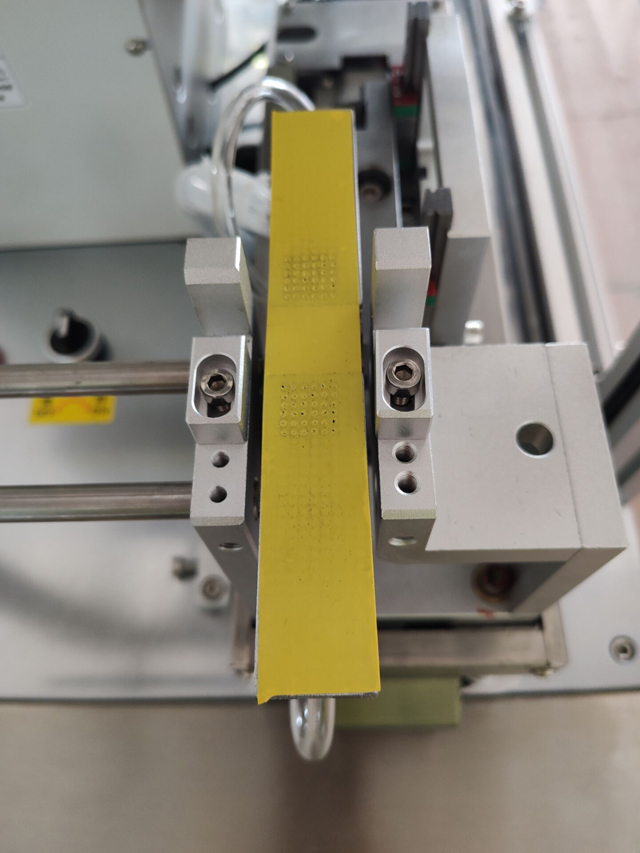

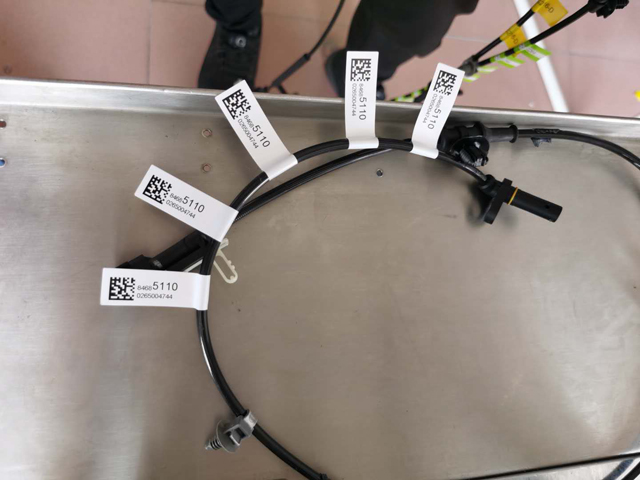

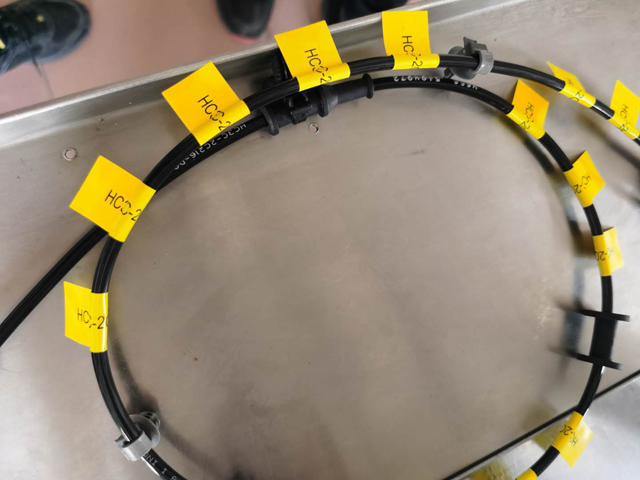

Applicable for folding labels on all kinds of wires and cables, such as power lines, computer peripheral cables, electronic sensor cables, headphone cables, power lines, fiber-optical lines, cable lines, piple cables, USB cables, cables of fax / printers, etc.

Applicable for wide range products size, easy to adjust and replace different products.

Operation Process:

Core principle: The sensor detects the product passing by, return signal to the labeling control system, signal processed via PLC processing, delivering the label to the preset product position at appropriate time, when the product flows through the covering mechanism, labels will be covered solid , labeling action is completed.

Procedure: Put on product -> Product Detection (automatically) -> labeling (automatically) -> Covering (automatically) -> collect labeled product.

Features

Wide range of applications, suitable for different specification product;

Convenient using, wide range adjustment, labeling on different specification products.

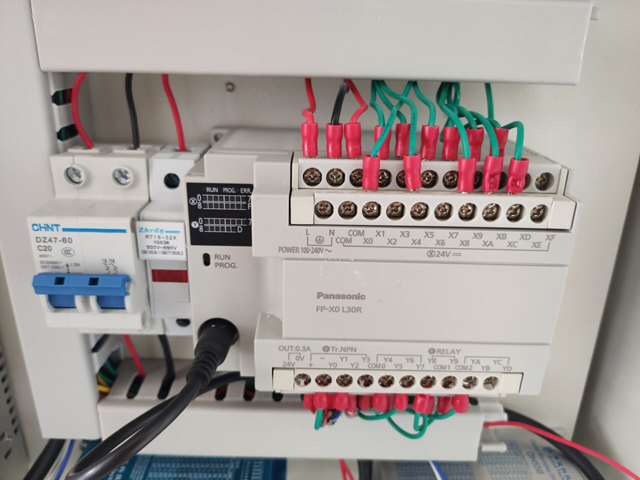

High stability, advanced electronic control system consisting of Panasonic PLC Germany label electric eye, support equipment 7 × 24-hour operation;

Range Of Application:

Applicable Label: self-adhesive label/film, electronic monitoring code, barcode and so on.

Application: wire and cable, large width, multi- specifications, high precision folding label products.

Applicable Industry: Widely used in electronics, wire, cable and other industries.

Application: wires labeling, computer peripheral labeling, USB cable, etc.

Folding device can be adjusted, non-product range can be customized according to customer samples.

How To Operate The Labeling Machine?

Please confirm the power supply voltage (ac220v), air pressure 4-6kgf, and the external power supply must have reliable grounding before the operate.

Power supply.

Do not block the cooling hole of the chassis.

Non professional technicians strictly prohibit the opening of the chassis.

The operating range of body contact is strictly prohibited when the equipment is operated.

When the equipment fails, the power switch should be closed first and the electrified maintenance is strictly prohibited.

The machine is used for the folding and labeling operation of the wire harness and the round rod.

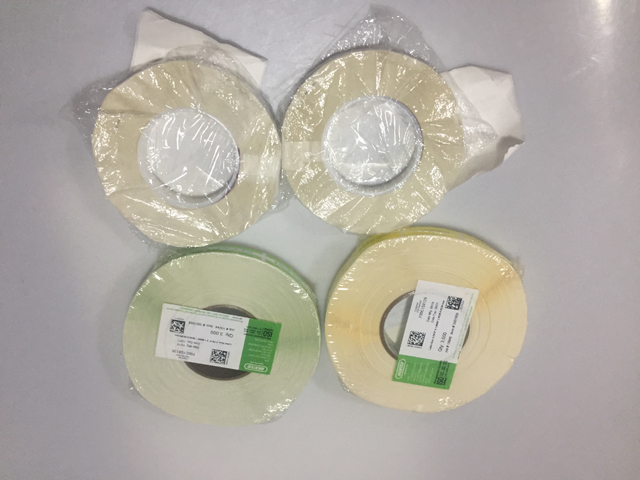

Applicable label parameters: the inside diameter 76mm of the label roll and the outer diameter max240mm; (other specifications should be fixed). Label material: pvc, pet, cloth, paper and so on; label specification: according to the specific machine

Labeling accuracy: = 0.2mm;

Capacity: 1500 pcs/h;

Outer size: 630*740*1040 mm (l*w*h);

Machine weight: about 86kg;

Applicable wire harness: according to the specific machine

Operation Description

Installation:

Moves the device to the required installation position.

Trampled the universal wheel brake and fixed the universal wheel to make it smooth.

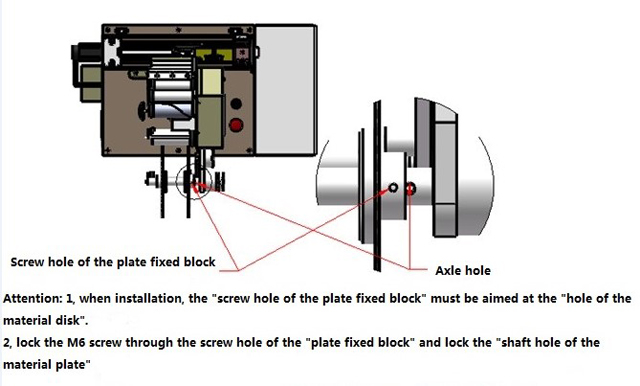

Label baffle plate: when installing, we must fix the “screw hole of the disk fixing block” to the “material shaft hole”, and screw the m6 screw through the screw hole of the material fixing block and lock it into the axle hole of the material tray.

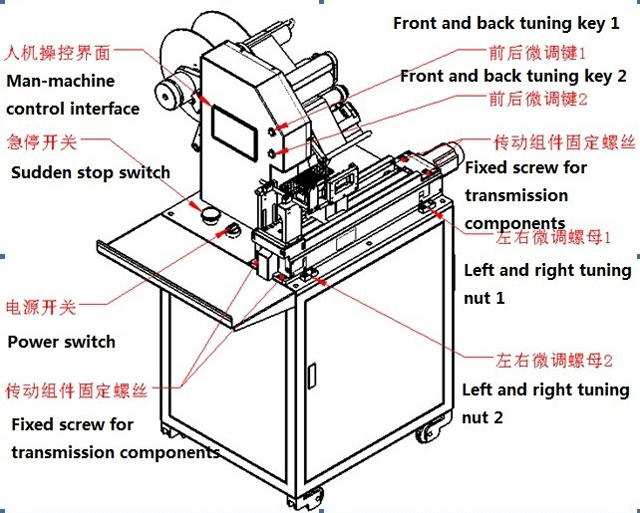

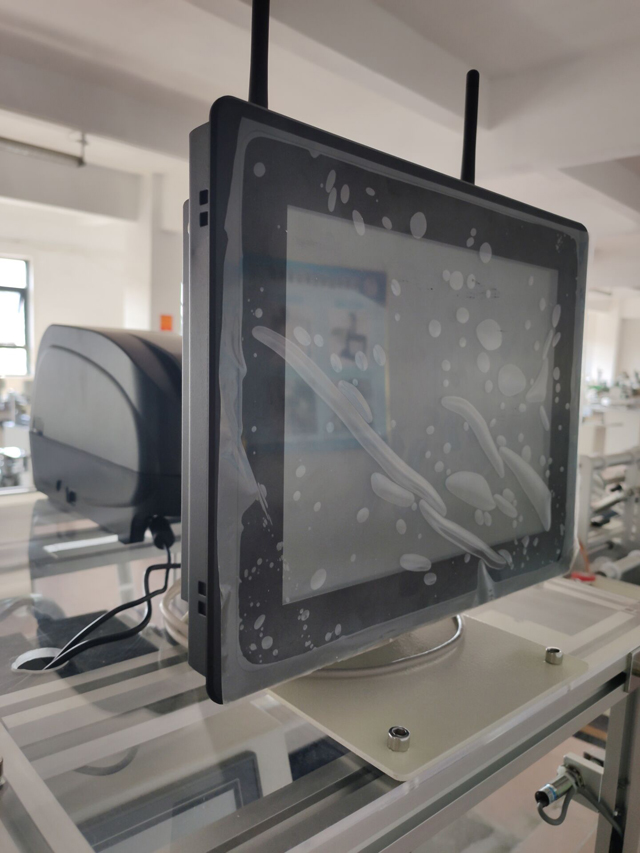

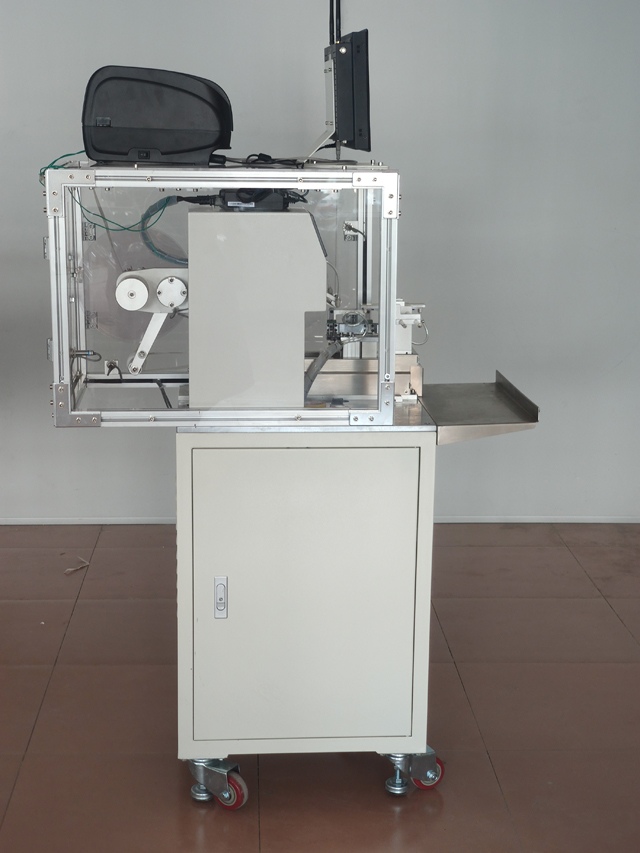

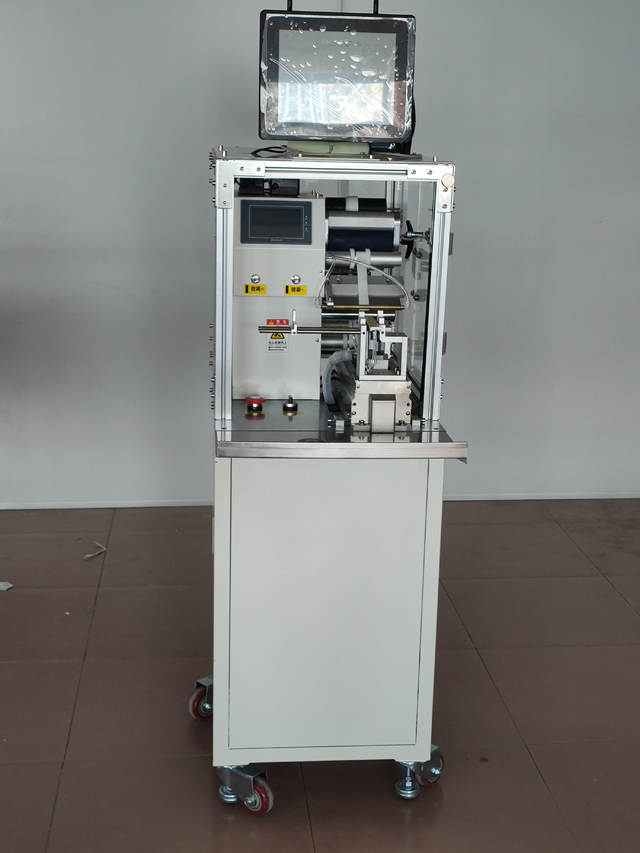

Equipment Appearance, Important Parts And Man-Machine Control Interface

Important parts.

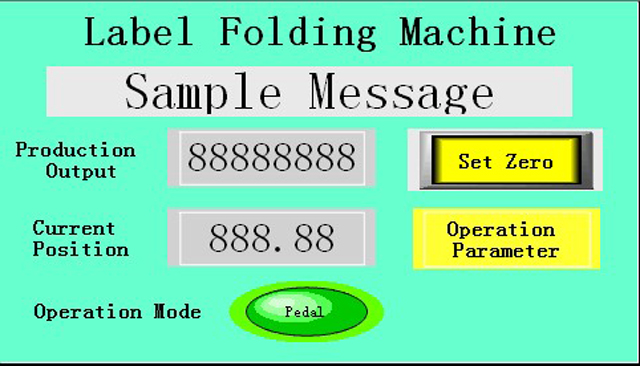

Main picture.

Output: capacity count, press “output zero” key to zero;

Current position: the real-time position distance display of the sliding mode of the label transmission module, the unit mm;

The operation mode is “automatic” and “foot tread” two kinds.

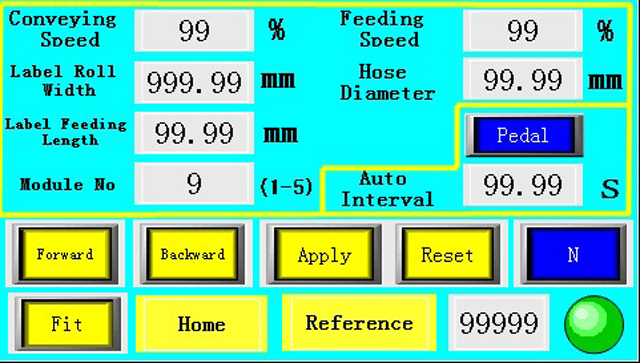

User Parameters

Standard board speed: the speed of the indicator board operation, adjusted according to 0-100%.

Mark speed: refers to the speed of the label stripped from the stripper plate, adjusted by 0-100%.

Bottom paper width: the width of the label paper, unit mm.

Wire diameter: single wire diameter input, flat wire or multi wire input directly to fight double thickness, mm.

Mark length: control the length of the label from the stripper plate, unit mm.

Forward: press the “forward” key, the tag drive module will slide forward, this function can adjust the distance of the target position.

Back: press the “back” key, the tag drive module will slide back to the rear, this function can be debugged the distance of the position of the labeling point.

Fit: press the “fit” key, the straight air plate clamp cylinder and the wiring harness placing module will move the upper and lower moving cylinders. This function can debug the distance between the wiring harness and the vacuum plate clamping.

Reset: turn the header back to zero after the reset button.

Electricity: after the replacement of the different specifications of the label base paper, long press the electrical keys to allow the system to automatically learn labels and bottom paper penetration.

Operation Method:

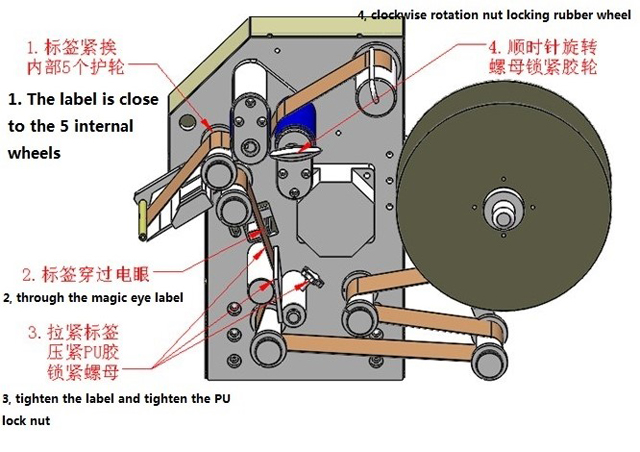

Label is installed, and the label is installed as below to the stripper module.

Turn the power switch clockwise and turn on the power. Press the stop key and rotate clockwise.

Switching and adjusting machine

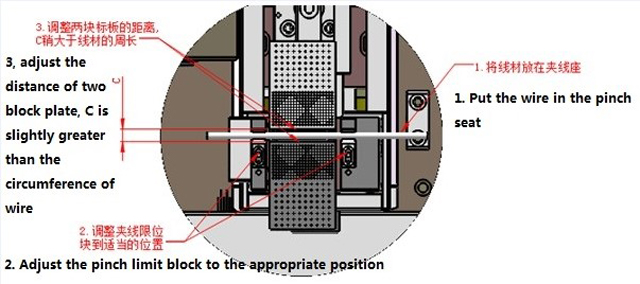

According to the diameter of the wire, the adjustment, the connection seat, the distance between the plates, such as the following figure

Input the width of the bottom paper in the width of the bottom paper of Figure 3, and the diameter of the wire is input to the diameter of the wire.

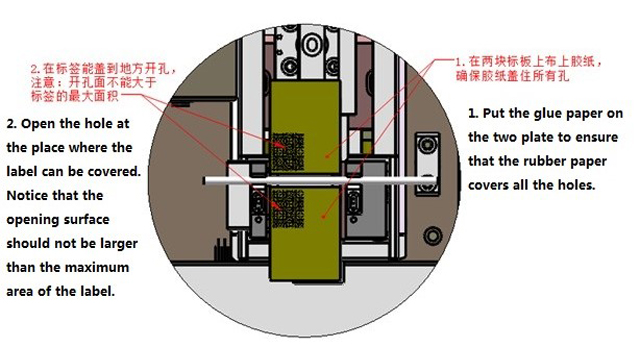

Adhesive tape and openings

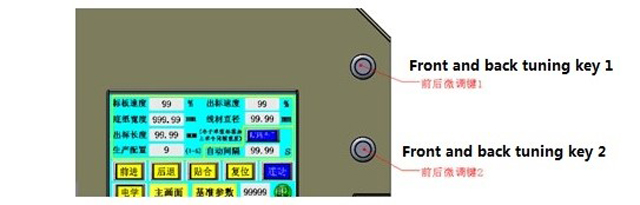

In the process of production, if the label is not aligned before and after the label, it can be adjusted directly in the “bottom paper width” column. Can also move “front and back tone key “1” front and rear micro tune key 2″ adjustment, each move to change 0.1mm.

Label left and right adjustment machine

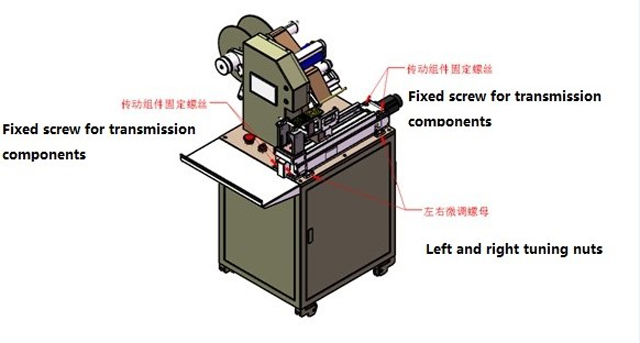

If the labels are folded, if the left and right sides are not aligned, the four transmission components must be loosened loosely, then the left and right trimming nuts should be adjusted according to the deviation direction and the degree of the labels. Finally, the four transmission components must be locked.

Maintenance And Maintenance

Strictly prohibit pressure, please keep clean at any time.

In order to lubricate the machine on time. The active position of the standard plate is added once a month. If there is a lubricating oil timing check separator cup, if not timely supplement.

Three months to check the wear of the synchronous belt at the various parts of the machine
