Semi Automatic Cosmetic Tubes Ultrasonic Filling Sealing Machine

• Machine Size: 1300×950×1700mm
• Net Weight: 400 kg
• Main Motor Power: 3.8KW
• Producing Speed: 1500 pcs per hour
• Filling Precision: ±0.5g
• Cooling Water Pressure: 1.5bar
• Compressed-air Pressuren: 6bar
• Power: 380V/50Hz
• End sealing Method: ultrasonic sealing
• Tube Length Applicable: 120mm-200mm
• Tube Diameter Applicable: φ15mm-φ60mm
• Filling volume: 5-200ml
• Work Type double pumps, serpentine type

View Video

Cosmetic tubes filling sealing series tubes sealer filler high technology ultrasonic super wave sealer for plastic tubes, which are listed as below mentioned products:

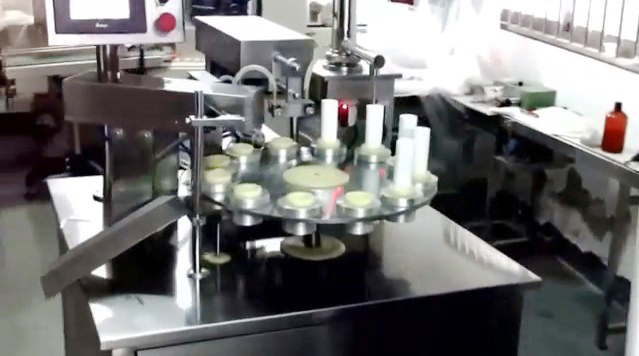

Semi Automatic Paste Filling Ultrasonic Sealing Machine

The paste filling ultrasonic sealing machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement.

PLC controller and color touch screen are applied and made it possible for programmable control of the machine.

The paste filling ultrasonic sealing machine can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically.

The paste filling ultrasonic sealing machine is ideal equipment for plumbum tube, ALU tube, plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

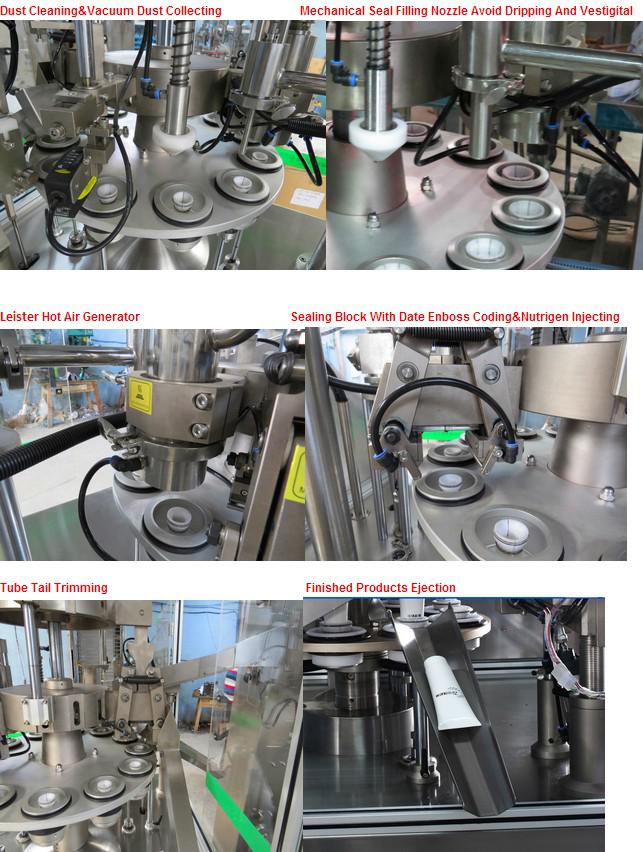

Features of tubes filling ultrasonic sealing machines:

1. With 8 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Alu tube, plastic tube and laminated tubes. It is a multi-purpose machine.

2. Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).

3. Servo control makes it precise and convenient to adjust the filling amount by touch screen.

4. According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.

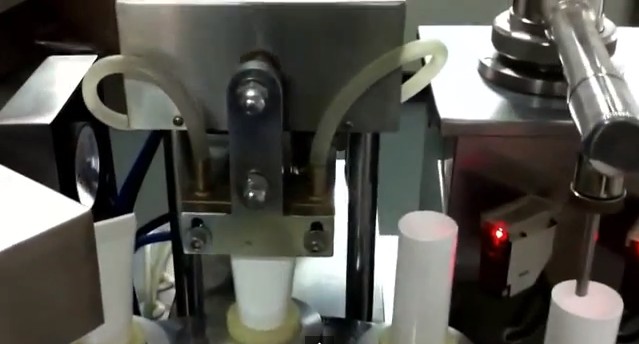

5. The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.

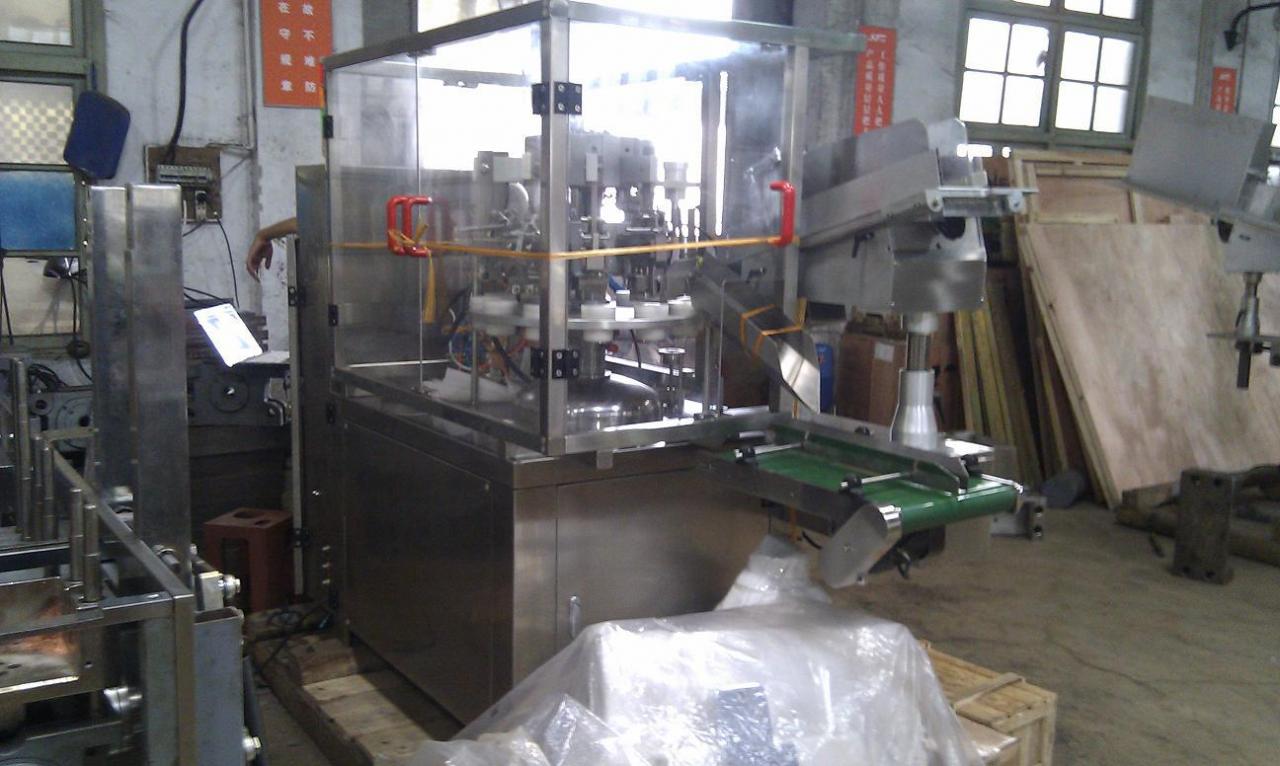

6. Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.

7. Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.

Technical Parameters:

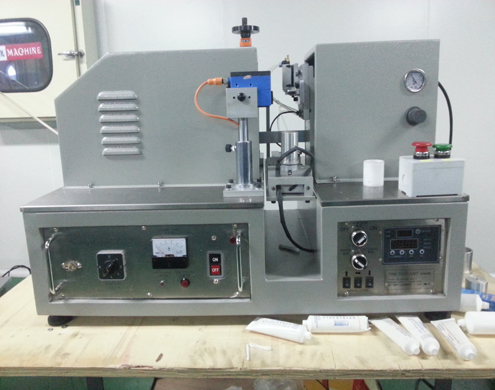

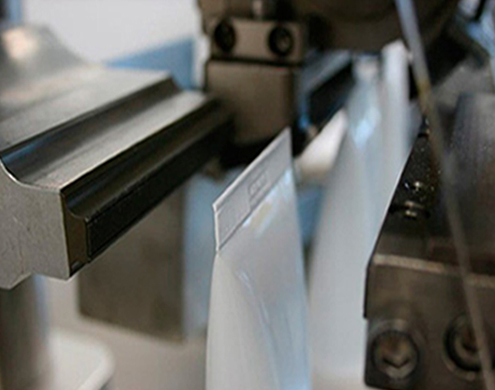

Ultrasound soft tubes sealer equipment

Ultrasonic tube sealing machine adopts movement line, good stability, high efficiency, dynamic components are wellknown brands. After I carefully designed to leading domestic counterparts pioneered an advanced ultrasonic products.

(Automatic trimming, automatic coding, automatic sealing)

Application: toothpaste, cosmetics, medicines, food, industrial supplies, and other types of hose or tube tail sealing.

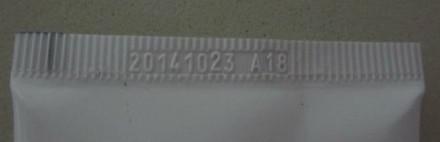

Welding samples with date(the printing function is optional)

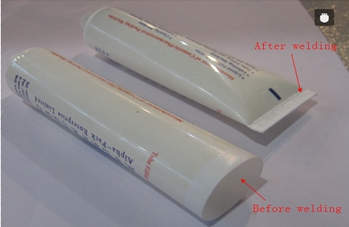

Welding samples

Semi automatic tube filling sealing machine for cosmetic & pharmaceutical industry

The filling and sealing machine is used mainly to fill liquid material into various kinds of tubes like plastic laminated or aluminum ones with fixed quantity and seal the tube. It is widely used for the packing of products of pharmaceutical, foods, and chemical industry .

Working process:

Manually put the metal tubes into the tube-holding base.

Change angular potion of each tube by means of mechanical transmission.

Photoelectric device is used to detect the position of tube and if there is any tube in right position, the filling system starts to fill the tube with fixed quantity.

The tube will then be dual-sealed, and with a number printed on the surface the tube is finally ejected.

Features of tubes filler sealer equipment semi automatic:

The machine, with a controllable filling volume or quantity, is featured with a reliable performance performance.

The machine is suitable for the filling of metallic tubes of any type because the tube-holding base can be easily replaced in purpose. A perfected and reliable sealing can be reached.

The parts which touches material is made of stainless steel.

Specification of filling sealing equipment:

1. Power Supply: AC220V±10% 50HZ

2. Work Temp: 5-50℃

3. Filling Quantity: 5-30 5-75 30-150（g）100-200(g)

4. Quantity Error: <2%

5. Motor power: 0.75~1.1kw

6. Compressed Air :pressure0.6~0.7Mpa Volume: 0.2m³/min

7. Capacity: 10~50tube/min(adjustable)

8. Dimension: 1500mm×1200mm×1700mm

9. Weight: 300kg

Guarantee:for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse , misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE)

Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker).

The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician USD150 per day. also you can go to our factory to do training.

After service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible.

The cost should be in your account. (as above).
