![Semi Automatic Customized Fire Extinguisher Labeling Machine](https://www.nicefiller.com/wp-content/uploads/semi-automatic-customized-fire-extinguisher-labeling-machine-11.jpg)
- Model: VK-T801
- Accuracy: ±0.5mm
- Speed: 15~25bpm
- Diameter: Ø 15mm~Ø 250mm
- Label size: Length:20mm~220mm;width:20mm~270mm;
- Dimension: L950mm×W450mm×H520mm
- Supply power: 220V/50HZ;
- N.W: 55Kg
- Inner diameter of label: Ø86mm
- Outer diameter of label: Ø 280mm
- Voltage: 220V-240V/50-60HZ
Application
Suitable for all kinds of cylindrical objects labeling, small taper round bottle labeling, such as xylitol, cosmetics round bottles, wine bottles and so on. Can achieve full week / half weeks labeling, front and back labeling circumference, is back mark pitch can be adjusted. Widely used in food, cosmetics, chemical, pharmaceutical and other industries.
Optional functions choosed improve production management convenience, with labeling counting, power-saving mode, photoelectric tracking label and other functions, production management easier;
Optional Features And Components:
Hot Coding Function
Circumference circumferential positioning function;
Other features (according to customer requirements).

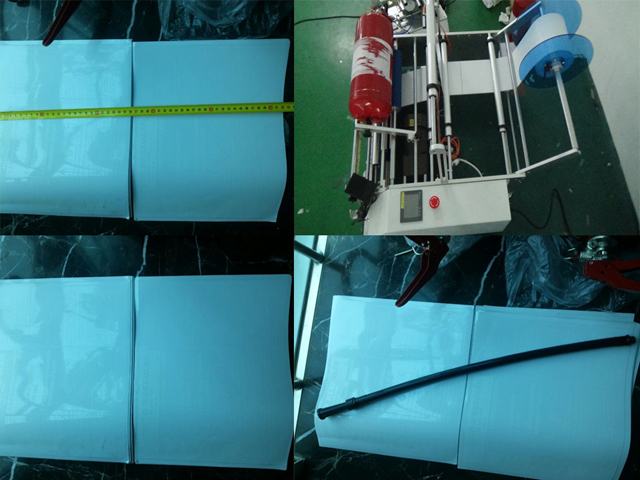

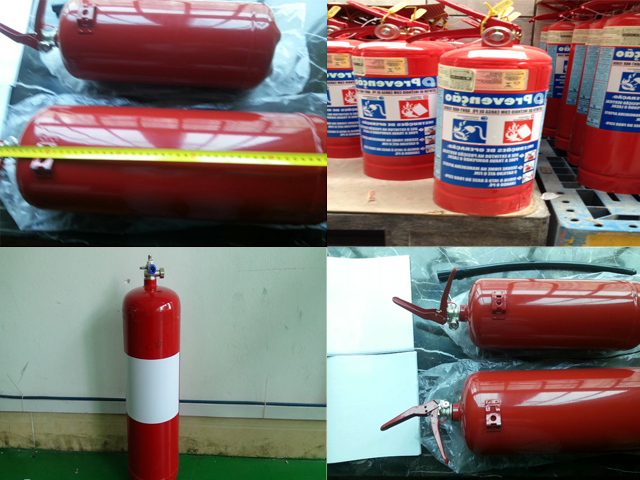

Samples
Optional Devices:
Reader: Read the bar codes in various kinds
Electric light sensor: The common sensor cannot detect the transparent label,which requires the light sensor device imported from Germany.
Printing machine: printing the texts on the label
Date coding: Hot coding for shelf date,products series etc

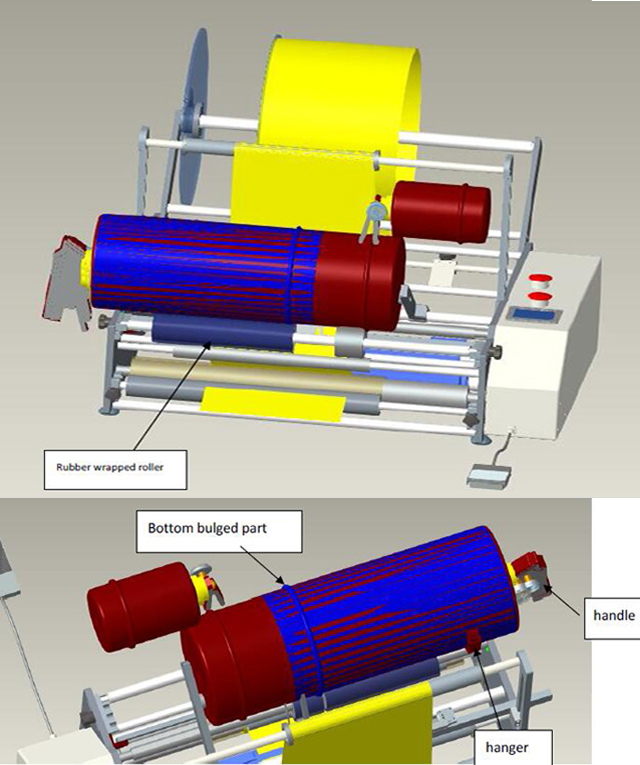

CAD Illustration

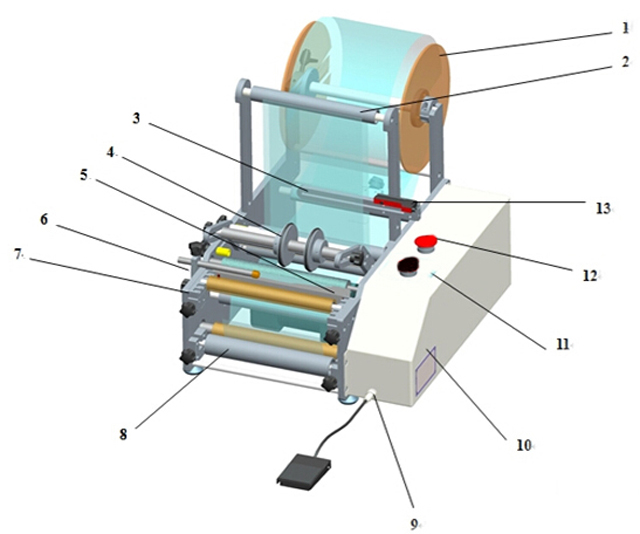

Bird view of whole machine
- Labels plates: Putting the labels around it
- Label Rolls: The path of label for labeling process
- Supports for light sensor: Light sensor installation,movable up and down ward
- Pressing:Press the bottles during labeling, adjust its tension by controlling left button
- Label reeling: Dispensing the labels
- Position: Adjust this left or right, up or down to position the bottles

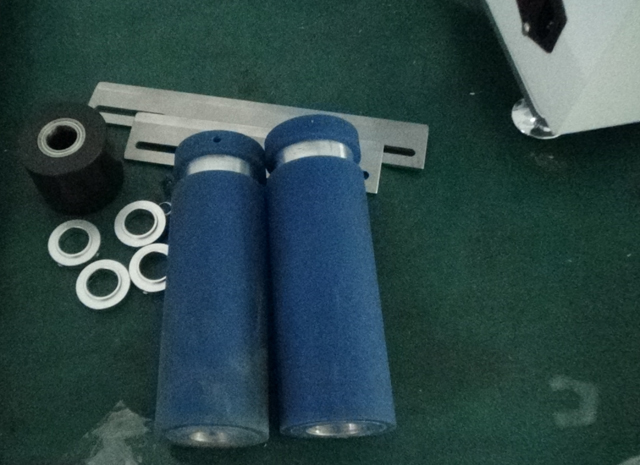

- Support Jacket: Different positions for various bottles
- Traction: Tract the bottom line to dispense the label, adjust its tension by moving the screws
- Pedal controlling
- Electric box
- Man-machine interface: Controlling the machines with changing the parameters
- Sudden stop
- Light sensor: Detecting the interval of labels
Basic Parameter
- Model: VK-T801
- Accuracy: ±0.5mm
- Speed: 15~25bpm
- Diameter: Ø 15mm~Ø 250mm
- Label size: Length:20mm~220mm;width:20mm~270mm;
- Dimension: L950mm×W450mm×H520mm
- Supply power: 220V/50HZ;
- N.W: 55Kg
- Inner diameter of label: Ø86mm
- Outer diameter of label: Ø 280mm
- Voltage: 220V-240V/50-60HZ
Configuration Of Fire Extinuisher Labeling Machine
Main Mechanism Configuration | Main Electrical Device Configuration | ||||
Mechanism Name | Qty | Main Material | Electrical Device Name | Qty | Specification |
unwinding mechanism | 1 | Aluminum alloy,acrylic | Label Detecting Eye | 1 | German Sick |
Eye Racket Mechanism | 1 | Aluminum alloy | PLC | 1 | Panasonic FP series |
label pressing Mechanism | 1 | stainless steel,sponge tube | power supply switch | 1 | omron |
pulling mechanism | 1 | stainless steel,aluminum alloy,rubber wrapped roller | human-machine interface | 1 | Samkoon 3.5 inch color display |
adjustment mechanism | 1 | Aluminum alloy | pulling motor | 1 | oubang 120W speed motor |
label guiding mechanism | 6 | Aluminum alloy | pulling motor speed adjustor | 1 | oubang split type speed adjustor |
label peeling mechanism | 1 | stainlesss steel | switching power supply | 1 | Japanese Omron |
product top pressing mechanism | 1 | Aluminum alloy | |||
machine racket | 1 | Aluminum alloy |
Working Process
Core works: single standard, double standard switching function principle, the principle circumferential positioning labeling, please consult factory.
Procedure: put the product -> Labeling (device automatically) -> Remove the labeling products.

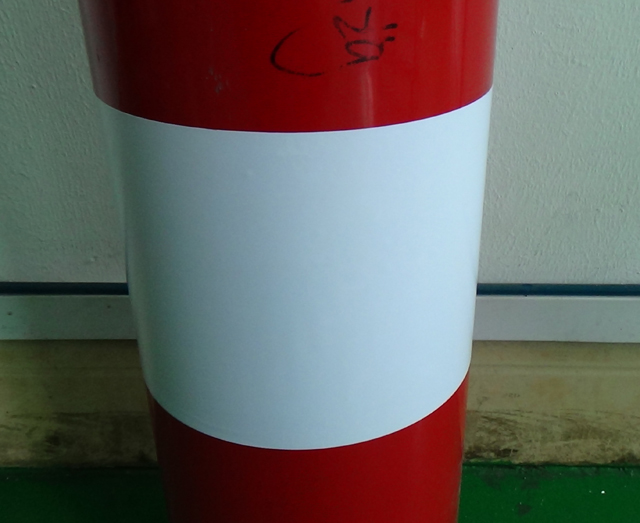

Making of matching labels for fire extinguisher labeller equipment:
Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)
Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.
After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
