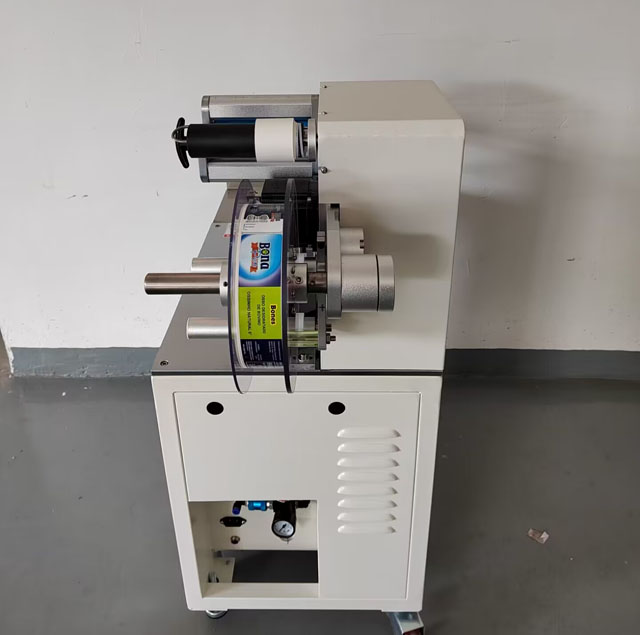

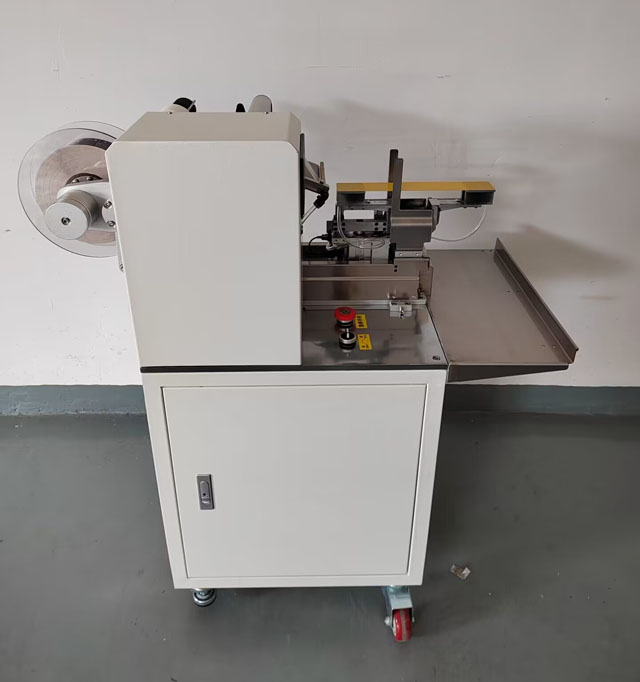

Semi Automatic Flag Label Applicator For Dog Bone Pet Food Packaging

• This machine is used for folding labeling of wire harnesses and round rods as well as dog bones Pet products pipes etc;
• Applicable label parameters: inner diameter of label coil 76mm, outer diameter Max 240mm; (Other specifications need to be customized),
• Label material: PVC, PET, cloth, paper, etc;
• Label specification: according to the specific machine.
• Labeling accuracy: ± ≤ 0.2mm;
• Capacity: 1500 Pcs/H;
• Air pressure :0.4-0.6Mpa Air consumption 0.15m3/min
• Power supply 220V/50-60HZ/Single phase(US standard can be customized)
• Overall dimension: 630 * 740 * 1040 mm (L * W * H);
• Machine weight: about 86KG;

Semi auto flag folding labeling machine (“Flag” is a term used by industry to designate an attention-getting label signal which alerts consumers to read the label carefully because of significant new information).

A flag label is ideal product solution for identifying products and to distinguish them each other. If you have a lot of similar products that look alike than the flag label can offer you a way to better identify them. For example computer cables use this type of label a lot. But the flag label is also common in jewelry. Here shops label individual rings, bracelets and necklaces with a flag label.

With a flag label you can identify in a simple but effective way the purpose of a product (VGA of HDMI cable). The name flag label originates from to the “flag element” that is created due to the application of the label. Flag labels are produced on rugged material and are placed around a certain product.

Next to organizing your products, a flag label also gives your product more visual appeal. That way you stand out from the competition and have extra space for your product information.

Use flag labels for functional as well as commercial purposes.

First of all, thank you very much for choosing our product – semi-automatic flag folding labeling machine. In order to give full play to the functions of this product and ensure your safety and interests, please read this manual carefully before installation.

Safety Precautions Of Operating The Semi Automatic Sticker Labeler:

• Before powering on, please confirm the power supply voltage (AC220V), air pressure 4-6 kg, and the external power supply must be reliably grounded.
• Do not block the cooling hole of the case.
• Non-professional technicians are forbidden to open the case.
• It is strictly forbidden to touch the action range when the equipment is in operation.
• In case of equipment failure, turn off the power switch first, and live maintenance is strictly prohibited.

Performance & Parameters Of Semi Automatic Flag Type Labeler Machine:

• This machine is used for folding and labeling of wire harnesses and round rods as well as dog bone chew products for Pet;
• Applicable label parameters: inner diameter of label coil 76mm, outer diameter Max240mm; (Other specifications need to be customized),
• Label material: PVC, PET, cloth, paper, etc;
• Label specification: according to the specific machine.
• Labeling accuracy: ± ≤ 0.2mm;
• Capacity: 1500 Pcs/H;
• Overall dimension: 630 * 740 * 1040 mm (L * W * H);
• Machine weight: about 86KG;
• Applicable type: according to the specific model.

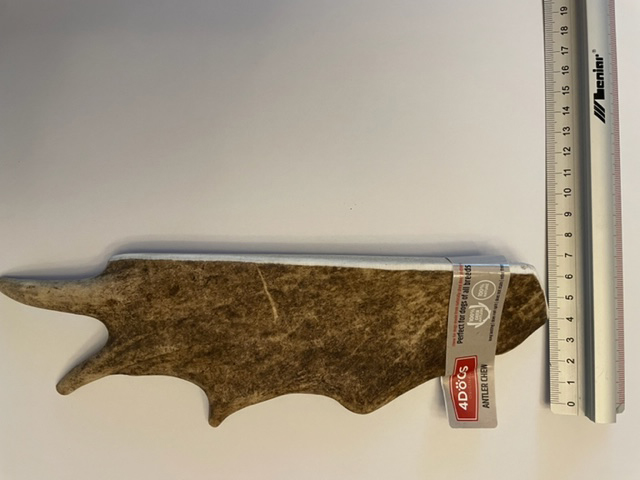

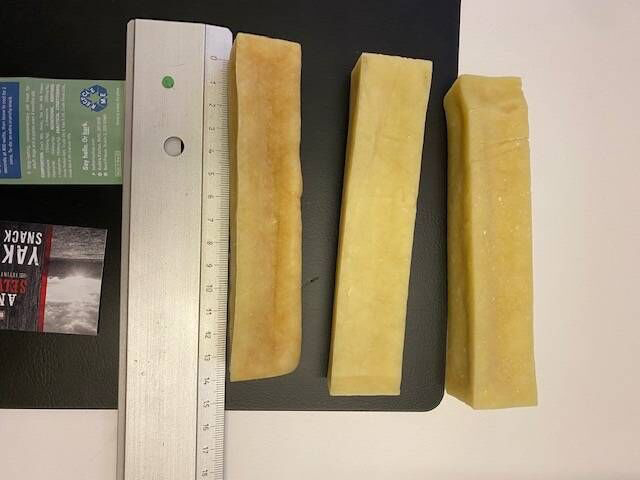

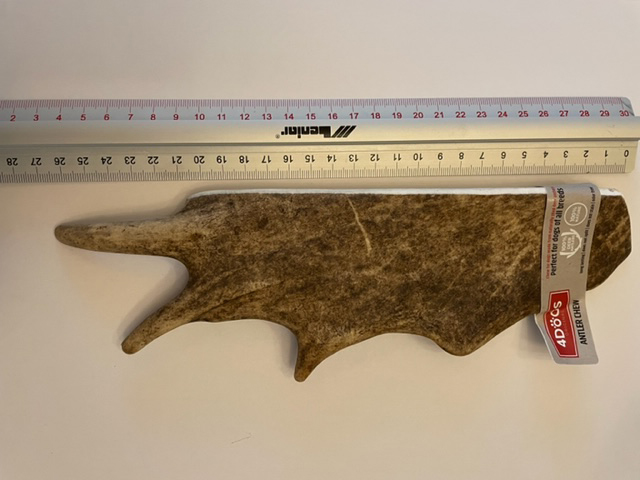

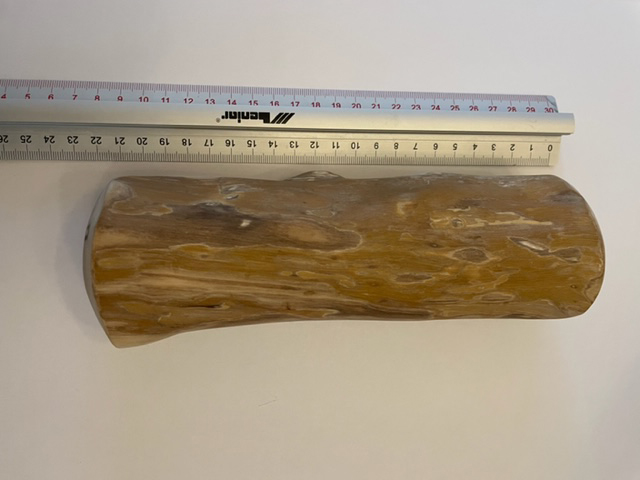

Dog Bone Samples:

Operating Instructions On Semi Automatic Labeler Machine:

Installation:

1. Move the equipment to the required installation position.
2. Press the universal wheel brake and fix the universal wheel to make it stable.

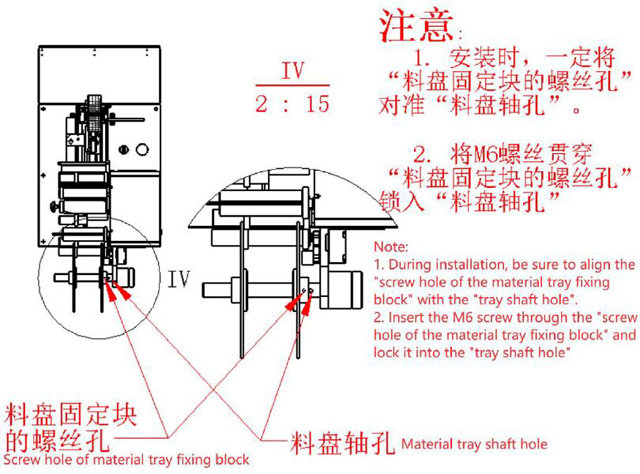

3. Installation of label baffle: during installation, make sure to align the “screw hole of tray fixing block” with the “tray shaft hole”, and lock the M6 screw through the “screw hole of tray fixing block” into the “tray shaft hole”

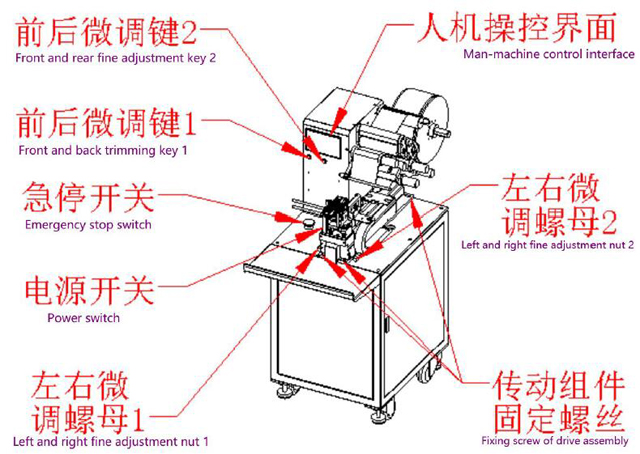

Equipment Appearance, Important Parts And Man-Machine Control Interface

Important parts.

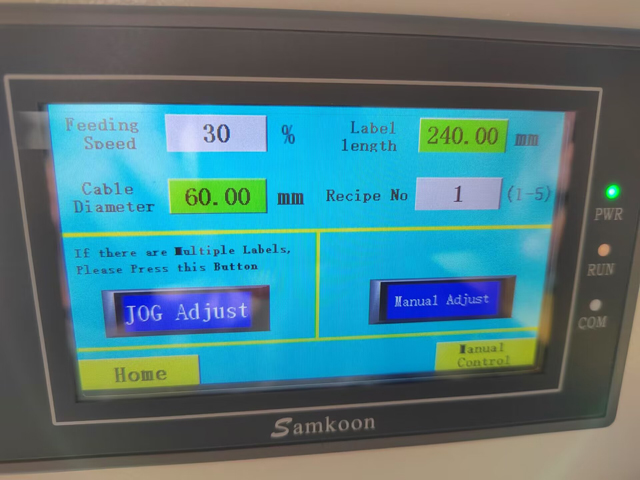

Main screen.

• Batch Quantity:When the actual output is greater than or equal to the planned output, the equipment stops working.
• Quantity: The output count can be reset by pressing the “Set Zero” key.
• Labeling has been unlocked (labeling started)/locked (labeling suspended):
• After stopping labeling for a certain time (“self-locking” in the “manual control” screen can set the time, unit is “seconds”), the system will automatically lock (labeling suspended), and press this button to unlock.

Parameters.

• Feeding speed: A. It refers to the speed of label stripping from the stripping plate, adjusted by 0-100%.
• Label length: The length of a single label, in mm.
• Recipe No: Five groups can be reserved.
• Jog: Click this key, and the system will automatically out the label once.
• Long press and label out: press and hold this key until “OK” appears, and the label length will be calculated automatically once.

Manual Control

• Label receiving delay: the time to pause after the label is completed and the label absorbing plate is opened.
• Speed of label plate: the speed of indicator head receiving the label, adjusted by 0-100%.
• Label length: control the length of label peeling from the Label plate, in mm.
• Current position: real-time position distance display of label transmission module sliding, unit: mm;
• Delay labeling: After the induction switch is triggered by the wire, the labeling will be delayed.
• Self-locking: set how long it will be automatically locked after the label is stopped.
• Forward: press the “Forward” key, the label drive module will slide forward, and this function can adjust the distance of the mark receiving position.
• Back: press the “Back” key, the label drive module will slide backward, and this function can adjust the distance of the original position of the label.
• Reset: jog the reset key to return the label head to zero.
• Pipe blowing: click this key to blow the air through the pipe.
• Standard suction: click this key to aspirate the standard plate.
• Fit: press the “fit” key, and the air cylinder clamped by the straight blank plate and the upper and lower movable cylinders of the wire harness placement module will move,
• Label blowing: click this key to aspirate the label plate for blowing.
• Label out: press and hold this key to label out.
• Serial action/single action: serial action refers to the completion of a production cycle every time triggered, and single action refers to the completionm of a single action every time triggered.

Operation Method:

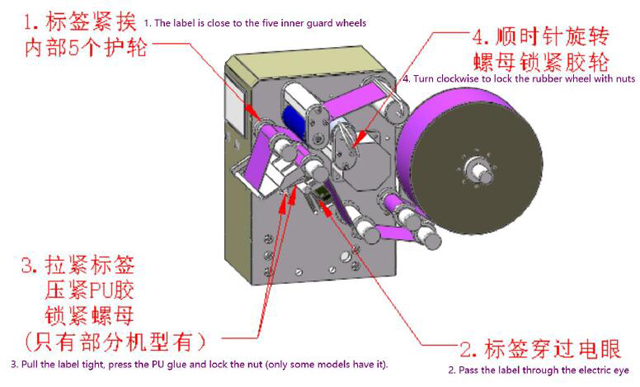

For the installation of label, install the label onto the label stripping module as shown in the figure below.

Start up

Turn the power switch clockwise to turn on the power. Press the emergency stop key and turn it clockwise to reset.

Line change and machine adjustment

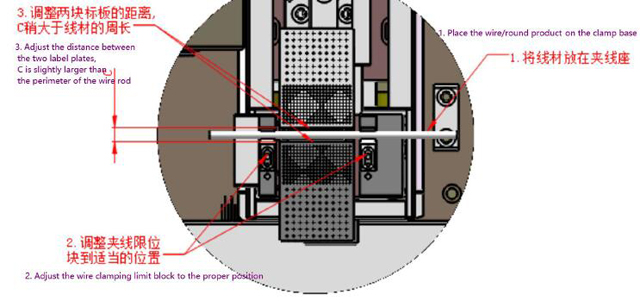

According to the diameter of the wire, adjust the distance between the wiring base and the board as shown in the figure below

Enter the width of the backing paper and the diameter of the wire respectively in the column of width of the backing paper in Figure 3.

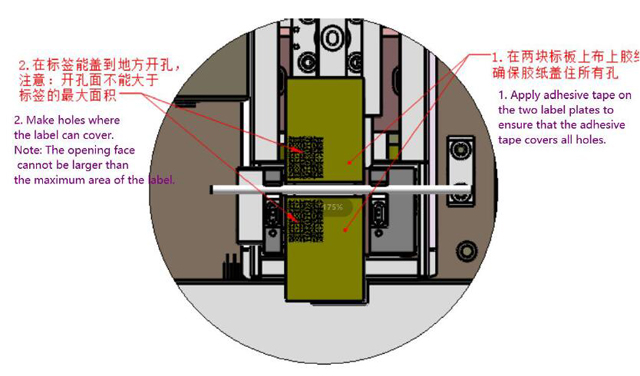

Apply tape and make holes

The front and rear of the label are not aligned

In the production process, if the label is not aligned in front and back, you can directly adjust it in the column of “Bottom paper width”, You can also click “front and back fine adjustment key 1” and “front and back fine adjustment key 2” to adjust, and change 0.1mm each time you click.

Label left and right are not aligned

If the left and right sides of the label are not aligned after the label is folded in half, first loosen the four fixing screws of the drive assembly, then adjust the left and right fine adjustment nuts according to the deviation direction and degree of the label, and finally lock the four fixing screws of the drive assembly.

Maintenance Of Flag Type Labels Applicator Equipment:

• Heavy pressure is strictly prohibited, please keep clean at any time;
• Lubricate and maintain the machine on schedule;
• Add lubricating oil to the moving position of the label plate once a month
• Check regularly whether there is lubricating oil in the oil cup of the oil-water separator. If not, replenish it in time.
• Check the wear of the synchronous belt at all parts of the machine every three months
