Semi Automatic Gear Pump Pharmaceutical Liquid Filling Machine
  • Volume: 0.2-10,000ml (10L)
  • Accuracy: 0.5%(10ml tested)
  • Filling Speed: 25bpm for 100ml
  • Driving mode: step or servor motor
  • Filling material: Liquid & ointment
  • Supply power: 1P 220V 50-60HZ 0.38KW
  • Size: 310*430*320mm(L*W*H)
  • Net weight: 20kg

Application

Used in the pharmaceutical industry, food industry, cosmetics, agriculture and other industries, such as fruit and vegetable drinks, soy milk, acetone, glutaraldehyde, shampoo, etc.

Basic Parameter:

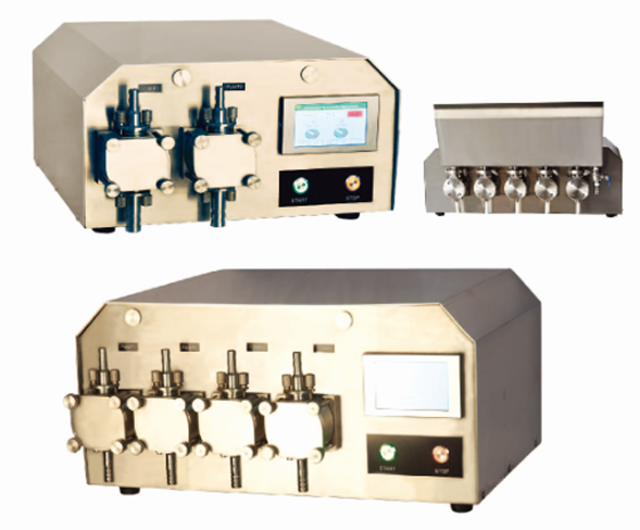

2 to 6 nozzles filler equipment.png

Two Nozzles To 6 Nozzles Filling Machine

1ModelOne (1 head)Two (2 heads)
2Volume0.2-10,000ml(10L)0.2-10,000ml(10L)
3Accuracy0.5% (10ml tested)0.5% (10ml actual measurement)
4Filling Speed25bpm for 100ml100ml 40P/min 300ml 30P/min 1000ml 18P/min
5Driving modeStep or Servor motorStep or Servo motor
6Filling materialLiquid & OintmentLiquid & Ointment
7Supply Power1P 220V 50-60HZ 0.38KW1P 220V 50-60HZ 0.75KW
8Size310*430*320mm(L*W*H)460*530*300mm(L*W*H)
9Net Weight20kg35Kg
10RemarksCan be used with a conveyor belt

Features

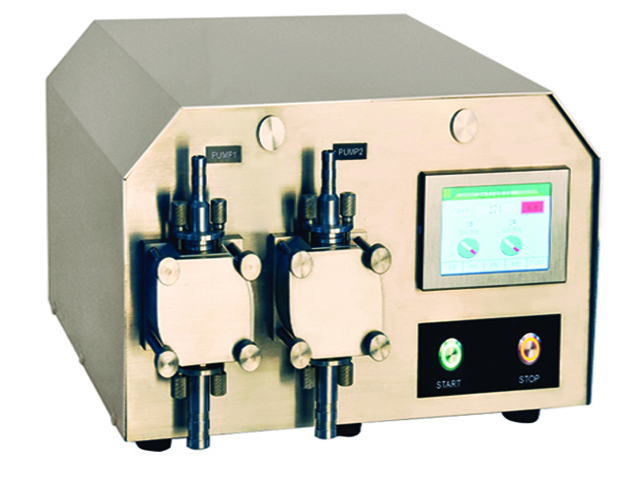

two head pump filler equipment.jpg

Flexible use, can be used alone, also can be connected and used with a conveyor belt.

Large range filling volume, from 0.2ml to 10,000ml(10L), free adjustment, especially suitable for the customers needing large range filling volume.

The accuracy control of the machine, using the stepping motor or the servo motor, accuracy of up to 0.5% (10ml actual measurement).

A little change on the machine, can be filling ointment & viscous liquid, such as cream of medicine & cosmetics, grease, honey, juice, etc.

The machine can be easily disassembled and washed at your convenience, without requiring any additional tools. Pump body can also be operated offline high temperature cleaning.

Can be adding the filling nozzle without leakage.

According to customer requirements, can be expanded to 8-12 heads, filling at the same time.

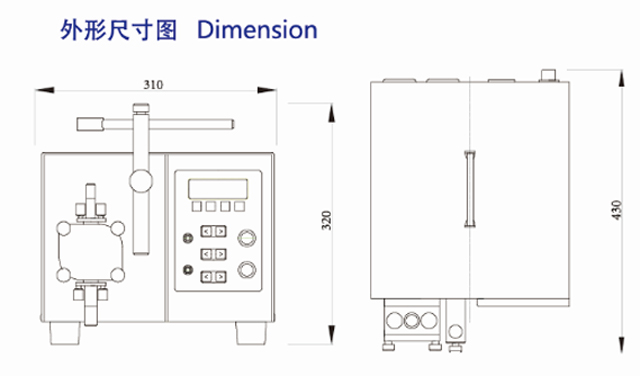

Drawing

drawing sizes for small filling machinery.jpg

FAQ

1. How To Choose Suitable Machine?

Considering that machinery are different base on different customer’s requirement, we advise you discuss with our sales engineer firstly, then confirm the order. Our engineer will advise you a suitable machine for your application to avoid wrong machine ordered. If current machine cannot meet your requirements, we will custom made machine for your application.

2. Quality

We offer good quality machinery and it mainly shows in three aspects:

  • Working Life: about 7-8 years;
  • Good Stability: stability is basic and most important performance of machinery;
  • Lower Expenditure of machinery daily maintenance.
  • All the machines before delivery, our QC will inspect it carefully to ensure good quality.

3. Price

Our machine prices are based on reasonable prices; because we should ensure machine has good quality firstly, so machine parts used are also should be good quality and also very different costs on design & manufacture costs.

4. Warranty Period

12 (Twelve) months dated from delivery (Consumable parts and man-made broken are not included); If need much longer warranty period, you need buy this extra service. During warranty period, we offer replaced new parts for free.

Out of warranty period, we will offer spare parts and technical support too and help customer to solve problems; If need replace parts, we will charge parts costs

5. Shipping And Packing

For machinery, normally, it was packed into wooden case to avoid broken on the way and normally delivery by sea or by air; for small products will be packed in carton box and normally delivery by courier. We will choose a suitable packing for your ordered products to avoid broken on the way.

6. How To Install New Machine?

Most of our machines don’t need our engineer to visit customer’s factor to install, under this circumstance, just refer our user manual to install machines; if you have any questions, you can consult with our professional engineer and they will give you instructions to guide you how to do via pictures, videos etc.

For some complicated machinery, customer can arrange their engineer to come to our factory for training before we delivery machines; if do need, our engineer also can go to your factory to install it, but you have to bear all the travel costs including board and lodging costs , round-way air tickets and Daily labor costs

7. How To Offer Maintenance For Old Machine?

If old machines have any problem, customer can describe this problem to us via email; In order to avoid false understanding problem, we advise you offer us pictures and videos to show us real problems occurred; under this circumstance, we can easy to judge the problem and advise you how to solve. If need replace parts, your engineer should obey our instruction to change it.

If your engineer has no this ability to repair the machine, you can also delivery the machine back to us for repair or request our engineer go to your factory to solve it; All repair costs occur should be paid by buyer.

Maybe in your regions, we have local agent who can offer service to you; we can introduce you to them, if you need this local service.
