Semi Automatic Glass Bottles Aluminum Metal Caps Ropp Capping Machine
  • Model: VK-SRC
  • Power supply: AC 220V-240V /50-60HZ;110V/60HZ
  • Rated power input (W): 370; 1430r/min
  • Weight: 75kg
  • Production Capacity: 1000-1400 bottles/ hour

This ROPP screw capping machine semi automatic is specially designed for those bottle mouths to be sealed with aluminium Ropp caps

Features

  • The machine adopts symmetrical four-side sealing system which can create the even power on each side of the cap.
  • The machine press the cap firstly then turn the tread which can give a better sealing to the bottles.
  • By replacing the capping head also makes it possible for tightening plastic caps.Different sealing tightness requirements can be adjusted according to the materials of the caps.
  • Stainless steel material, food grade, make the clean surface and a durable life.

Technical Data

  • Model: VK-SRC
  • Power supply: AC 220V-240V /50-60HZ;110V/60HZ
  • Rated power input (W): 370; 1430r/min
  • Weight: 75kg
  • Production Capacity: 1000-1400 bottles/ hour

Metal caps ROPP.jpg

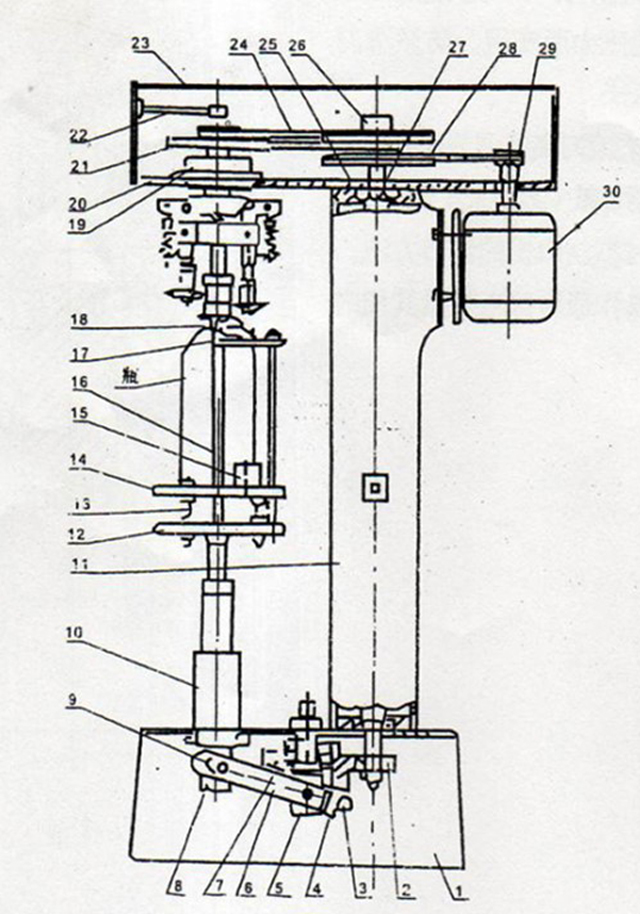

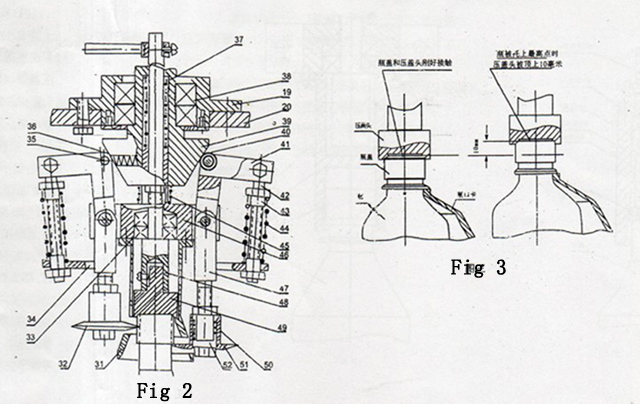

Drawing And Structures of ROPP Caps Sealing Head:

drawing of ROPP CAPPER.jpg

ROPP capping head structure.jpg

  1. The Basement
  2. The Small Gear
  3. The Cam
  4. The Bearing (203)
  5. The Camshaft
  6. Flexible Stick
  7. Bearing (205)
  8. Handle Stick
  9. Axle Pin
  10. Bushings
  11. Column
  12. The Tray
  13. Screw Handle
  14. Plate
  15. Bottle Stopper
  16. Screw Handle
  17. Supporter
  18. Mouth Lock
  19. Bearing Basement
  20. Block
  21. Capping-Pulley
  22. Fixed Handle
  23. Cover
  24. Triangle Belt (A- 700)
  25. Bearing (204)
  26. Main Pulley
  27. Main Axis
  28. Transit Pulley
  29. The Small Pulley
  30. The Motor
  31. Glass Cover
  32. Roll-Blades
  33. Bearing (20l)
  34. Roll-Blades Bracket
  35. The Handle
  36. The Spring
  37. The Inner Shaft Spring
  38. The Bearing (206)
  39. The Rotated Head
  40. A Small Bearing (26)
  41. The Movable Support
  42. The Screw Spring
  43. Spring Nut
  44. Adjusting-Force Spring
  45. Off-Axis Spring
  46. Rotated Head
  47. Anti-Theft Roll-Blades Bracket
  48. Capping Shaft
  49. The Press-Head
  50. Force Spring
  51. Anti-Theft Blades
  52. The Adjusted Nut
  53. The Fixed Head
  54. Compressed-Spring
  55. The Cover
  56. The Top
  57. Capping Head
  • The capper head could debugging well as your caps size.
  • The capper head is made of SUS304 materials. The capper wheels is made of 9CrSi materials.
  • The capper head has 4pcs wheels ( 2pcs longer and 2pcs shorter).The longer wheels used to making thread on the caps. The 2pcs shorter used to sealing the caps bottom. If your caps are just need to making thread sealing or make bottom sealing,we can customized the head as your required.
  • The capping head pressure could be adjusted according to the factual effect.
  • The head connect with cap has an special probe needle, which protect the wheels from harm.
  • If you have several different size caps,and at the same time, you have adjusting capper head experiences, you could changing the related parts to make the head matching different size caps. If you have not experiences, we sugguest that you order extra capper head to interchange. It will be easy to operate.

Adjusting Machine Height

The semi-automatic capper machine height could be adjusted via this handwheel to make it up and down.In the adjusting process,pls remind to loosen the screws on the machine body there.

Bottle tray

The holders on the bottle tray could be adjusted according to your bottle size.It could help you holding the bottle more stably in the capping process.

Chrome-plated body

The body with chromated treatment,it could avoid rusting.
