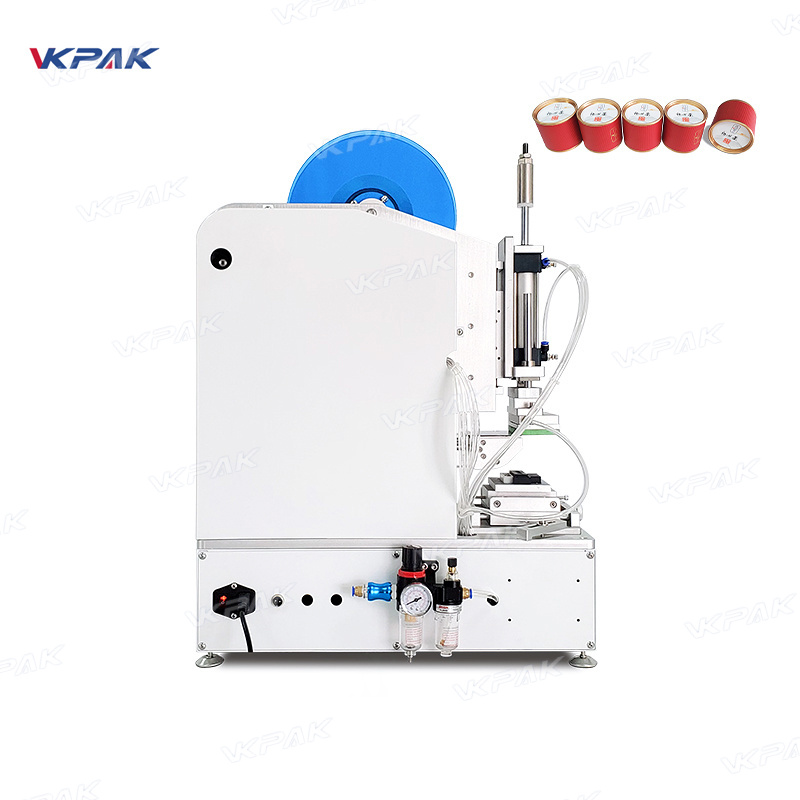

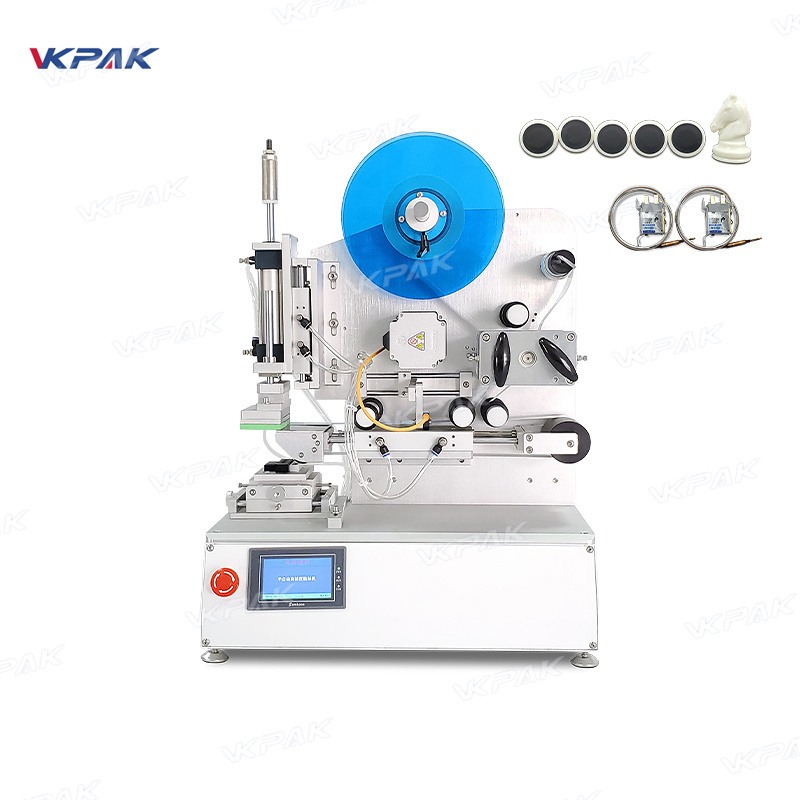

Semi Automatic Hardware Electronics Plastic Flat Surface Labeller Equipment

• Model: VK-T804
• Label application object diameter can be adjust
• Labeling precision(mm): ±0.2mm
• Labeling speed(pcs/min): 15 to 20pcs/min.
• Weight (kg): about 67kg
• Frequency(HZ): not have
• Voltage(V): 220V/110V Power(W) 200W
• Equipment external dimensions(mm)(L*W*H): 550mm*380mm*790mm
• Air pressure(Mpa): 0.8mpa

Semi automatic plane labeling machine with touch screen controlling system

Applicable to the upper plane, product surface, concave labeling, labeling accuracy 0.2mm, Mainly used in electronic components, precision labeling, digital products such as SD card, mobile phone and computer cell labeling, etc.

Product features:

1. High labeling precision, meet various labeling requirements

2. Save, affordable, especially for small batch labeling needs, reduce equipment investment.

3. With mechanical design, reliable quality, excellent stability, no need to maintain equipment.

4. A wide range of products, can meet the needs of φ 10- φ 150mm within the scope of the product labeling.

5. Save the area, transportation is simple, equipment can be moved at any time and place.

6. May satisfy the small tag labeling, length greater than 8mm tags can be used normally

7. Unique labeling technology, without the need for CCD inspection, ensure high labeling precision, greatly reduce the cost.

Applicable scope

Applicable labels: non-dry adhesive labels, non-dry tape film, electronic supervision code, bar code, etc.

Applicable products: requirements of labeling products is side or big cambered side or circumference surface.

Applicable industry: widely used in cosmetics, daily chemical, pharmaceutical , hardware, plastic industry, etc.

Application examples: flat bottle labeling of liquid shampoo, flat bottle labeling of lubricating oil, round bottle labeling of liquid shampoo, etc.

Basic parameter

Model: VK-T804

Label application object diameter: can be adjust

Labeling precision(mm): ±0.2mm

Labeling speed(pcs/min): 15 to 20pcs/min.

Weight (kg): about 67kg

Frequency(HZ): not have

Voltage(V): 220V/110V Power(W) 200W

Equipment external dimensions(mm)(L*W*H): 550mm*380mm*790mm

Air pressure(Mpa): 0.8mpa

Main configuration

Labeling samples
