Semi Automatic Honey Pepper Sauce Heating Mixing Filling Equipment

Model: VK-SPF
Gas pressure: 0.4NPA-0.6NPA
Filling range: 5-100ml 10-280ml 20-500ml 100-1000ml 500-2800ml, 1000-5000ml
Filling precision: ≤± 1%
Hopper volume: 50L

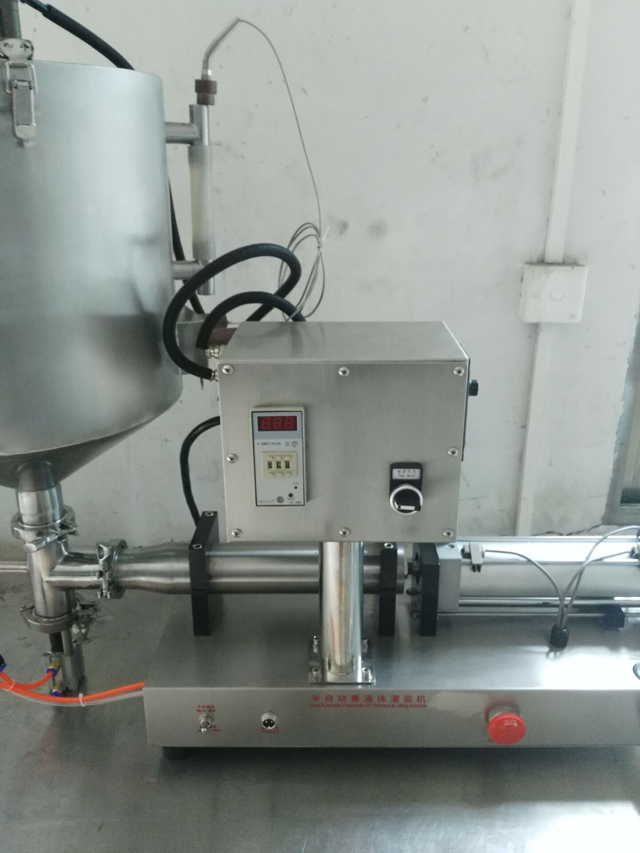

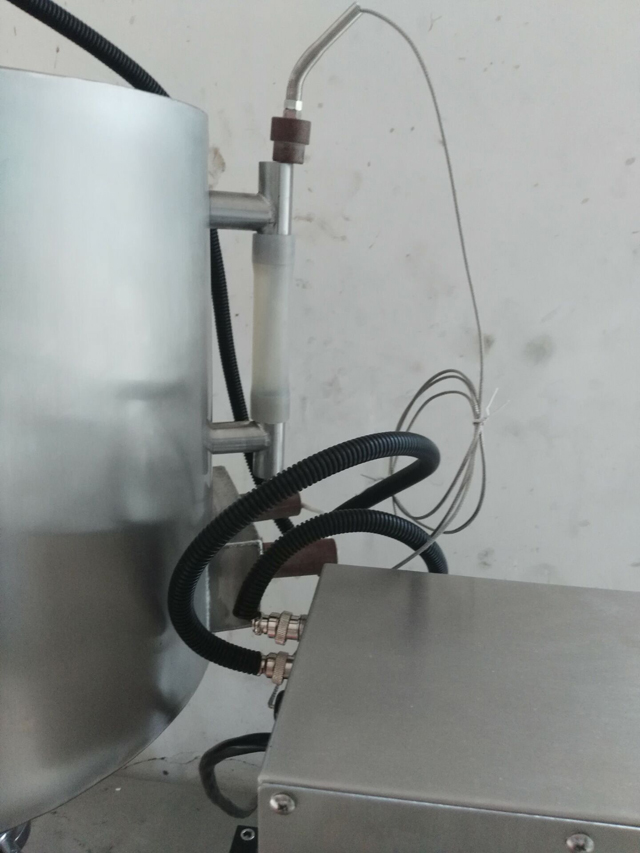

Heating temp: 0-100°C
Filling speed: ≤50 times/min
Weight: 50KG
Size: 1200mm×300mm×700mm
Working way: By air compressor

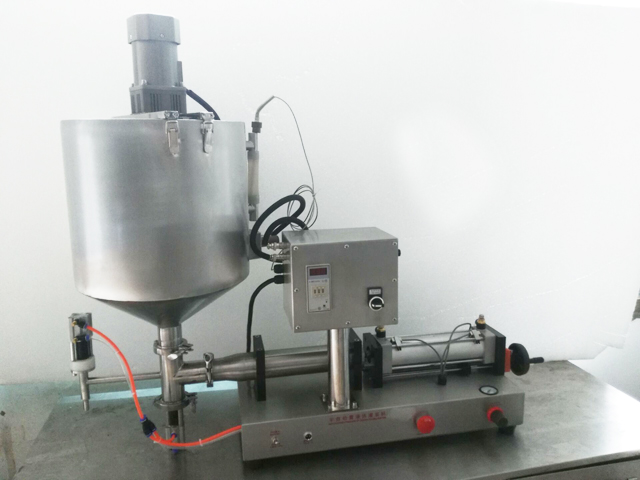

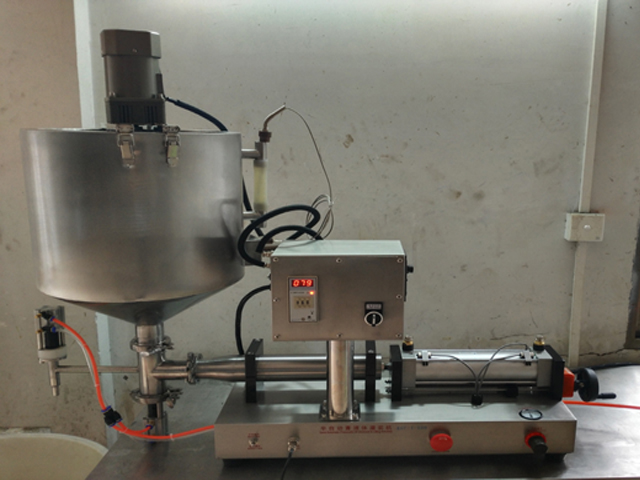

Pneumatic horizontal mixing thick sauce filling machine with heating function.

Pneumatic horizontal mixing thick sauce filling machine, the machine suitable for high viscosity, paste, thick sauce with particles, the ideal equipment for filling liquid. Jams, sauces, peanut butter, tomato sauce, bean paste, chili sauce, shrimp paste, apple sauce, salad dressing, caviar, sauce all can filling.

This series of semi-automatic piston liquid mixing filling machine with heating function, reasonable design, compact, easy to operate, the pneumatic part adopts Taiwan AirTac, SHAKO pneumatic components.

Material contact parts are made of 304 stainless steel material, meet the GMP requirements.

Filling volume adjustment handle, filling speed can be adjusted with high filling accuracy.

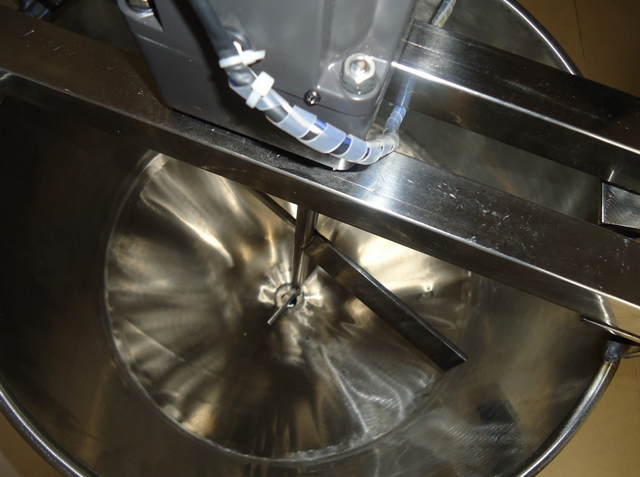

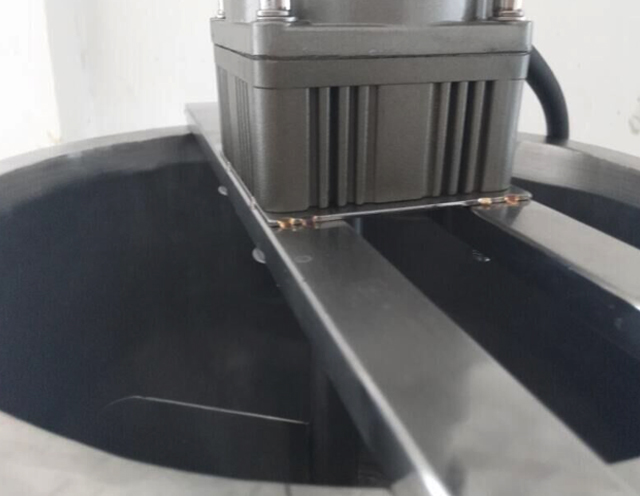

Filling head adopts anti-leakage, anti-pull and lifting filling device. Hopper with adjustable speed stirring device, so that the material is more uniform filling.

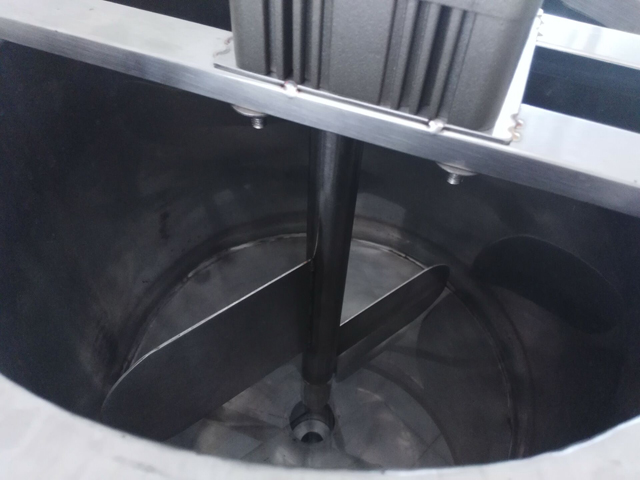

Horizontal Mixing Heating Filling Machine:

If there are two or more kinds of materials, and two kinds of materials is not the same weight, the material will be re-precipitation in the following, the drift in the light of the above materials, a horizontal stirring of the material can be stirred in the horizontal plane, so that more uniform mixing of materials together.
