Semi Automatic Horizontal Piston Liquid Lotion Shampoo Filling Machine

Model: VK-SPF
Filling Volume: 100-1000ml
Voltage Supply: 220/110v 50-60hz
Power: 10w
Filling Accuracy: ≤ ± 0.5%
Filling Speed: 10-40 Bottles/min
Equipped With Air Pressure: 0.4-0 .6 Mpa
With Gas Consumption: ≥ 0.1m3/min
Machine Weight: 40kg
Machine Size: 1150x420x380mm

Single Head Horizontal Pneumatic Liquid Filling Machine Automatic Filling Machine Filling Machine, Single Nozzle Filler

Equipment Introduction

This series filling machine is foreign advanced filling machine technology transformation and innovative products, its structure is simple and reasonable precision, easy to operate, user friendly design more in line with the requirements of the modern enterprise.

The filling machine, widely used in pharmaceutical, cosmetic, food, pesticides and special industries, is a high-viscosity fluid, paste quantitative filling the ideal equipment.

Basic Parameter:

Item	Horizontal filling machine with sunction hose
Model No	VK-SPF	Filling volume from 100ml to 1000ml; Other filling volume range can be customized due to the special requirement; The total large Min 3ml, Max 5000ml
Power Supply	220V/50HZ/Single phase	US power supply customized in 110V/60HZ/single phase
Filling Accuracy	± 0.5%
Filling speed	20-45bottles per min	The filling speed is affected by the filling volume; the smaller the filling volume the higher the speed becomes
Air Pressure	0.4Mpa-0.6Mpa
Gas Consumption	0.1cubic meters per min
Weight	40KG	After wooden case packing,the weight varies from 50kg to 57kg for shipping;
Size	1150420380mm	The package size: 1200490450mm

Optional Parts Customized For Better Filling Function:

1. Syringe type filling nozzle: Suitable for filling small bottles and tubes. The diameter of filling nozzle and length of filling syringe can be customized according to the specific container.

2. Rotary / check valve controlling system: suitable for different viscosity or materials with granules / seeds inside it. As well it can solve the filling problems resulted from high level / high pressure materials-feeding system.

3. Hopper: Filling hopper for high viscosity like cream sauce.

Device Features Of Pneumatic Filling Machine Semi Automatic For Shampoo Liquid Detergent

The series filling machine structure is reasonable, model compact, reliable, accurate, easy to operate, the pneumatic part adopts power structure of Germany FESTO and Taiwan AIRTAC, SHAKO other aerodynamic components.

Material contact parts are made of 316L stainless steel material, meet the GMP certification requirements.

According to user needs within the scope of any regulation models filling volume and filling speed,high filling accuracy.

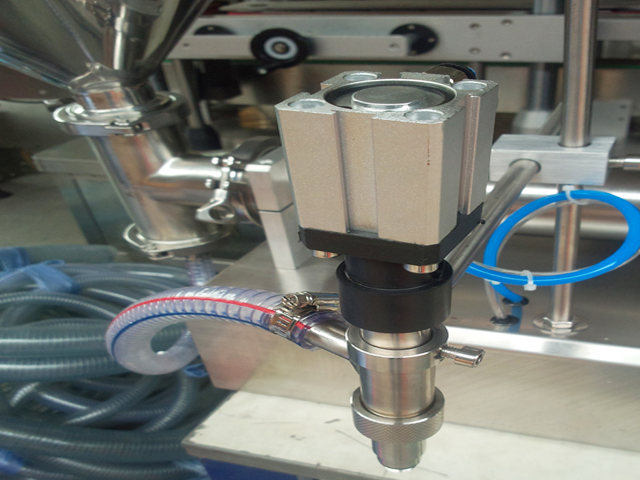

Filling head adopts anti-leakage and lifting filling device.

The main impetus for aircraft gas source, customers must bring their own air compressor equipment.

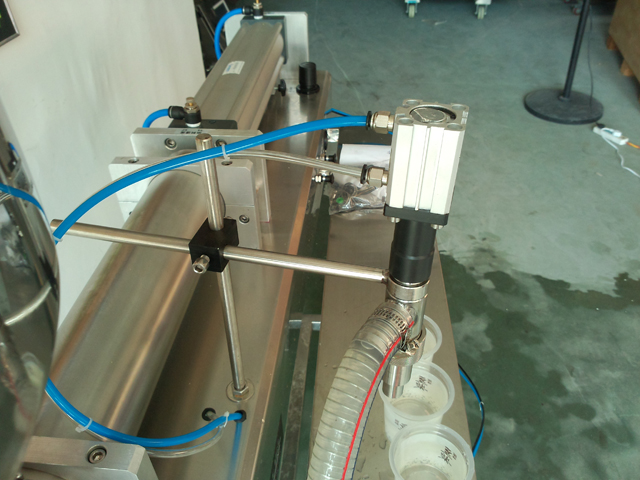

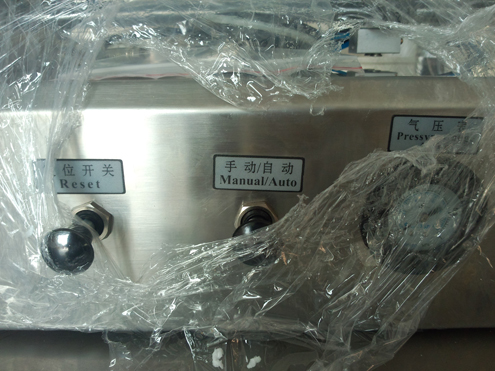

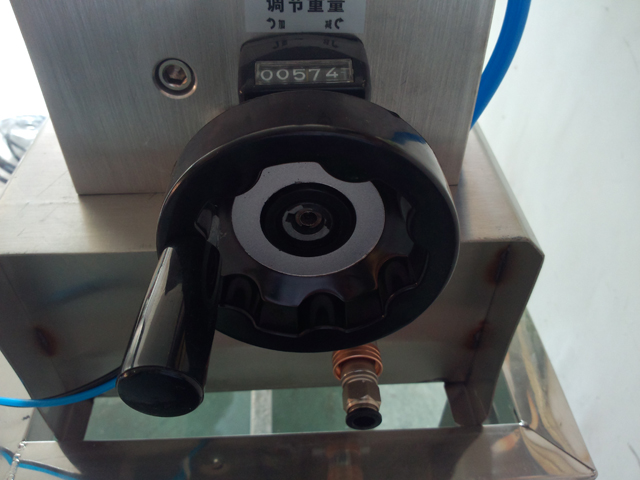

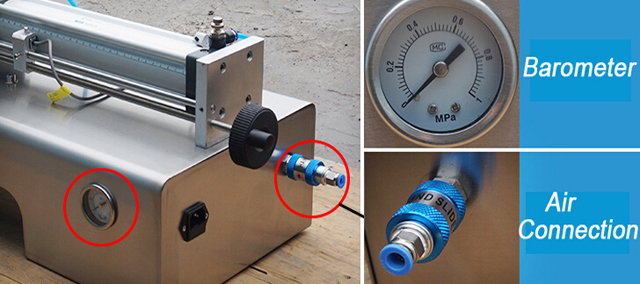

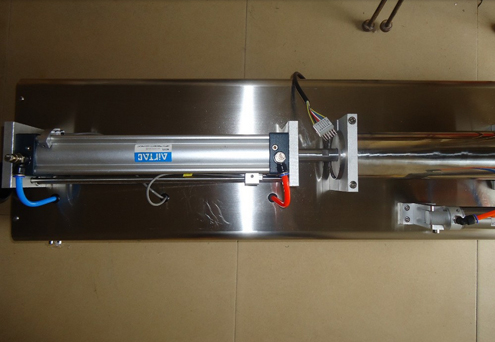

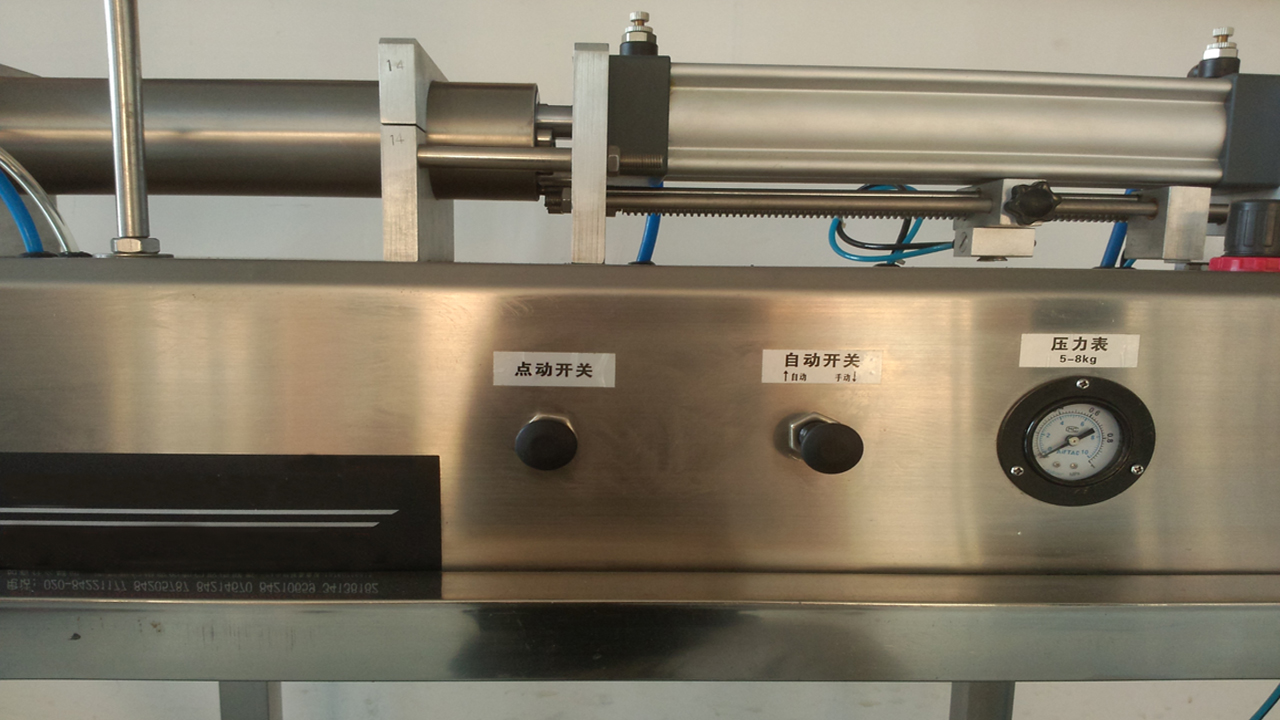

Detailed Pictures:

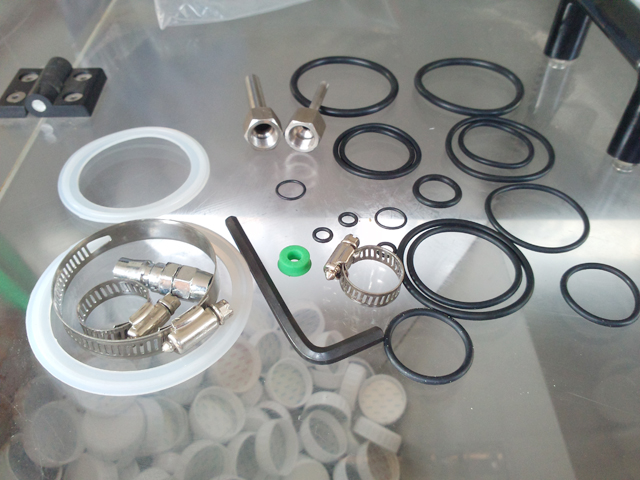

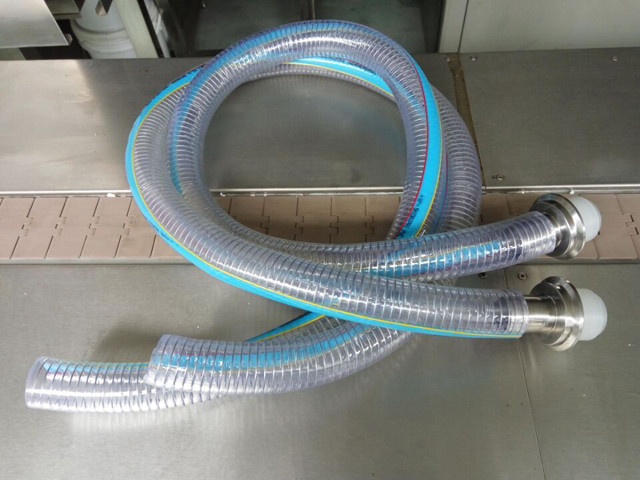

Spare Parts For Horizontal Filling Machine:

Services

1. Worldwide shipping. (Except some countries and APO/FPO)

2. Orders processed timely after the payment verification.

3. We only ship to confirmed order addresses. Your order address must match your shipping address.

4. The images shown are not the actual item and are for your reference only.

5. Service transit time is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.

6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.

Quotation: FOB (Shanghai) the below mentioned quotation based

Package: Each machine wrapped by PO film, then packed to standard wooden case.

Production Lead: 20 workdays after getting the down payment 30%, the other 70% payment collected before shipping

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
