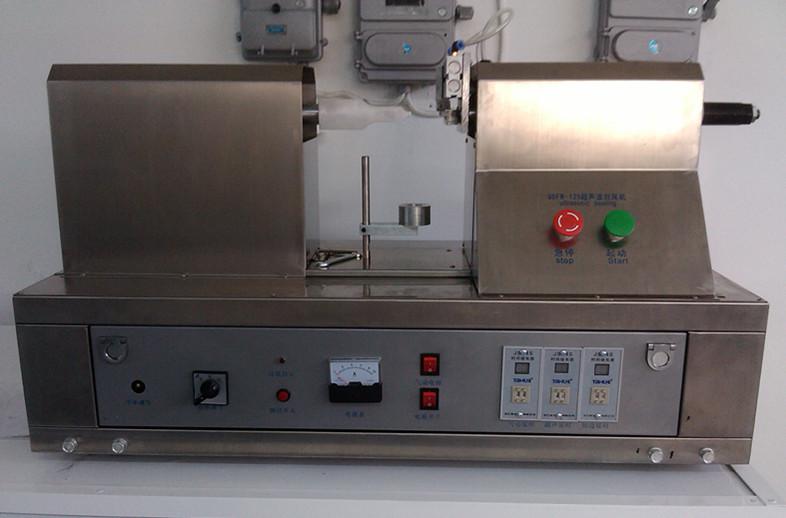

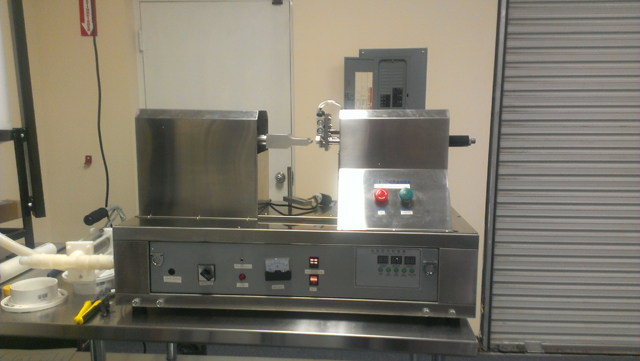

Semi Automatic Plastic Tube Ultrasonic Welding Sealing Sealer Equipment

• Model: VK-UTS-007E
• Voltage: 220-240V 50/60 Hz
• Power: 1250W
• Frequency:20KHz
• Seal Tube Dia: 5-80mm(can be customed)
• Tube Height: 0-300mm(can be customed)
• Machine Size: 1100*470*550mm
• Weight: 75kg

View Video

The ultrasonic soft tube sealing with cutting machine is specially designed and developed by our factory for the plastic sealing and welding. The ultrasonic sealing & cutting machine, welding quickly, high-strengthed as well as elegant outline, processes without adding any solution or adhesive or any other suppliments.

Ultrasonic sealing technology is one possibility that enables manufacturers to reduce both costs and product waste while providing strong product protection. Reduced energy consumption, material savings and increased equipment availability allow manufacturers to produce more sustainably and profitable. In comparison to other sealing methods used to date, such as hot and cold sealing, ultrasonic technology represents an attractive alternative.

Reliable Product Protection – Assured Product Quality

Ultrasonic technology offers crucial benefits from a product safety perspective. The new technology avoids the risk of diminished seam quality and leakage due to contamination of the sealing area by using high frequency vibrations that remove product residues. The resulting sealed seams are secure, ensuring the product is tightly packaged.

One drawback associated with the often-used hot sealing method is the negative influence on product quality by the required sealing heat. The high temperature of the sealing jaws can cause product damage: here ultrasonic’s "cold" approach is a major advantage. Since the tools used are cold, the sealed seam can be placed close to the product without having a negative impact on its quality.

Manufacturers can further benefit from the fact that there is no risk of heatrelated damage to materials or products in the event of machine stoppages. A popular alternative in the past, when packaging heat-sensitive products like chocolate, was to use cold sealing film to prevent products from melting. One disadvantage of this approach is the limited storage life of the film, which tends to stick together or to the product. Furthermore, the relatively high costs involved with cold sealing film have encouraged manufacturers to consider alternative sealing methods like ultrasonic technology.

Parameters Of Ultrasonic Tube Sealing Machine:

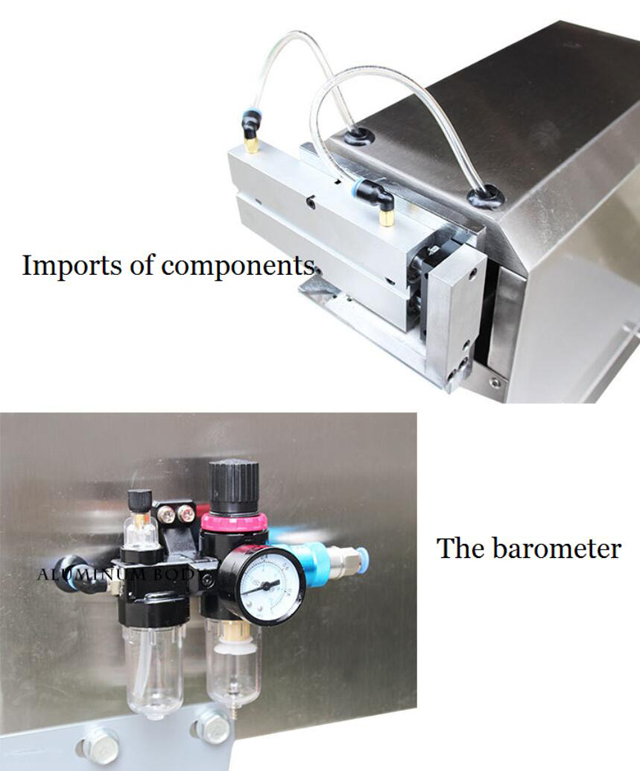

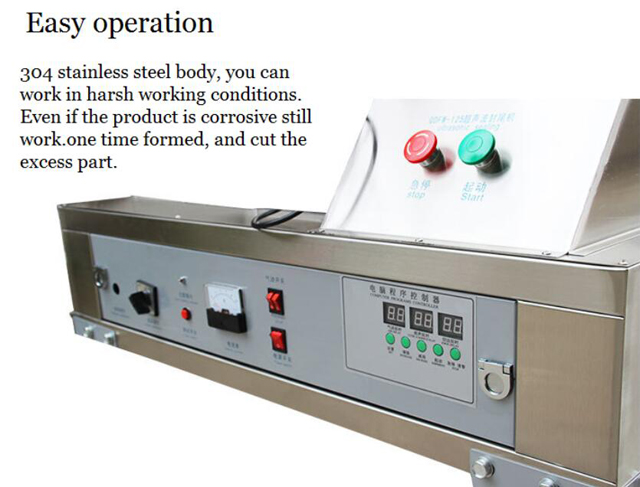

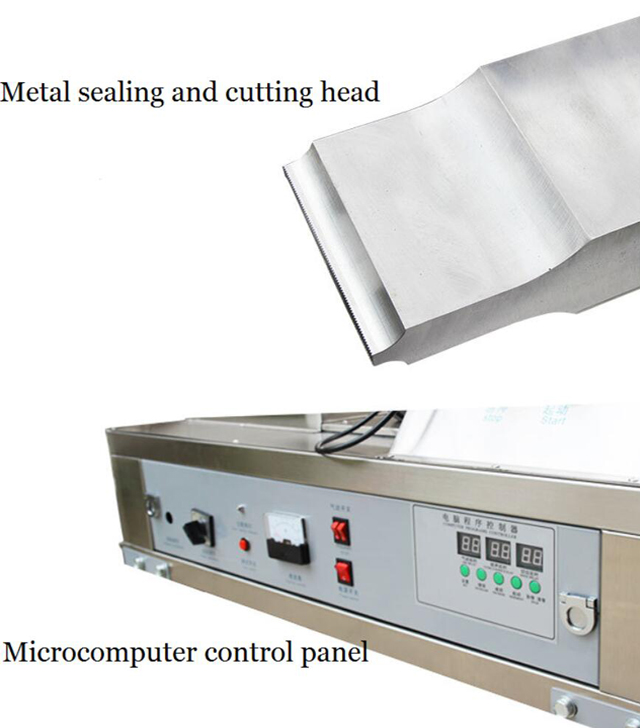

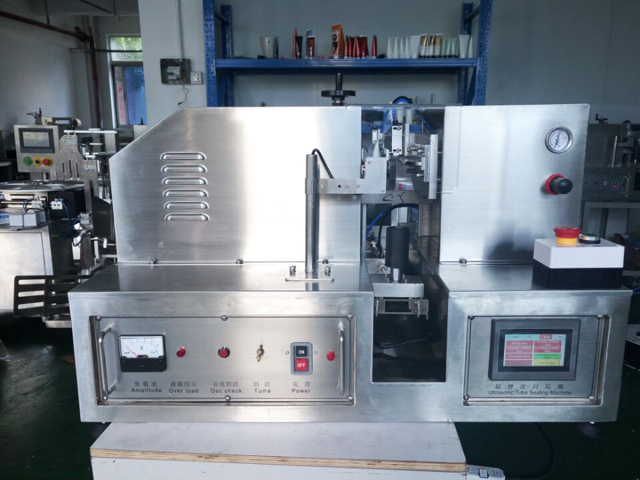

Machine Details:

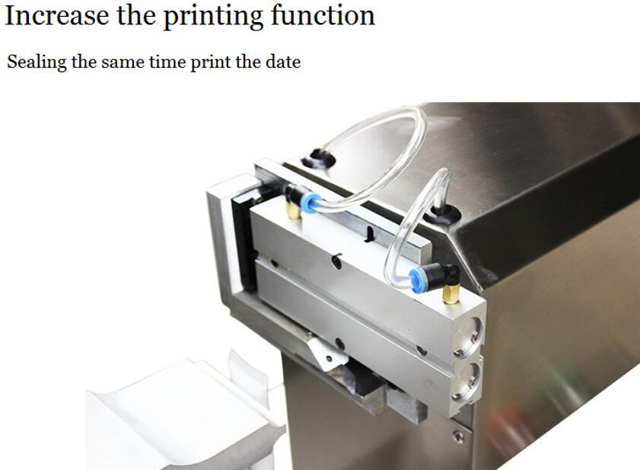

Ultrasonic Tube Sealing Machine With The Printer Function:

Ultrasonic tube sealing machine adopts movement line, good stability, high efficiency, dynamic components are wellknown brands.

Application: toothpaste, cosmetics, medicines, food, industrial supplies, and other types of hose or tube tail sealing.

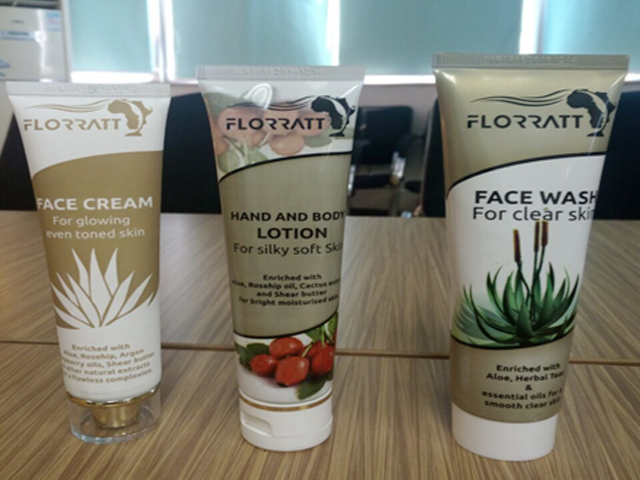

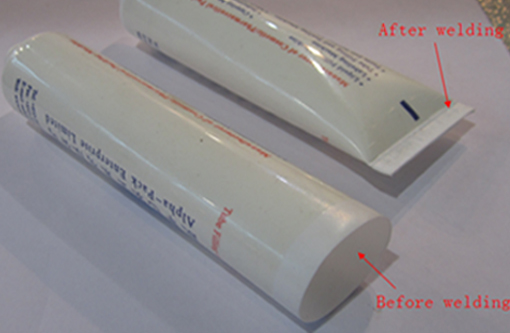

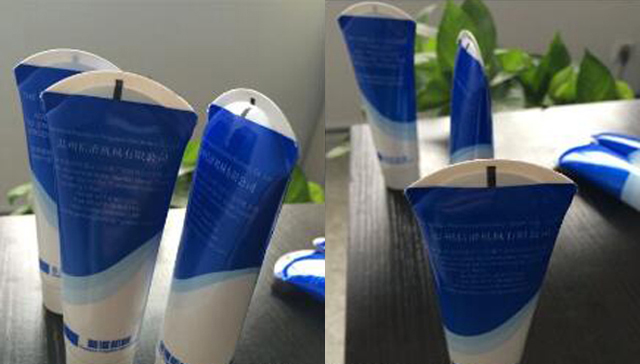

Tubes Sealing Samples:

After Sales Service:

After sales service shall be done by the buyer.

VKPAK will provide all kinds of technical support to the buyer by telephone, fax or e-mail free of charge.

But any service cost to buyer's country is not included.

Guarantee:one year. The supplier can replace only the elements that are imperfect for material or handwork.

Replacement is free and ex factory. All imperfect elements have to be delivered within 12 months (carriage paid).

Guarantee excludes every worn or torn parts. Replacement handwork is excluded and it will be done by the buyer.

The supplier is not responsible for any rewards for, damages or last earnings met by buyer.

Guarantee is not valid if the machine is used the wrong way or it is not serviced as shown in our technical handbook.
