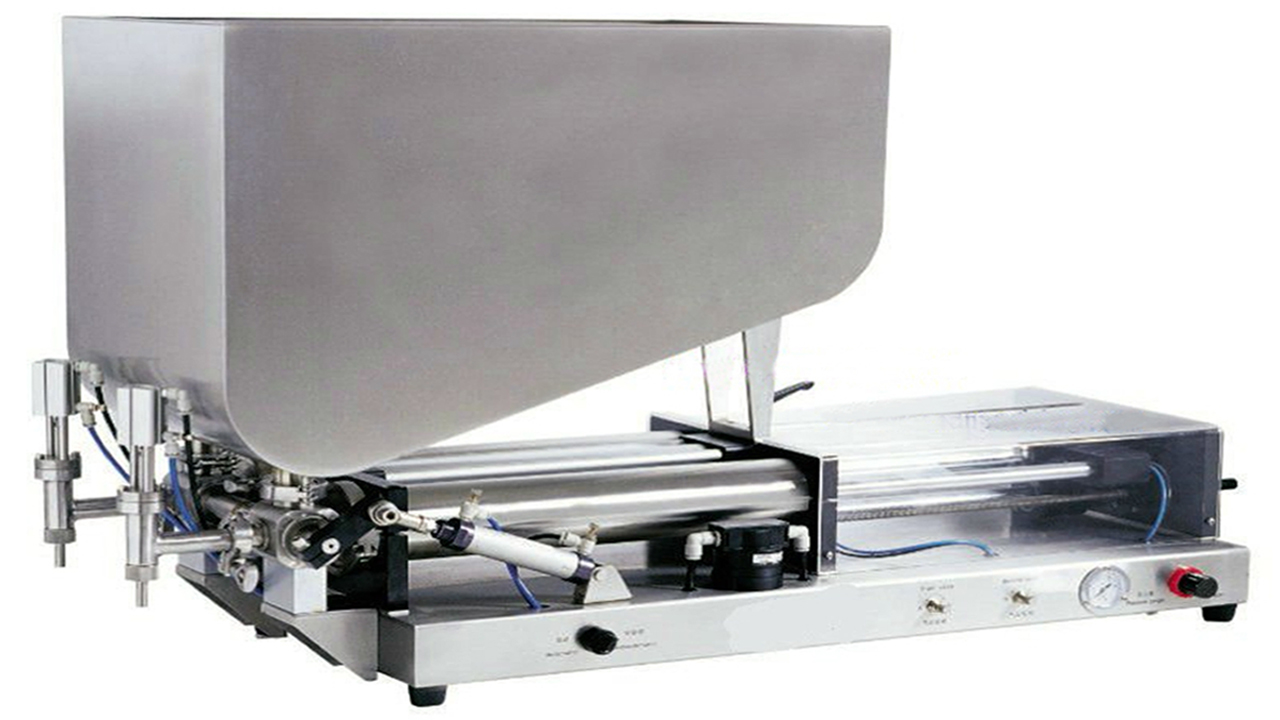

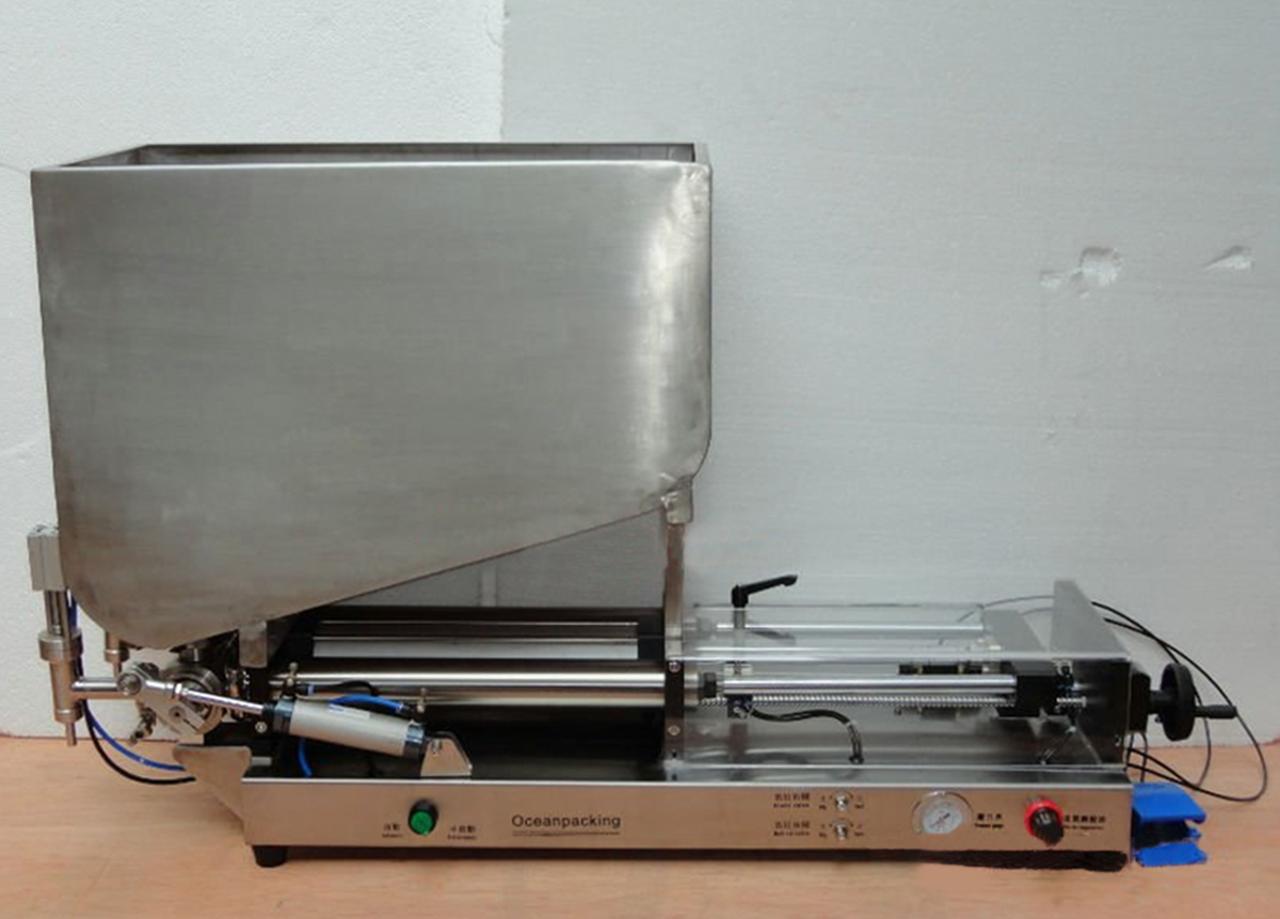

Semi Automatic Pneumatic Cream Jam Pepper Sauce Filling Machine

• Model: VK-SPF2-1000
• Filling range: 100-1000ml
• Air pressure: 5-8kg/m2
• Filling speed: 30-60bpm
• Filling precision: 99%

View Video

The full-pneumatic filling machine can be classified into elaborate type (T type) product and ordinary type (P type) product.

The elaborate type adopts Germany FESTO pneumatic components. The imported components of excellent quality has ensured its absolute leading position among other same machines in the country.

The ordinary type selects pneumatic components from Taiwan or Korea. The good performance-price ratio enables more customers to experience the outstanding quality of VK-SPF series machines.

The horizontal self-suction liquid filling machine is suitable for filling products of various viscosity such as water injection and ointment etc. It is applied in such industries as daily chemical industry, pharmacy, food and pesticide etc.

The semi-automatic piston type filling machine(full-pneumatic) is a new generation product developed on the basis of the original electric combined machines. It adopts pneumatic components to replace the electric control circuit.

Therefore, it is especially suitable for use in damp conditions or conditions with explosion-proof requirements.

The parts of our VK-SPF series products that contact materials are all made of imported 316L stainless steel and are machined through CNC machine tools with the surface roughness lower than 0.8.

Features

• Suitable for filling viscosity liquid like sauce, jam, shampoo, lotion, perfume, etc with soft particulate
• Can fill all kind of containers such as bottles, cans, cups, etc
• Full pneumatic control, easy to operate, remove and clean; ideal equipment for filling inflammable, explosive materials
• Liquid contacted material use 316L stainless steel, other metals are made of 304 stainless steel with surface finishing and special treatment which guarantee you very good quality
• Equipped with Airtac cylinder, high filling precision

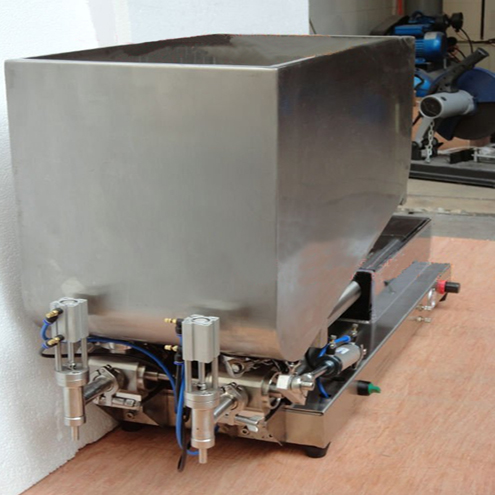

• Equipped with double filling heads, high filling speed

Technical Data

Application:

1) Can fill paste, cream, jam, sauce, gel, shampoo, lotion, oil, juice, perfume, ink, water, etc for all containers such as bottles, jars, cans, etc

2) Widely used in cosmetic, drinks, chemical, medical, food industry etc, which can highly improve productivity and product quality.

Quotation: FOB (Shanghai) the below mentioned quotation based

Package: Each machine wrapped by PO film, then packed to standard wooden case.

Production Lead: 20 workdays after getting the down payment 30%, the other 70% payment collected before shipping

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
