Semi Automatic Pneumatic Desktop Shampoo Bottle Screw Capping Machine

• Model: VK-SFC
• Power supply: AC220V/50Hz;
• Power consumption: 60W;
• Air source pressure: 5-6kg/cm2;
• Cap diameter: 20-50mm;
• Bottle height: 50-300mm;
• Twisting force: 5-20N.m;
• Percentage of damage: 0.1%;
• Production capacity: 600-1800 bottle/hour;
• Machine weight: 35kg;
• Overall dimension: 620LX560WX770H mm.

View Video

The VK-SFC desktop screw capping machine is suitable for the cap screwing of different shapes of bottles in the industries of foodstuff, pharmaceuticals, daily chemical, pesticide and cosmetics etc. Its four adjustable speed motors are used respectively for cap supplying, bottle clamping, delivering and cap screwing.

It is characterized by high level of automation, outstanding stability, easy adjustment, no need of spare parts for replacing bottle types or caps, which can be done only by adjusting.

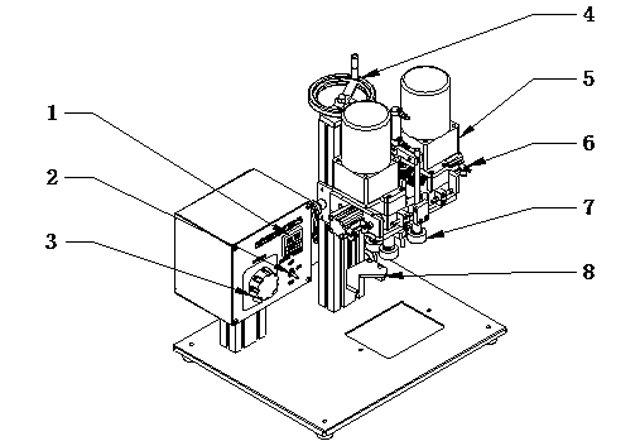

Desktop Screw Capping Machine Function:

1. Control Panel
2. Power Switch
3. Torque Regulator
4. Up And Down Adjustment
5. Capping Motor
6. Cylinder
7. Capping Head
8. Position Withstand

Main Technical Parameters

• Model: VK-SFC
• Power supply: AC220V/50Hz;
• Power consumption: 60W;
• Air source pressure: 5-6kg/cm2;
• Cap diameter: 20-50mm;
• Bottle height: 50-300mm;
• Twisting force: 5-20N.m;
• Percentage of damage: 0.1%;
• Production capacity: 600-1800 bottle/hour;
• Machine weight: 35kg;
• Overall dimension: 620LX560WX770H mm.

Operation Precautions

1. Before using, add ISOVG32 pneumatic gas oil or equivalent oil on the gas source processor.

2. To adjust the capping head according to the bottle height.

3. To adjust the cap size, according to the bottle cap, two sides adjust at the same time.

4. To adjust the position withstand, let the bottle mouth under the center of the capping head.

5. To adjust the Torque regulator meet capping strength.

6. Switch on the power, open the hand sliding switch for gas.

7. Control valve operation, first to pull up the adjustment switch can adjust the air pressure.

8. Manual operation, to connect the food stamp switch under the electric box.

Note: To be sure the manual / automatic button on the red light position.

Trouble Treatment Method

1. Machine cannot open, check if it is supply AC220V power or power is damage, transformer burn off, change a new one.

2. Cannot work automatic, manual / automatic doesn’t switch, or not open start button, or the wire board in trouble, electromagnetic valve cause it.

3. Motor does not move, torque adjustment switch broken or transformer, capping motor, capping motor start button in trouble.

4. Capping lose or not tight, adjust the torque regulator.

5. Capping motor does not move, check if the power, or electromagnetic valve, wire board in trouble.

6. Cap press cylinder does not move, check if the power, or electromagnetic valve, wire board in trouble.

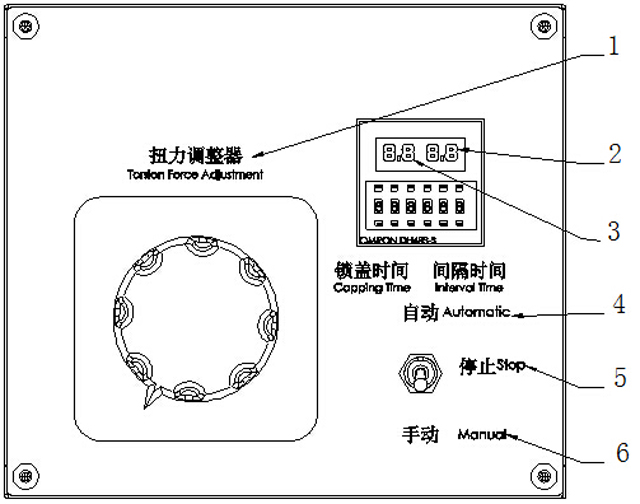

Operation Panel Function

1. Torsion Force Adjustment
2. Capping pause interval tine display
3. Lock cap time display
4. Automatic
5. Stop
6. Manual

System Maintenance

1. Before or after opening the machine, keep the machine inside and outside clean, to make sure the machine normal movement.

2. In the morning and afternoon, check all screw of the machine, sure no loose, if find, tightening it with tool.

3. Keep other products away from the machine, to avoid stop the machine move.

4. Out of work time, turn off the power to avoid other trouble.
