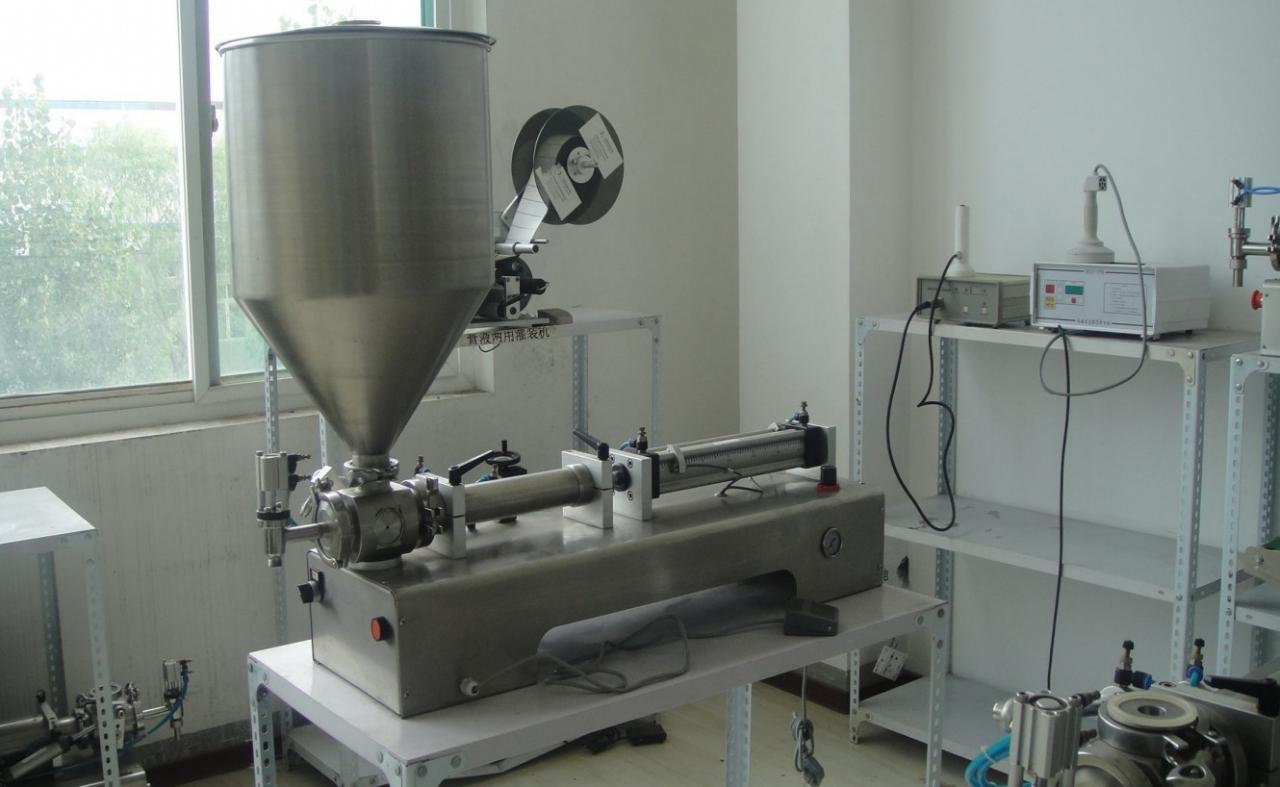

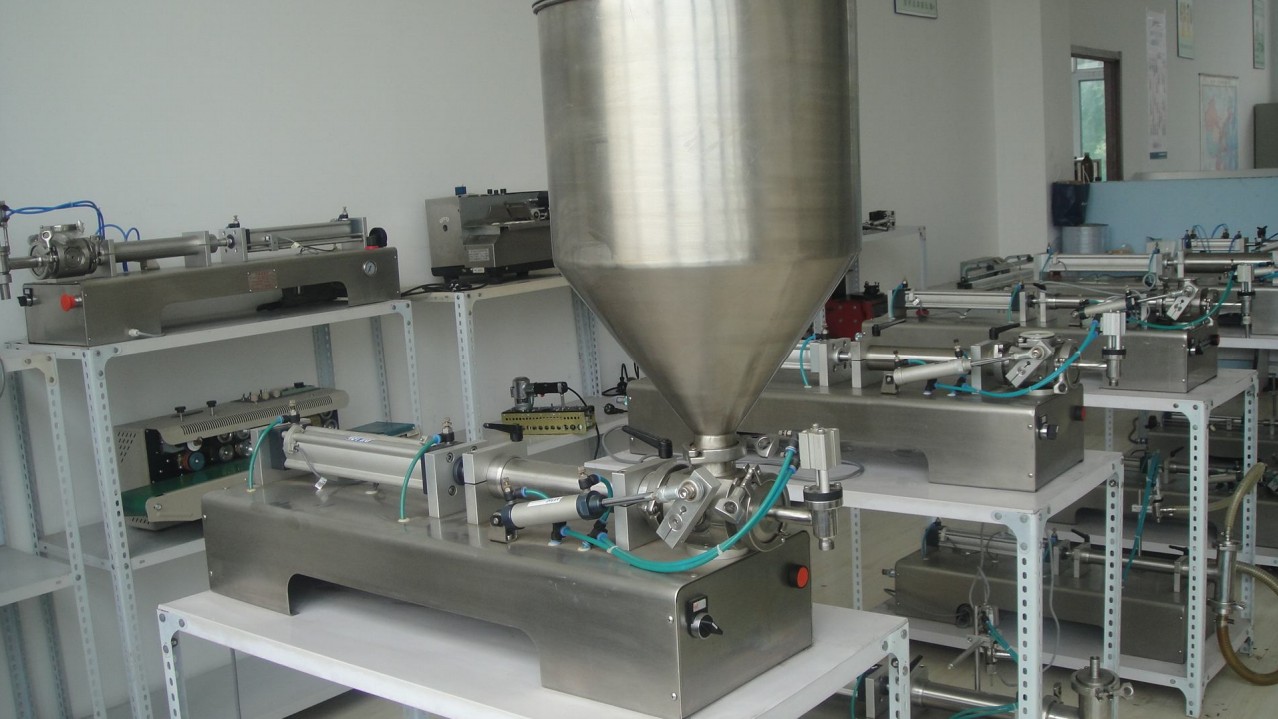

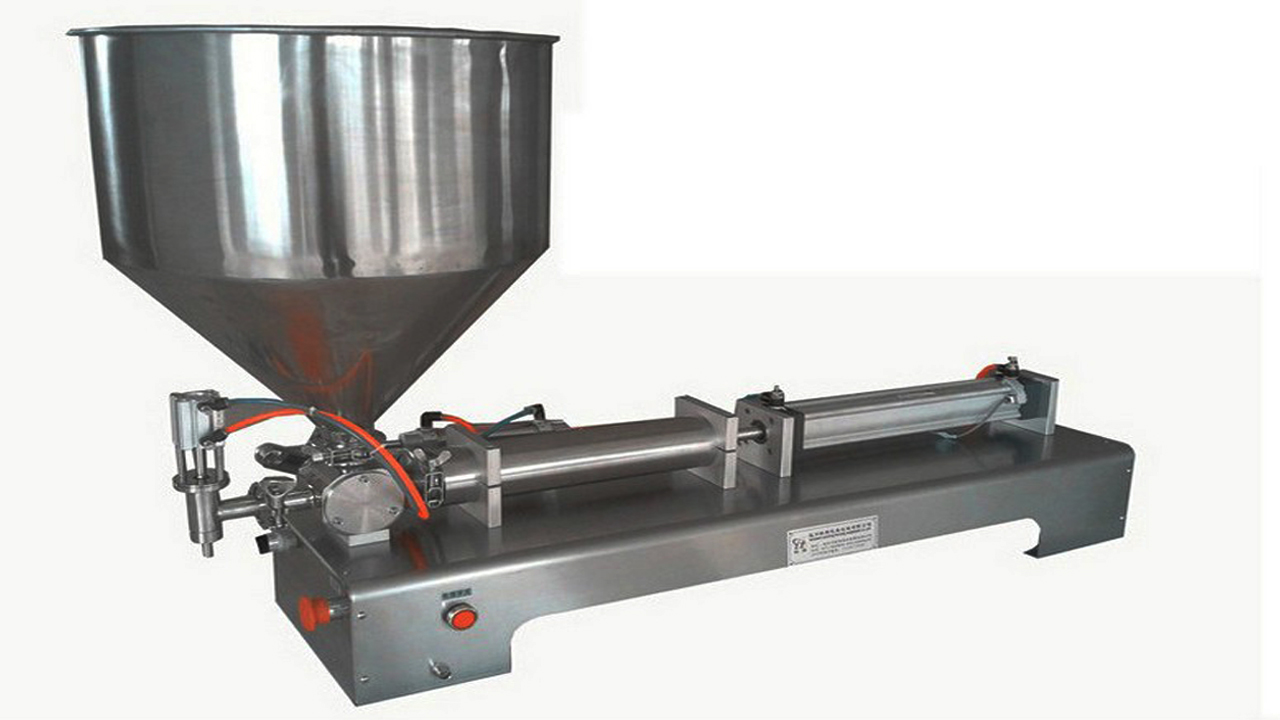

Semi Automatic Pneumatic Oil Liquid Cream Filling Equipment With Hopper

VK-SPF-G pneumatic filling machine
Fillable Range: 100ml-2000ml
Air Pressure Range: 0.4-0.6MPa
Filling Speed: 5-25bottles per minute
High Filling Accuracy: ( /- 1%)
Gross Weight: 45KG
Filling Head Two Type: One Head, Two Heads
Automatic Grade: Semi-Automatic
Driven Type: Pneumatic
Machine Dimension: 1000*880*950MM
Material: SUS304/316
GMP standard
Packaging Material Standard Carton and Foam in Wooden

Fillers (or filling machines) are used for packaging, mainly for food / beverage but for other products as well. These are used to fill either a bottle or a pouch, depending on the product.

There are several types of fillers used by the packaging industry. The following are the most common:

Auger/agitator filling machines: designed to fill dry mixes, such as flour and sugar. The fillers have a hopper shaped like a cone that holds the mix and puts it in a pouch using an auger conveyor that is controlled by the agitator. The mix is filled in a pouch that is made of paper or poly that is formed in a collar and the pouch gets sealed by a series of heaters and dies. The interface with the process supplying the powder is of prime importance to ensure an efficient filling.

Flow filling machines: designed for liquids, oils, and thin food products. These fillers are designed when they fill a bottle or tub that enters the machine, the ejects the open bottle back onto another conveyor for sealing.

Tablet fillers: These are designed for products that are counted by pieces instead of weight. These are designed for small bottles (similar to some of the flow fillers), but the hopper of the filler is set up to permit scan counting of tablets or candy pieces.

Positive displacement pump fillers: positive displacement pump filling machines easily handle a wide range of container sizes, fill volumes and product types. While originally designed for filling creams, gels and lotions these fillers also handle water thin and heavy paste products. Some of the products this machine easily fills are cosmetic creams, heavy sauces, thick shampoo and hair conditioners, honey, hair gels, paste cleaners, and car wax.

Introduction on model VK-SPF-G cream filling machine:

The series of filling machine is a kind of creative and innovative product reference to foreign advanced filling machine technology. It features the more simple and reasonable structure, high precision, more convenient operation. And it can also applied in many areas like pharmaceutical, cosmetic, food, and special industries. For high viscosity fluid and paste, the kind of machine is the best choice.

All materials are used 304 stainless steel materials, in line with the GMP requirements. Filling volume and speed of filling can be arbitrary regulation and high accuracy.

Princeple:

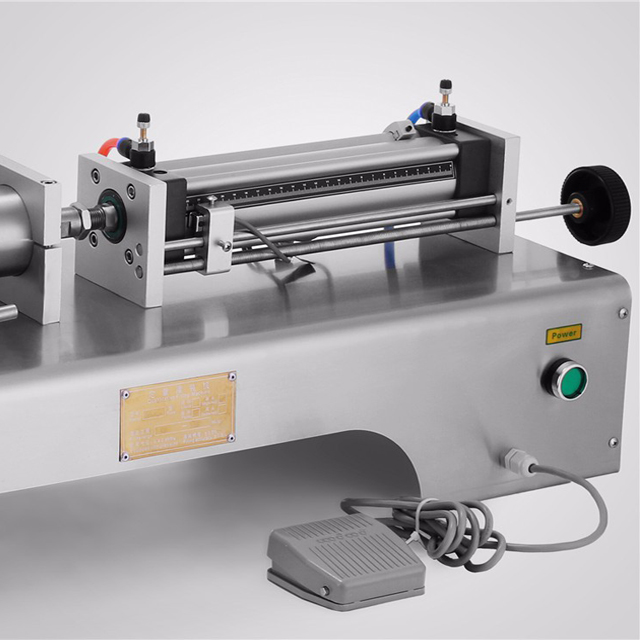

Driven by a cylinder and piston made from materials with one-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.

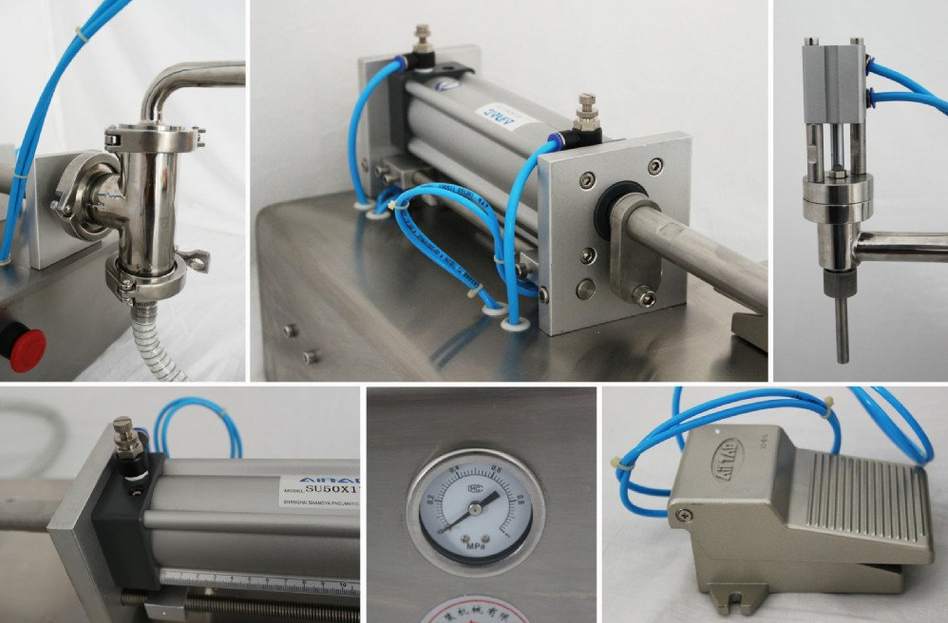

Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components. materials are used 304 stainless steel materials, in line with the GMP requirements.

Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.
