Semi Automatic Red Wine Round Glass Bottles Labeling Machine

Model: VK-T801
Accuracy: ±0.5mm
Speed: 15～25bpm
Diameter: Ø 15mm～Ø 150mm
Label size: Length: 20mm～200mm; width: 20mm～220mm;
Dimension: L920mm×W470mm×H500mm
Supply power: 220V/50HZ;
N.W: 45Kg
G.W: 68KG
Inner diameter of label: Ø76mm
Outer diameter of label: Ø 240mm
Voltage: 220V-240V/50-60HZ

Detailed pictures of labeling machine red wine high precision labeling machine round glass plastic bottles semi automatic labeler equipment

Application

Suitable for all kinds of cylindrical objects labeling, small taper round bottle labeling, such as xylitol, cosmetics round bottles, wine bottles and so on. Can achieve full week / half weeks labeling, front and back labeling circumference, is back mark pitch can be adjusted. Widely used in food, cosmetics, chemical, pharmaceutical and other industries.

Optional functions choosed improve production management convenience, with labeling counting, power-saving mode, photoelectric tracking label and other functions, production management easier;

Optional Features And Components:

① Hot coding function;

② Circumference circumferential positioning function;

③ Other features (according to customer requirements).

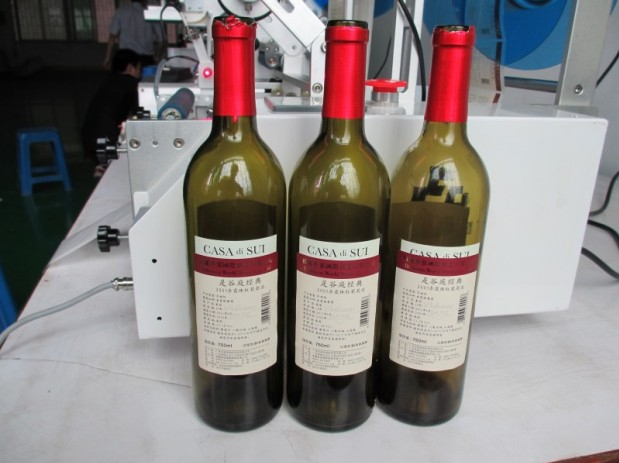

Samples

Optional Devices:

Reader: Read the bar codes in various kinds.
Electric light sensor: The common sensor cannot detect the transparent label,which requires the light sensor device imported from Germany.
Printing machine: printing the texts on the label
Date coding: Hot coding for shelf date, products series etc.

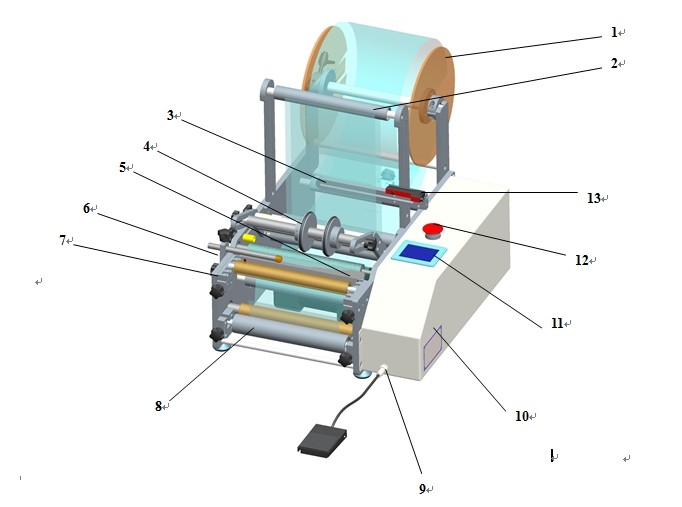

Bird view of whole machine

1	Labels plates	Putting the labels around it
2	Label Rolls	The path of label for labeling process
3	Supports for light sensor	Light sensor installation,movable up and down ward
4	Pressing	Press the bottles during labeling,adjust its tension by controlling left button
5	Label reeling	Dispensing the labels
6	Position	Adjust this left or right,up or down to position the bottles
7	Support Jacket	Different positions for various bottles
8	Traction	Tract the bottom line to dispense the label，adjust its tension by moving the screws
9	Pedal controlling
10	Electric box
11	Man-machine interface	Controlling the machines with changing the parameters
12	Sudden stop
13	Light sensor	Detecting the interval of labels

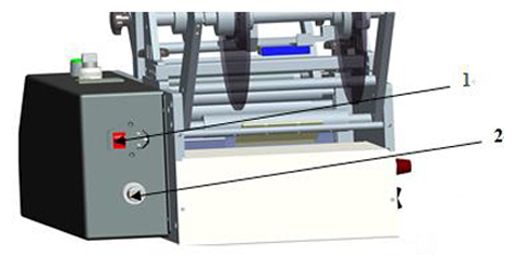

Control Panel

Switch
Speed adjustment Knob

Parameter

Accuracy	±0.5mm
Speed	15～25bpm
Diameter	Ø 15mm～Ø 150mm
Label size	Length：20mm～200mm；width：20mm～220mm；
Dimension	L920mm×W470mm×H500mm
Supply power	220V/50HZ；
N.W	45Kg
Inner diameter of label	Ø76mm
Outer diameter of label	Ø 240mm
Voltage	220V-240V/50-60HZ

Working Process

Core works: single standard, double standard switching function principle, the principle circumferential positioning labeling, please consult factory.

Procedure: put the product -> Labeling (device automatically) -> Remove the labeling products.

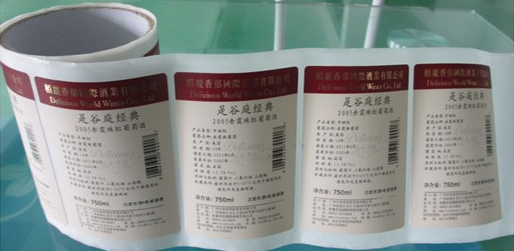

Making of matching labels:

Quotation: FOB (Shanghai) the below mentioned quotation based

Package: Each machine wrapped by PO film, then packed to standard wooden case.

Production Lead: 10 workdays after getting the down payment 30%, the other 70% payment collected before shipping

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
