![Semi Automatic Round Bottles Syringe Vials Labeling Machine](https://www.nicefiller.com/wp-content/uploads/semi-automatic-round-bottles-syringe-vials-labeling-machine.jpg)
- Model: VK-T801
- Labels sizes: (L)15mm~380mm; (W) 10mm~180mm;
- Applicable products: φ15mm~φ160mm
- Rolls of labels OD: ≤φ250mm; ID: φ76mm
- Labels speed: 8m/min;
- Labeling speed: 20~40Pcs/Min
- Labeling accuracy: ±0.5mm
- Air pressure: 0.4~0.7MPA
- Weight: 42kg
- Voltage: 220VAC
- Frequency:50Hz
- Power: 250w
- Size of machine: (L)920×(W)420×(H)500mm
The labeling machine is specially designed for various shapes of objects in whole-round or semi-round labeling. The labels distance can be adjusted by either positioning setting or date coding system.
The machine can be optional with the printing of expiry date. The labeling accuracy is ±0.5mm.
Application
Suitable for all kinds of cylindrical objects labeling, small taper round bottle labeling, such as xylitol, cosmetics round bottles, wine bottles and so on.
Can achieve full week / half weeks labeling, front and back labeling circumference, is back mark pitch can be adjusted. Widely used in food, cosmetics, chemical, pharmaceutical and other industries.
Basic Parameter
Labels sizes | (L)15mm~380mm; (W) 10mm~180mm; |
Applicable products | φ15mm~φ160mm |
Rolls of labels | OD: ≤φ250mm; ID: φ76mm |
Labeling Speed | Labels speed: 8m/min; Speed: 20~40pcs/min |
Labeling accuracy | ±0.5mm |
Air pressure | 0.4~0.7MPA |
Weight | 42kg |
Power Supply&power consumption | Voltage: 220V AC Frequency: 50Hz Power: 250w |
Size of machine | (L)920×(W)420×(H)500mm |

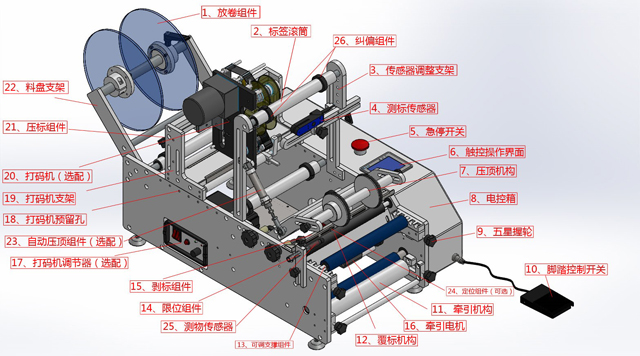

1. Labels putting; 2. Labels rolling; 3. Sensor support; 4. Sensor; 5. Sudden stop; 6. HMI; 7. Pressing system; 8. Electric boxes; 9. Star Wheel; 10. Food Pedal; 11. Tracting system; 12. Labels wrapping; 13. Labeling support; 14. Position-fixed part; 15. Peeling components; 16. Tracting motor; 17. Coding adjusted part(optional); 18. Printing reserving hole; 19. Printer support; 20. Date coding(optional); 21. Label-pressing components; 22. Plate support; 23. Automatic pressing; 24. Positioning components; 25. Sensor for detecting bottles; 26. Calibration components;
Optional Devices
Reader: Read the bar codes in various kinds.

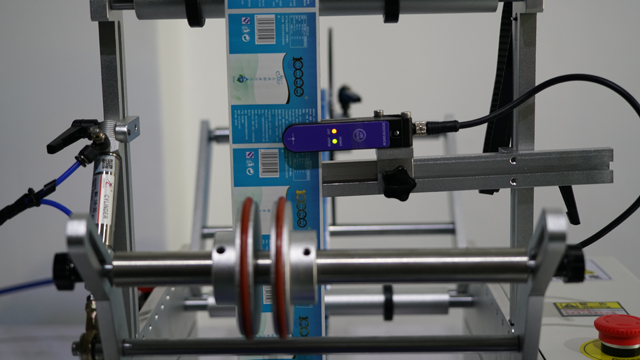

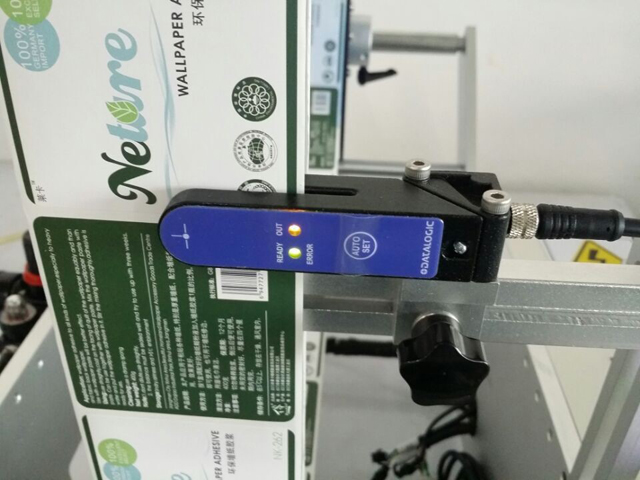

Electric light sensor: The common sensor cannot detect the transparent label, which requires the light sensor device imported from Germany.
Printing machine: printing the texts on the label.

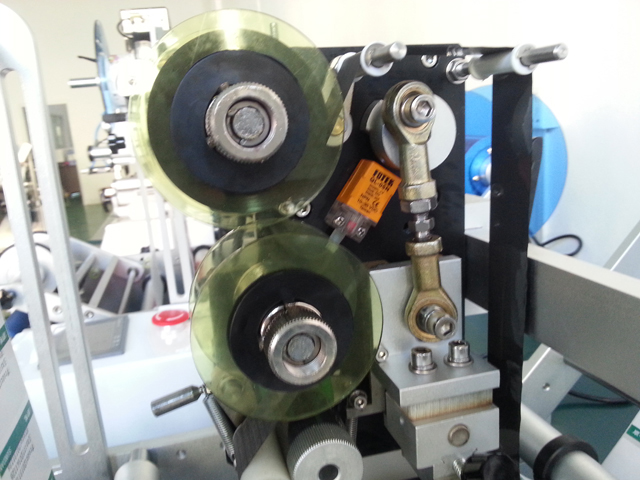

Date coding: Hot coding for shelf date,products series etc.
Working Process
Core Works: single standard, double standard switching function principle, the principle circumferential positioning labeling, please consult factory.
Procedure: put the product -> Labeling (device automatically) -> Remove the labeling products.

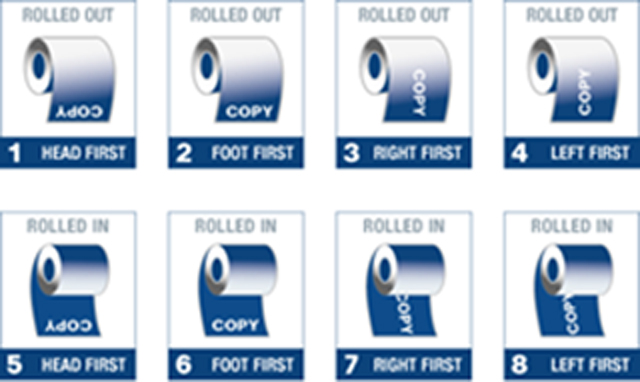

Making of Matching Labels

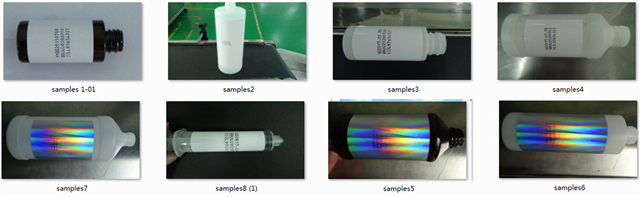

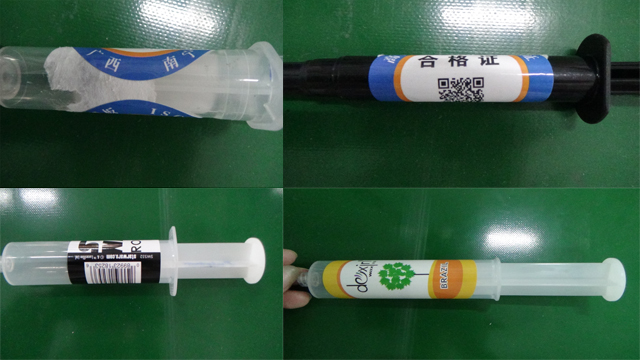

Labeling Samples
