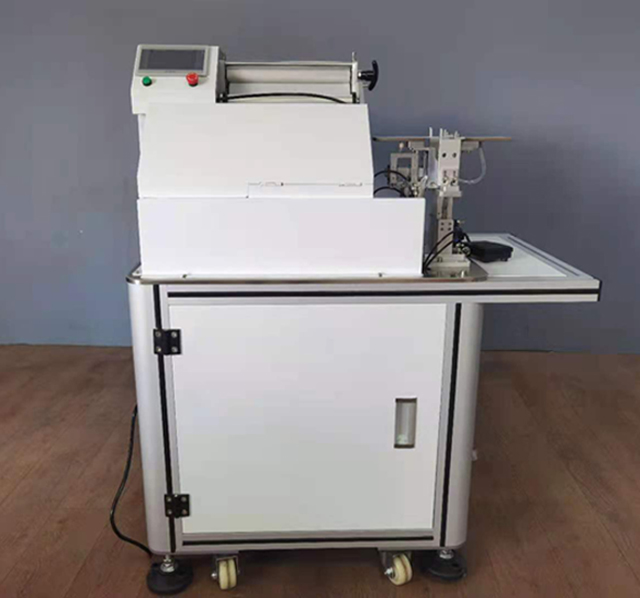

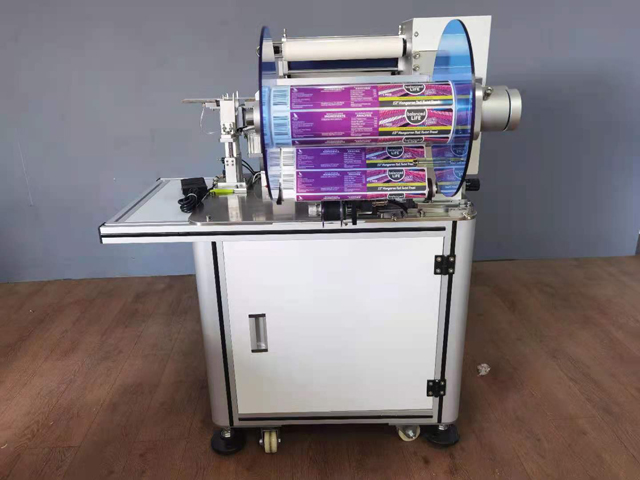

Semi Automatic Sausage Flag Tagging Folding Sticker Labeller Machine

Model: VK-T807
Applicable products range: φ0-3.5，φ3.0-5.5，φ4.0-10mm, need to customize exceeding 10mm

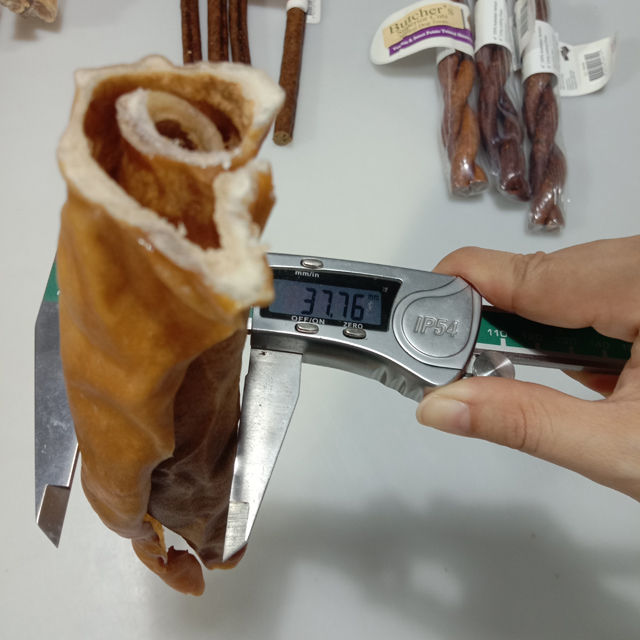

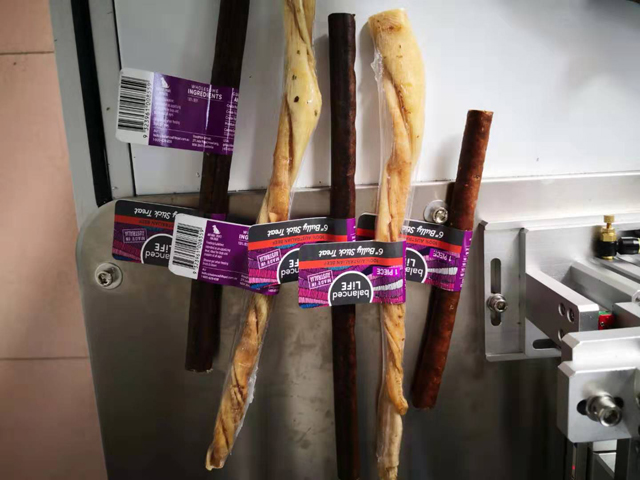

Sausage rop toy chew: 6mm-35mm
Other products can be customized with the actual samples for the tooling part
Labeling accuracy: ±0.2 (excluding product and label errors)
Labeling speed: 1500-1800pcs/h(depending on label size and manual operation speed)
Max label roll outer diameter: 240mm
Max label roll inner diameter: 76mm
Dimensions: 580mm*680mm*1000mm (length*width*height)
Weight about: 86kg
Power supply: 220V/50HZ, 0.25KW
Air pressure: 4-6bar
Relative humidity: (20-90)%RH
Ambient temperature: 5- 40℃

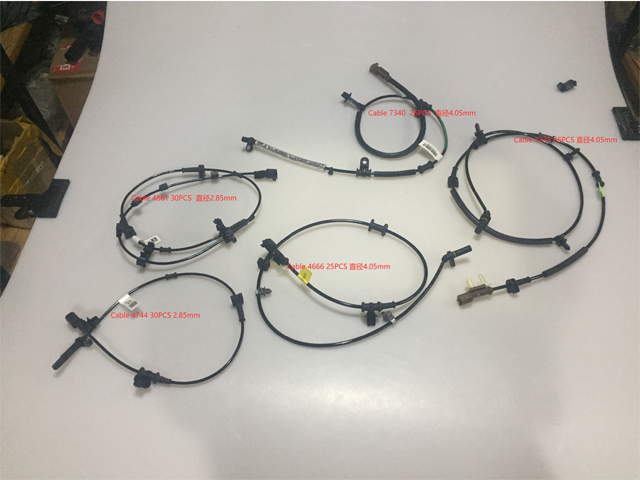

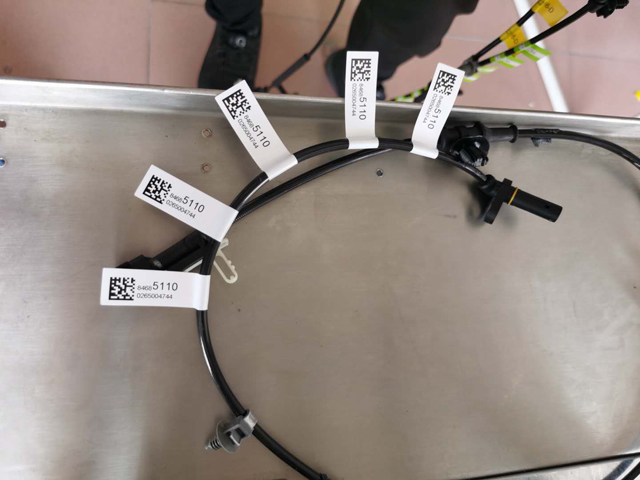

Applicable for folding labels on all kinds of wires and cables, such as power lines, computer peripheral cables, electronic sensor cables, headphone cables, power lines, fiber-optical lines, cable lines, piple cables, USB cables, cables of fax / printers, etc.

Applicable for wide range products size, easy to adjust and replace different products.

Operation Process Of Folding Labeller Equipment:

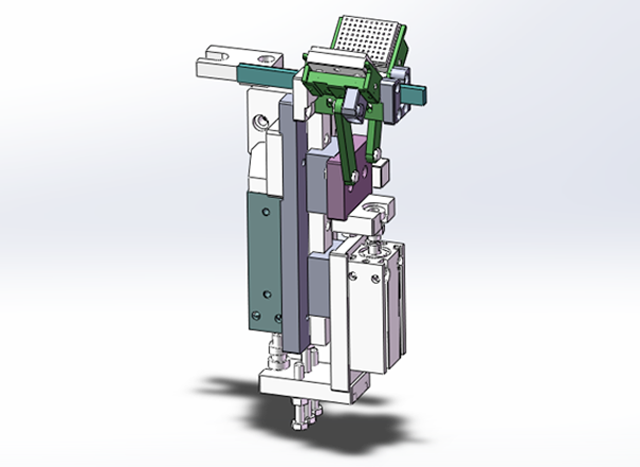

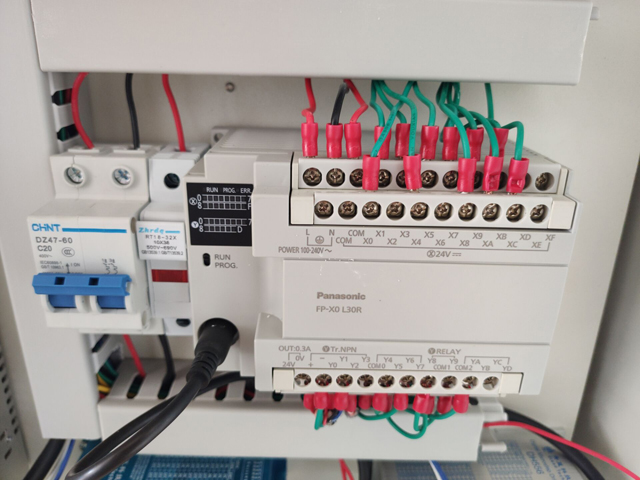

Core Principle: the sensor detects the product passing by, return signal to the labeling control system, signal processed via PLC processing, delivering the label to the preset product position at appropriate time, when the product flows through the covering mechanism, labels will be covered solid , labeling action is completed.

Procedure: Put on product -> Product Detection (automatically) -> Labeling (automatically) -> Covering (automatically) -> Collect labeled product.

Features

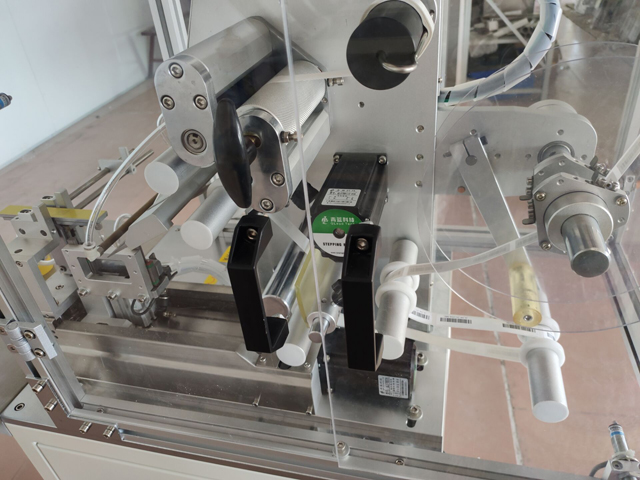

Servo motor for precise positioning;

German SICK label electric eye quickly senses the label gap to complete labeling and complete the identification;

Reasonable mechanical structure design ensures smooth and stable label delivery;

Convenient application, can be adjusted in a wide range, realize the folding and labeling of different specifications of wire harness products;

You don’t need to twist the screws to adjust the machine, just input the label size and wire diameter directly on the display.

The labeling effect is good, the labeling efficiency is high, the operation is convenient, and the material belt is easy to replace. It is suitable for labeling various specifications of cables.

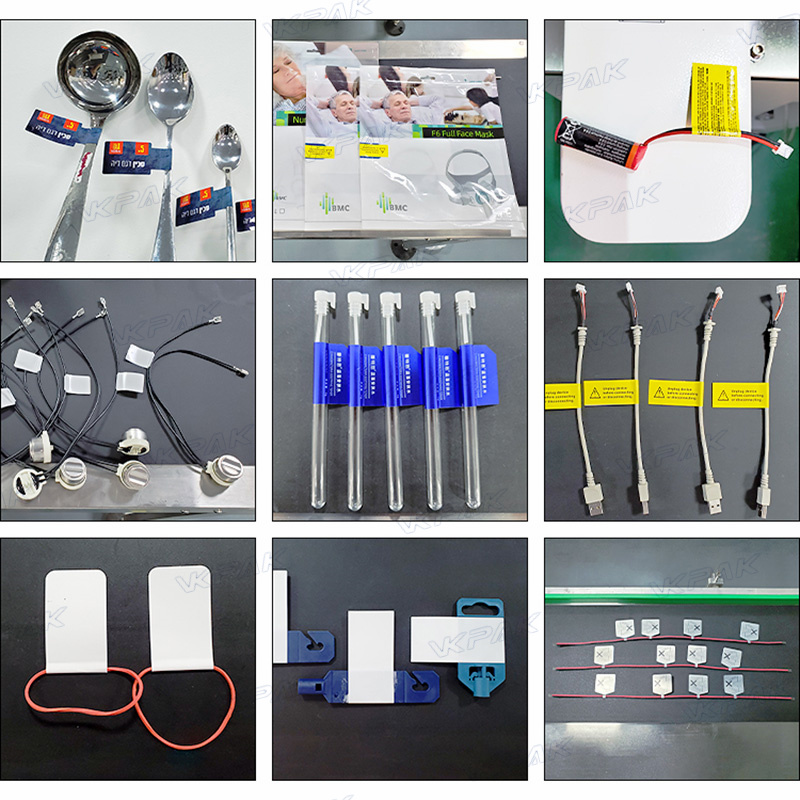

Application

Applicable industries: electronics, wire, electrical appliances, electromechanical,

Applicable wires: earphone cable, USB cable, power cord, air pipe, water pipe, etc.;

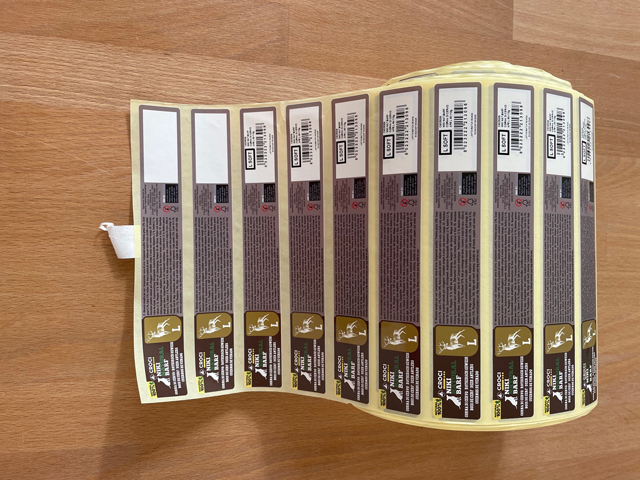

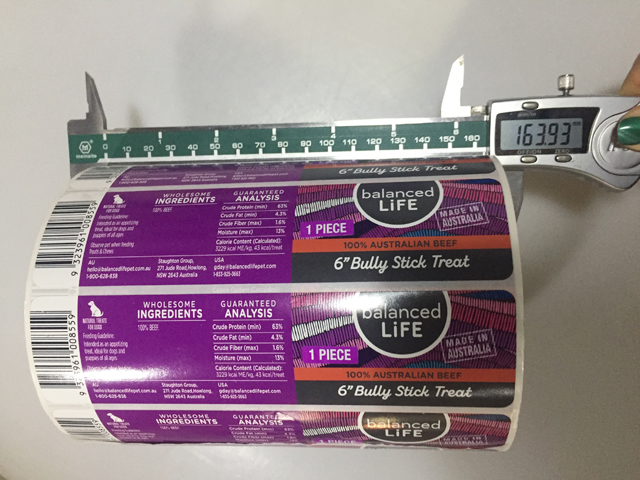

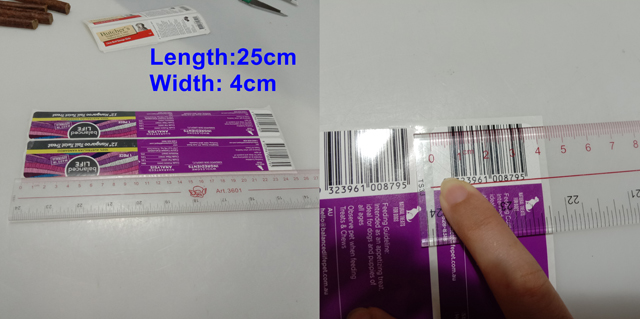

Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.;

Application examples: headphone cable labeling, power cord labeling, optical fiber cable labeling, cable cable labeling, tracheal labeling, warning label labeling machine, etc.

Basic Parameters Of Folding Sticker Labeling Machine:

Model: VK-T807
Applicable products range: φ0-3.5，φ3.0-5.5，φ4.0-10mm, need to customize exceeding 10mm

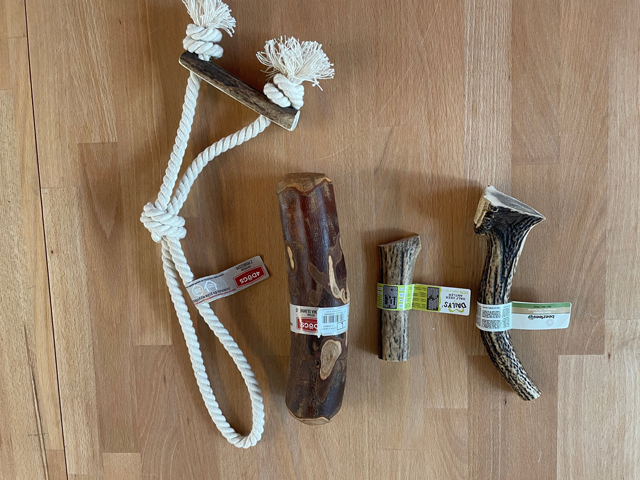

Sausage rop toy chew: 6mm-35mm
Other products can be customized with the actual samples for the tooling part
Labeling accuracy: ±0.2 (excluding product and label errors)
Labeling speed: 1500-1800pcs/h(depending on label size and manual operation speed)
Max label roll outer diameter: 240mm
Max label roll inner diameter: 76mm
Dimensions: 580mm*680mm*1000mm (length*width*height)
Weight about: 86kg
Power supply: 220V/50HZ, 0.25KW
Air pressure: 4-6bar
Relative humidity: (20-90)%RH
Ambient temperature: 5- 40℃
