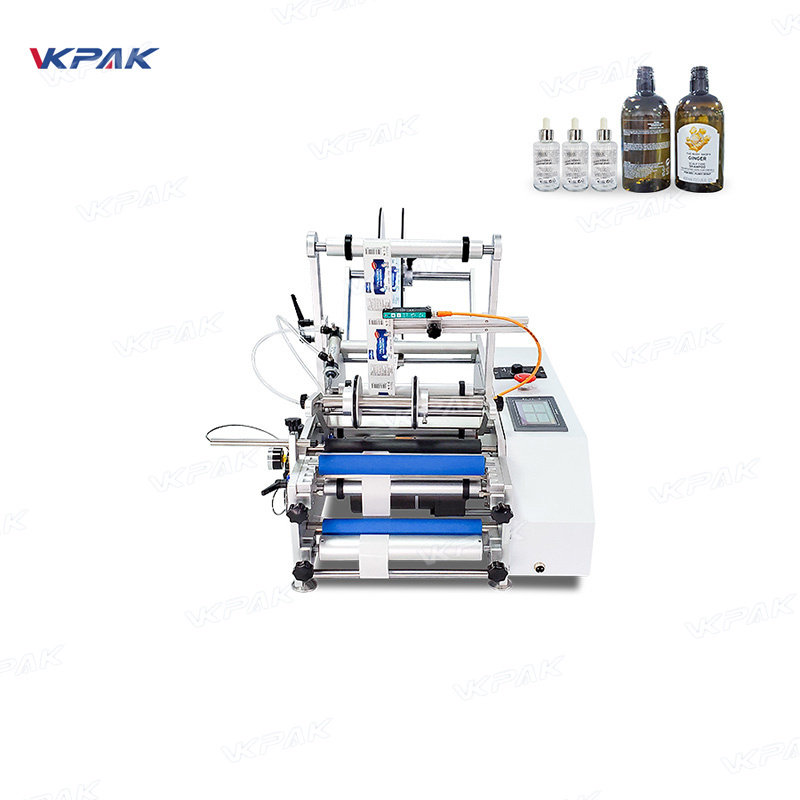

![Semi Automatic Tabletop Pesticide Chemical Round Bottles Labeler Machine](https://www.nicefiller.com/wp-content/uploads/VK-T801.jpg)
- VK-T801 Round bottles labeling machine
- Applicable Length of Label: 15mm~380mm
- Applicable Width of Label: 10mm~180mm
- Diamete of applicable product(round bottle): φ15mm~φ160mm
- Applicable outside diameter of label roll: Φ240mm
- Applicable Inside diameter of label roll: φ76mm
- Accuracy of labeling: ±0.5mm
- Feeding label speed: 8m/min
- Labeling speed: 20~40pcs/min
- Weight(kg): 35kg
- Frequency(HZ): 50HZ
- Voltage(V): 220V Power(W): 200W
- Equipment external dimensions(L*W*H): 920mm*420mm*500mm
VK-T801 labeling machine is a semi-automatic device suitable for labeling cylindrical products, suitable for medicinal circle round bottle, milk powder cans, glass bottles, such as the caster circular products labeling, special shapes can be customized consulting VKPAK manufacturer.
Applicable Scope
Applicable labels: self-adhesive label, self-adhesive film, electron supervision code, bar code, etc.
Applicable products: Requirements of labeling circumference surface, circular conical surface. It can sticks a single label and a double label.
Applicable industry: Widely used in cosmetics, food, daily chemical, electronic, pharmaceutical, etc.

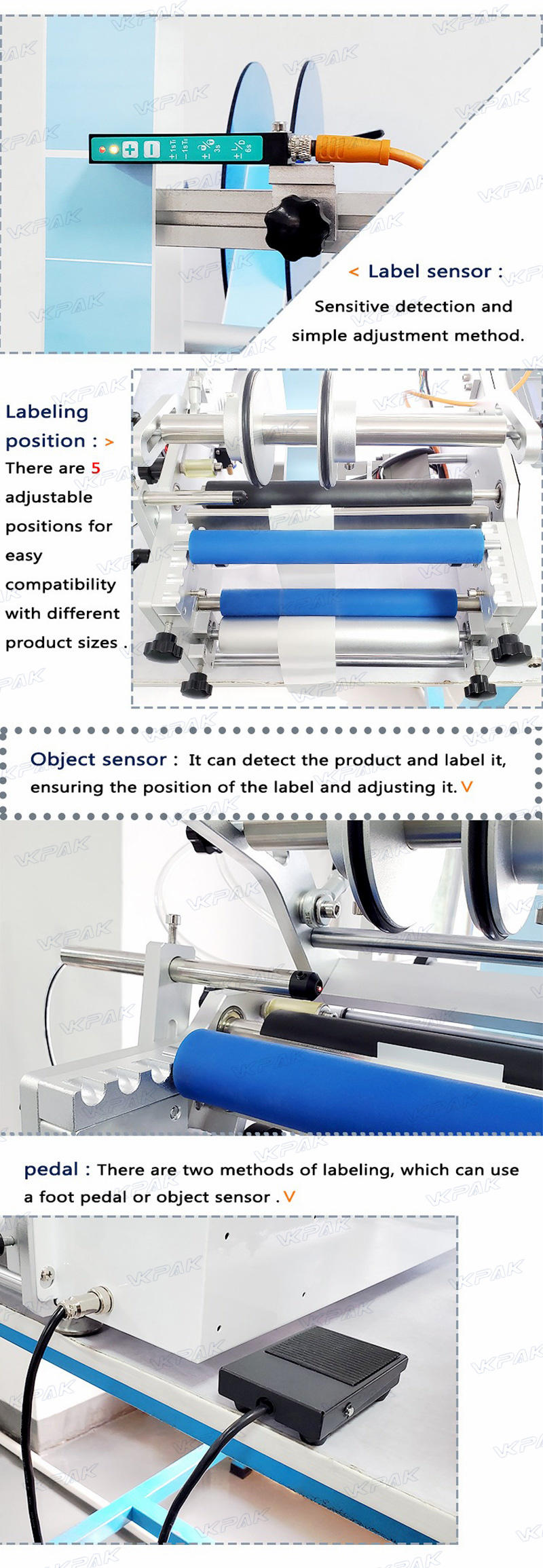

Features:
- The function of labeling a single label or a double label can be changed swiftly and simply. The distance between the front label and the back label is adjustable.
- Be able to achieve labeling on designated spot on circumference surface by choosing circumferential positioning detector .
- The labeling of conical flask can be done by simple adjustment.
- Has the functions of product positioning and label correction. The label is neat with no bubble, no wrinkle, and high overlapping coefficient of labeling.
- High efficiency and simple adjustment
- All kinds of functions one keyboard toggle. Labels of different products can be changed swiftly and simply
- All the equipments are mainly made of stainless steel and high grade aluminum alloy.and the whole structure is strong enough, which meets the gmp requirements.
- The use of the advanced electronic control system with PLC + subdivision step motor + fiber optic sensor supports the equipment to run a very long time. Manufacturing management is convenient
- With the function of counting, power saving,electro-optical tracking .
Optional Function:
- Hot play yards function
- Circumferential position function
- Other function (as customer’s requirement)
Working Process
Put the product→ label (automatically realized by equipment) → take out the labeled products.
Technical Parameter
(This is the configuration of standard machine, the machine can be customized according to customer’s special requirement.)
Applicable Length of Label | 15mm~380mm |
Applicable Width of Label | 10mm~180mm |
Diamete of applicable product(round bottle) | φ15mm~φ160mm |
Applicable outside diameter of label roll | Φ240mm |
Applicable Inside diameter of label roll | φ76mm |
Accuracy of labeling | ±0.。5mm |
Feeding label speed | 8m/min |
Labeling speed | 20~40pcs/min |
Weight(kg) | 35kg |
Frequency(HZ) | 50HZ |
Voltage(V) | 220V |
Power(W) | 200W |
Equipment external dimensions(L*W*H) | 920mm*420mm*500mm |
Quotation: FOB (Shanghai) the below mentioned quotation based
Package: Each machine wrapped by PO film, then packed to standard wooden case.
Production Lead: 20 workdays after getting the down payment 30%, the other 70% payment collected before shipping
Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)
Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.
After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
