Semi Automatic Tabletop Screw Capping Machine For Pump Caps

• Model: VK-SFC
• Power Voltage: AC220/50Hz
• Cap Diameter: 15-50MM
• Capping speed: 20-50PCS/min
• Applied bottle height: 40-330MM
• Air compressure: 0.2-0.6Kgf/cm
• Net Weight: 33Kg
• Gross weight: 50KG for wooden packaging
• Size: 48(L)X40(W)X60(H)CM

View Video

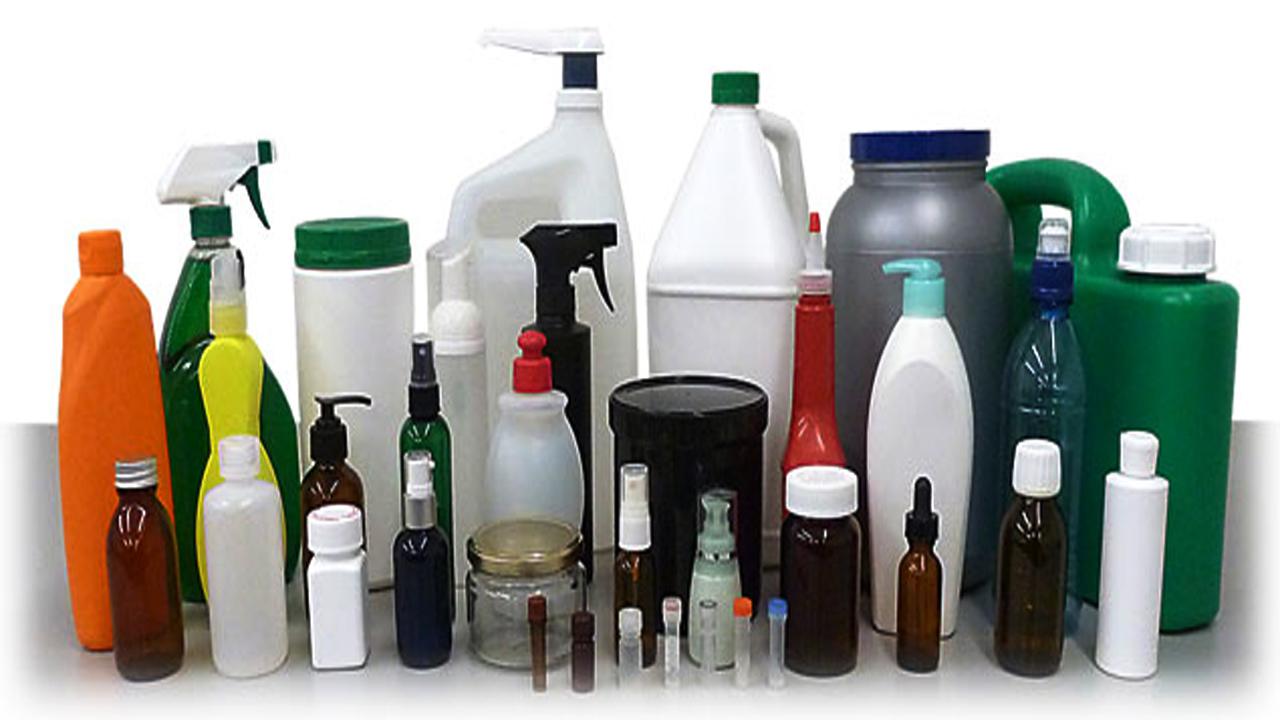

The desktop screw cappin machine is uitable for the cap screwing of different shapes of bottles in the industries of foodstuff, pharmaceuticals, daily chemical, pesticide and cosmetics etc. Its four adjustable speed motors are used respectively for cap supplying, bottle clamping, delivering and cap screwing.

Main Technical Parameters Of Desktop Screw Capping Machine:

• Model: VK-SFC
• Power Voltage: AC220/50Hz
• Cap Diameter: 15-50MM
• Capping speed: 20-50PCS/min
• Applied bottle height: 40-330MM
• Air compressure: 0.2-0.6Kgf/cm
• Net Weight: 33Kg
• Gross weight: 50KG for wooden packaging
• Size: 48(L)X40(W)X60(H)CM

Operation Precautions:

• Before using, add ISOVG32 pneumatic gas oil or equivalent oil on the gas source processor.
• To adjust the capping head according to the bottle height.
• To adjust the cap size, according to the bottle cap, two sides adjust at the same time.
• To adjust the position withstand, let the bottle mouth under the center of the capping head.
• To adjust the Torque regulator meet capping strength.
• Switch on the power, open the hand sliding switch for gas.
• Control valve operation, first to pull up the adjustment switch can adjust the air pressure.
• Manual operation, to connect the food stamp switch under the electric box. Note: To be sure the manual / automatic button on the red light position.

Wooden Case Packing

If you want speed up your caps screw capping process, it is recommend to choose the high speed screw capping machine with 6 capping heads automated caps feeding system, whose information is illustrated as below:
