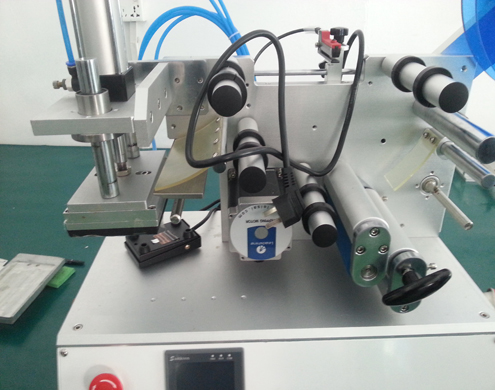

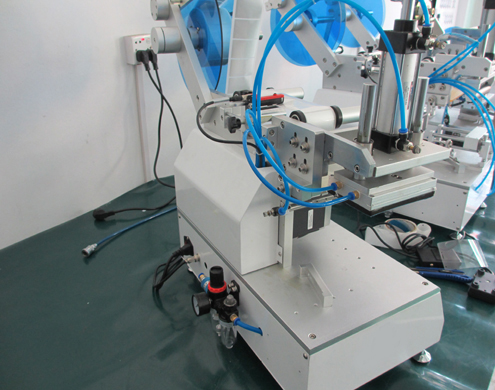

Semi Automatic Tamp Flat Labeling Machine For Plastic Bottles

• Model: VK-T802
• Working speed: 1-50m/min
• Labeling accuracy: ±1mm
• Labeling max width: 120mm (Be designed and produced according to customer requirements)
• N.W.: 65KG
• Label inner diameter: Φ76.2mm
• Label outer diameter: Φ350mm
• Machine size: 1000×400×650mm
• Using power: 220V 50Hz 300W

View Video

In order to meet the needs of small business, factory to save labor, but also improve the quality of product label, especially the development of mini type semi automatic labeling machine, labeling process to achieve automatic operation, simple operation, fast production speed, uniform labeling position, beautiful, neat; applicable to pharmaceutical, chemical, food and other industries planar container, or a cambered surface vessels.

Working Principle

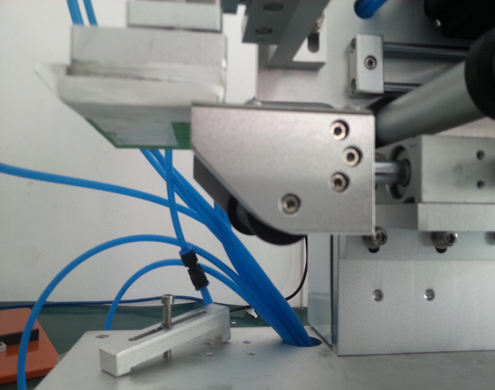

The different packing object in labeling machine platform, press start switch, comprises a radiation calibration device label spit into the vacuum chuck, the pressing mechanism of the label to a bottle.

Product Features

• Process: manual Bottle Labeling - products.
• This machine specially profiled in the product labeling, and for a variety of specifications of bottles and lids, wide applicable range.
• For customers to custom-made mold, more convenient to use.
• Pedal type touch emergency stop switch to ensure production safety, smooth operation.
• Simple operation, anyone can easily operate fast using this device.
• A label synchronous positioning mechanism, to ensure the positioning accuracy of 0.5mm in positive label.

Main Technical Parameters

• Model: VK-T802
• Working speed: 1-50m/min
• Labeling accuracy: ±1mm
• Labeling max width: 120mm (Be designed and produced according to customer requirements)
• N.W.: 65KG
• Label inner diameter: Φ76.2mm
• Label outer diameter: Φ350mm
• Machine size: 1000×400×650mm
• Using power: 220V 50Hz 300W

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
