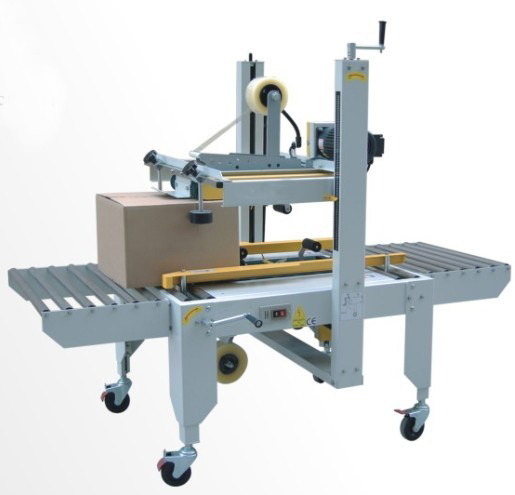

Semi Automatic Top Bottom Belts Driven Carton Box Sealing Equipment

• Semi automatic carton sealer
• Production speed: 0-20ctns/min
• Carton size(mm): L150-∞xW180-500xH150-600mm
• Power supply: 220/110V,1∮ ,50HZ
• Power: 240W
• Adhesive tape width: 48/60/75MM
• Machine dimension: L1020xW850xH1450mm
• Machine weight: 130KG

Top and bottom taping. 2 side motor driven.

Stable and tidy.

Fit for all kind of RSC carton. Especially for heavy carton. Machine fit for long period single carton size packing

Easy carton size change over.

Standard machine height can reach to 600mm. more packing range without customize.

Machine can be used in many industries. Such as: food industry, medicines, hardware, cosmetics, daily use chemical industry, electronics and furniture.

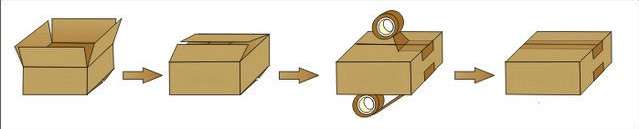

Sealing ( Taping ) Process

Manual folding --- manual pushing in --- automatic top & bottom taping -- taping complete

Technical Parameter Of Carton Sealing Machine Semi Automatic:

• Configuration Of Carton Sealing Machine:
• Taiwan Motor. Stable.
• Carbon steel painting, durable.
• Special tape head design, perfect taping.

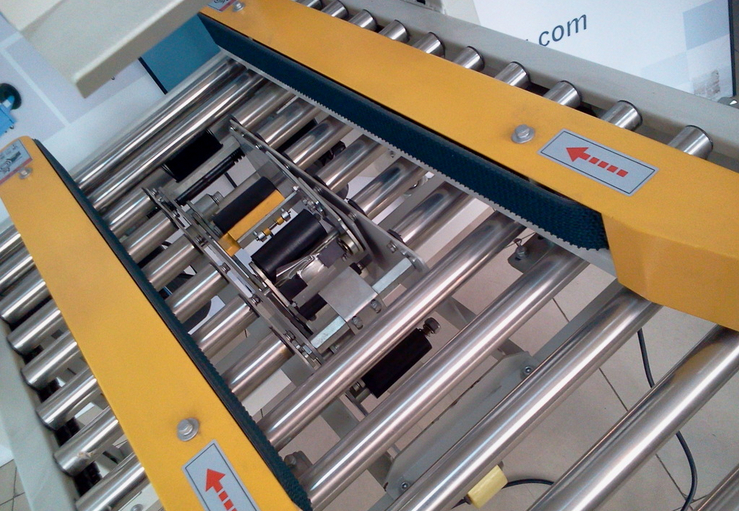

• Italian material belts. wear-resisting
• Japan blade, sharp and wear-resisting.
• Blade safety cover, prevent Injured
• Front and back extend roller.

Options:

• Fully/partly stainless steel.
• Can add printing machine, labeling machine and coding machine.
• Customize packing size.
• Can add nailing machine.
• 110V, 240V, available.
• Color selective.
• Lack of tape alarm, tape broken alarm.
• Machine safety cover.
• European plugs, USA plugs.
• Can add electricity box.

After-Sales Service

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
