Semi Automatic Wet Cold Glue Paper Labels Bottles Cans Labeling Machine
  • VK-WGL-SA Cold Wet Glue Labeling Machine
  • Applicable objects: Cylindrical objects paste a paper label
  • The diameter range of labeling objects(mm): Φ30~Φ120,
  • The height range of labeling object(mm): 30~230;
  • The range of label(mm): length: 80~280, height: 40~175;
  • The labeling speed (associated with the labeling objects and the size of the label): 15~25 pieces/min;
  • Precision: ±1mm ;
  • Power: 220V 50/60HZ;
  • Weight: 37Kg;
  • Dimensions(mm): (L×W×H)630×430×330;
View Video

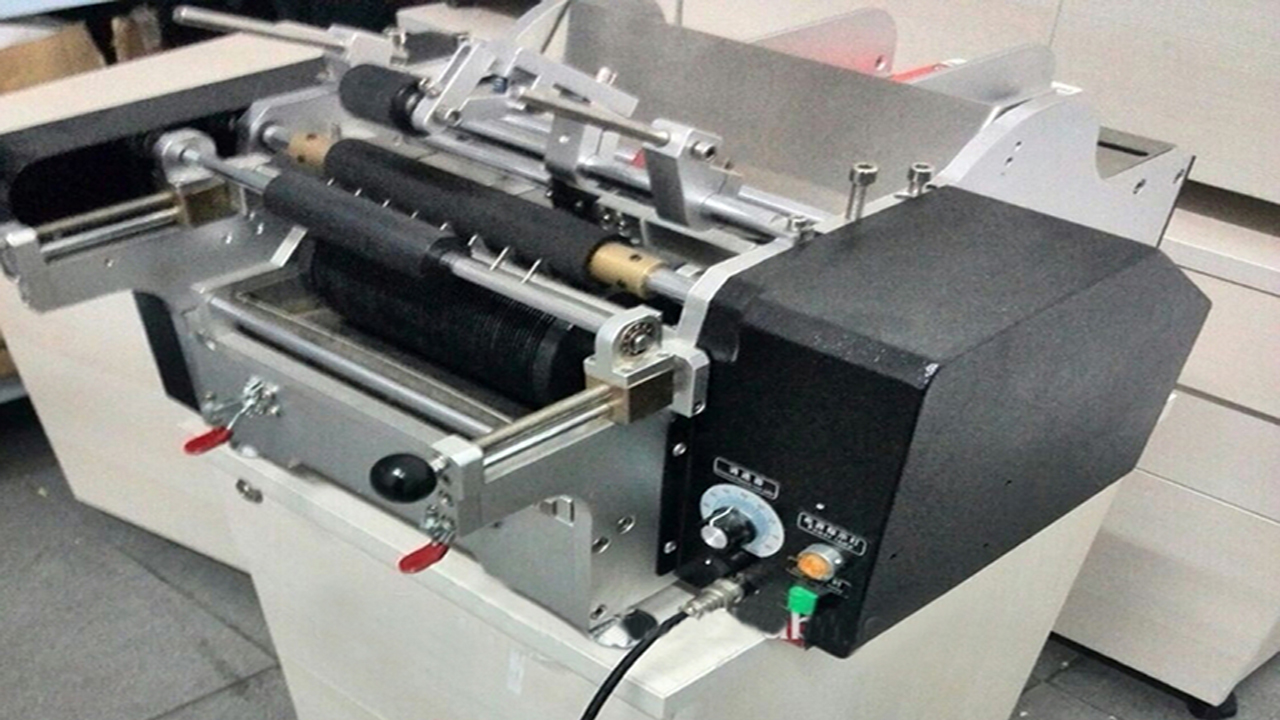

This wet glue labeling machine semi automatic is suitable for round bottle, round cans, cylindrical etc all kinds of cylindrical objects. The material of labeling objects can be PET, plastic, glass, metal and so on, the label material must be paper.

Technical Parameter

illustration labeler.jpg

illustration labeler.jpg

  • Applicable objects: Cylindrical objects paste a paper label
  • The diameter range of labeling objects(mm): Φ30~Φ120,
  • The height range of labeling object(mm): 30~230;
  • The range of label(mm): length: 80~280, height: 40~175;
  • The labeling speed (associated with the labeling objects and the size of the label): 15~25 pieces/min;
  • Precision: ±1mm ;
  • Power: 220V 50/60HZ;
  • Weight: 37Kg;
  • Dimensions(mm): (L×W×H)630×430×330;

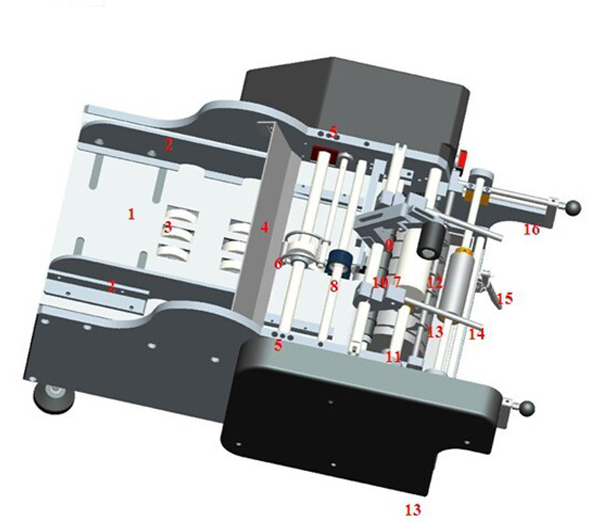

Structure Diagram

illustration labeler.jpg
1. Labels Plate
2. Labels Fixed Guard
3. Labels Wheels
4. Labels Pressor
5. Nails Adjusted For Different Thickness Of Labels
6. Paper-Pressing Rod
7. Labels-Distributing Wheel
8. Acceleration Wheel
9. Coping Structure.
10. Rolling Pad For Fixing Paper During Labels
11. Labels-Wrapping Axis
12. Claw
13. Glue Plate
14. Positioning System
15. Plate-Clamping Structure
16. Trimming Setting

Industry Type(s)


  • Cosmetic / Personal care
  • Household chemical
  • Food & beverage
  • Nutraceuticals
  • Pharmaceuticals

labeling from glue bottles.jpg

Wooden Case Packing

packaging for labeling machine.jpg

Annotations: What Is The Wet Glue?

Wet-Glue Labels are labels that are not coated until the time of application. Printed paper or film substrates are coated with wet glue on the labelling line immediately before application. These labels can be produced also on special substrates like metallised papers or transparent PP.

Difference Between Wet Glue Labeling Machine And Self Adhesive Labeling Machine

Wet glue labeling machine use ordinary bond paper (80g or 90g single copper). Surface coating can be carried out the wax, oil or UV coating treatment volts according to the requirements of customers, to keep the label fat when stored, laminating labels should not be saved due to the formation, and it will influence speed because of winter temperatures, it is recommended not to use this surface treatment .

Wet glue labeling machine is suitable for all standard cylindrical container between the diameter from 30mm-100mm, it is easy to change mould and operate.

Wet glue labeling machine have more advantage than adhesive Sticker Labeling Machine: same size label, sticker labeling machine used as 4cents RMB per piece, wet glue labeling machine label is less than 1cent RMB per piece, can save about 2-3 times higher than the node cost.

But Adhesive sticker labeling machine also have more advantage than wet glue labeling machine: linear current domestic cold glue labeling machine just can paste for standard round bottle, but sticker labeling machine can be affixed to a greater variety of bottle-shaped, but also cant not complete all shape bottle in the same machine.
