Small Case Boxes Carton Sealer Machine Tape Sealing Equipment
  • Name: Carton Sealer
  • Delivery Speed: 17.5m/Min
  • Caron Size In Maximum: L600×W500×H500mm
  • Carton Size In Minimum: L200×W150×H150mm
  • Power Supply: 220/380v 1∮-3∮ 50-60hz (Option) 1p220v50hz
  • Power Consumption: 400w
  • Height Of Platform: 580-780mm
  • Tape Size: W48mm/60mm/75mm (Option)
  • Machine Size: L1770×W850×H1520
  • Machine Weight: 250kg

This product is suitable for carton sealing and the tape, automatic sealing adhesive tape machine with automatic folding cover, is the ideal packaging equipment characteristics of the function of convience & economy and efficience.

Machine without protective safety guard

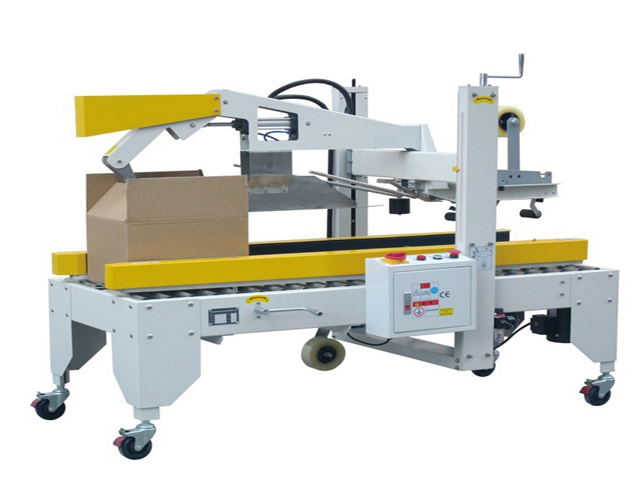

carton sealing machine with flaps folding.jpg

1. Motor: Taiwan Luyang
2. Power Switch: Korea KACON
3. Bearing: Japan NSK
4. Cutter: Japan SKD11
5. Conveyor Belts: Import from Italy
6. Caster: VKPAK
7. Touched Switch: Japan OMRON
8. Intermediate Relay : Janpan IDEC
9. AC Contactor: CHINT
10. Cylinda: Taiwan SHARKO
11. Magnetic Valve: Taiwan SHARKO

Basic Parameter

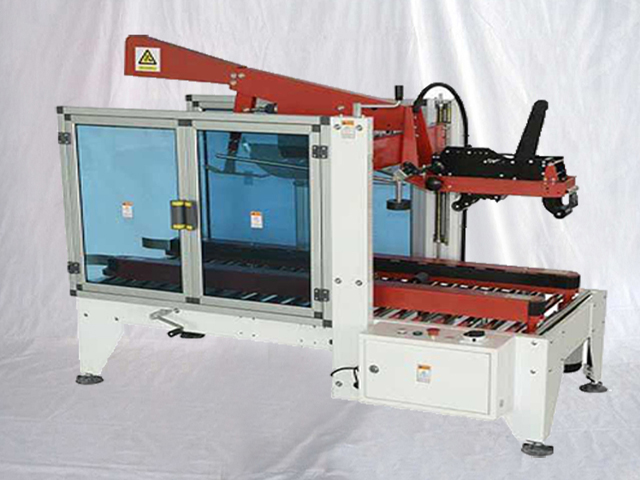

carton sealer.jpg

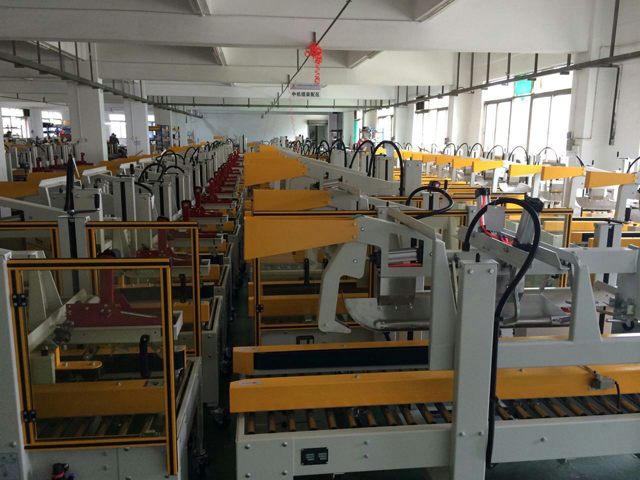

machines factory.jpg

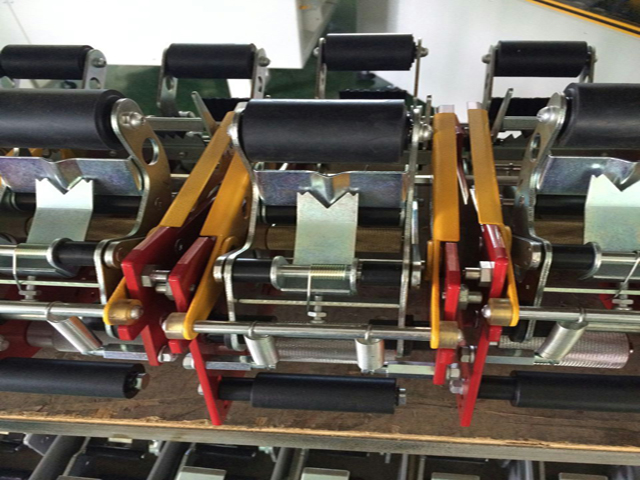

CARTON Sealing details.jpg

Production speed0-20 ctns/min
Carton size(mm)L200-600xW150-500xH150-500
Power supply220/380V, 50HZ, 1∮-3∮
Power240W
Adhesive tape width48/60/75MM
Machine dimensionL1770xW850xH1520mm
Machine weight250KG

Flow chart for carton sealing process from box cartons sealer equipment:

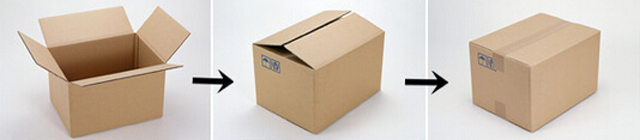

process of carton sealing machine.jpg

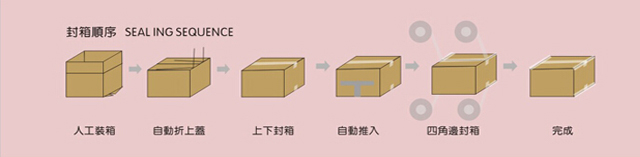

Working Flow for fully automatic carton sealing end packaging process:

carton sealer equipment automatic edge sealer.jpg

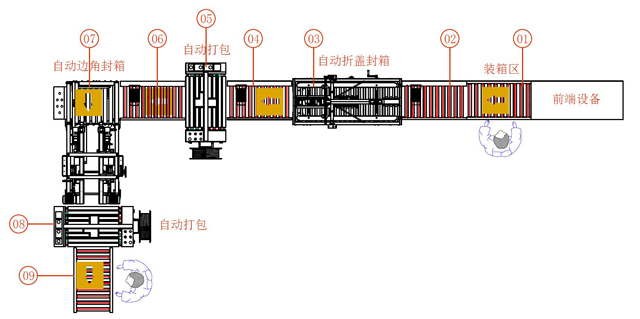

drawing for end packing project carton line.jpg

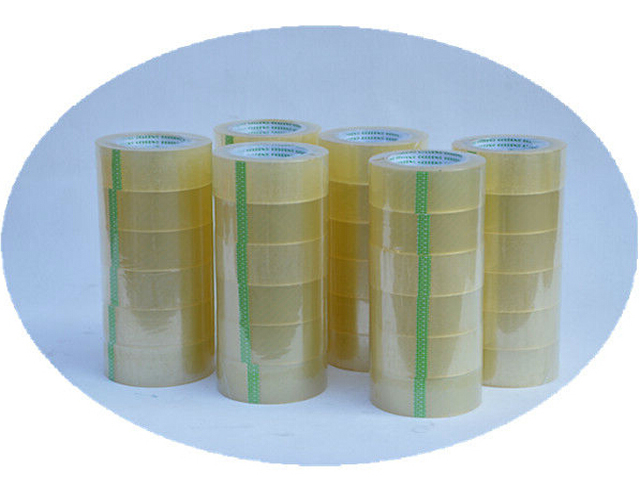

Adhesive tapes equipped with the carton sealing machine for sealing the cartons :

tapes for sealing.jpg

Cartons Samples

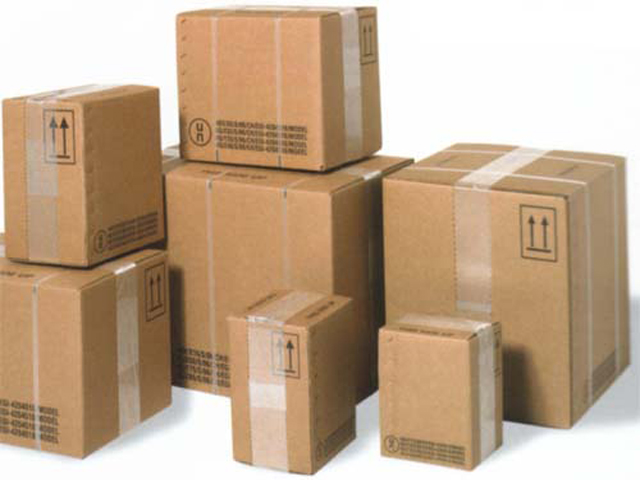

carton samples.jpg

Plant workshop for carton sealing machines various model for assembly & commissioning

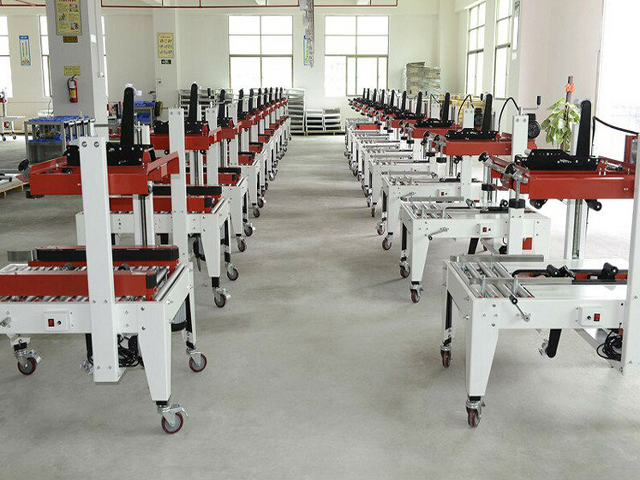

sealing machinery in factory.jpg

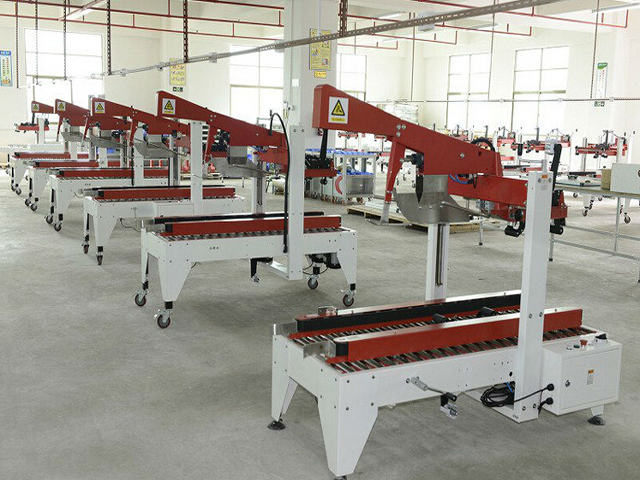

machines factory.jpg

Plywooden Crate & Ocean Shipping

wooden case packing for carton sealer.jpg

Malfunctions And Solutions On Carton Erection Sealing Equipment:

Malfunction and Solution of the Sealer
No.MalfunctionPossible reasonSolution
1Adhesive tape can not be cut offThe reamer patch is not sharp enough. The reamer tine isjammed by the bond.Change the reamer patch, Launder the reamer patch
2There is tail after the adhesive tape is cut off.The reamer patch is not sharp enough. There is stem on the reamer seating. The pulling spring is too loose.Check if the nut on the reamer seating is too loose or not. Lubricate the nut if necessary.
3The adhesive tape can’t stick to the carton completely.Main spring is too loose and there is glue on the axis of the roller. The adhesive tape is disqualificationAdjust the pull of main spring and clear up the roller. Change the adhesive tape
4The carton is locked in the midway.The nut on the pasting wheel is too tight, the height adjustment of the carton’s transporting line is not suitable, and the main spring is too tight.Loosen the pasting wheel, regulate the nut, re-adjust the height and loosen the main spring.
5The adhesive tape is cut down during sealing.The reamer patch protrudes excessively long.Lower the place of the reamer patch.
6The adhesive tape is often off the track.The pressure of the guiding roller on the carton is not equal.Re-adjust the space of the guiding roller.
7The adhesive tape is not on the central line.The anti-retrorse wheel is broken.Change the anti-retrorse.
8There is abnormity during the sealing.There is dust on the axletree seating.Clean the axletree seating and lubricate.
9There is jut before sealing and drape after sealing.The speed of different straps is different, and the carton is not at the proper place when pushing into the machine.Adjust each transporting line’s pull to be consistent so that the carton can be put at the correct place.
10There is drape after sealingThe strain of adhesive tape is too largeBroadcast tape

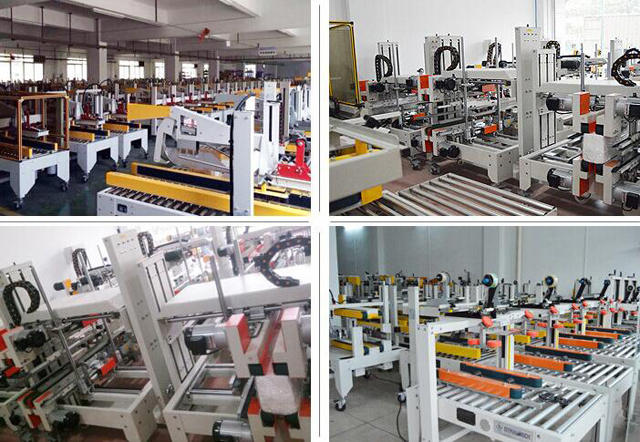

Factory pictures for carton sealing.jpg

Guarantee: For all the machine, it claims 1 years for guarantee.(Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
