Small Dose Perfume Pharmaceutical Liquid Cosmetic Filling Capping Machine
  • Bottle Specification: 5ml and 10ml(more larger volume can be order)
  • Power: 220V-50Hz/ 1.2KW
  • Overall Dimension: 2500×850×1600(mm)
  • Weight: 600KG
  • Production Capacity: 4 filling nozzle &2 capping head: 1200-1800bpm
  • Filling Error: ≤±1% (Standard quantity )
  • Yield of Capping-Rotating: ≥99%

Technical Parameter Of Liquid Bottling Machine:

Bottle specification: 5ml and 10ml(more larger volume can be order)

Power: 220V-50Hz/ 1.2KW

Overall dimension: 2500×850×1600(mm) weight: 600KG

Production capacity: 4 filling nozzle & 2 capping head: 1200-1800bpm

Filling error: ≤±1% (Standard quantity )

Yield of capping-rotating: ≥99%

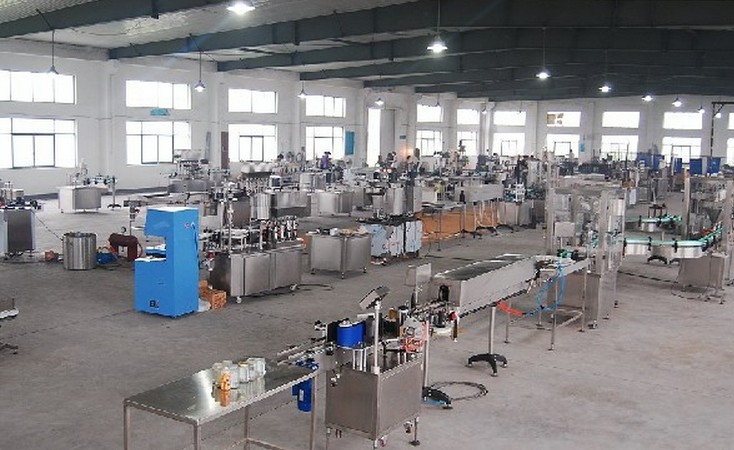

workshop for filling capping machine.jpg

Functions Of Liquid Filler Capper:

1. The machine is used for Mitsubishi frequency motor control, easy to operate ,stable and reliable operation

2. The machine is suitable for various specifications of bottles .

3. Regulation bound is wide; it can be foundation the cover the pathway magnitude and bottom level, adjustable screw machines in the framework of any regulation

4. Frequency capping round speed motor control, conveyor belt clip bottle. Electronic governor motor control shelters, and conveyor belt speed of pitch, use screw-cap regulation may be the best point.

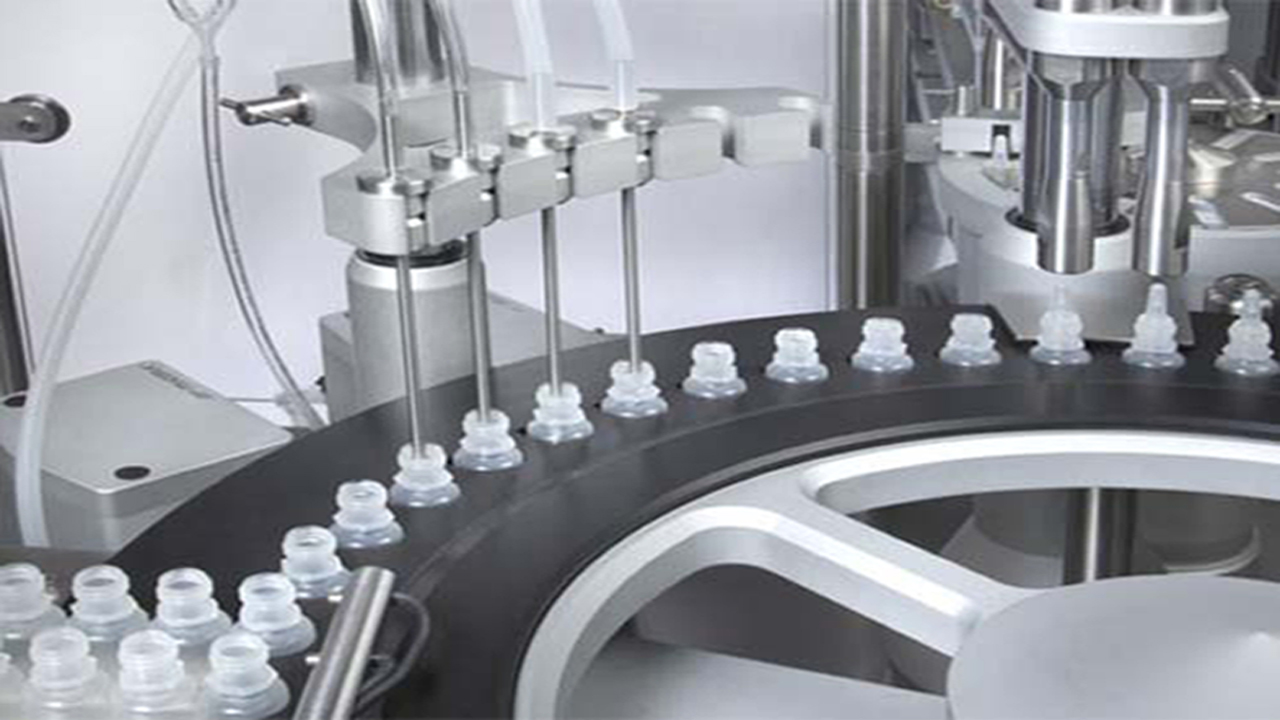

eye drop filling capping machine.jpg

5. Screw-cap, the cap will not skid, broken bottles of body will not nap, compared with claw-type screw machine, the work efficiency many times.

6. Adopt stainless pump in common use, or ceramic pump in special use to fill high precision, large range of adjusting dosage.

7. Ceramic pump installation system does not adsorption drug Chemical stability is good. Resistance high temperature, corrosion and wear

8. Low level liquid tank, it is convenient to clean.

9. Filling system has the function of shrinking, no drop leak. Apply filling all kinds of viscosity of liquid. Filling nozzle is diving bottle to the machine, Economical and low space possessing.

10. Magnetic moment capping system, adjust, agree of tightness freely

11. The whole machine is designed according to GMP standard.

PERFUME CAPS bottles.jpg

Semi Automatic Line For Perfume Filling Capping Line With Irregular Square Caps

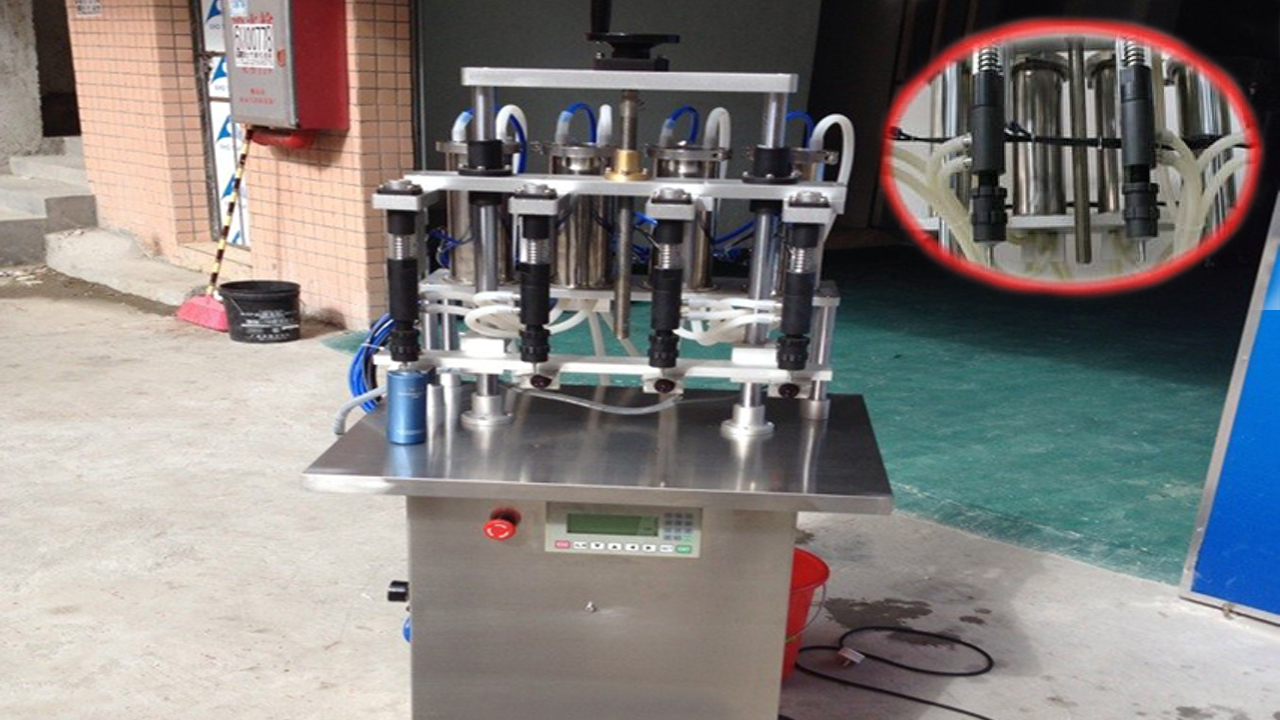

Perfume Filling Machine

Four heads perfume filling machine (one head and four heads) is negative pressure semi auto filling machine which mainly used in liquid products such as toilet, water, perfume etc.

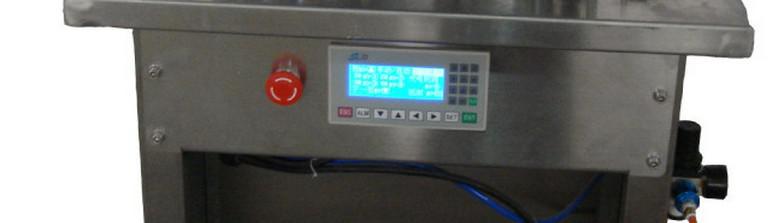

PLC controller. This machine has the feature of compact structure, rationality, simple operation and convenient maintenance and also the performance of fixing the surface and counting.

perfume filling machine.jpg

The height of surface can be adjusted. Components and parts which touched will adopts 304 stainless steel.

It suitable for the glass bottle, plastic bottle which draw out vacuum and uneasy to distortion.

Generally, it has two kinds: common one and explosion resistant one. When customer order it, please point out which one you want.

Explosion resistant ones or adopts explosion resistant measure. Other part of the machine is same.

Main Technology Parameters of 4 heads vacuum filling:

Bottle height: less than 250 mm

Bottle Mouth Maximum Diameter: less than 20 mm

Minimum Diameter: more than 4.5 mm

Filling volume: 5-5000ml

PLC control panel for perfume filling .jpg

Adjustable liquid High-Level (Away from the bottle): 26-50 mm

Profile Dimensions (Excluding liquid storage bottle) L×W×H: 660×470×1330mm

Adaptable environment temperature: (0—30) °C

Power: 3AC 380V (cas for your requirement)

Vacuum pump: XD-020 (Explosion-proof type2X-4A)

Pumping rate: 5.5 (Explosion-proof type 4) L/second

Motor power: 0.75kw

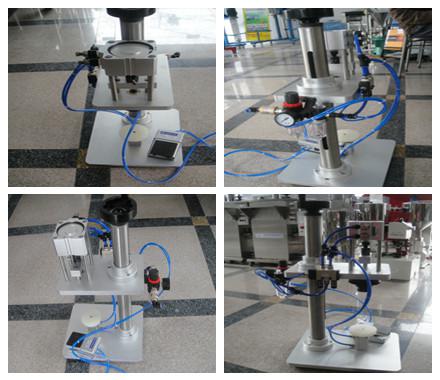

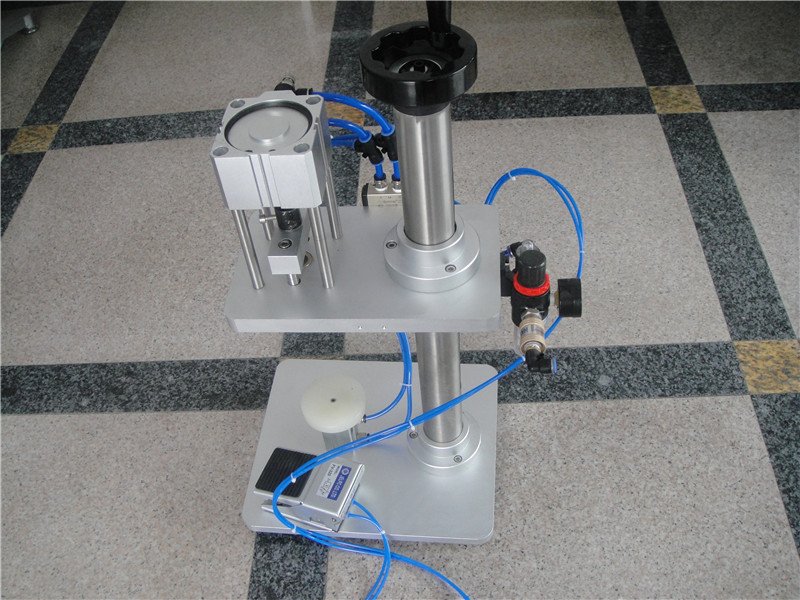

Pneumatic Perfume Caps Crimping Equipment

perfume bottle capping crimping machine.jpg

The perfume capping machine is a kind of clamping type cap closing machine. It is suitable for cap closing of spray caps.

The machne uses the clamp to close the cap and fasten it on the edge of bottle mouth.

The whole machine is composed of machine body,table surface,clamping device and pneumatic control system.

Technical parameter:

1. External dimensions: 500W*380L*700H(mm)

2. Weight: 12KG

3. Air requirement: 0.4 ~0.6MPa

4. Applicable bottle size: height 30~300mm width 15~100mm

5. Perfume capping standard value: 4~8kg/cm

PERFUME CAPPING .jpg

Other machines that may be required for perfume making line or other liquid production making line:

1. perfume mixing machine perfume freezing filter system

2. oral liquid filling capping machine

3. perfume box 3D film overwrapping packing machine

Standard Plywood Packaging For Exporting

wooden case packaging.jpg
