Small Test Tubes Filling Capping Machine With Horizontal Sticker Labeller

• Bottle specification: 5ml and 10ml（more larger volume can be order）
• Power: 220v-50hz/ 1.2kw
• Overall dimension: 2500×850×1600（mm）
• Weight: 600kg
• Production capacity 1 filling nozzle & 1capping head: 1200-1800bpm
• Filling error: ≤±1% (standard quantity )
• Yield of capping-rotating: ≥99%
• Servo type labeling part: labeling speed 100～300pcs/minute
• Label size width: 10～90mm length：15～100mm
• Precision: 0.5mm (subject to roundness and verticality of the bottle)
• Label roll: max φ300mm
• Label core stander: φ75mm
• Maching size: 1800x600x1400mm
• Weight: 220kg

The line about pharmaceutical bottles filling capping labeling line with 5 vibrator bowls from 5 -100ml tubes is design and manufactured for our customers in Jordan, who will test the machine in our factory within these two week. We test the machine which run very well so now lists the machine for a reference one by one as below:

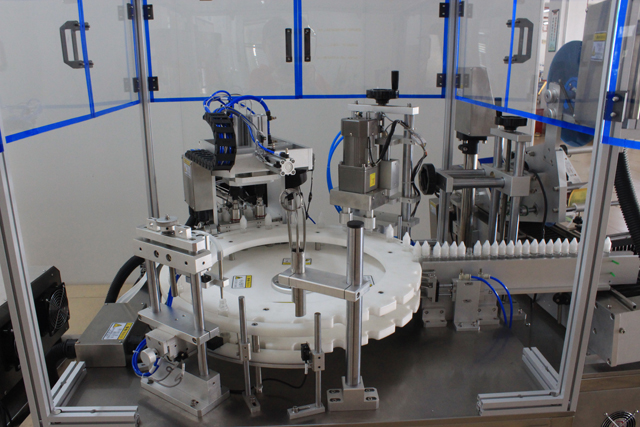

Small dose filling and capping labeling machine

Bottle specification: 5ml and 10ml（more larger volume can be order）

Power: 220V-50Hz/ 1.2KW

Overall dimension: 2500×850×1600（mm）

Weight: 600KG

Production capacity: 1 filling nozzle & 1 capping head: 1200-1800bpm

Filling error: ≤±1% (Standard quantity )

Yield of capping-rotating: ≥99%

Functions:

1. The machine is used for Mitsubishi frequency motor control, easy to operate, stable and reliable operation.

2. The machine is suitable for various specifications of bottles .

3. Regulation bound is wide; it can be foundation the cover the pathway magnitude and bottom level, adjustable screw machines in the framework of any regulation

4. Frequency capping round speed motor control, conveyor belt clip bottle. Electronic governor motor control shelters, and conveyor belt speed of pitch, use screw-cap regulation may be the best point.

5. Screw-cap, the cap will not skid, broken bottles of body will not nap, compared with claw-type screw machine, the work efficiency many times.

6. Adopt stainless pump in common use, or ceramic pump in special use to fill high precision, large range of adjusting dosage.

7. Ceramic pump installation system does not adsorption drug Chemical stability is good. Resistance high temperature, corrosion and wear

8. Low level liquid tank, it is convenient to clean.

9. Filling system has the function of shrinking, no drop leak. Apply filling all kinds of viscosity of liquid. Filling nozzle is diving bottle to the machine, economical and low space possessing.

10. Magnetic moment capping system, adjust, agree of tightness freely

11. The whole machine is designed according to requirements of GMP.

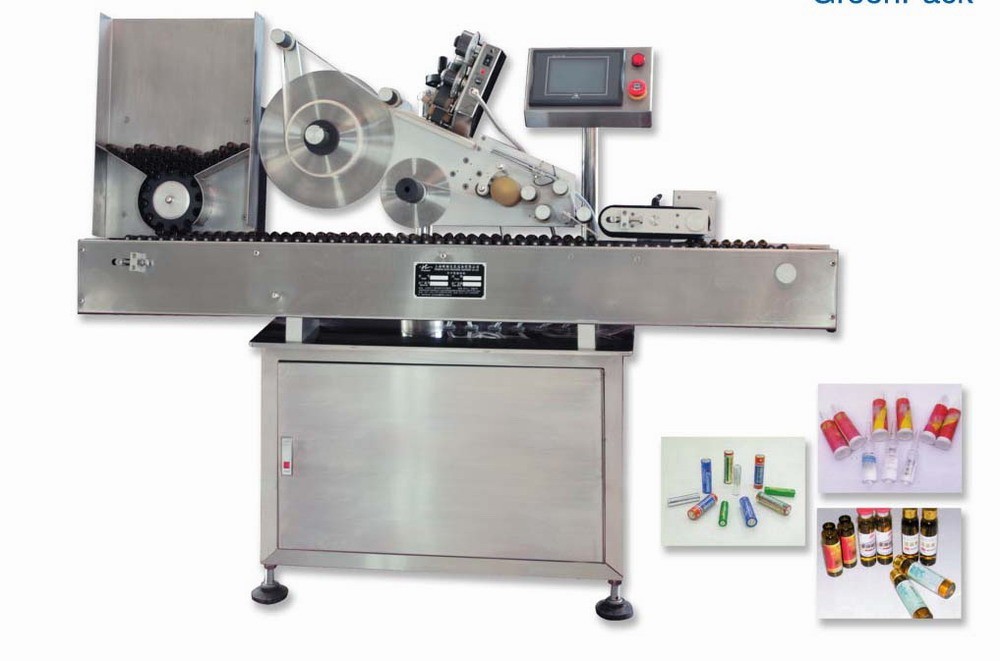

Automatic Labeling Machine For 5ml&10ml Vials

We are the expert of making labeling machines, how to choose labeling machine is determined by the labeling size and bottle shapes and bottle size. According to you bottle dimension and shape, we would like to introduce and recommend you the suitable machine which we sold many to local china pharmacy factories and exported many other countries.

Horizontal sticker labeling machine is widely used for such industries as food, medicine, fine chemical, cultural supplies, and electronics and so on. It is applicable for the labeling of the objects with small diameters and unable to stand up easily, such as oral liquid bottles, ampoule bottles, needle tube bottles, batteries, hams, sausages, test tubes, pens and so on.

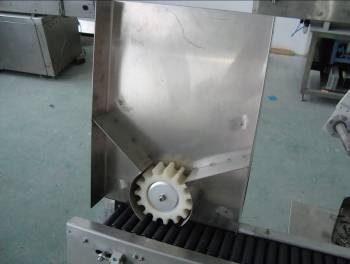

Ampoule bottles holder, the ampoule bottles will be feed by this holder.

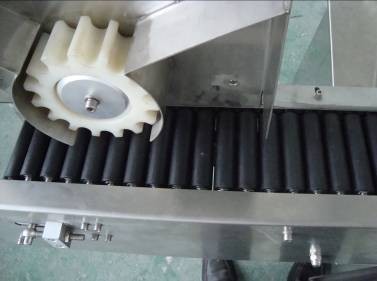

Conveyor (High quality bearings inside will not damage the ampoule bottles)

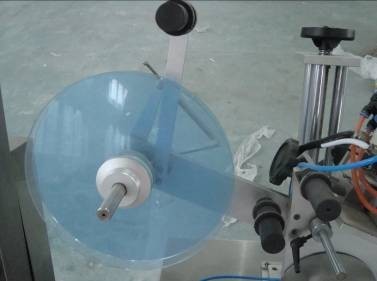

Label roll holder

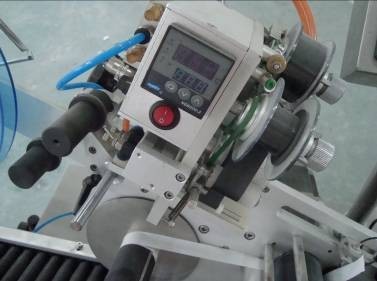

Coding Unit for coding batch No., date on labels

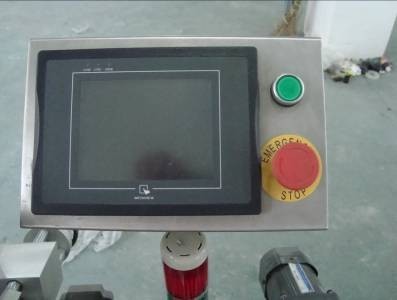

Delta Touch screen From Taiwan

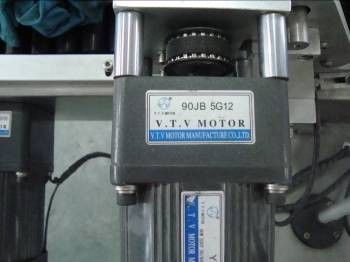

V.T.V motor from Japan

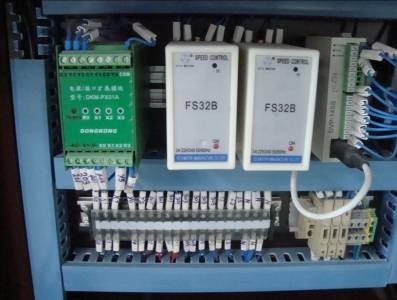

Delta PLC from Taiwan

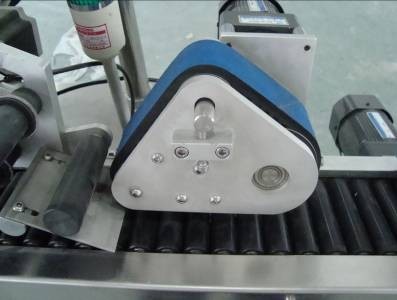

Synchronous belt for pressing labels and will replace a new one in one year

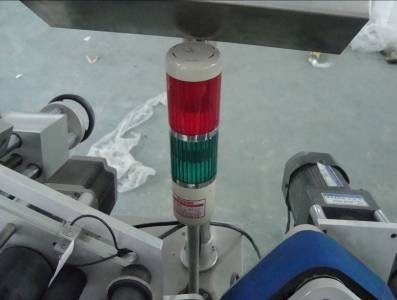

Warning Unit (if no bottle, no label, the warning unit will work.)

Technical parameters of horizontal type labeling machine:

Remarks:

1. Construction Material

Mark:

All the sensors in the machine is the brands with either leuze electronic (GERMANY) or from OMRON (Japan)

The rolling pad of vial labeling machine is made of leather not sponge

2. Warranty terms:

The seller warranty the machine for one year, and supply one year free spare parts with the machine.

3. Spare parts list

4. Terms for installations, starting-up and adjustment,

The seller should send engineers to carry out installation and debugging of the equipment in buyer's place if requested. The cost for International double ways air tickets, accommodations, food and transportations, medical and accidental insurance shall be paid by Buyer for the engineers. Buyer shall fully cooperate with Supplier's engineer and make all the installation condition ready to work. such as: water, electricity, raw material etc. Buyer should pay the worker’s salary as US$150/day per engineer during the installation.

5. Operation manual

The operation manual will be shipped with the goods and in English Version.

System Parameters

Working Environment:

Temperature: 5℃ - 50℃

Humidity: 20% - 90% (No dew)

Working Power Supply:

Input: AC 220V ± 10% (50HZ)

Output: DC 24V ± 2V

Programmable Logic Controller:

Input: DC 24V 8-point transistor

Output: DC no junction 6-point transistor

Man-machine Interface:

Display: 5.7” FSTNLCD

Push Button: Touch screen
