Spout Bags Plastic Bag Labeling Machine Semi Automatic For Flat Surface

Model: VK-T802
Applicable label length (mm): 15mm ~ 100mm
Applicable Label width (backing paper width / mm): 15mm ~ 150mm
Applicable Dimensions (length × width × height / thickness): Length: 20mm ~ 200mm
Width: 20mm ~ 150mm
Thickness: 0.2mm ~ 120mm
Applicable standard roll diameter (mm): φ340mm
Applicable standard roll diameter (mm): φ76mm
Labeling accuracy (mm): ± 0.5mm
The standard speed (m / min): 5m/min
Labeling speed (pcs / min): 20 ~ 45pcs/min
Weight (kg): about 48kg
Frequency (HZ): 50HZ
Voltage (V): 220V
Power (W): 145W
Device dimensions (mm) (L × W × H): about 850mm × 410mm × 720mm
Pressure (Mpa): 0.4 ~ 0.6Mpa

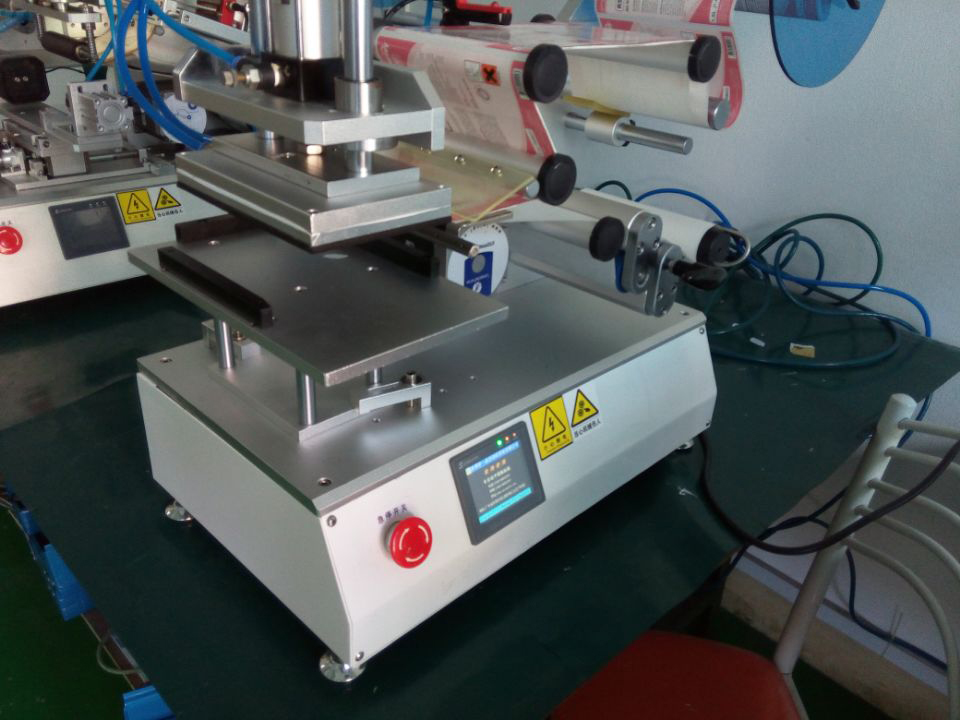

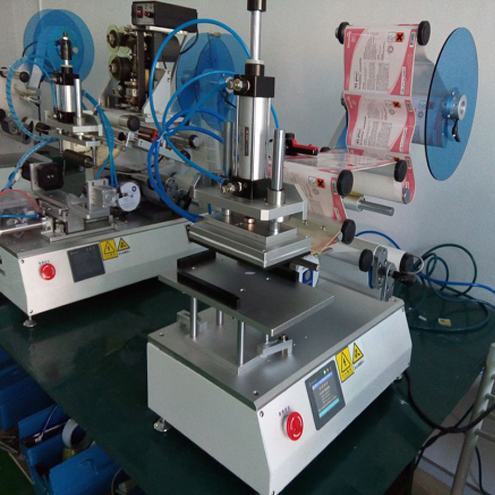

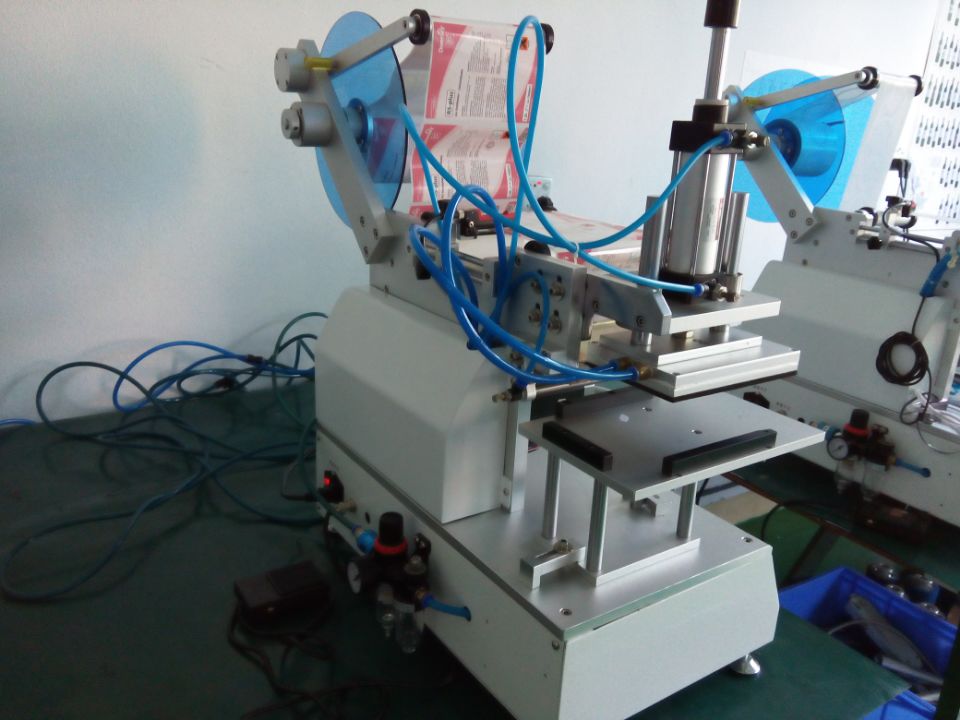

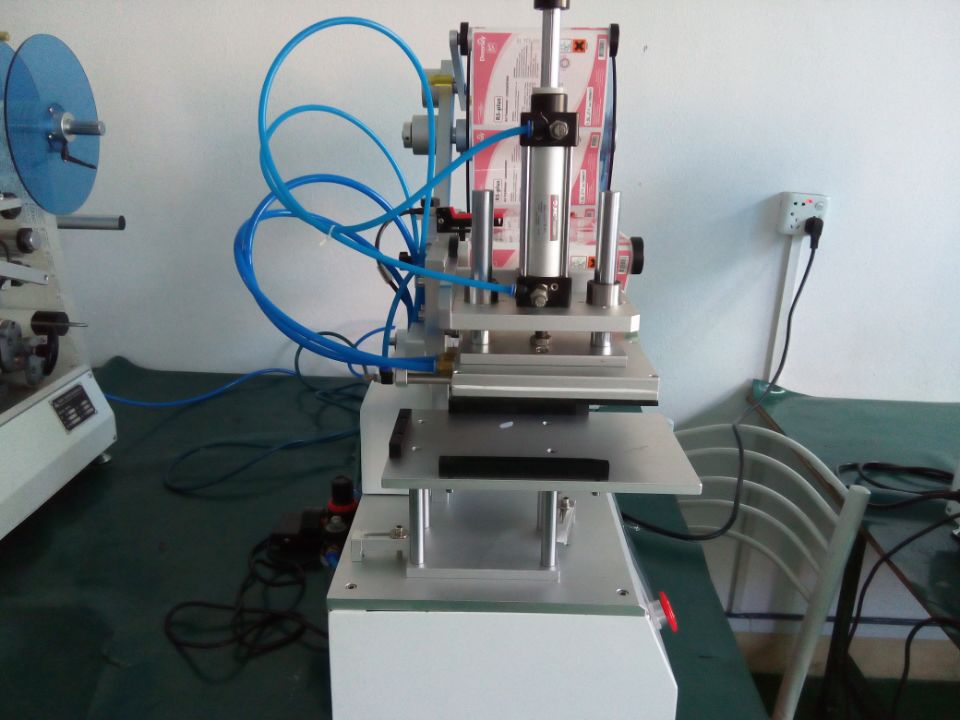

Semi automtaic labeler equipment for flat surface objects planes articles like spout bags High precision semi-automatic plane labeling machine (with display touch screen controlling system)

The Basic Purpose Of Labeling Machine Semi Automatic

Application of suction stickers labeling method to achieve the various parts of the plane on the labeling, such as bags, cosmetics flat bottles, boxes, plastic cover labeling and so on.

Change overlying scale mechanism, suitable for uneven surface labeling, such as concave flat, circular surface labeling and so on.

Changing fixture, suitable for a variety of irregular work piece labeling.

Optional ribbon printer or inkjet printer, print production date on the label and batch number, to achieve a code – labeling Integration.

Scope of Application

Applicable Label: Self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.;

Applicable products: Requirements in flat or curved, circular surface, concave, convex, or other surface attached label products;

Industry: Widely used in cosmetics, food, toys, cosmetics, electronics, pharmaceutical and other industries;

Application: Shampoo flat bottle labeling, packaging labeling, bottle caps, plastic shell labeling and so on.

Work Process

Core Working principle: The sensor detects the product in place or send product foot position signal, sucking down labeling tip labels and covered standard, then returned the next label in situ adsorption, wait for the next signal labeling, a label the attached action is completed.

Procedure: put the product -> judgment in place (device detection control or manual control) -> Labeling and covered standard (device automatically) ->take out the labeling products.

Technical Parameters

Model: VK-T802
Applicable label length (mm): 15mm ~ 100mm
Applicable Label width (backing paper width / mm): 15mm ~ 150mm
Applicable Dimensions (length × width × height / thickness): Length: 20mm ~ 200mm
Width: 20mm ~ 150mm
Thickness: 0.2mm ~ 120mm
Applicable standard roll diameter (mm): φ340mm
Applicable standard roll diameter (mm): φ76mm
Labeling accuracy (mm): ± 0.5mm
The standard speed (m / min): 5m/min
Labeling speed (pcs / min): 20 ~ 45pcs/min
Weight (kg): about 48kg
Frequency (HZ): 50HZ
Voltage (V): 220V
Power (W): 145W
Device dimensions (mm) (L × W × H): about 850mm × 410mm × 720mm
Pressure (Mpa): 0.4 ~ 0.6Mpa

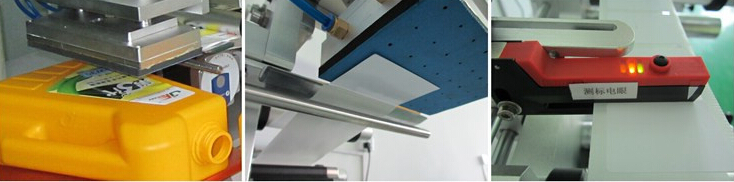

Features of Spout Bags Labeling Machine Semi Automatic

Powerful, can be used in various parts of the flat, circular surface, the concave plane of labeling, labeling can be used for irregular workpieces;
Accurate labeling, high stability, using PLC standard stepper motor drive to send to send standard indeed; discharge institutions configurations brake function, to ensure standard belt taut, ensuring precise label detection; marked with detour corrective mechanism to prevent label offset about;

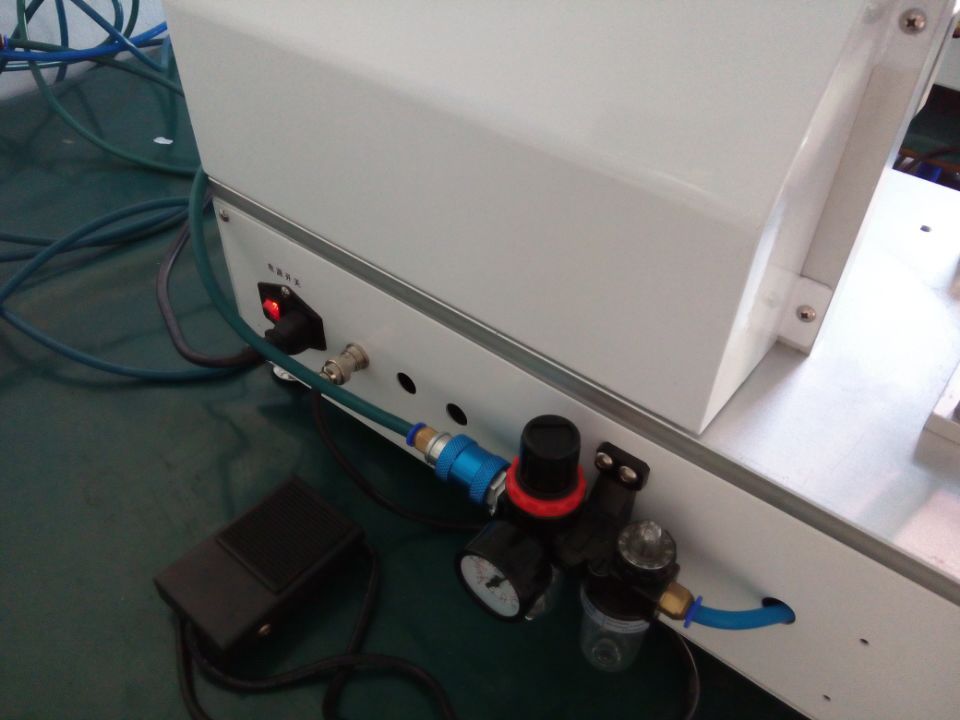

Strong and durable, the circuit layout with separate gas, gas purification device configured to prevent moisture damage air appliances, prolong equipment life; machine using advanced aluminum and stainless steel materials, quality firm;
Easy to adjust, height adjustable stroke configuration functions, different height product labeling, without repeated replacement fixture;
Appearance, using bottom-mounted computer white box, with stainless steel and high-alloy, beautiful, lifting equipment level;
With manual / automatic two kinds of labeling control, workers may need to select the use of sensors to achieve labeling or foot control; setting manual and automatic control buttons, the standard length can be regulated;

Optional Functions and Components:

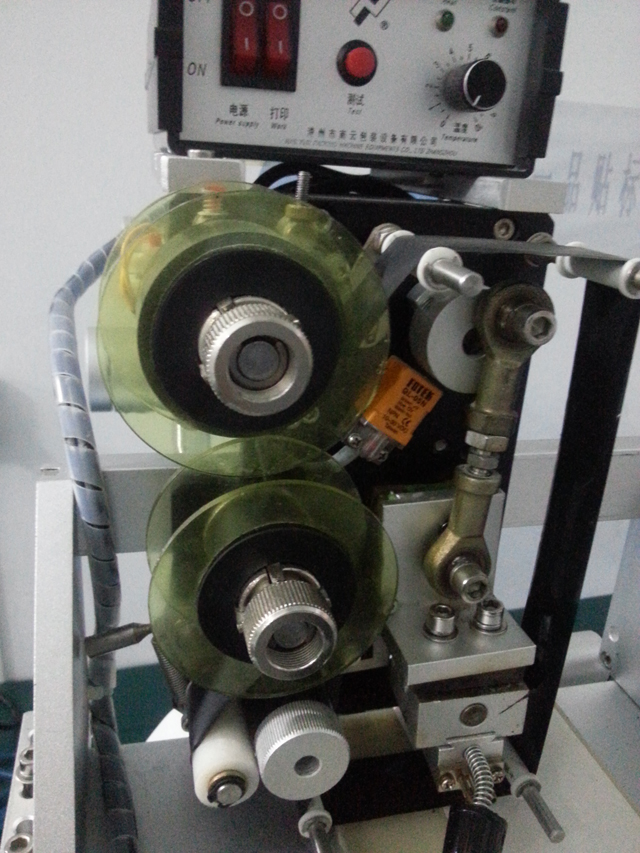

Hot coding / marking function;
Automatic feeding function;
Automatic rewinding function (combination of product considered);
Special label sensor.

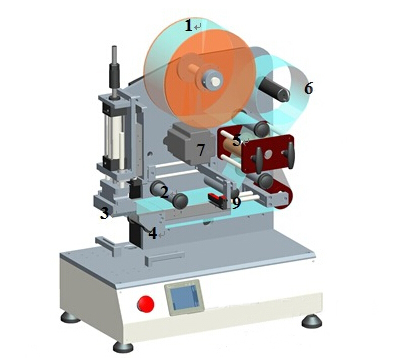

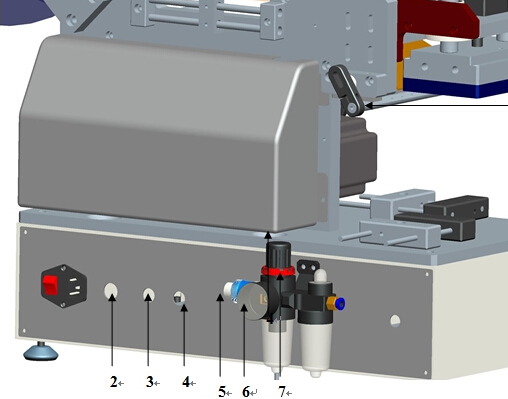

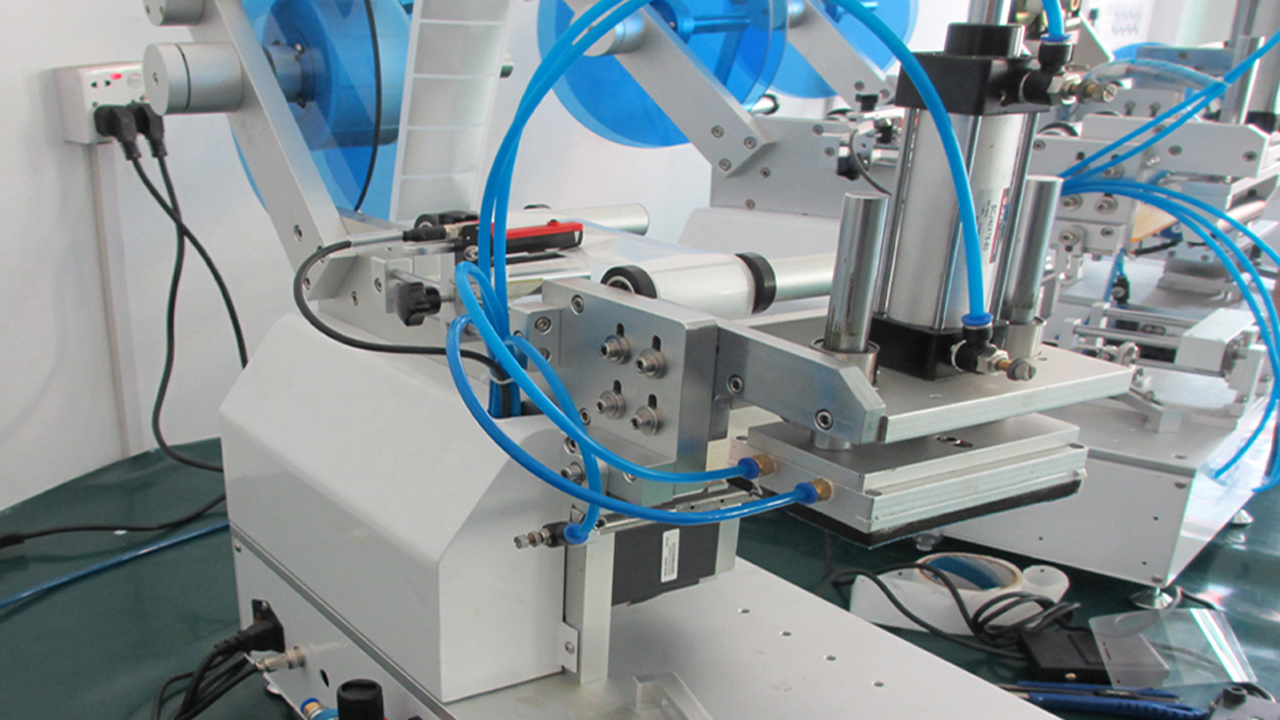

Structure Details:

Order	Structure Description	Structure Fuction
1	Disc brake	Prevent the semi-automatic flat labeling machine loose the excessive
2	Charging tray	Put label coil is used for semi-automatic flat labeling machine
3	Feeder	Semi-automatic flat labeling machine
4	Press the shrapnel	Semi-automatic flat labeling machine pin labels, ensure the tension of label
5	Rollers	Used for semi-automatic flat labeling machine round labels
6	Mark magic eye	Semi-automatic flat labeling machine test label
7	Receiving institutions	Semi-automatic flat labeling machine recycling label at the bottom of the paper
8	T handle	Used for semi-automatic planar labeling machine traction mechanism locking
9	Traction	By drawing the bottom paper, stripping, its firmness can be adjusted by screws
10	Control panel	For plane labeling machine semi-automatic machine circuit configuration
11	Fixture table	Used for semi-automatic labeling machine put workpiece fixture
12	Scavenge pipe	In the process of tag stripping, hold label, a smooth transition to the suction head
13	Cylinder	Used for semi-automatic flat labeling machine to complete labeling
14	Tangent screw	As semi-automatic labeling machine plane slight adjustment of the height of the head and the workpiece
15	Film pressure	Ensure the semi-automatic flat labeling machine tension labels
16	Traction motor	Provide semi-automatic flat labeling move to

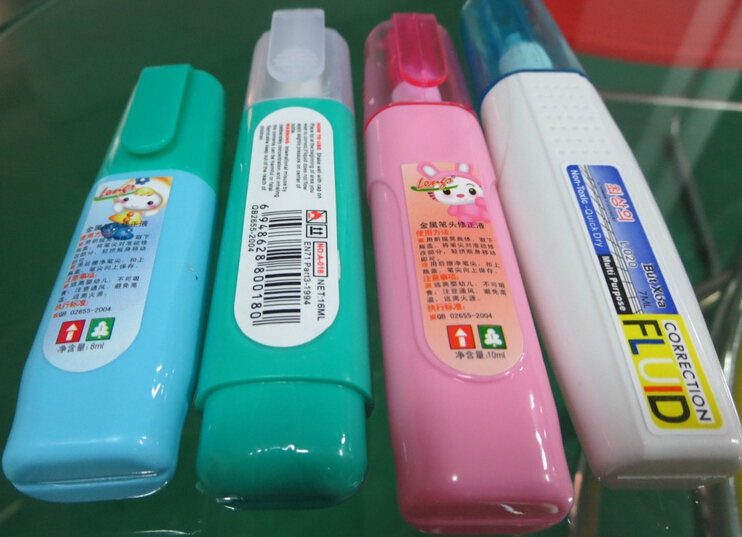

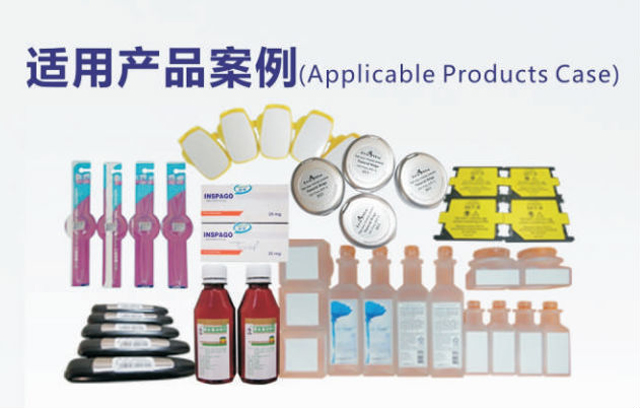

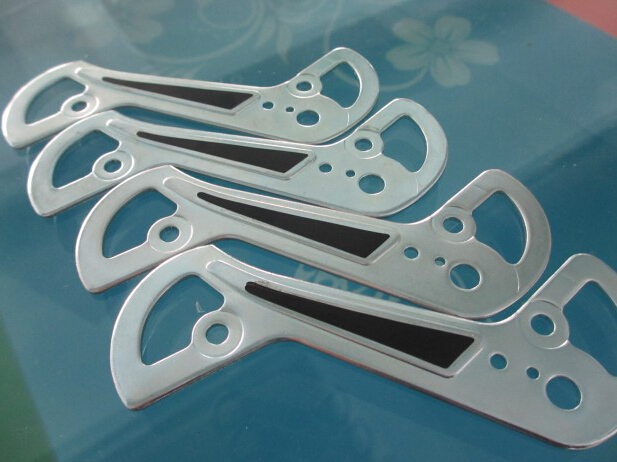

Applicable Products

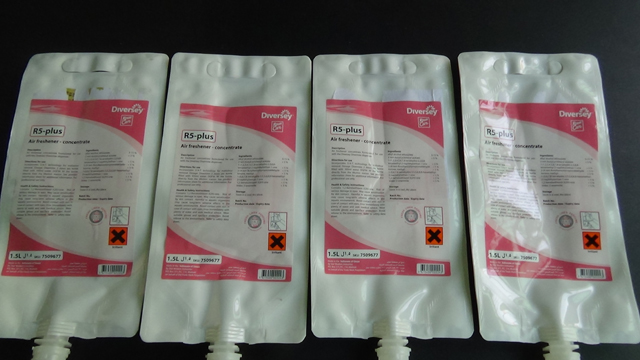

Samples

In order to customize the machines labeling for our customer it is necessory to send us the samples of labeling & labelled products so that we can confirm everything be okay for the labeling machine from the aspect of the customers .
