Syringe Labeling Machine Semi Automatic With Date Codes Printer

Model: VK-T801
Accuracy: ±0.5mm
Speed: 15～25bpm
Diameter: Ø 15mm～Ø 150mm
Label size Length: 20mm～200mm；width：20mm～220mm；
Dimension: L920mm×W470mm×H500mm
Supply power: 220V/50HZ；
N.W: 45Kg
Inner diameter of label: Ø76mm
Outer diameter of label: Ø 240mm
Voltage: 220V-240V/50-60HZ

Pharmaceutical pipe containers syringe injection needles labeling machine semi automatic with date expiry codes thermal printing function

Application

Suitable for all kinds of cylindrical objects labeling, small taper round bottle labeling, such as xylitol, cosmetics round bottles, wine bottles and so on. Can achieve full week / half weeks labeling, front and back labeling circumference, is back mark pitch can be adjusted. Widely used in food, cosmetics, chemical, pharmaceutical and other industries.

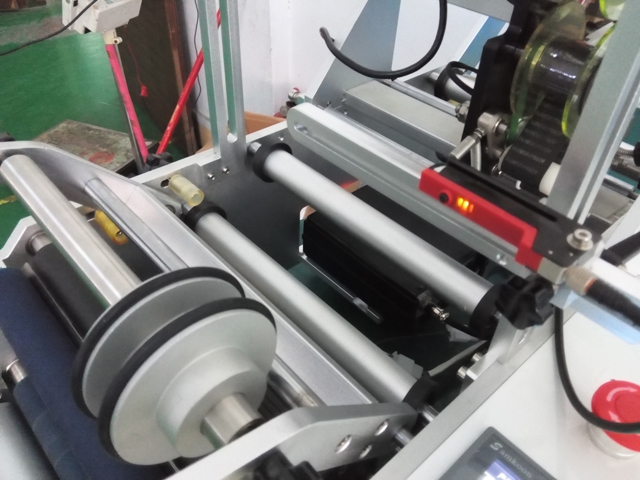

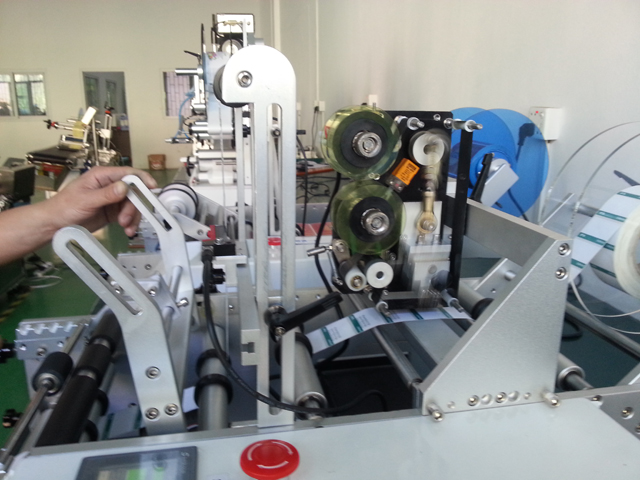

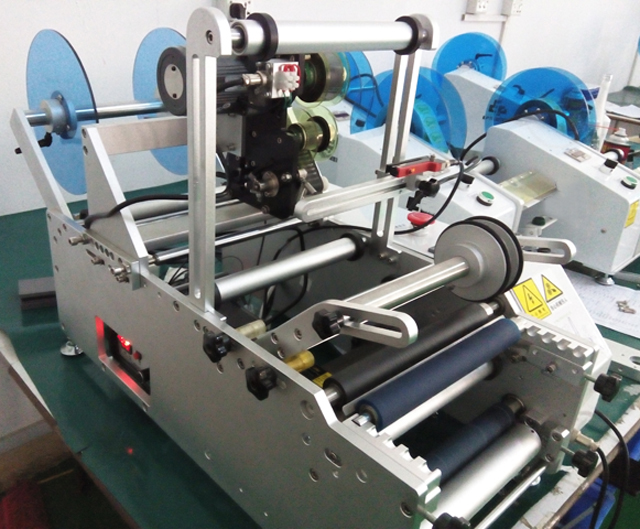

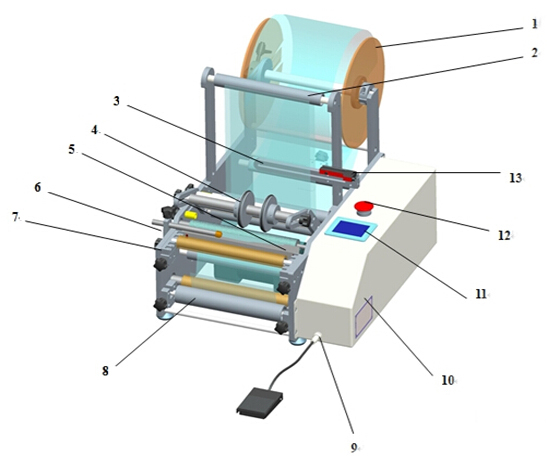

Bird view of labeling machine

Number	Name	Purpose
1	Labels plates	Putting the labels around it
2	Label Rolls	The path of label for labeling process
3	Supports for light sensor	Light sensor installation,movable up and down ward
4	Pressing	Press the bottles during labeling,adjust its tension by controlling left button
5	Label reeling	Dispensing the labels
6	Position	Adjust this left or right,up or down to position the bottles
7	Support Jacket	Different positions for various bottles
8	Traction	Tract the bottom line to dispense the label，adjust its tension by moving the screws
9	Pedal controlling	controlling the labeling process with pressing on the pedal
10	Electric box	electric components for labeling machines
11	Man-machine interface	Controlling the machines with changing the parameters
12	Sudden stop
13	Light sensor	Detecting the interval of labels

Parameter Of Syringe Labeler

Model: VK-T801
Accuracy: ±0.5mm
Speed: 15～25bpm
Diameter: Ø 15mm～Ø 150mm
Label size Length: 20mm～200mm；width：20mm～220mm；
Dimension: L920mm×W470mm×H500mm
Supply power: 220V/50HZ；
N.W: 45Kg
Inner diameter of label: Ø76mm
Outer diameter of label: Ø 240mm
Voltage: 220V-240V/50-60HZ

Working Process

Core works: single standard, double standard switching function principle, the principle circumferential positioning labeling, please consult factory.

Procedure: put the product -> Labeling (device automatically) -> Remove the labeling products.

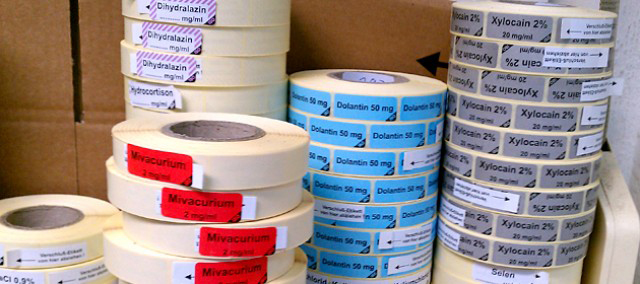

Making of matching labels

Optional functions choosed improve production management convenience, with labeling counting, power-saving mode, photoelectric tracking label and other functions, production management easier;

Optional Features And Components:

① hot coding function;

② circumference circumferential positioning function;

③ Other features (according to customer requirements).

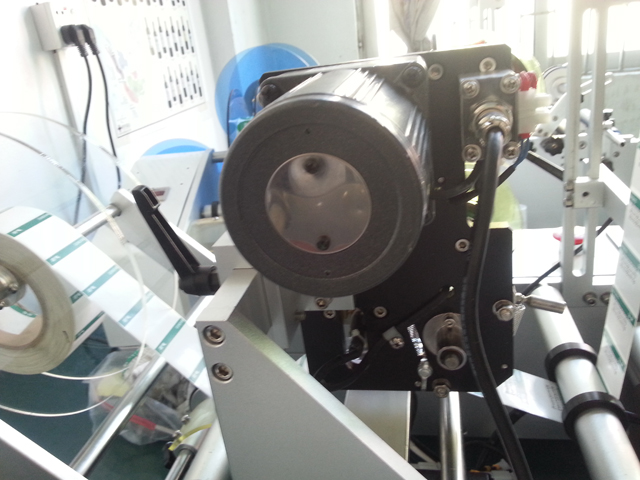

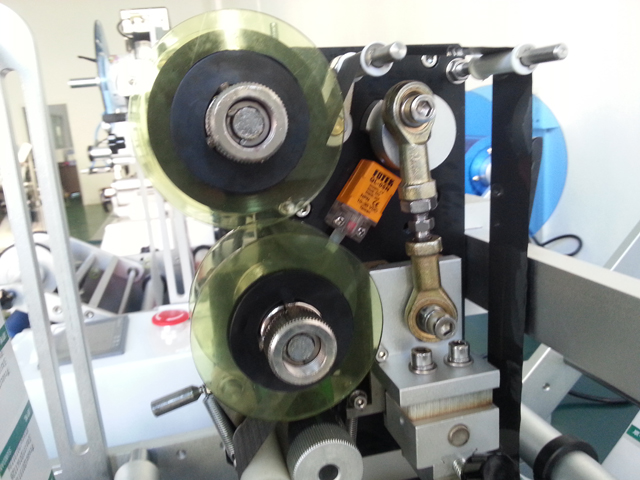

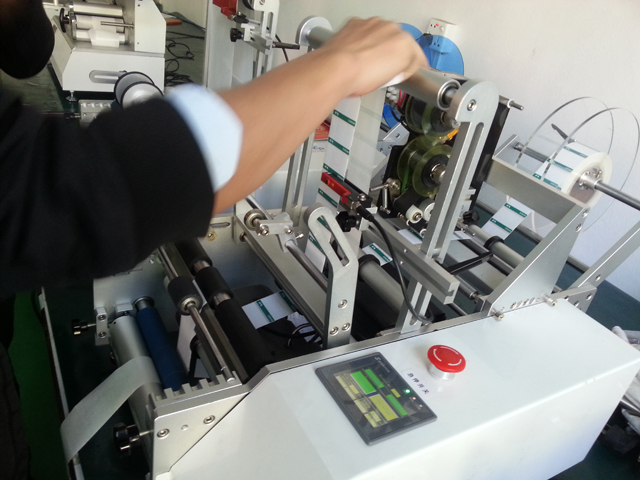

Option for date printing function in syringe labeling machinery

FAQ About the Date printer:

About code printer: Chinese & enlish character, arabic number Roman letter (if you have th special requirements it can be customized)

Two sizes of printer letters 2*3mm & 1.5*3mm

Code printer can printer 3 lines,16 letters for each line

The syringe labeling machine can label the syringe with the min diameter of 8mm, therefore after analyzing your drawings there is no problem about the labeling syringe. the labeling accuracy is ±0.5m.

The working principle for transparent label is thus illustrated:

1. The materials of foil, if the foil is the transparent, then it must be equipped with the transparent label light sensor;

2. If the foil is not transparent, it can stop and sensor the label by the common light sensor as long as to dot the hole in the label during making the label. The labels from you with the untransparent foil is okay for our syringe labeling machine.

Above all, the machine is the best choice for you to label.

The manual operation cannot be released until our customer places the order. Sorry that is our company's rule, which is only kept by the engineer team and our sales department cannot have it.

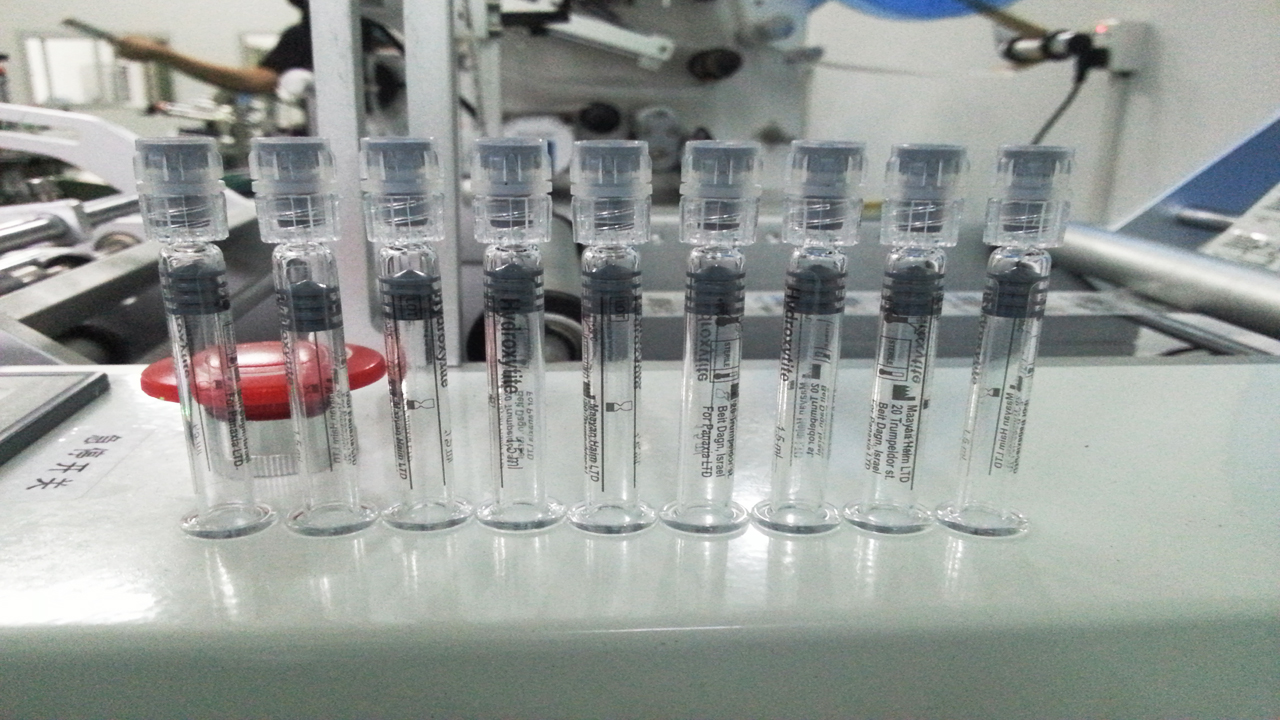

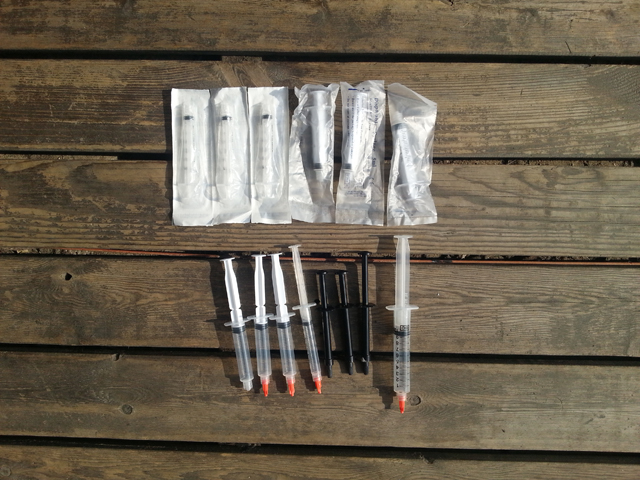

Samples

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
