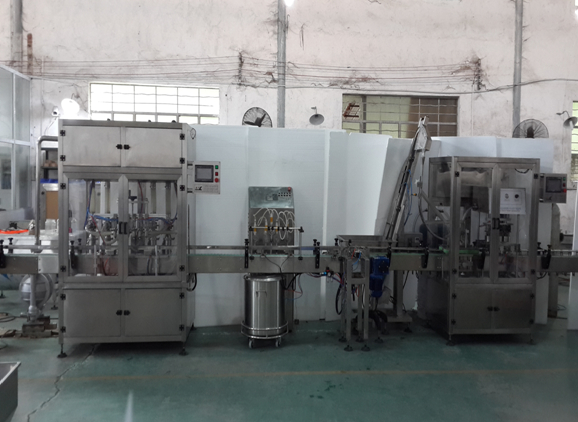

Thick Sauce Tomato Cream Glass Jars Bottles Filling Vacuum Capping Line

The production line for thick sauce / honey / ketchup / spice / peanut butter bottle automated filling machine includes the machine such as glass jars rotary model 12 heads bottles washing machine, linear filling machine thick sauce 6 heads  as well as linear vacuum capping machinery

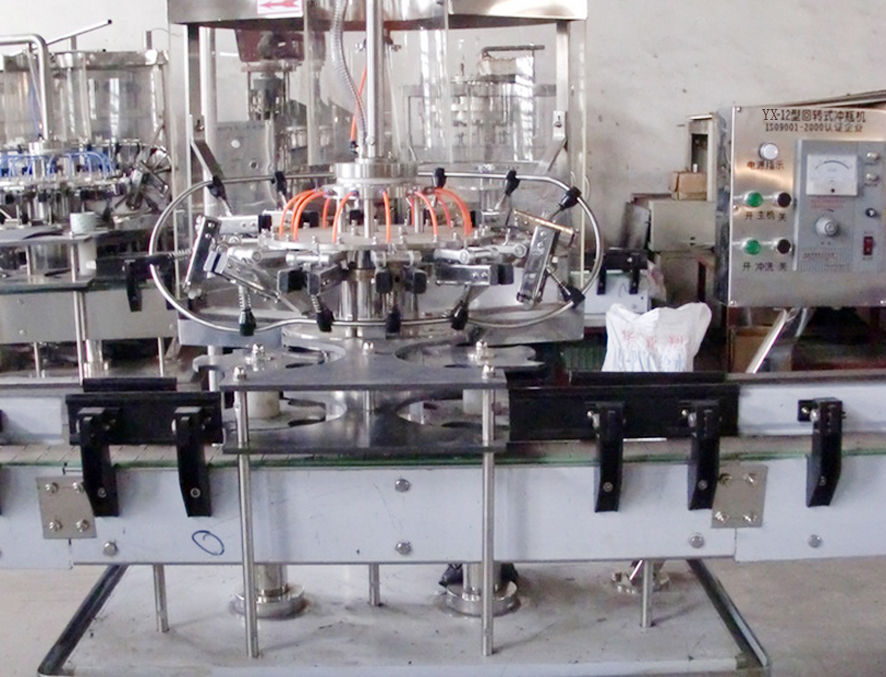

Glass Bottle Washing Machine

• The Glass bottle washing machine adopts continuously spraying and washing, it has high efficiency and good washing result.
• The Glass bottle washing machie is used to clean the glass bottles for mineral water,pure water,juice and carbonated drink, alcohol, wine and so on. It is a kind of equipment for the production line of beverage industry.

Technical Data Of Glass Jars Bottles Washing Machine:

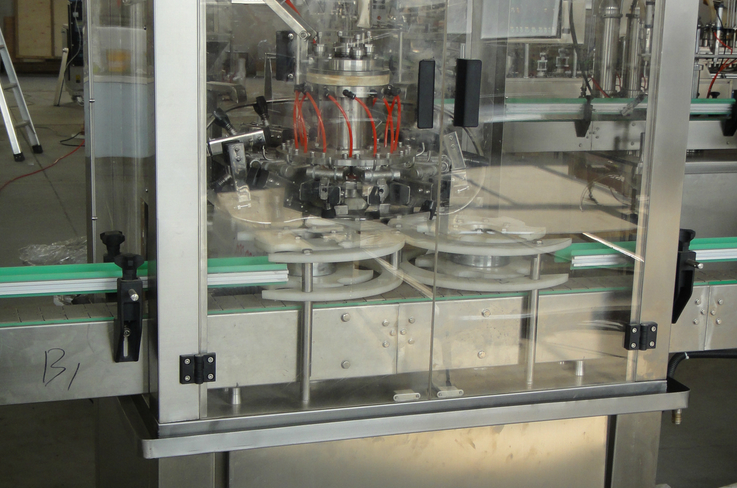

With protective chamber for the bottle washing machine

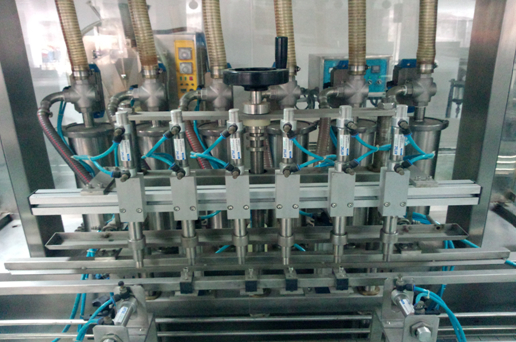

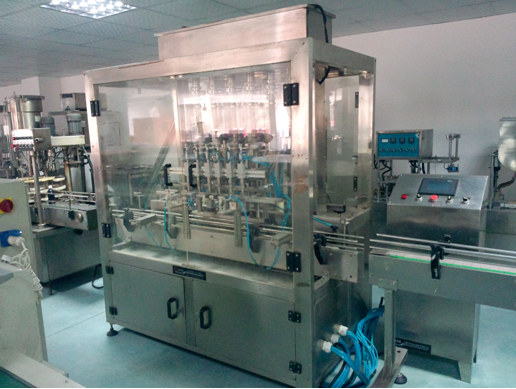

6 Heads Automatic Thick Sauce Ketchup Glass Bottles Linear Filling Machine

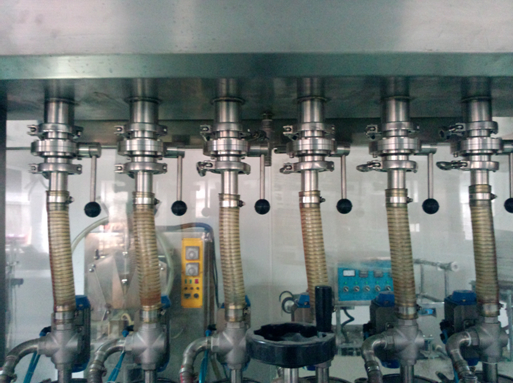

The electrical and pneumatic components from all-Automatic thick-sauce filling machine are world-famous products, and it is controlled by PLC. Using piston-type metering principles, combining electrical with pneumatic function together, it performs many advantages, such as, reasonable design, compact structure, beautiful shape, stable and reliable performance, accurate filling, good adaptability, being easy to use and convenient to maintain and so on.

It is widely used in a variety of semi-fluid materials, paste, viscous materials ,sauces, and the granule-containing materials filling. Such as those containing fruit drinks, honey, syrup, jam, peanut butter, sesame, tomato sauce, chili sauce and a variety of cream are applicable to it.

This series of filling machines contain a variety of models with double-heads, 4-heads, 6-heads, 8-heads and even 20-heads, which are classified into many types by filling range. In order to meet different customers' needs, luxurious model,  the model of drums with mixing system and the model of high temperature filling at 70-95 temperature could be designed according to the actual situation.

Features Of Filling Machine:

The world-famous electrical and pneumatic components are adopted, so the machine will be stable and reliable and could be used with a low failure rate and long service life.

The part of machine which touches food are mainly made by the high-quality stainless steel, which makes dismantling, assembling and cleaning more convenient. What’s more, it is in full compliance with food hygiene requirements.

Adjustment of filling volume and filling speed is simple. There is no filling when the bottle doesn’t exist. Liquid level controls filling automatically. It has a nice appearance.

It is adaptable. Without changing elements, bottles of different shapes and sizes can be adjusted and replaced quickly.

Filling mouth with anti-drip device ensure that there is no drawing, no drip during filling.

Parameter Of 6 Heads Thick Sauce Filling Machinery

• Filling Volume: 25-250ml, 50-500ml, 150-1000ml, 500-2500ml（different filling volume customized according to customer's requirements）
• Filling speed: 30-40b/min（refer to 50-500ml 6heads linear filling ）
• Precision tolerance: ＜±1%
• Supply power: 380V 50HZ
• Pneumatic (MPa): 0.5-0.7
• Dimension (mm): 2000×1000×1800
• N.W: KG G.W: 720kg

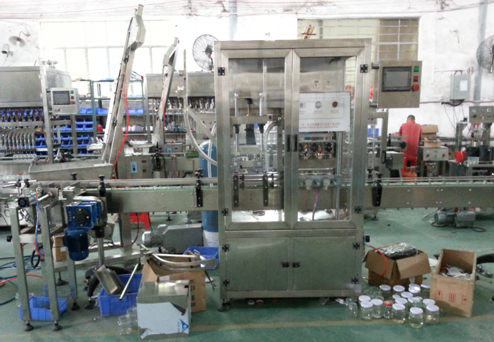

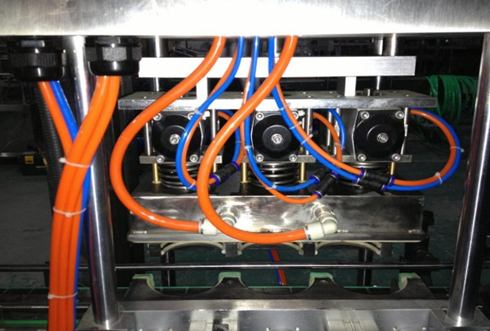

Full Automatic Glass Jar Vacuum Capping Machine

This machine is researched and developed by our company with years of experience, it is unique in domestic .Integrated automatically cap arranging with covering, vacuum capping. Adopted manual vacuum pump to achieve high vacuum. With the functions of no bottle no covering, alarming when no caps are available. Enjoyed high automation. The main pneumatic and electric parts are from world famous brands. With stable and reliable performance. It is widely used for vacuum capping of the Glass Jars with iron caps in the industries of canned food, beverage, seasoning, health care products etc.

• Integrated automatically cap arranging with covering and vacuum capping, with high automation.
• Adopted manual vacuum pump to achieve high vacuum.
• Capping torsion and vacuum degree can be set as required.
• Suitable for different shapes and sizes bottles with changing few parts.
• The main pneumatic and electric parts are from world famous brands to ensure stable, reliable and durable performance.

Main Technical Parameter

• Power: ≤2.3KW（including the vacuum pump）
• Production capacity: 50-60BPM
• Cap diameter: ￠30-￠55mm ￠50-￠85mm
• Bottle height: 80-250mm
• Bottle diameter: ￠30-￠85mm Max vacuum: -0.08mpa
• Capping torsion: 5-20N.M
• Air consumption: 0.6M3/0.7Mpa
• Machine dimensions: about3000×1000×1900mm
• Weight: about 850kg

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
