Tin Cans Cartons Sealing Machine Case Closing Sealer Equipment

Sealing speed: 800~900 / PER HOUR
Carton dimension (W): 150mm~500mm
Carton height (H): 120mm~500mm
Carton length (L): 200mm~600mm
Tape applicable: 48~60~75W x 1000ML
Roller Lenght: 570 ~770 mm (ADJUSTABLE)
Machine Dimension: L1880 x W900 x H1510mm
Weight: ≈180Kgs
MAX: 50dBA
Electric consumption: MAX: 1.2KW
Power supply: 220V/50Hz/60Hz/1Ph or 380V/50Hz/60Hz/3Ph
Air Source: 3kg/cm2 100nl/min

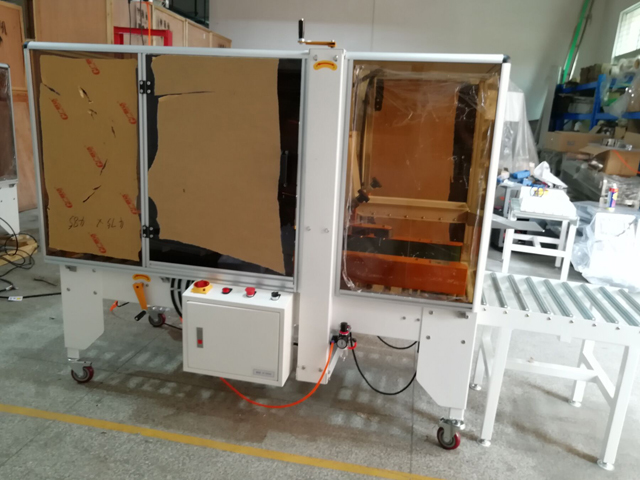

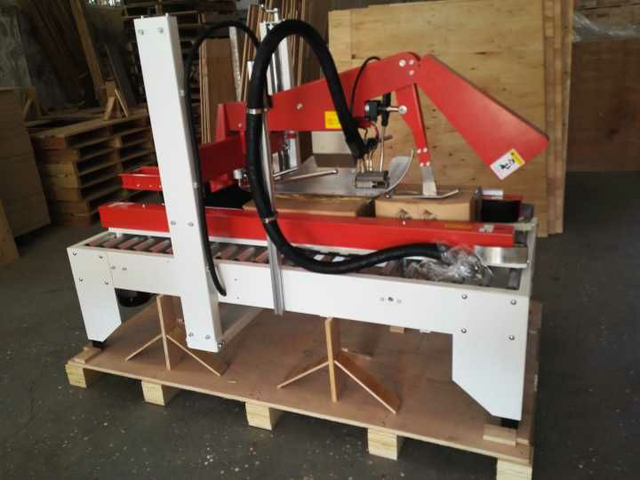

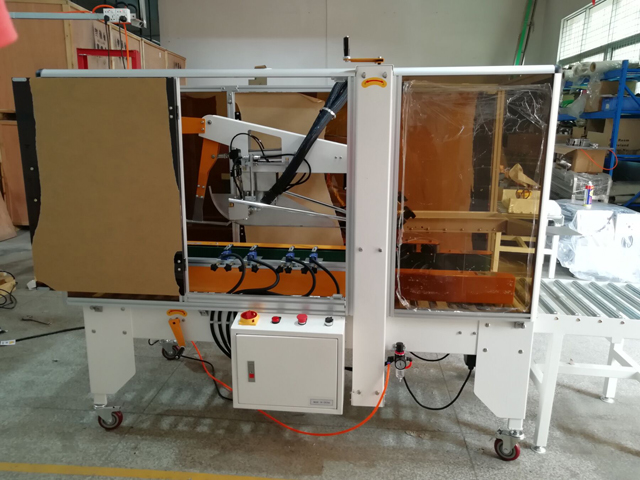

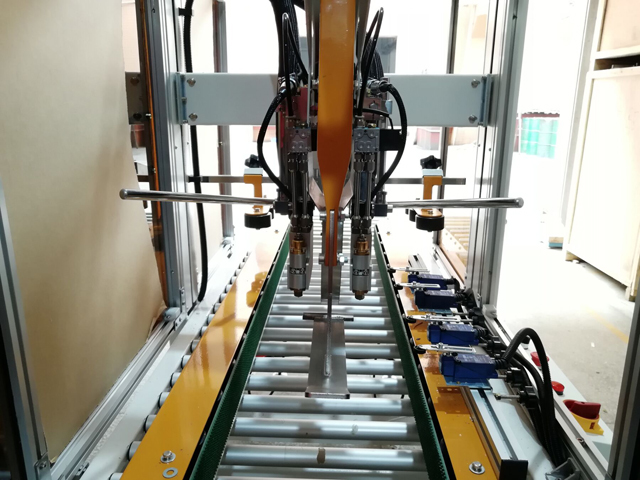

The machine consists two parts: Carton sealing machine and hot melt glue device; This sealer is suitable for carton sealing and the tape, Automatic sealing adhesive tape machine with automatic folding cover, is the ideal packaging equipment characteristics of the function of convience&economy and efficience.

Parts Adopted for carton folding sealing machine semi automatic
1. Motor : Taiwan Luyang
2. Power switch: Korea KACON
3. Bearing: Japan NSK
4. Cutter: Japan SKD11
5. Conveyor Belts: import from Italy
6. Caster: VK-CS-50E

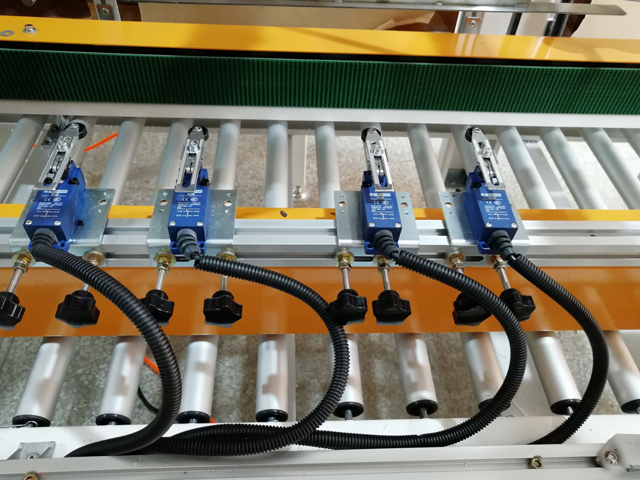

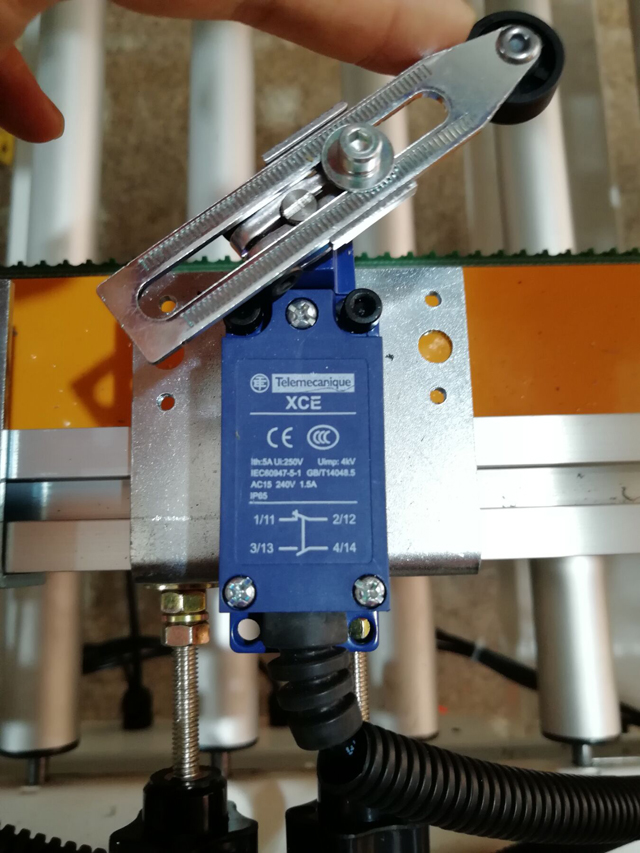

7. Touched Switch: Japan OMRON
8. Intermediate Relay: Janpan IDEC
9. AC Contactor: CHINT
10. Cylinda: Taiwan SHARKO
11. Magnetic Valve: Taiwan SHARKO

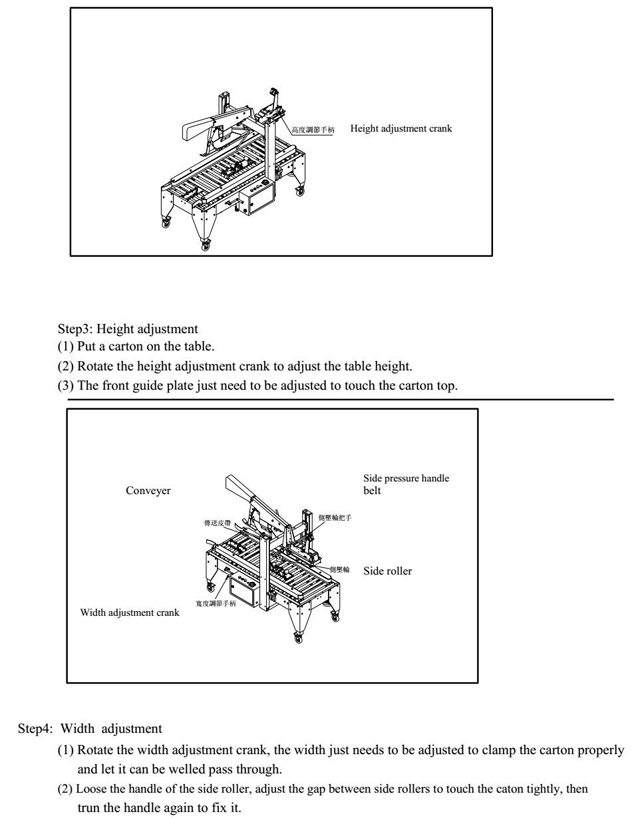

How To Adjust The Carton Sealer For Different Sizes Of Cartons:

Before performing adjustment works, please disconnect the power supply.

Step1: Table height adjustment

Ground the equipment on the properly storage place, adjust the table top to the desire height.
(1) Loose the adjustable screw.
(2) Adjust the height of the table leg.
(3) Lock the screw.
(4) Press the stopper to fix the position.

Step2: Pneumatic adjustment

(1) Link the machine to the pneumatic supply.
(2) Pull the screw and turn it clockwise to increase the pressure or counterclockwise to decrease the pressure
(3) The pneumatic pressure should be adjusted to about 5-6kg/cm2.
(4) Turn the screw tightly after completing the adjustment works.

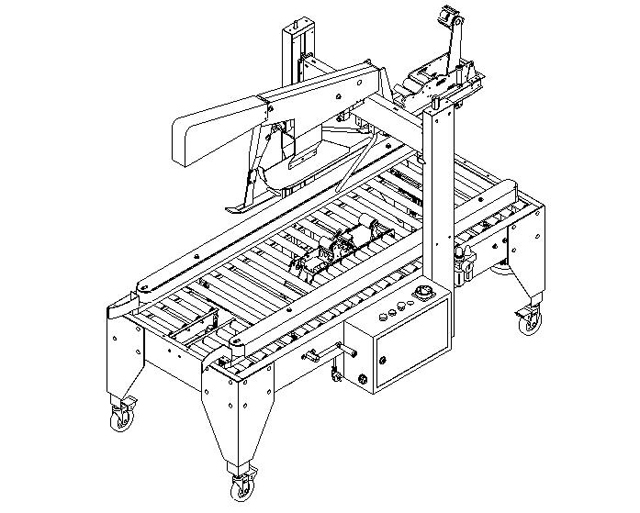

Specification

Sealing speed: 800~900 / PER HOUR
Carton dimension (W): 150mm~500mm
Carton height (H): 120mm~500mm
Carton length (L): 200mm~600mm
Tape applicable: 48~60~75W x 1000ML
Roller Lenght: 570 ~770 mm (ADJUSTABLE)
Machine Dimension: L1880 x W900 x H1510mm
Weight: ≈180Kgs
MAX: 50dBA
Electric consumption: MAX: 1.2KW
Power supply: 220V/50Hz/60Hz/1Ph or 380V/50Hz/60Hz/3Ph
Air Source: 3kg/cm2 100nl/min

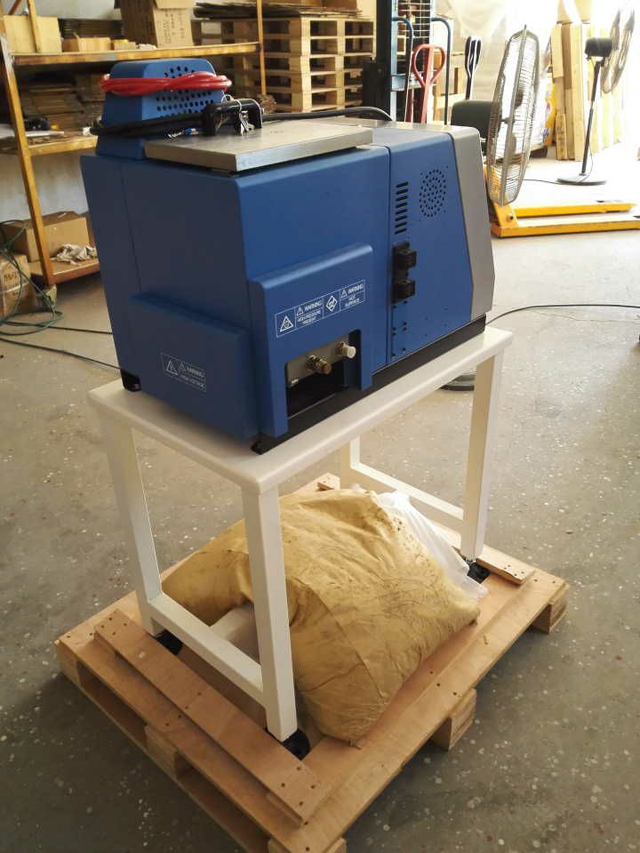

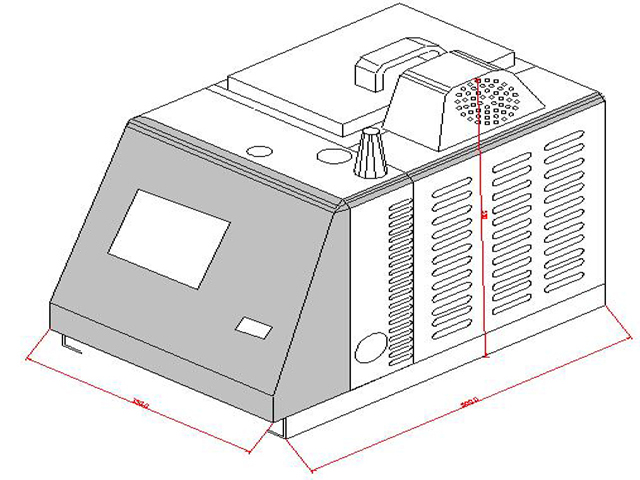

Technical Parameters Of Hot Melt Glue Device

Glue Cylinder Volume: 10L
Holding Capacity: 9.8L
Air pressure Range: 48-415kpa(10-60psi)
Input Voltage Standard: AC200-240V 1PH 50/60HZ
Machine Size: 750*450*470mm
Machine Weight: 65kg
Ambient Temperature Range: 0-50 ℃
Temperature Range: 0-260 ℃
Max. Working Hydraulic Pressure: 8.7Mpa
Levels of protection: IP54

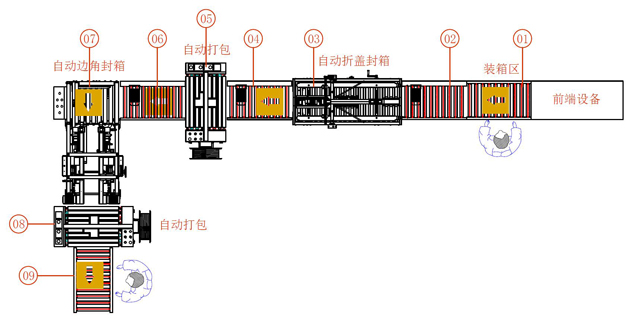

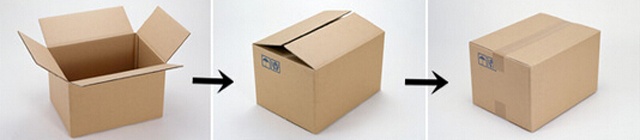

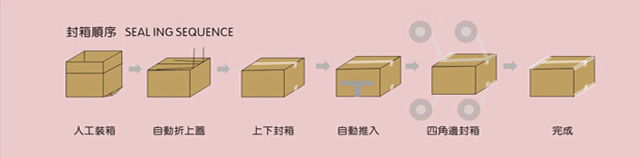

Flow Chart For Carton Sealing Process From Box Cartons Sealer Equipment:

Working Flow For Fully Automatic Carton Sealing End Packaging Process:

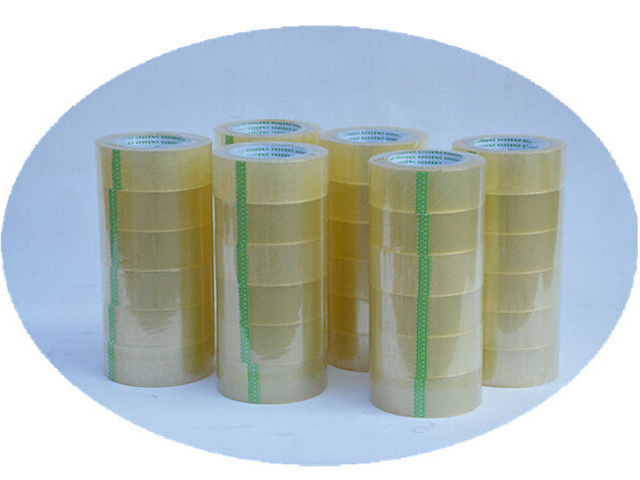

Adhesive Tapes Equipped With The Carton Sealing Machine For Sealing The Cartons:

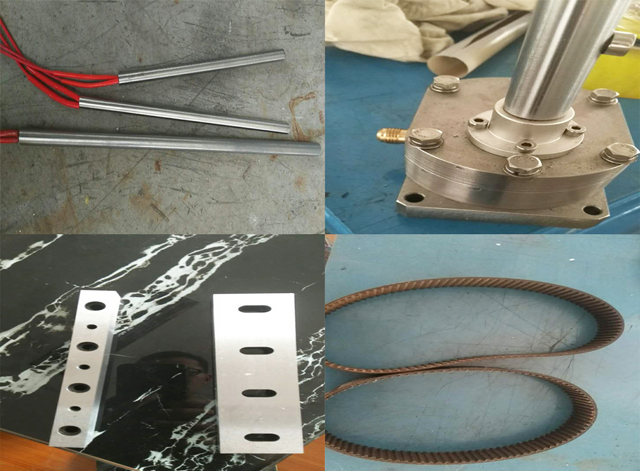

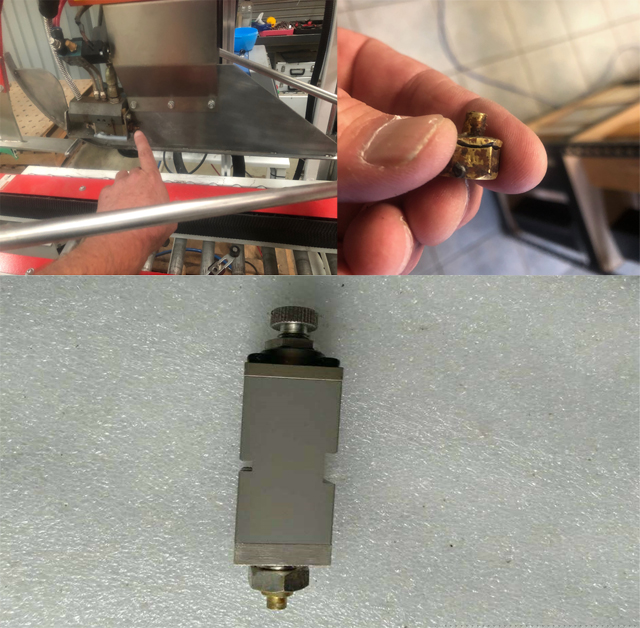

Sealing Machine Spare Parts:

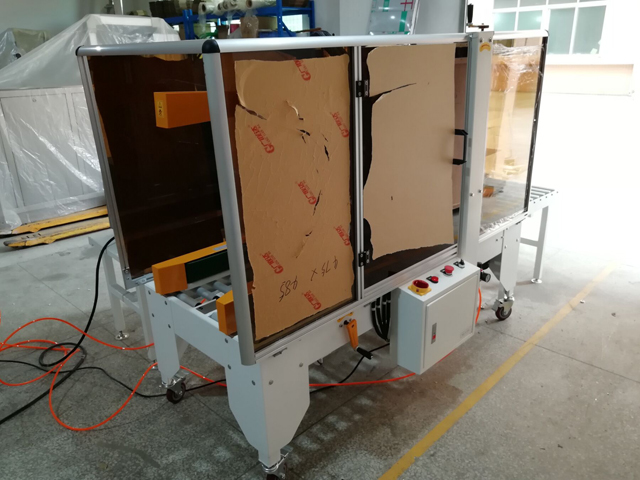

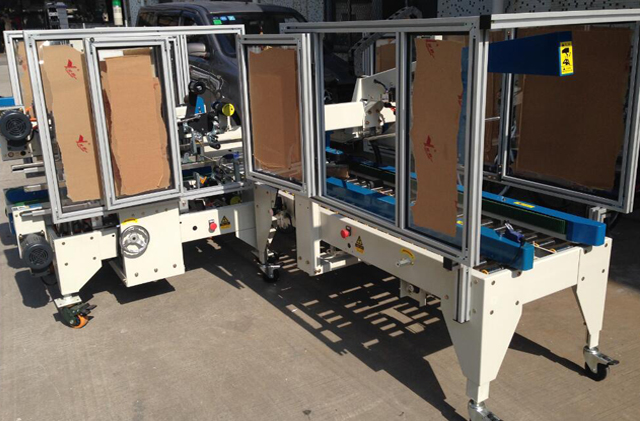

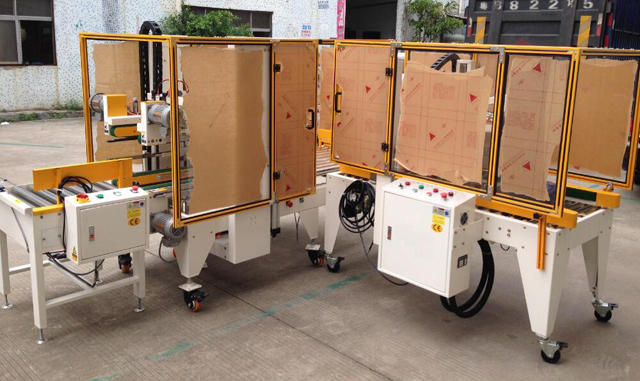

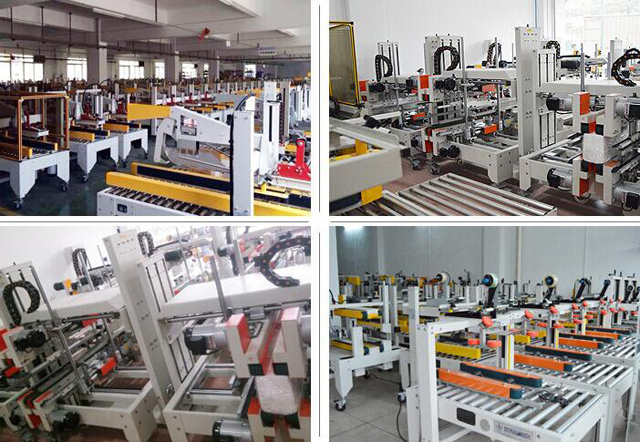

Plant Workshop For Carton Sealing Machines Various Model For Assembly Commissioning

Malfunctions And Solutions On Carton Erection Sealing Equipment:

Malfunction and Solution of the Sealer
No	Malfunction	Possible reason	Solution
1	Adhesive tape can not be cut off	The reamer patch is not sharp enough. The reamer tine isjammed by the bond.	Change the reamer patch Launder the reamer patch
2	There is tail after the adhesive tape is cut off.	The reamer patch is not sharp enough. There is stem on the reamer seating. The pulling spring is too loose.	Check if the nut on the reamer seating is too loose or not. Lubricate the nut if necessary.
3	The adhesive tape can’t stick to the carton completely.	Main spring is too loose and there is glue on the axis of the roller. The adhesive tape is disqualification	Adjust the pull of main spring and clear up the roller. Change the adhesive tape
4	The carton is locked in the midway.	The nut on the pasting wheel is too tight, the height adjustment of the carton’s transporting line is not suitable, and the main spring is too tight.	Loosen the pasting wheel, regulate the nut, re-adjust the height and loosen the main spring.
5	The adhesive tape is cut down during sealing.	The reamer patch protrudes excessively long.	Lower the place of the reamer patch.
6	The adhesive tape is often off the track.	The pressure of the guiding roller on the carton is not equal.	Re-adjust the space of the guiding roller.
7	The adhesive tape is not on the central line.	The anti-retrorse wheel is broken.	Change the anti-retrorse.
8	There is abnormity during the sealing.	There is dust on the axletree seating.	Clean the axletree seating and lubricate.
9	There is jut before sealing and drape after sealing.	The speed of different straps is different, and the carton is not at the proper place when pushing into the machine.	Adjust each transporting line’s pull to be consistent so that the carton can be put at the correct place.
10	There is drape after sealing	the strain of adhesive tape is too large

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
