Tube Filling And Sealing Machine For Plastic Laminated Tubes

• Power Supply: AC220V±10% 50HZ
• Work Temp: 5-50℃
• Filling Quantity: 5-30 5-75 30-150(g)100-200(g)
• Quantity Error: <2%
• Motor power: 0.75~1.1kw
• Compressed Air: pressure0.6~0.7Mpa Volume: 0.2m³/min
• Capacity: 10~50tube/min(adjustable)
• Dimension: 1500mm×1200mm×1700mm
• Weight: 300kg

View Video

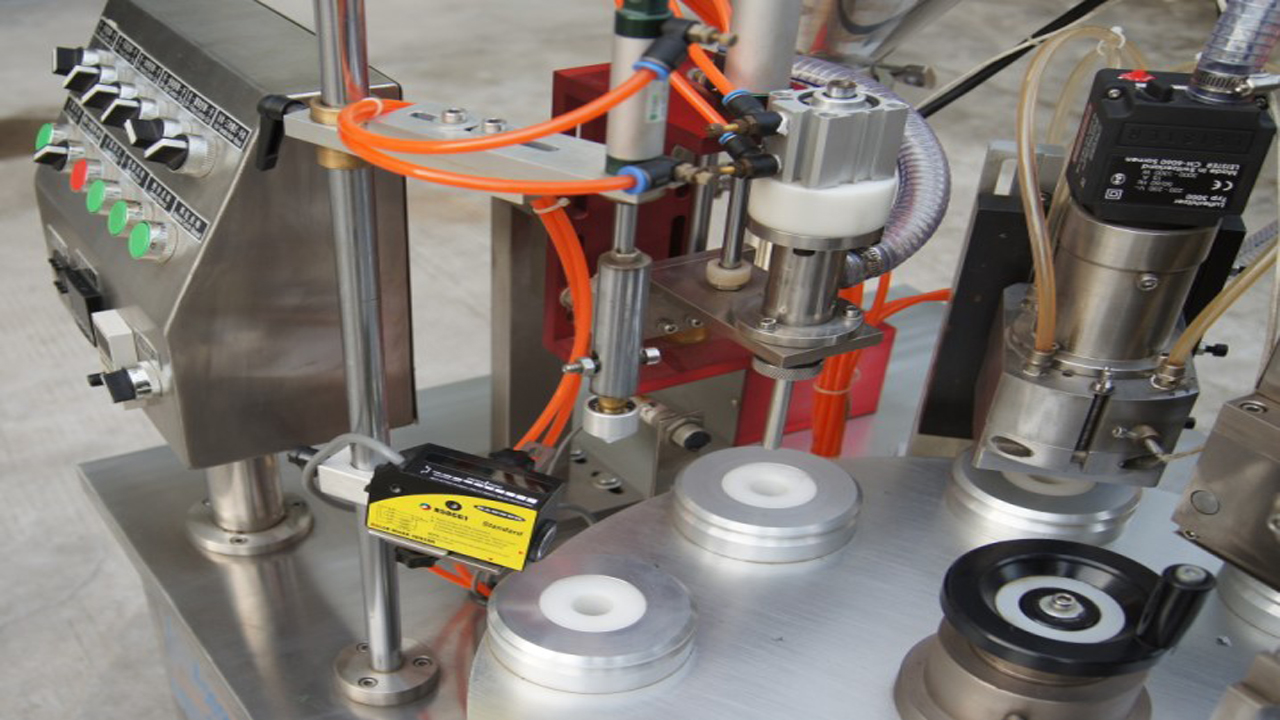

Semi Automatic Tube Filling Sealing Machine For Plastic Laminated Tubes

The filling and sealing machine is used mainly to fill liquid material into various kinds of tubes like plastic laminated or aluminum ones with fixed quantity and seal the tube. It is widely used for the packing of products of pharmaceutical, foods, and chemical industry.

Working Process:

Manually put the metal tubes into the tube-holding base. Change angular potion of each tube by means of mechanical transmission. Photoelectric device is used to detect the position of tube and if there is any tube in right position, the filling system starts to fill the tube with fixed quantity. The tube will then be dual-sealed, and with a number printed on the surface the tube is finally ejected.

Features:

The machine, with a controllable filling volume or quantity, is featured with a reliable performance performance. The machine is suitable for the filling of metallic tubes of any type because the tube-holding base can be easily replaced in purpose. A perfected and reliable sealing can be reached. The parts which touches material is made of stainless steel.

Specification:

• Power Supply: AC220V±10% 50HZ
• Work Temp: 5-50℃
• Filling Quantity: 5-30 5-75 30-150(g)100-200(g)
• Quantity Error: <2%
• Motor power: 0.75~1.1kw
• Compressed Air: pressure0.6~0.7Mpa Volume: 0.2m³/min
• Capacity: 10~50tube/min(adjustable)
• Dimension: 1500mm×1200mm×1700mm
• Weight: 300kg

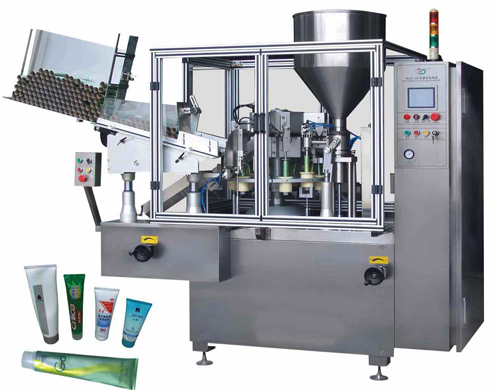

Inner–Heating Tube Filling And Sealing Machine Automatic

(1) It can fill and seal different size of tubes(the same as the samples) : 15, 25, 45, 110 and 130g.

(2) Capacity: 600 pieces/h for 130g.

(3) Add one toothpaste delivery pump to transfer the toothpaste bulk to the filler reservoir from the storage tank .

(4) Install one level controller sensor at the tube filler reservoir for auto-relenishment of toothpaste bulk from the storage tank, and the Alarm activated when the storage tank level get low.

(5) The material contact parts are 316L stainless steel.

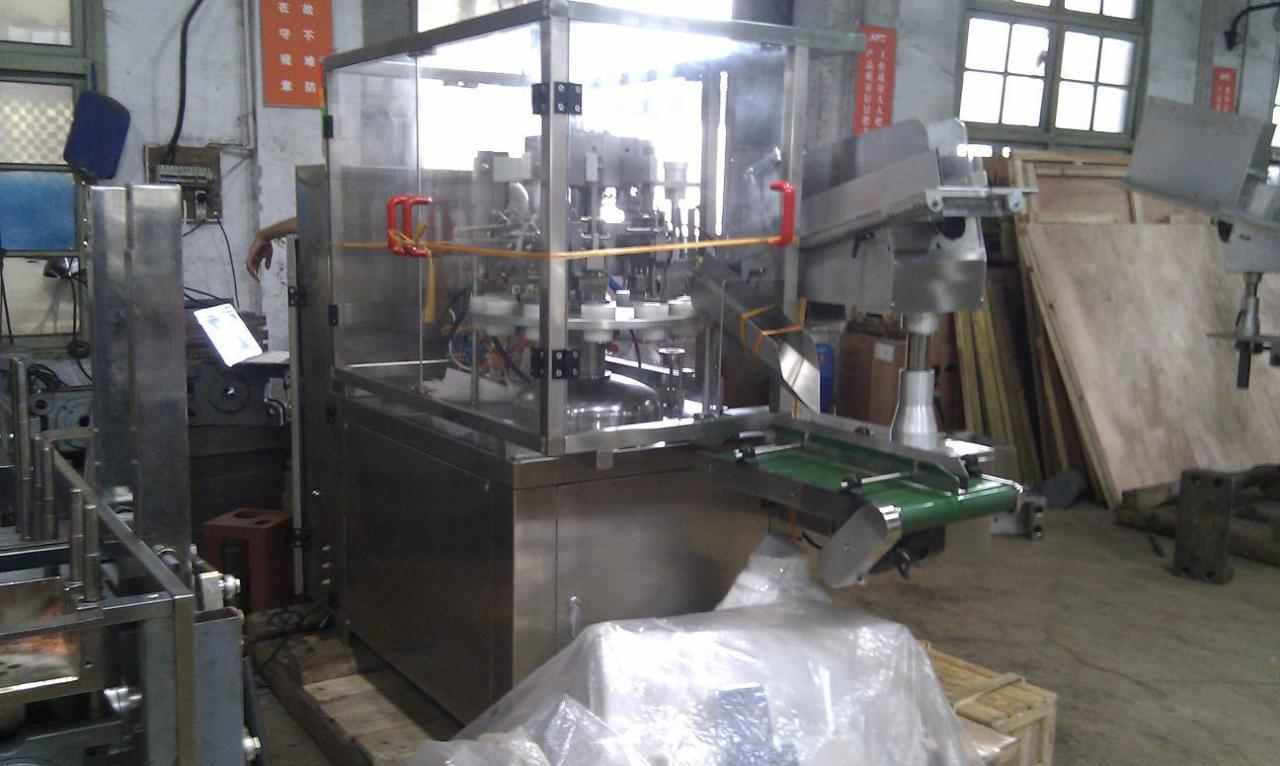

(6) The machine with the safty cover.

(7) It can seal and cut the end to be semi-rounded end shape.

(8) It has the sealing temperature controller,and counter.

(9) The code date, batch No. expiration date embossed with 12 combined characters of numbers,letter alphabet and “-“dash symbols. It is including 7 sets for number “0-9”, 4 sets of letter alphabelts, and 3 sets of the “-“dash character symbol.

It suits for filling, sealing and date printing the products adopting tube packing of daily chemistry, pharmacy, food, chemistry, industry.

The machine was characterized by mechanism structure, stable operation, high speed, high efficiency, low noise, simple structure, convenient operation and maintenance and less fault.

Automatically insert the tube and position, PLC control system, heat the inner tube with hot air, accurate position. Can adjust and show on touch screen the filling volume automatically, it is an ideal machine for sealing the plastic tube for it is attractive appearance and reliability.

Technical Parameters:

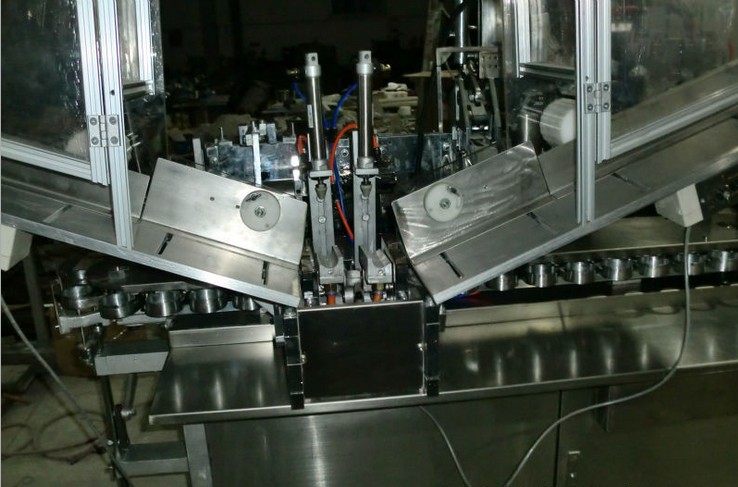

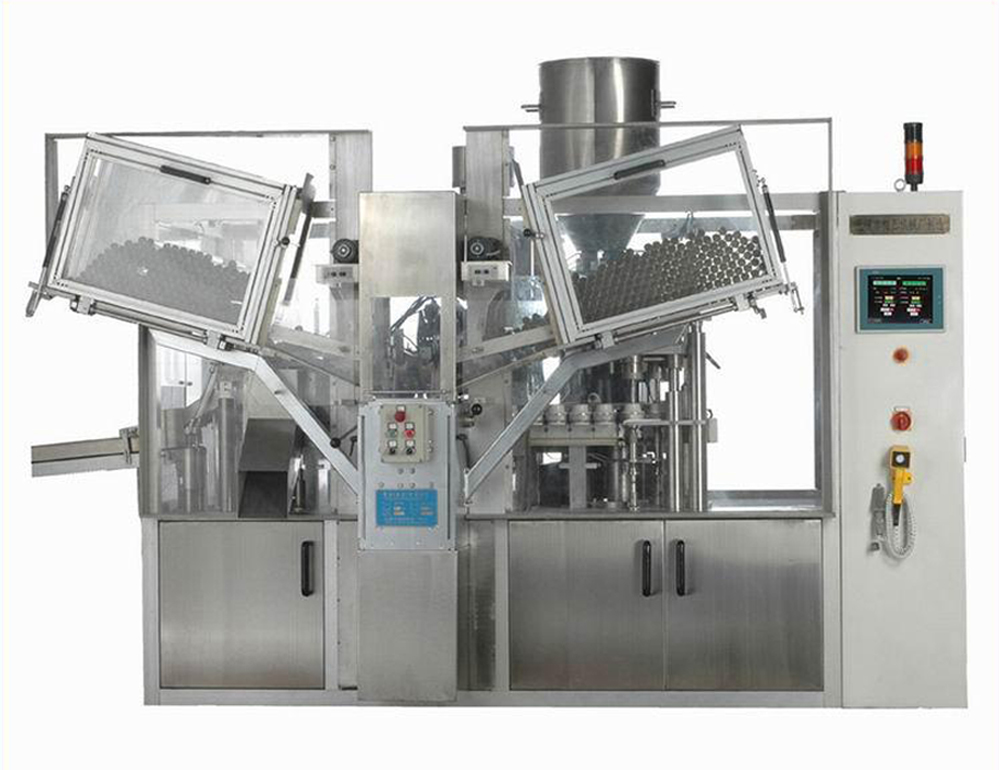

Double Heads Fully Automatic Plastic Laminated Alum Tubes Filling Sealing Machine

Double Heads Tube Filling and Sealing Machine is mainly used to filling ointment or viscous fluid materials into Aluminum tube, plastic tube PE tube or laminated tube. And then seal the tubes tail.

The machine adopts a new type dosing pump with stainless steel butterfly valve which matches with screw tiny adjustment outfit. Measure accutracy is in compliance with the standard of GMP requirement.

With PLC program-able control, accurate and reliable orientation, frequency inventer control speed.

Technical Data:

• Tube material: (Aluminum/Plastic liaminated tube)
• Tube seat quantity: 40(Seat)
• Tube diameter: 16~40 mm
• Sealing systems: (Machanic fold / Hot air)
• Filling capacity: 30~200 ml
• Capacity: 100-120(Tubes/min)
• Motor power: 2.3 Kw
• Speed adjusting: By transducer
• Dimension(L×W×H): 3000×1400×2300 mm
• Weight: 3000 kgs
• Air pressure: 0.5-0.7MPa
• Dimension: 9.5kW
• Tube Length: 180mm(Max. Length )

Guarantee: For all the machine, it claims 1 years for guarantee. (Excluded from the warranty are problems due to accidents, misuse, misapplication, storage damage, negligence, or modification to the equipment or its components. Also the easy broken spare part is not included in the guarantee)

Installation: After the machine arrive your factory, if you need, our technician will go to your place to install and test the machine and also training your worker to operating the machine (the time of train depend on you worker). The expenses (air ticket, food, hotel, the travelling fee on your country) should be on your account and you need paid for the technician usd150 per day. Also you can go to our factory to do training.

After Service: If you get the problem on the machine, our technician will go to your place to fixed the machine as soon as possible. The cost should be in your account (as above).
